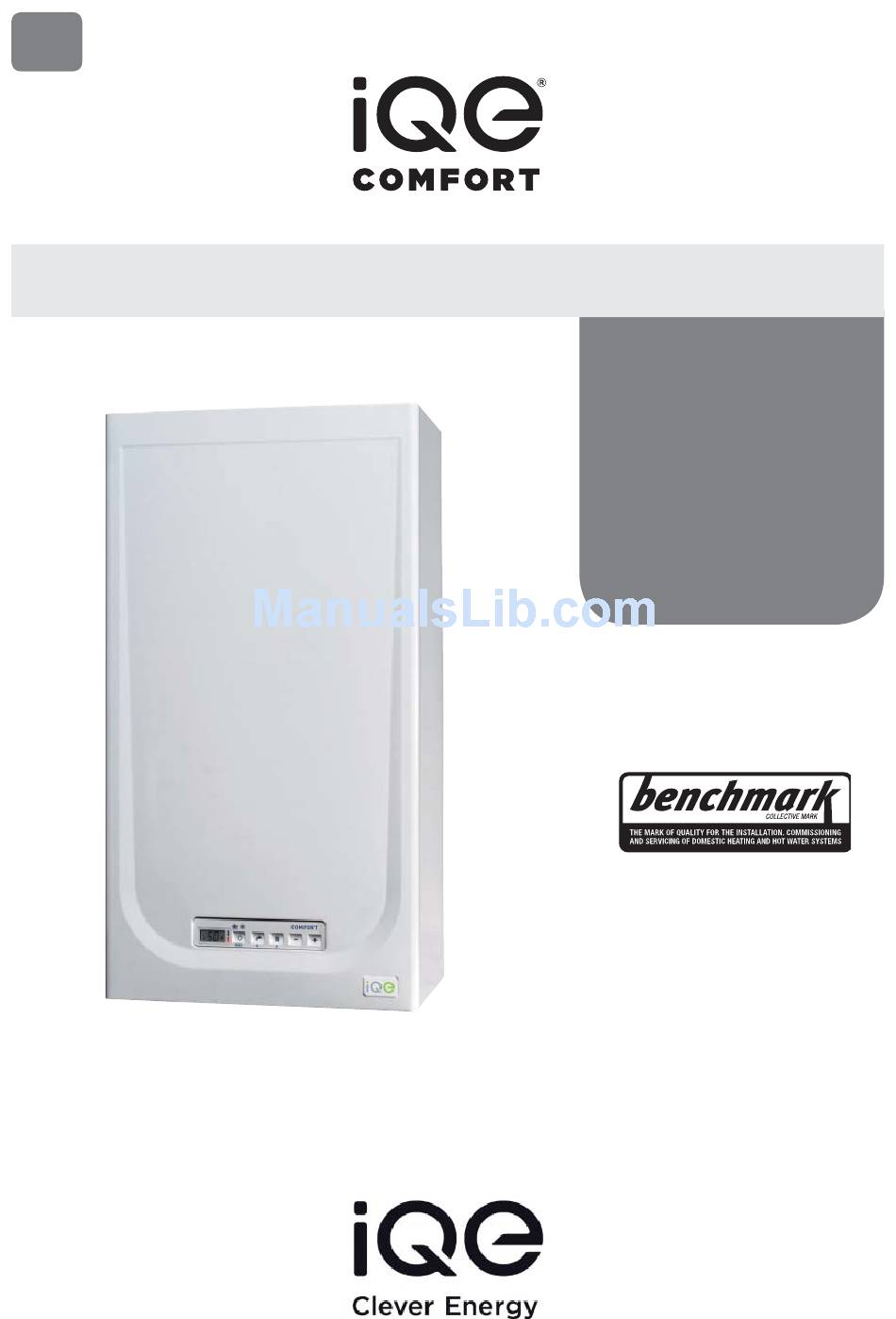

    Cod. 6318139 - 10/2013 INSTALLATION AND SERVICING INSTRUCTIONS ENSURE THAT THESE INSTRUCTIONS ARE LEFT FOR THE USER AFTER COMPLETION OF THE BENCHMARK SECTION PLEASE READ THE IMPORTANT NOTICE WITHIN THIS GUIDE REGARDING YOUR BOILER WARRANTY...

  • Page 2: Safe Handling

    IMPORTANT NOTICE For the first year all of our appliances are protected by our manufacturer’s guarantee which covers both parts and labour. As you would expect from , it is our aim to provide our valued customers with the best in after sales and service.
  • Page 4 The Benchmark Scheme The manufacturer is a licensed member of the Benchmark Scheme which aims to improve the standards of installation and commissioning of domestic heating and hot water systems in the UK and to encourage regular servicing to optimise safety, efficiency and performance. Benchmark is managed and promoted by the Heating and Hotwater Industry Council.

  • Page 5: Table Of Contents

    IPX4D COMFORT 30: Gas Council number 47-283-47 These appliances comply with the S.E.D.B.U.K. scheme, band “A” CONTENTS DESCRIPTION OF THE BOILER ...................... pag. INSTALLATION ............................. pag. 10 CHARACTERISTICS ..........................pag. 21 USE, MAINTENANCE (including BENCHMARK) AND COMMISSIONING ....... pag. 23 FAULT FINDING ............................

  • Page 6: Description Of The Boiler

    DESCRIPTION OF THE BOILER INTRODUCTION all the functions. the instructions provided in this All modules are compliant with manual. COMFORT 30 are premixed gas European Directives 2009/142/CE, The products manufactured and condensation thermal modules that 2004/108/CE, 2006/95/CE sold by do not contain any employ microprocessor-based 92/42/CE.
  • Page 7 TECHNICAL FEATURES COMFORT Heat output Nominal (80-60°C) 28.9 Nominal (50-30°C) 31.6 Reduced G20 (80-60°C) Reduced G20 (50-30°C) Reduced G31 (80-60°C) Reduced G31 (50-30°C) Heat input nominal 29.5 Heat input reduced G20/G31 6.2/8.0 Max/min useful yield (80-60°C) 98.0/95.1 Max/min useful yield (50-30°C) 107.1/106.4 Useful yield at 30% of the load (40-30°C) 107.0...
  • Page 8 FUNCTIONAL DIAGRAM (fig. 2) Expansion vessel Condensate drain trap Limit stat D.H.W. isolation valve Primary exchanger Gas isolation valve C.H. sensor (SM) C.H. flow isolation valve Gas valve C.H. return isolation valve D.H.W. exchanger D.H.W. sensor (SS) Diverter valve Safety thermostat CONNECTIONS Pump with air release vent C.H.
  • Page 9 MAIN COMPONENTS (fig. 3) Control panel Condensate drain trap C.H. sensor (SM) Safety thermostat NOTE: Analogue pressure gauge Ignition electrode Primary exchanger Air release vent Limit stat Exhaust temperature sensor Smoke chamber Expansion vessel Air inlet Ionisation electrode Pressure relief valve Air release vent Pump D.H.W.

  • Page 10: Installation

    INSTALLATION It is important that the boiler is initially filled and started for the first time using the method shown in 2.3.3 section e). This procedure should also be used when refilling after draining a boiler. The boiler must be installed in a fixed location and only by specialized and qualified person in compliance with all instructions contained in this manual.
  • Page 11 ø 60/100 ø 80/125 vessel should be included on the Domestic hot water pipework. Min Max Min Max iQE COMFORT 30 5 m 1.3 m 7 m 10 m 1.2 m 13 m CHARACTERISTICS LIST OF ø 60/100 ACCESSORIES LIST OF ø 80/125 ACCESSORIES OF FEEDWATER Coaxial duct kit L.
  • Page 12 INSTALLATION OF SEPARATE DUCTS ø 80 (fig. 7) The kit with dedicated pipes enables to separate the exhaust fumes pipes from the air suction pipes (fig. 7): – for ø 80 pipes, adaptor code 8093070 is available upon request. The maximum overall length, resulting from the sum of all the suction and discharge pipes, is determined by the load losses of the single connected...
  • Page 13 TABLE 4 Terminal position Minimum spacing – If the terminal discharges into a pathway or passageway Directly below an openable window, air vent check that combustion products will not cause nuisance or any other ventilation opening 300 mm 12 in and that the terminal will not obstruct the passageway.
  • Page 14 2.10 BOILER ELECTRICAL (fig. 11) PA (24 VDC) (24 VDC) TA (24 VDC) SE (3.3 VDC) FL (12 VDC) (3.3 VDC) SF (3.3 VDC) (3.3 VDC) TS (3.3 VDC) SM (3.3 VDC) CONNECTOR SPARE PART CODES: Fuse (1.6 AT) Ignition transformer code 6319158 Pump code 6323856...

  • Page 15: Characteristics

    CHARACTERISTICS CONTROL PANEL (fig. 12) 2 - DESCRIPTION OF CONTROLS 1 - DESCRIPTION OF DISPLAY ICONS SUMMER MODE ICON OPERATING MODE/RESET Press this key repeatedly to step from standby to summer to winter. The green LED will flash accompanied by a audible signal, to indicate that WINTER MODE ICON the key has been pressed.
  • Page 16 ACCESS TO INSTALLER’S PARAMETERS INSTALLER PARAMETERS FAST CONFIGURATION PAR DESCRIPTION RANGE UNIT OF INC/DEC DEFAULT For access to the installer’s parameters, MEASUREMENT UNIT SETTING press simultaneously the ( Combustion configuration -- = ND “--” keys for 5 seconds. The red LED flashes 1 ...
  • Page 17 EXTERNAL SENSOR (fig. 13) If there is an external sensor, the heating settings SET can be taken from the climatic curves according to the external temperature and, limited to with the range values described in point 3.2 (parameters PAR 13 and PAR 14). The climatic curve to be set can be selected from a value of 3 and 40 (at step 1).
  • Page 18 COMFORT 30 1000 1200 FLOW RATE (l/h) iQE COMFORT 30 FLOW RATE RESIDUAL (l/h) HEAD (mbar) 1050 Fig. 14 1 Condensate drain trap 2 Diverter valve 3 D.H.W. exchanger 4 Gas valve 5 D.H.W. flow switch 6 Pressure relief valve...

  • Page 19: Use, Maintenance (Including Benchmark) And Commissioning

    The set value flashes a iQE COMFORT 30 on natural gas will be show as : 2) Press button to raise the boiler to For a iQE COMFORT 30 boiler to function maximum power (Hi) . with LPG, press until 05 appears.
  • Page 20 Before activating the chimney sweep function make sure that the radiator Codice/Code 8111872 valves or zone valves are open. Modello/Model iQE COMFORT 30 The test can also be carried out with the Matricola/Serial n. 9999999999 boiler working in D.H.W. mode.
  • Page 21 the alarm “AL 02”. in C.H. and DHW and the display will Ensure that the auto air vent (12 fig. 3) is Increase the system pressure to show alarm “AL 10”. Replace the sensor opened, turn the electrical supply on. between 1.0 and 1.2 bar (use pressure because the message disappears.
  • Page 22 – Replace in reverse order Test for gas tightness. 4.8.3 Combustion Chamber Remove any loose debris from the combustion chamber using a soft brush and a vacuum cleaner. Take care not to damage the rear insulation panel. 4.8.4 Condensate Trap Fig.

  • Page 23: Gas Boiler System Commissioning Checklist

    GAS BOILER SYSTEM COMMISSIONING CHECKLIST This Commissioning Checklist is to be completed in full by the competent person who commissioned the boiler as a means of demonstrating compliance with the appropriate Building Regulations and then handed to the customer to keep for future reference. Failure to install and commission according to the manufacturer’s instructions and complete this Benchmark Commissioning Checklist will invalidate the warranty.

  • Page 24: Service Record

    SERVICE RECORD It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is completed. Service Provider Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions. SERVICE 01 SERVICE 02 Date:...

  • Page 25: Fault Finding

    FAULT FINDING If an electrical fault occurs on the SHORT CIRCUIT CHECK approx.: 240 V ac. appliance the preliminary electrical – Test leads from L to E “ ” meter system checks must be carried out first. Switches turned FULL ON - meter set on reads approx.
  • Page 26 Fig. 24 required – Setting the gas valve procedure for iQE COMFORT 30: will be displayed. – Recommission boiler Remove the heating sensor from 10. Check the analyzer CO /Ratio –...
  • Page 27 6.14 SAFETY VALVE – Isolate flow and return valves – Refit in reverse order – Drain boiler using drain vent – Isolate from mains – Remove motor head as 6.15 – Remove cover – Remove pin and withdraw the 6.20 CONDENSE TRAP –...

  • Page 28: Exploded Views

    EXPLODED VIEWS...
  • Page 30 Position Code Description 6318350 Left hand side frame part 6318300 Right hand side frame part 6267161 Main exchanger rear brachet 6010833 Main exchanger supporting bracket 6112330 Bush thermostatic 6146728 Limit stat auto reset 80øC 6226624 Spring air vent knob 6278912 Main exchanger body 6277130 Probe NTC D.4X40...
  • Page 31 Position Code Description 6227538 Return pipe from C.H. system 6226601 Spring for heat exchanger connection 6280590 Three way fitting + cap kit 6317831 Casing 6177505 Ball cock 3/4" x 22 6177530 Gas cock 3/4" F x 15 6177506 Ball cock 1/2" x 15 6142330 Quarter bend 1/2"...

  • Page 32: Appendix 1 (Guidance Hhic)

    APPENDIX 1 (GUIDANCE HHIC) INDUSTRY GUIDANCE FOR INSTALLERS ON CONDENSATE DRAINAGE PIPE INSTALLATION This guidance is endorsed by HHIC members. 1. BACKGROUND During recent winters the UK has experienced prolonged spells of extremely cold weather - down to minus 20 C and below in many areas.

  • Page 33: Table

    2.1 INTERNAL TERMINATION: Wherever possible, the condensate drainage pipe should be terminated at a suitable internal foul water discharge point such as (a) an internal soil and vent stack or (b) an internal kitchen or bathroom waste pipe, washing machine waste pipe etc. A suitable permanent connection to the foul waste pipe should be used.
  • Page 34 The use of fittings, elbows etc should be kept to a minimum and any internal “burrs” on cut pipework should be removed so that the internal pipe section is as smooth as possible. The customer/householder should be advised that even with the above measures this type of installation could freeze, and that if this were to occur then boiler shutdown could result, requiring remedial action - possibly involving a chargeable engineer call-out.
  • Page 35 NOTES The Benchmark Commissioning Checklist (located at the back of the boiler installation manual) should be completed as required to record details of the condensate drainage pipe installation. Where an external condensate drainage pipe is installed, the customer should be made aware of the risks and consequences of its freezing and offered the option to fit trace heating (or other measures approved by the boiler manufacturer or service organisation).
  • Page 36 Figure 1 – Connection of condensate drainage pipe to internal soil and vent stack Boiler Visible air break 75 mm trap Visible air break and trap not required if there is a trap with a minimum condensate seal of 75 mm incorporated into the boiler Soil and vent stack Invert 450 mm minimum up to three storeys...
  • Page 37 Figure 2(a) – Connection of a condensate drainage pipe downstream of a sink, basin, bath or shower waste trap Boiler Visible air break 75 mm trap Visible air break and trap not required if there is a trap with a minimum condensate seal of 75 mm incorporated into the boiler.
  • Page 38 Figure 2(b) – Connection of a condensate drainage pipe upstream of a sink, basin, bath or shower waste trap Boiler Visible air break at plug-hole 75 mm sink, basin, bath or shower waste trap Sink, basin, bath or shower with integral overflow Open end of condensate drainage pipe direct into gully 25 mm min below grating but above water level;...
  • Page 39 Figure 3 – Connection of a condensate pump - typical method (NB manufacturer’s detailed instructions should be followed). IND GUIDE INST 10-11 HHIC REF T11/0027BRev8...
  • Page 40 Figure 4 – Connection of condensate drainage pipe to external soil and vent stack Boiler 450 mm minimum up to three storeys Visible air break Minimum internal diameter 19 mm 75 mm trap Pipe size transition point Visible air break and trap not required if Minimum internal diameter 30 mm there is a trap with a minimum condensate seal of 75 mm incorporated into the boiler.
  • Page 41 Figure 5 – External termination to rainwater downpipe (NB only combined foul/rainwater drain) Condensate discharge pipe from boiler Air gap Pipe size transition point 68 mm PVCu strap-on fitting Water/weather proof insulation Minimum internal diameter 19 mm 43 mm 90° male/female bend Minimum internal diameter 30 mm External rain water pipe into foul water End cut at 45 °...
  • Page 42 Figure 6 – External drain, gully or rainwater hopper Boiler Visible air break 38 mm minimum trap Visible air break and trap not required if there is a trap with a minimum condensate seal of 38 mm incorporated into the boiler External length of pipe 3 m maximum Open end of condensate drainage pipe direct into gully 25 mm min below grating but above water level;...
  • Page 43 Figure 7 – Example of a purpose-made soakaway Condensate discharge pipe from boiler Ground (this section of the condensate drainage pipe may be run either above or below ground level); End cut at 45 ° Diameter 100 mm minimum plastic tube Bottom of tube sealed Limestone chippings Two rows of three 12 mm holes at 25 mm centres, 50 mm from bottom of tube and...
  • Page 44 APPENDIX 2 FLOWCHART FOR CO AND COMBUSTION RATIO CHECK ON COMMISSIONING A CONDENSING BOILER PRIOR TO CO AND COMBUSTION RATIO CHECK The installation instructions should have been followed, gas type verified and gas supply pressure/rate checked as required prior to commissioning. As part of the installation process, ESPECIALLY WHERE A FLUE HAS BEEN FITTED BY PERSONS OTHER THAN THE BOILER INSTALLER, visually check the integri- ty of the whole flue system to confirm that all components are correctly asembled, fixed and supported.
  • Page 45 NOTES...
  • Page 46 NOTES...
  • Page 48 Trade House BA22 8RT Phone: 0800 0152252...
