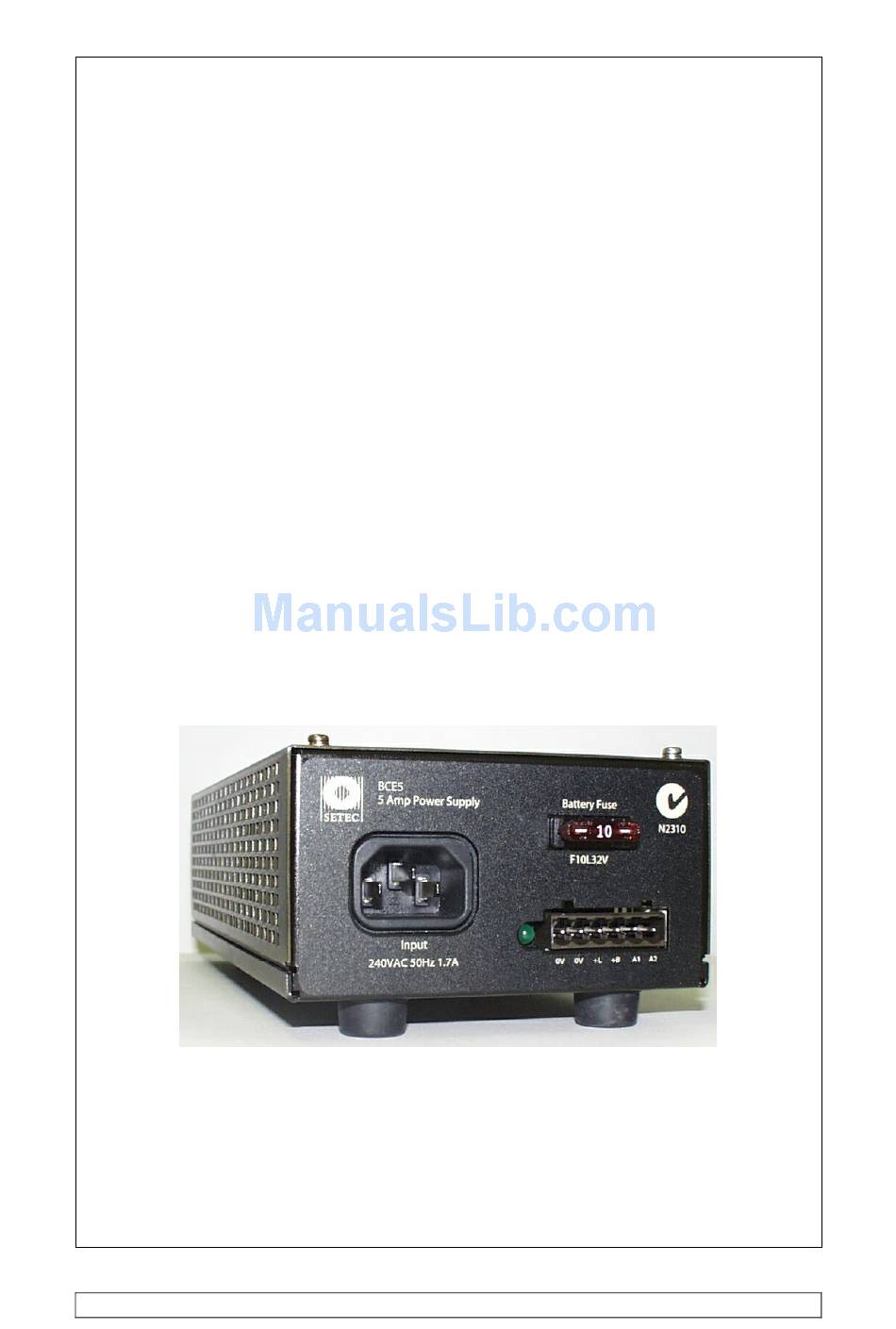

  • Page 1 SETEC MODEL BCE4 & BCE5 USER’S MANUAL Document No 010812 Issue D Page 1 of 13...
  • Page 2 Manufactured by: SETEC Pty Ltd 19 Henderson Road Knoxfield 3180 AUSTRALIA Phone: +61 3 9763 0962 Fax: +61 3 9763 8789 Email: sales@setec.com.au WARNING: This product Contains Hazardous voltages which can cause death. It should only be serviced by properly qualified personnel.
  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION......................4 OPERATION ....................... 5 Safety ........................5 Operating Modes ....................5 Protection......................5 Battery LVD Operation..................6 Indicators ......................6 Alarm ........................6 Output Voltage Adjustment.................. 6 SPECIFICATION......................8 MECHANICAL......................9 MOUNTING....................... 10 INSTALLATION......................11 Personnel ......................11 Mounting Options....................
  • Page 4: Introduction

    INTRODUCTION The SETEC models BCE4 and BCE5 (battery charger/eliminator) provide a power output of 140 watt at 13.6 and 27.2V respectively. The nominal input mains may be 200V to 240V and 50Hz or 60Hz (a 100 to 120V version is available, consult the factory for details).
  • Page 5: Operation

    If every consideration in the Installation section of this manual has been satisfied the power supply will be safe to operate. Operating Modes The BCE4 and BCE5 have three main operating modes: • As a battery eliminator it may be used to power equipment requiring 12V –14V at 10Amps.
  • Page 6: Battery Lvd Operation

    • Accurate current limit protection is provided for both load and battery. Automatic recovery from short circuit is provided with no current tailing in short circuit operation. • Over voltage protection provides shutdown of power supply. • Inrush Surge limiting at turn on. Battery LVD Operation A low voltage disconnect (LVD) is provided to prevent deep discharge of the battery.
  • Page 7 When adjusting the output voltage, measure the voltage at the output connector with the battery disconnected. Failure to disconnect the battery can result in incorrect output voltage setting, and over charging of the battery may result. The output voltage is factory set to 13.65V (27.20V for BCE5) Issue D Page 7 of 13...
  • Page 8: Specification

    SPECIFICATION The following table lists the specifications of the BCE4 and BCE5 Specification 200-240V nominal, ±10%, 50/60Hz. Input Voltage: A 5 minute, +15% surge will not damage the power supply. Input Surge: <40A >20mS, over the nominal input range Holdup Time:...
  • Page 9: Mechanical

    MECHANICAL 111.0 224.0 59.0 Figure 1 – Overall Dimensions 13.0 47.8 186.5 81.6 63.0 15.3 10.0 Figure 2 – Mounting Points Turn clockwise to increase output voltage Figure 3 – Voltage Adjustment Issue D Page 9 of 13...
  • Page 10: Mounting

    MOUNTING M3 Screw Front Panel Maximum protrusion of M3 screw into chassis is 4mm Figure 3 – Front Panel Mounting Rubber Feet Flat Washer M3 x 8mm Screw Figure 5 – Bench Mounting M3 Screw Mounting Panel Maximum protrusion of M3 screw into chassis is 4mm Figure 6 –...
  • Page 11: Installation

    Phoenix: MSTB 2.5/6-ST Weco 120-A-111/06 Camden CTB9200/6A Hooking Up The requirements for wiring a BCE4/BCE5 into a system are as follows: LOAD, 0V These 2 connections are the DC output of the power supply. These connections are to supply the load.
  • Page 12: Cabling

    BCE5. A minimum cable size of 1.5mm (16AWG) is recommended for BCE4 Note, maximum size of cable to output connector is 2.5 mm or 12AWG DC load cables must be sized to carry the maximum full load current and not exceed the system volt-drop requirements.
  • Page 13: Cooling

    Cooling The BCE5 power supply has been design for convection cooling. It is, therefore, very important that its natural airflow is unimpeded. For maximum output power at maximum ambient temperature it is recommended that the following spaces above and below the power supply are provided.
