Related Manuals for Philips AZ1
Summary of Contents for Philips AZ1

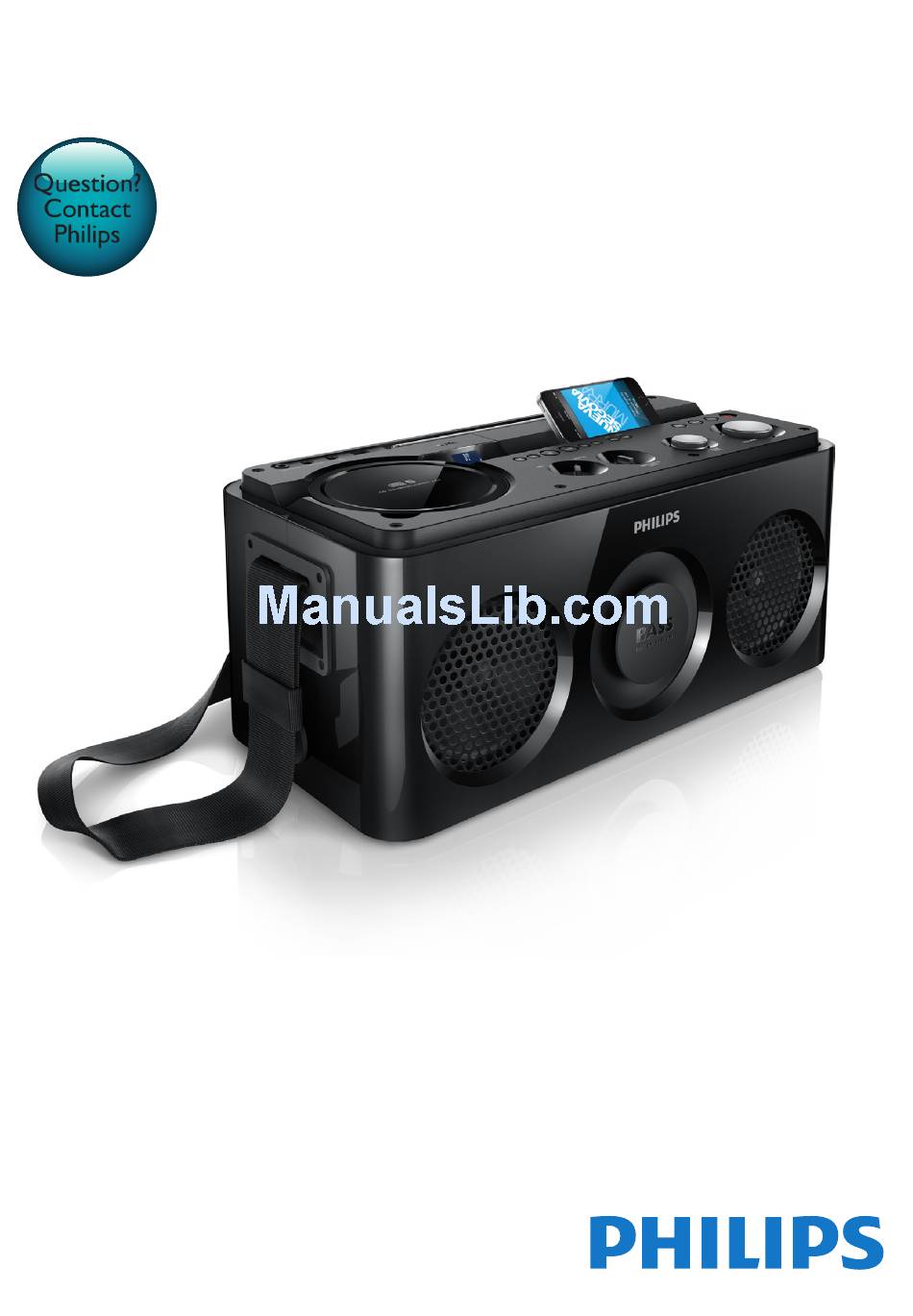

- Page 1 Always there to help you Register your product and get support at www.philips.com/welcome Question? Contact Philips User manual...
-
Page 3: Table Of Contents
Contents 8 Adjust volume and sound effect Adjust volume Select a preset sound effect 1 Important Adjust bass level Know these safety symbols Turn the instant power boost on or off 15 Hearing safety 9 Other features 2 Your CD Soundmachine Mix sound with a microphone/guitar Introduction Listen to an external audio device... -
Page 4: Important
1 Important • Battery usage CAUTION – To prevent battery leakage which may result in bodily injury, property damage, or damage to the product: • Install all batteries correctly, + and - as marked on the product. Know these safety symbols • Do not mix batteries (old and new or carbon and alkaline, etc.). -
Page 5: Hearing Safety
Hearing safety Listen at a moderate volume. • Using headphones at a high volume can impair your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing loss. -
Page 6: Your Cd Soundmachine
2 Your CD Soundmachine Congratulations on your purchase, and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome. Introduction With this product, you can • enjoy audio from discs, USB devices, your Bluetooth-enabled devices, or other external audio devices;... -
Page 7: Overview Of The Product
Overview of the product C D S O U N D M A C H I N E A Z1 a Disc compartment h SOUND • Select a preset sound setting. b MIC/GUITAR switch • Switch to microphone or guitar mode. i MAX SOUND • Turn the instant power boost on or off. - Page 8 p MIC/GUITAR socket • Connect a microphone or guitar. • Skip to the previous or next album. • Select a preset radio station. • Stop play or erase a program. • In Bluetooth mode, clear Bluetooth pairing information. • In Bluetooth mode, disconnect a Bluetooth device.
-
Page 9: Get Started
3 Get started Note • Batteries are not supplied with the accessories. Always follow the instructions in this chapter in Open the battery compartment. sequence. Insert 8 batteries (type: R20/ D CELL/ UM 1) with correct polarity (+/-) as indicated. Use the shoulder strap Close the battery compartment. -
Page 10: Turn On
Press to start full scan. Turn on » The product automatically stores FM radio stations with sufficient signal Press to turn on the product. strength. » The product switches to the last » After all stations are stored, the selected source. first preset station is broadcast automatically. Switch to standby mode »... -
Page 11: Play From A Disc Or Usb
4 Play from a disc Insert the USB device into the micro USB socket. or USB Play a disc Note • Make sure that the disc contains playable audio content. On the top panel, pull up to open the disc Press SOURCE repeatedly to select USB compartment. -
Page 12: Program Tracks
Program tracks In CD or USB mode, you can program a maximum of 20 tracks. When playback is stopped, press and hold PROG for 2 seconds to activate the program mode. » [PROG] (program) blinks on the display. For MP3 tracks, press to select an album. -
Page 13: Play From Bluetooth-Enabled Devices
5 Play from When [PHILIPS AZ1] is displayed on your device, select it to start pairing and Bluetooth- connection. If necessary, enter default password “0000”. enabled devices » After successful pairing and connection, the product beeps twice. To disconnect the Bluetooth-enabled device: •... -
Page 14: Play From Bluetooth Device
C D S O U N D M AC H I N E A Z1 On your Bluetooth device, accept the pairing request with "AZ1". If necessary, input "0000" as the pairing password. Follow the on-screen instructions to complete the pairing and connection. » After successful pairing and connection, the product beeps twice. -
Page 15: Play From Ipod/Iphone/Ipad
6 Play from iPod/ iPhone/iPad You can enjoy audio from iPod/iPhone/iPad through this product. Compatible iPod/iPhone/iPad The product supports the following iPod, iPhone, and iPad models: Made for. • iPod touch (2nd, 3rd, 4th, and 5th generation) Play audio on the iPod/iPhone/iPad. •... -
Page 16: Listen To Radio
7 Listen to radio Program FM radio stations manually Note Tune to FM radio stations • To overwrite a programmed radio station, store another station in its place. Note Tune to a radio station. • For better reception, fully extend and adjust the Press and hold PROG for 3 seconds to position of the antenna. -
Page 17: Adjust Volume And Sound Effect
8 Adjust volume and sound effect Adjust volume During play, rotate VOLUME knob to increase or decrease volume. Select a preset sound effect During play, press SOUND repeatedly to select a preset sound effect: [FLAT] (flat) • [JAZZ] (jazz) • • [POP] (pop) [ROCK] (rock) •... -
Page 18: Other Features
9 Other features Adjust the MIC/GUITAR switch to the MIC or GUITAR position. Select an audio source (FM tuner/ Bluetooth/AUDIO IN/Disc/USB) and start play. Play your guitar or sing through the Mix sound with a microphone. microphone/guitar • To adjust the volume of the source, rotate the VOLUME knob. -
Page 19: Set Sleep Timer
Set sleep timer Turn on the product. Press SLEEP repeatedly to select a period (in minutes). » The product switches to standby mode automatically after the preset period. To deactivate the sleep timer: • Press SLEEP repeatedly until [OFF] (off) appears. Note •... -
Page 20: Product Information
10 Product General information information Power supply - AC Power 100 - 240V ~, 50/60 Hz - Battery 8 x 1.5 V R20/D Cell/ UM 1 Note Operation Power 30 W Consumption (AC • Product information is subject to change without prior mode) notice. -
Page 21: Rds Program Types
ALARM Alarm Clean the disc lens • After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good play quality, clean the disc lens with Philips CD lens cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner. -
Page 22: Troubleshooting
If you encounter problems when using this device, check the following points before About Bluetooth device requesting service. If the problem remains unsolved, go to the Philips Web page (www. The audio quality is poor after connection philips.com/support). When you contact Philips, with a Bluetooth-enabled device. -
Page 23: Notice
(box), requirements and other relevant provisions polystyrene foam (buffer) and polyethylene of Directive 1999/5/EC. You can find the (bags, protective foam sheet.) Declaration of Conformity on www.philips.com/ Your system consists of materials which can support. be recycled and reused if disassembled by a specialized company. Please observe the... - Page 24 “Made for iPod, ” “Made for iPhone, ” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
- Page 26 Specifications are subject to change without notice. 2014 © WOOX Innovations Limited. All rights reserved. Philips and the Philips’ Shield Emblem are registered trademarks of Koninklijke Philips N.V. and are used by WOOX Innovations Limited under license from Koninklijke Philips N.V.
