HIGH EFFICIENCY GAS LOG SPACE HEATER
CONSOLE MODEL
CUSTOMER OPERATING INFORMATION
Installation INSTRUCTIONS
Serial Number of Heater: ____________ Model: ___________________
Hermitage Gas Heaters
Revised: 23/08/2012
COONARA "HERMITAGE"
&
ARE AUSTRALIAN OWNED & MANUFACTURED BY
SHAMIC SHEETMETAL
SHAMIC SHEETMETAL
SHAMIC SHEETMETAL
SHAMIC SHEETMETAL
PO BOX 8, KILSYTH, VIC. 3136PH: 03 9737 5300 FAX: 03 9761 6455
www.shamicheating.com.au
(AUST.) PTY. LTD.
1
Printed
Printed: 20/03/2013
Advertisement
Table of Contents
Related Manuals for Coonara INBUILT
Summary of Contents for Coonara INBUILT
-
Page 1: Installation Instructions

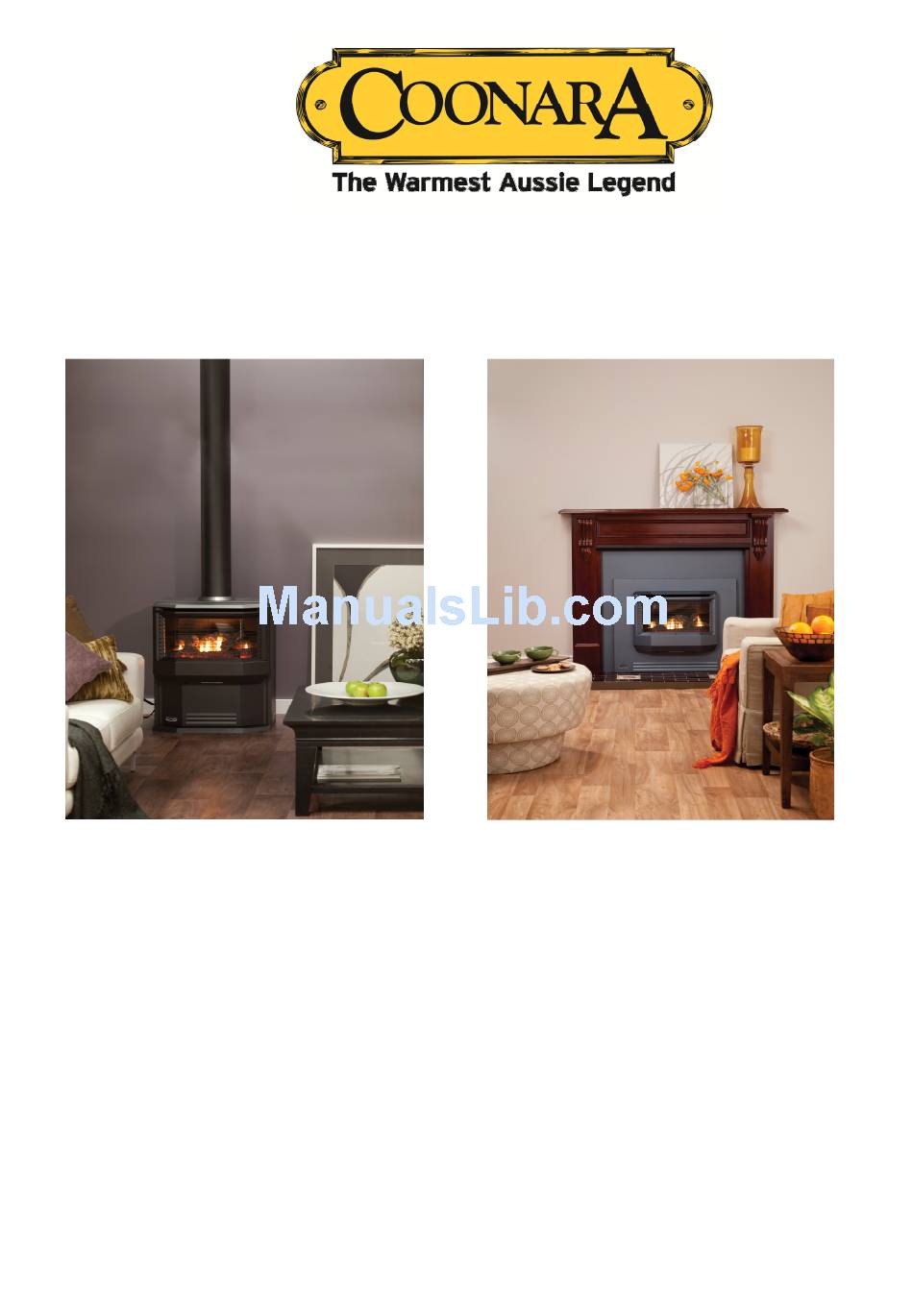

COONARA “HERMITAGE” HIGH EFFICIENCY GAS LOG SPACE HEATER CONSOLE MODEL INBUILT MODEL CUSTOMER OPERATING INFORMATION & INSTALLATION INSTRUCTIONS Serial Number of Heater: ____________ Model: ___________________ Hermitage Gas Heaters ARE AUSTRALIAN OWNED & MANUFACTURED BY SHAMIC SHEETMETAL SHAMIC SHEETMETAL SHAMIC SHEETMETAL SHAMIC SHEETMETAL (AUST.) PTY. - Page 2 Heater must be installed by an authorized person. You must obtain a license number from the installer. Heater must be placed on a flat level surface. Inbuilt models must be placed on AC sheeting, to prevent unit from rattling. Heater must be checked for scratches or dents prior to installation.
- Page 3 ONTENTS PRODUCT FEATURES CUSTOMER OPERATING INSTRUCTIONS SAFETY PRECAUTIONS SAFETY FEATURES INSTALLATION INSTRUCTIONS 8-14 LOG INSTALLATION & WIRING DIAGRAM GAS VALVE ADJUSTMENT TROUBLESHOOTING GUIDE DIMENSIONS & WARRANTY 18-19 CARE OF APPLIANCE SERVICE CONTACT & WARRANTY INFORMATION Revised: 23/08/2012 Printed Printed: 20/03/2013...
- Page 4 Delayed stop room fan - aids cool down of unit when switched off. Power flue. Integrated safety features. The Coonara “Hermitage” Freestanding and Inbuilt and the Chateau and Chateau II Inbuilt models are approved by the Australian Gas Association to code AS4553-2008 for gas space heating appliances. AGA Approval No. 6165...
- Page 5 This appliance shall only be installed in accordance with: AS/NZS 5601 (Gas Installation Standard), Manufacturer’s Installation Instructions, Local Gas Fitting Regulations, Municipal Building Codes. This appliance must only be installed and serviced by an authorised person Please store this manual in a safe place for future reference Revised: 23/08/2012 Printed Printed: 20/03/2013...
-
Page 6: Important Points
It is recommended that a secondary guard be used, to prevent access to appliance by children, as outer panels of this appliance may reach high temperatures. Note: In the event that the electricity supply cord is damaged it must be replaced with Coonara part # 6306, obtainable from authorised gas retailers. - Page 7 SAFETY FEATURES Automatic Shut-Off: Should the flame extinguish for any reason, there is an automatic close off of the gas supply. Note: fans will continue to operate as normal. Over Temperature Protection: In the event of the room fan failing, blockage of airways, or incorrect gas installation, the gas supply will be automatically closed off to prevent the appliance over-heating.
- Page 8 WARNING Heater must be checked for scratches or dents prior to installation. Once the Heater is installed scratches or dents are not covered by warranty. NSTALLATION – Must be placed on a flat level surface to prevent rattles. Freestanding Model Note: Not intended for fireplace insert.
- Page 9 90 Degree Wall Penetration Flue Installation 1. Determine the exact location for the heater 2. Attach the outer 900 mm flue and 90 degree bend to the heater 3. Mark the exact location for the wall penetration • Determine that you will not be cutting through any vertical wall studs. •...
- Page 10 7. Unpack the log set from their separate carton and position them in the firebox as shown in the diagram on Page 14. 8. Install the flue – see Inbuilt Model – Flue installation Pages 10 & 11. 9. Locate the heater body into the fireplace cavity, or, pre-built wall cavity. Connect the gas supply, purge gas lines, check all connections for leaks, check pressures (refer page 15) 10.
- Page 11 VERTICAL FLUE NSTALLATION INBUILT MODEL 1. Connect flue terminal to both flexible flue pipes. The exhaust pipe is colour coded RED at each end, the exhaust outlet on the heater body and the exhaust port at the flue terminal. 2. Feed both flexible pipes down the flue cavity.
- Page 12 INBUILT MODEL Horizontal Flue Installation Installation into an existing fireplace. 1. Mark the centre line of the heater location and using the diagram (Fig 1) determine the exact location for the flue pipes and flue terminal. NOTE – Check that the location for the flue terminal conforms to the requirements of AS/NZS 5601 location of a flue terminal.
- Page 13 Installation in a Stud wall cavity. 1. Mark the exact location of where the heater is to be located with an outline 720mm wide by 615mm high 2. Check that location for the flue terminal conforms to the requirements of AS/NZS 5601 Location of a Flue Terminal.
- Page 14 IMPORTANT! The Hermitage Gas Log Heater must always be vented to the outside! IMPORTANT! Cut outer flue casing to ensure inner Flue (exhaust pipe) protrudes 50 mm above outer casing! Crimped ends must point upwards! Revised: 23/08/2012 Printed Printed: 20/03/2013...
-
Page 15: Wiring Diagram
NSTALLATION OF 1. Place the rear log on the top rear burner plate as shown. 2. Place front log on the front section of the burner. 3. Fit the cross logs (as illustrated below) to the pins located on the front and rear logs. Logs should not touch the sensor or sparker. - Page 16 Natural Gas Burner test point pressure – HIGH 0.9 kPa, LOW 0.48 kPa Primary air shutter adjustment – fully open (Freestander) fully open (Inbuilt) Natural gas injector orifice – 2.8mm diameter LPG Gas Burner test point pressure HIGH 2.75 kPa, LOW 1.30 kPa Primary air shutter adjustment –...
- Page 17 ROUBLESHOOTING UIDE PROBLEM POSSIBLE CAUSE REMEDY Appliance fails to No gas or supply pressure insufficient. Ensure gas supply connected, purged, and pressure ignite. appropriate. No electrical supply. Ensure unit plugged in and switch is on, check supply fuse. Incorrectly wired power point. Check supply.
- Page 18 250mm from right side of unit How to Make a Warranty Claim Coonara, Heatcharm, Arrow and Settler Heaters. The full Warranty Statement for your heater is contained in the Installation and Operating Instructions booklet that was provided with the product.
- Page 19 (2) years from date of purchase, excluding door glass and decorative logs. 3) If this Coonara heater is found to be defective in material or workmanship Shamic will repair or replace such defects in the Coonara heater at Shamic’s option in accordance with Coonara’s warranty policy during the period on this warranty.
- Page 20 Hermitage G ARE OF YOUR EATER This appliance requires minimal maintenance, however, it is recommended that a full service and check be made by a qualified person annually. The fascia should be removed and the fan vacuumed annually. To clean the appliance, simply wipe over with a damp cloth. Do not use solvents or abrasive cleaning agents.
- Page 21 For your nearest authorised service company, please contact: SHAMIC SHEETMETAL SHAMIC SHEETMETAL SHAMIC SHEETMETAL SHAMIC SHEETMETAL (AUST.) PTY. LTD. 14 – 18 Research Drive, CROYDON SOUTH, VIC. 3136 POSTAL ADDRESS: P.O. Box 8, KILSYTH, VIC. 3137 Phone: (03) 9737 5300 Fax: (03) 9761 6455 Email: info@shamic.com.au DETACH AND RETURN BY MAIL...
