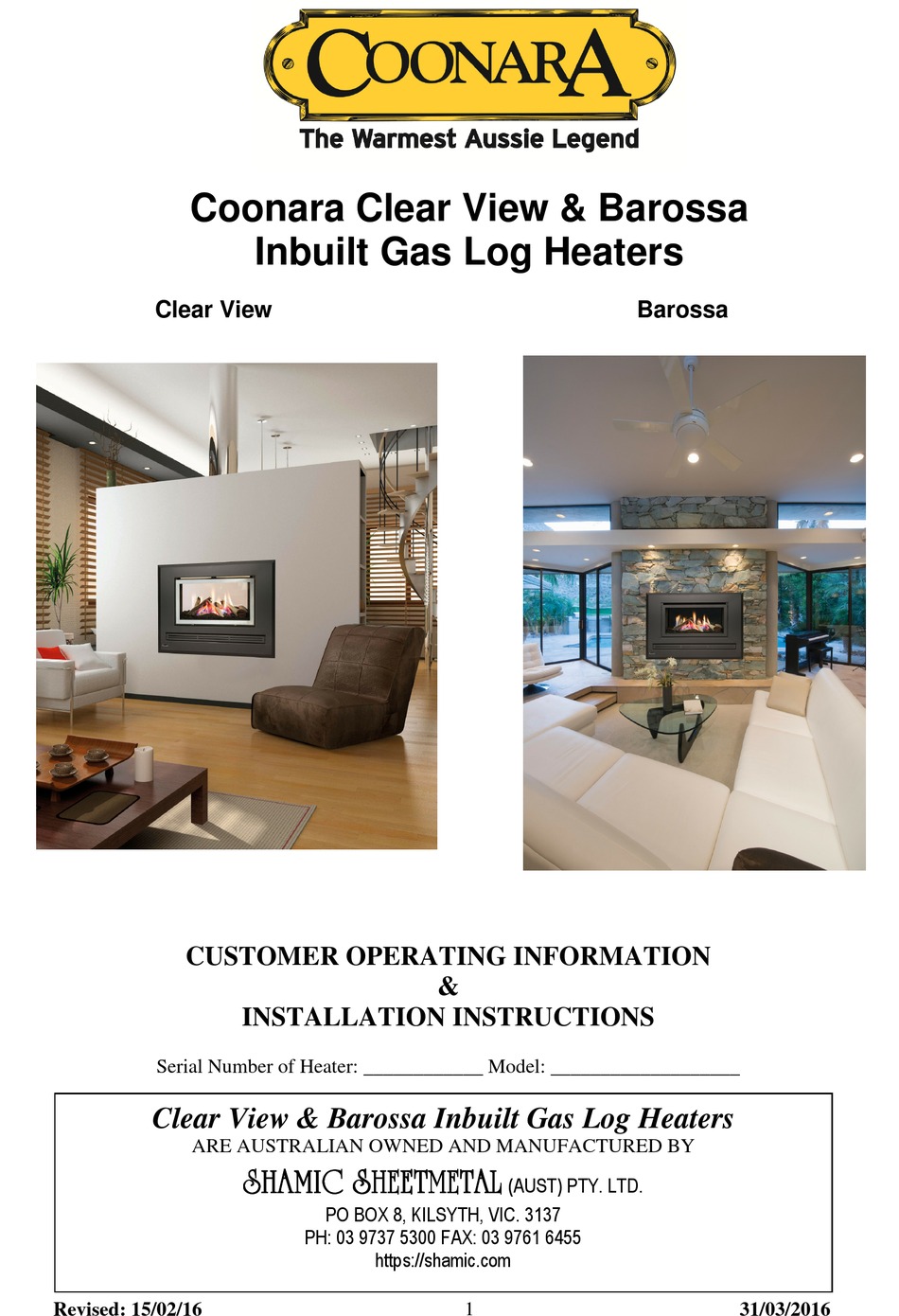

Coonara Clear View & Barossa
Clear View
CUSTOMER OPERATING INFORMATION
Serial Number of Heater: ____________ Model: ___________________
Clear View & Barossa Inbuilt Gas Log Heaters
Serial Number of Heater
ARE AUSTRALIAN OWNED AND MANUFACTURED BY
Revised: 15/02/16
Inbuilt Gas Log Heaters
INSTALLATION INSTRUCTIONS
SHAMIC SHEETMETAL
SHAMIC SHEETMETAL
SHAMIC SHEETMETAL
SHAMIC SHEETMETAL
PO BOX 8, KILSYTH, VIC. 3137
PH: 03 9737 5300 FAX: 03 9761 6455
https://shamic.com
&
Model:
: ____________
(AUST) PTY. LTD.
1
Barossa
________________
31/03/2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Barossa and is the answer not in the manual?

Questions and answers

Related Manuals for Coonara Barossa

Summary of Contents for Coonara Barossa

  • Page 1 Clear View Barossa CUSTOMER OPERATING INFORMATION & INSTALLATION INSTRUCTIONS Serial Number of Heater: ____________ Model: ___________________ Clear View & Barossa Inbuilt Gas Log Heaters Serial Number of Heater Model: ARE AUSTRALIAN OWNED AND MANUFACTURED BY : ____________ ________________ SHAMIC SHEETMETAL...
  • Page 2 WARNING THE FOLLOWING INSTRUCTIONS MUST BE CARRIED OUT OR WARRANTY BECOMES VOID. Heater must be installed by a Coonara authorised technician. List is available on www.shamicheating.com. You must obtain a license number from the installer. Inbuilt and Freestanding Heaters must be placed on a flat level surface.

  • Page 3: Table Of Contents

    CONTENTS PRODUCT FEATURES…………………………………………………….4 SAFETY PRECAUTIONS………………………………………………..…5 CONTROLLER OPERATING INSTRUCTIONS………………………..6 CUSTOMER OPERATING INSTRUCTIONS……………………………6-7 SAFETY FEATURES……………………………………………………..7 INSTALLATION INSTRUCTIONS………………………………….…..8-15 DIMENSIONS INBUILT MODELS .…………..……………………..16-18 PRESSURE ADJUSTMENTS……………..……….……………………...19 WIRING DIAGRAM & PRESSURE SWITCH ………………………..20 PRESSURE SWITCH & BURNER REMOVAL …..…………………….21 LOG SET……………….………………………………………………..22-24 WARRANTY & CARE OF APPLIANCE …………………………..25-27 TROUBLE SHOOTING GUIDE.

  • Page 4: Product Features

    Product Features COONARA “CLEAR VIEW” & “BAROSSA” GAS LOG HEATERS NAME PLATE COONARA CLEAR VIEW & NATURAL GAS BAROSSA Manufacturer GAS TYPE MODEL TYPE Inbuilt Shamic Sheetmetal (Aust.) Pty.Ltd GAS INPUT PO BOX 8, HIGH 36 MJ/h KILSYTH, 27 MJ/h VIC.

  • Page 5: Safety Precautions

    ACCESS TO THE APPLIANCE BY YOUNG CHILDREN AS OUTER PANELS MAY REACH HIGH TEMPERATURES. INSTALLATION THIS APPLIANCE SHALL ONLY BE INSTALLED BY A COONARA AUTHORISED TECHNICIAN IN ACCORDANCE WITH: - AS/NZ S 5601.1 (GAS INSTALLATION CODE) - MANUFACTURERS INSTALLATION INSTRUCTION - LOCAL GAS FITTING REGULATIONS, AND - MUNICIPAL BUILDING CODES.

  • Page 6: Controller Operating Instructions

    The Coonara Clear View Gas log Heater has been designed for a simple and efficient operation to provide you with a higher heat output than most other heaters in the market. The heater will provide you with a fully controlled modulated supply of heat, from a pleasant and steady warmth to the strongest heat output, to reach almost any corner of your area.

  • Page 7: Safety Features

    Warning This appliance must be installed to comply with AS/NZS 5601.1 codes regulations and only by a Coonara authorised technician who is responsible for its correct operation at the time of installation and final commissioning. For your own convenience please record the following information in the space provided: Purchased from: Name…………………………………………………………………………...

  • Page 8: Installation Instructions

    1. To access flue fan on the Barossa the heater needs to be removed 2. To access the flue fan on the Clearview only the rear fascia needs to be removed 3. To access all other componentry on the Barossa & Clearview the front fascia needs to be removed 4.
  • Page 9 ALL MODELS ARE TO BE PLACED ON A FLAT LEVEL SURFACE TO PREVENT RATTLES Revised: 15/02/16 31/03/2016...
  • Page 10 VERTICAL FLUE INSTALLATION 1. Connect flue terminal to both flexible flue pipes. 2. Feed both flexible pipes down the flue cavity. 3. Fix flue terminal securely to top of the flue cavity and seal to prevent water entry. Seal with Hi temperature waterproof silicon sealant prior to cementing to chimney top, pop rivet circular flange to the collector box.
  • Page 11 2. Carefully remove the cardboard carton surrounding the heater. 3. Remove fascia on Barossa & both fascias on the Clear View. To remove fascia undo 2 screws either end of air intake panel and slide fascia up vertically off the hooks.
  • Page 12 INBUILT INSTALL INTO A STUD WALL CAVITY Framing Specifications Clearview & Barossa Gas Supply Cement Sheet Power Point for floor installation * Gas Inlet to be ½” Fem BSP Clearview Barossa * Power Outlet left hand side Front Opening A) 1000mm...
  • Page 13 “CLEAR VIEW” DOUBLE SIDED EXTERNAL DIMENSIONS FOR WALL THICKNESS - 100MM TO 248MM Revised: 15/02/16 31/03/2016...
  • Page 14 CLEAR VIEW DOUBLE SIDED – FOR WALL THICKNESS - 100MM TO 248MM SPIGOT PLATE The flue outlets are factory set to accommodate plaster board, this can be adjusted to accept 30mm. i.e allowance for tiles. To adjust take off the plate, undo 4 screws, slide the spigot forward, then tighten screws. Make sure screws are tight and the unit is sealed.
  • Page 15 “CLEAR VIEW” DOUBLE SIDED EXTERNAL DIMENSIONS FOR WALL MAXIMUM THICKNESS - 248MM Revised: 15/02/16 31/03/2016...

  • Page 16: Dimensions Inbuilt Models

    CLEAR VIEW DOUBLE SIDED – FOR MAXIMUM WALL THICKNESS - 248MM SPIGOT PLATE The flue outlets are factory set to accommodate plaster board, this can be adjusted to accept 30mm. i.e allowance for tiles. To adjust take off the plate, undo 4 screws, slide the spigot forward, then tighten screws. Make sure screws are tight and the unit is sealed.
  • Page 17 “BAROSSA” SINGLE SIDED EXTERNAL DIMENSIONS Revised: 15/02/16 31/03/2016...
  • Page 18 “BAROSSA” SINGLE SIDED Revised: 15/02/16 31/03/2016...

  • Page 19: Pressure Adjustment

    PRESSURE ADJUSTMENT Your Coonara Clear View & Barossa Heater has been fully factory preset and adjusted and should not need to be re-adjusted during installation. Gas pressures still need to be checked to the pressures shown on Page 4 of this manual. But there will be some situations where some service has to be carried out and...

  • Page 20: Wiring Diagram & Pressure Switch

    WIRING DIAGRAM Revised: 15/02/16 31/03/2016...

  • Page 21: Pressure Switch & Burner Removal

    ONLY TO BE CARRIED OUT BY AN COONARA AUTHORISED TECHNITIAN The Coonara Clear View & Barossa burner is of composite type. The bottom part is made of Steel and the top is made of high temperature ceramic with the gas port holes and features embedded in the casting.
  • Page 22 COONARA CLEAR VIEW & BAROSSSA LOG SET LOCATION DETAILS All logs have self-locating points moulded into them. This allows for accurate positioning of logs Fixed logs – part of ember bed STEP 1 STEP 2 Revised: 15/02/16 31/03/2016...
  • Page 23 STEP 3 STEP 4 STEP 5 Revised: 15/02/16 31/03/2016...

  • Page 24: Log Set

    STEP 6 LOG SET FRONT VIEW Revised: 15/02/16 31/03/2016...

  • Page 25: Warranty & Care Of Appliance

    How to Make a Warranty Claim Coonara, Heatcharm, Arrow The full Warranty Statement for your heater is contained in the Installation and Operating Instructions booklet that was provided with the product. 1. Check the details of the warranty statement 2. Determine if you think the problem is covered by warranty 3.
  • Page 26 (2) years from date of purchase, excluding door glass and decorative logs. 3) If this Coonara heater is found to be defective in material or workmanship Shamic will repair or replace such defects in the Coonara heater at Shamic’s option in accordance with Coonara’s warranty policy during the period on this warranty.
  • Page 27 7) This warranty applies only to units purchased from an authorised dealer and the duration of this implied warranty, including merchantability, applicable to this Coonara heater is limited to the duration of the foregoing warranty. 8) Before Shamic Sheetmetal (Aust.) Pty.Ltd. will recognise or accept a claim under this warranty, you must provide proof of purchase.

  • Page 28: Trouble Shooting Guide

    ROUBLE SHOOTING UIDE PROBLEM POSSIBLE CAUSE REMEDY Appliance fails to No gas supply or pressure insufficient. Ensure gas supply connected, purged, and pressure ignite. appropriate. Ensure unit plugged in and switch is on, check No electrical supply. supply fuse. Check supply. Active, neutral, & earth must be correctly orientated and connected.

  • Page 29: Warranty Form & Contact Details

    All service work to be carried out by a qualified & Coonara authorised technician For your nearest authorised service company, please contact: SHAMIC SHEETMETAL SHAMIC SHEETMETAL SHAMIC SHEETMETAL SHAMIC SHEETMETAL (AUST.) PTY. LTD. 14 – 18 Research Drive, CROYDON SOUTH, VIC. 3136 POSTAL ADDRESS: P.O.
