Quick Installation Guide
DN-70495

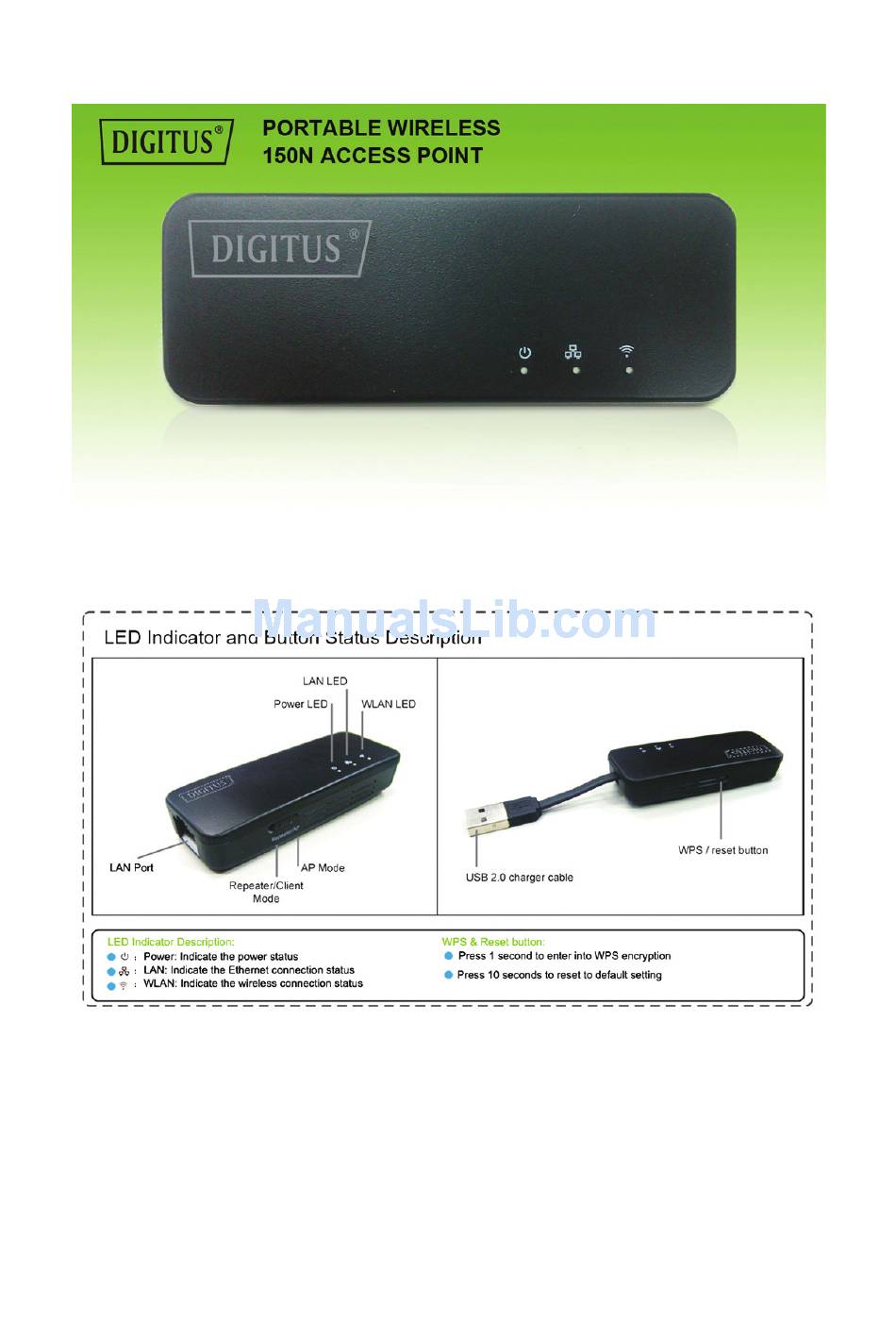

LED Indicator and Button Status Description
LED Indicator Description:
Power: Indicate the power status
WAN/LAN: Indicate the Ethernet connection status
WLAN: Indicate the wireless connection status
WPS &Reset button:
Press 1 second to enter into WPS encryption
Press 10 seconds to reset to default setting
Advertisement
Table of Contents
Related Manuals for Digitus DN-70495
Summary of Contents for Digitus DN-70495
- Page 1 Quick Installation Guide DN-70495 LED Indicator and Button Status Description LED Indicator Description: Power: Indicate the power status WAN/LAN: Indicate the Ethernet connection status WLAN: Indicate the wireless connection status WPS &Reset button: Press 1 second to enter into WPS encryption...
- Page 2 Preparing for setup: If running under Windows Vista or Windows7/8/10 systems, Please follow the below steps From the Start menu on your desktop, first go to Control panel, then select Network and Internet. Please go to Network and Share center to change adapter setting and then select local area connection and right-click to get into Properties.
- Page 3 Preparing for setup: If running under Windows XP system, Please follow the below steps 1. Double click the Network Neighbor from your computer desktop. Please go to local area connection. Do right-click with the mouse to enter Properties. 2. Click Internet Protocol (TCP/IPv4), and select Properties button. 3.
- Page 4 AP mode Under AP mode, DN-70495 can provide wireless access to internet by connecting DN-70495 to a router. AP mode application diagram AP Mode: No need to setup the installation for AP mode Suitable for office, hotel, home and meeting room application Switch to AP mode, the device will be get the internet directly 4.
-
Page 5: Repeater Mode
Repeater Mode work diagram Repeater set up step: 1. Connect DN-70495 to power socket with USB power adapter or USB interface to the Notebook / Television to provide +5Vdc power input; 2. Switch to Repeater mode. -
Page 6: Client Mode
Under the Client Mode, DN-70495 can Ethernet-enable the computer or gaming console through wireless interface. Client Mode work diagram Client mode setup step: ① Connect DN-70495 to power socket with USB power adapter or through USB interface to Computer / Notebook / Television. ② Switch to Repeater mode Setups Step1 ①... -
Page 7: Frequently Asked Questions
2.Confirm whether the web browser can support Java or not 3. Press the WPS button for 10 seconds to reset to the default setting 4. Power Off and On DN-70495 FAQ3: What to do when you forget the wireless password?
