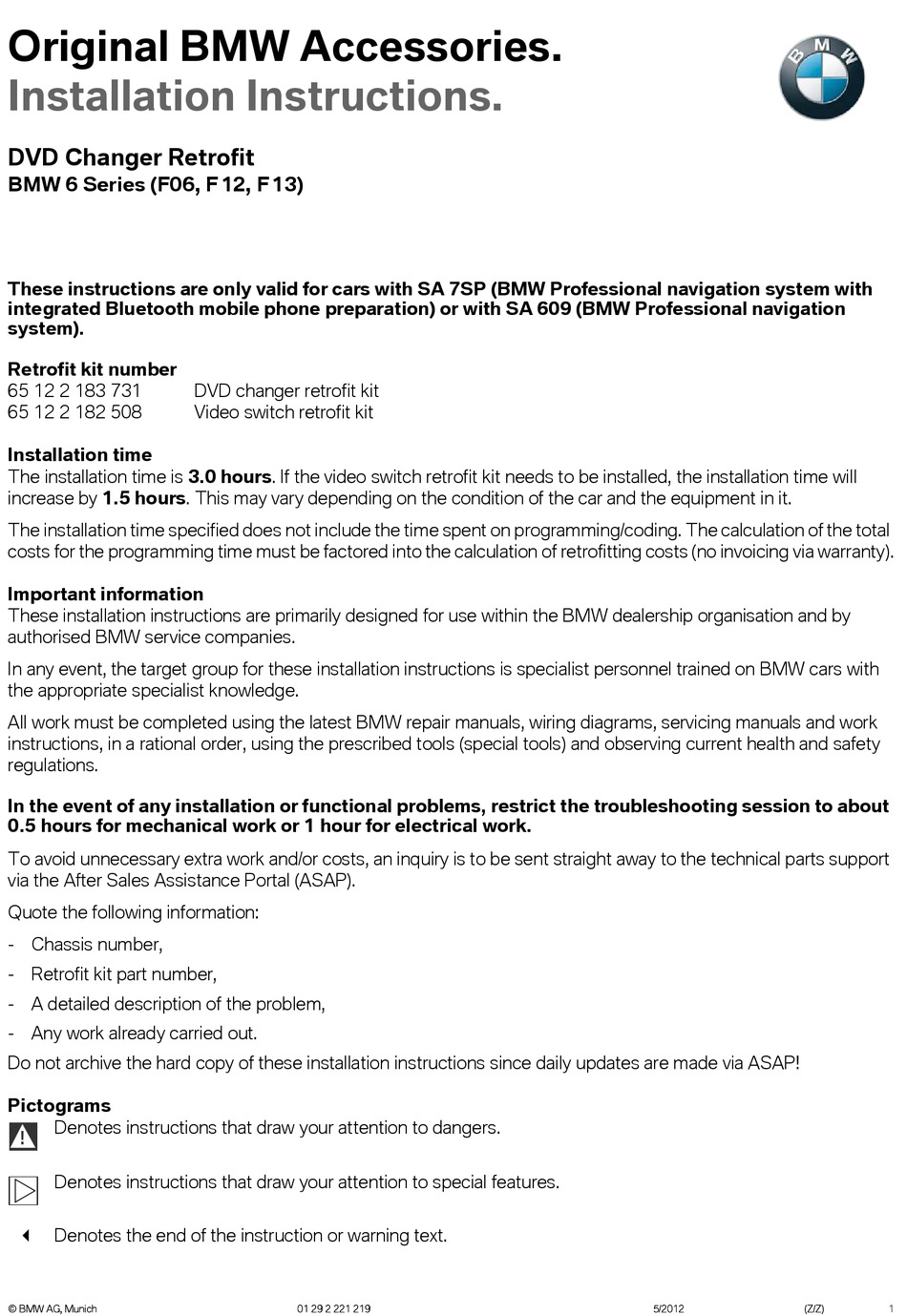

Original BMW Accessories.

Installation Instructions.

DVD Changer Retrofit
BMW 6 Series (F06, F 12, F 13)
These instructions are only valid for cars with SA 7SP (BMW Professional navigation system with
integrated Bluetooth mobile phone preparation) or with SA 609 (BMW Professional navigation
system).
Retrofit kit number
65 12 2 183 731
65 12 2 182 508
Installation time
The installation time is 3.0 hours. If the video switch retrofit kit needs to be installed, the installation time will
increase by 1.5 hours. This may vary depending on the condition of the car and the equipment in it.
The installation time specified does not include the time spent on programming/coding. The calculation of the total
costs for the programming time must be factored into the calculation of retrofitting costs (no invoicing via warranty).
Important information
These installation instructions are primarily designed for use within the BMW dealership organisation and by
authorised BMW service companies.
In any event, the target group for these installation instructions is specialist personnel trained on BMW cars with
the appropriate specialist knowledge.
All work must be completed using the latest BMW repair manuals, wiring diagrams, servicing manuals and work
instructions, in a rational order, using the prescribed tools (special tools) and observing current health and safety
regulations.
In the event of any installation or functional problems, restrict the troubleshooting session to about
0.5 hours for mechanical work or 1 hour for electrical work.
To avoid unnecessary extra work and/or costs, an inquiry is to be sent straight away to the technical parts support
via the After Sales Assistance Portal (ASAP).
Quote the following information:
- Chassis number,
- Retrofit kit part number,
- A detailed description of the problem,
- Any work already carried out.
Do not archive the hard copy of these installation instructions since daily updates are made via ASAP!
Pictograms
Denotes instructions that draw your attention to dangers.
!
Denotes instructions that draw your attention to special features.
Denotes the end of the instruction or warning text.
© BMW AG, Munich
© BMW AG, Munich
DVD changer retrofit kit
Video switch retrofit kit
01 29 2 221 219
01 29 2 221 219
5/2012
5/2012
(Z/Z)
(Z/Z)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 65 12 2 182 508 and is the answer not in the manual?

Questions and answers

Related Manuals for BMW 65 12 2 182 508

Summary of Contents for BMW 65 12 2 182 508

  • Page 1: Installation Instructions

    These installation instructions are primarily designed for use within the BMW dealership organisation and by authorised BMW service companies. In any event, the target group for these installation instructions is specialist personnel trained on BMW cars with the appropriate specialist knowledge.
  • Page 2 Ensure that the cables and/or lines are not kinked or damaged as you install them in the car. Costs arising from this will not be reimbursed by BMW AG. Additional cables/lines that you install must be secured with cable ties.

  • Page 3: Table Of Contents

    Information on pin assignment on the radio receiver ..........24 © BMW AG, Munich...

  • Page 4: Dvd Changer Parts List

    Cable tie 200 x 3.6 mm (10 x) Miniature connector 7.5 A fuse Socket casing (SW 12-pin) Cable tie with holder (not supplied with the retrofit kit) 5 A fuse (not required) Cover (2 x) © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)

  • Page 5: Video Switch Parts List

    AG Video switch power supply RT/SW additional cable (not required) AH Hexagon nut M6 5 A fuse AJ Miniature connector (2 x) AK Cable tie (20 x) AL 10 A fuse (not required) © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)

  • Page 6: Preparatory Work

    Pedal trim 51 45 184 Front left door sill cover strip 51 47 000 Rear left side trim 51 43 002 Luggage compartment wheel arch trim, left 51 47 151 © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)

  • Page 7: Dvd Changer Retrofit Cable Connection Diagram

    RSE To socket casing AD PIN 3 Fibre-optic cable MOST To radio receiver A42*2B PIN 2 1.0 mm Fibre-optic cable connector MOST To the radio A42*2B receiversdisconnectedfibreopticcable' 1.0 mm © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)

  • Page 8: Video Switch Connection Diagram

    Terminal RT/SW To rear right fuse box Z2*10B PIN 10 0.50 mm Ring eyelet M6 Terminal 31 To ground support point in the left luggage Z10*12B compartment 0.50 mm © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)

  • Page 9: Adapter Cable Connection Diagram

    A25*1B PIN 2 0.35 mm Socket contact FBAS_- To TV module A25*1B PIN 8 0.35 mm Socket contact FBAS_ Shield To TV module A25*1B shield PIN 7 0.26 mm © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)

  • Page 10: Lhd Dvd Changer Installation And Cabling Diagram

    DVD changer retrofit cable DVD changer Radio receiver, plug A42*1B, A42*2B Footwell module, plug A58*1B Ground support point bottom right A pillar Z10*6B Rear right power distribution box, plug Z2*10B © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)

  • Page 11: Rhd Dvd Changer Installation And Cabling Diagram

    DVD changer retrofit cable DVD changer Radio receiver, plug A42*1B, A42*2B Footwell module, plug A58*1B Ground support point bottom left A pillar Z10*6B Rear right power distribution box, plug Z2*10B © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)

  • Page 12: Video Switch Installation And Cabling Diagram

    DVD changer adapter cable TV adapter cable AG Power supply additional cable Ground connection Z10*12B TV module, plug A25*1B Radio receiver, plug A42*1B Rear right power distribution box, plug Z2*10B © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)

  • Page 13: Installing And Connecting The Video Switch

    A42*1B using miniature connector AJ. - Branch AB3, GN cable, to the same colour on the radio plug A42*1B using miniature connector AJ. A42*1B F12 0028 Z © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)
  • Page 14 - Branch AE4, RT cable, to PIN 2 - Branch AE5, WS cable, to PIN 8 - Branch AE6, shield, to PIN 7 F12 0022 Z Connect plug A25*1B to TV module A25. © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)
  • Page 15 Connect branch AB7 to PIN 10 of plug Z2*10B, SW 12- pin socket casing. F120020 Z Place fuse AI into slot F121 of the rear right fuse box (1). F121 F12 0021 Z © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)

  • Page 16: Routing And Connecting The Dvd Changer Retrofit Cable

    Disconnect the outgoing fibre optic cable from fibre optic cable housing A42*2B PIN 2 and connect branch A8. Clip fibre optic cable housing A42*2B to plug A42*1B. A42*2B A42*1B F01 0157 Z © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)
  • Page 17 A40*1B, SW 54-pin: - Branch AC1, BL cable, to PIN 3 - Branch AC2, WS cable, to PIN 21 - Branch AC3, shield, to PIN 39 AC1-AC3 F12 0025 Z © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)
  • Page 18 Connect branch A3, RT/GR cable, to PIN 9 of plug Z2*10B. 0100075 Z Place fuse J into slot F120 of the rear right fuse box (1). F120 F12 0023 Z © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)

  • Page 19: Installing And Connecting The Dvd Changer

    Connect branch A1 to DVD changer B. Attach cable tie with holder I to glove compartment (1). Secure retrofit cable A using cable tie with holder I. Install the glove compartment. F12 0024 Z © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)

  • Page 20: Concluding Work And Programming/Coding

    - Select the "DVD changer" retrofit via the – Conversion – path and work through the created action plan - If using ISTA/P, please note the instructions in the ISTA/P application documentation - Carry out a DVD changer functional check - Re-fit the car components as required © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)

  • Page 21: Dvd Changer Wiring Diagram

    Connector in fibre optic cable All the designations marked with an asterisk (*) apply only to these installation instructions or this wiring diagram. Cable colours Brown Orange Blue Green Black Grey White © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)

  • Page 22: Video Switch Wiring Diagram

    6 mm eyelet, on ground support point Z10*12B All the designations marked with an asterisk (*) apply only to these installation instructions or this wiring diagram. Cable colours Blue Brown Black Green White Orange © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)

  • Page 23: Dvd Changer/Tv/Camera Adapter Cable Wiring Diagram

    Socket contact, in plug A25*1B on TV module A25 All the designations marked with an asterisk (*) apply only to these installation instructions or this wiring diagram. Cable colours Blue Black White © BMW AG, Munich 01 29 2 221 219 5/2012 (Z/Z)

  • Page 24: Information On Pin Assignment On The Radio Receiver

    If a video switch is installed, the camera control unit, TV module and DVD changer are connected to the video switch. This applies likewise to a retrofitted video switch. When retrofitting the video switch, the supplied adapter cables must be installed according to the existing system. © BMW AG, Munich 01 29 2 221 219 5/2012...
