Summary of Contents for Fat Shark Dominator HD3

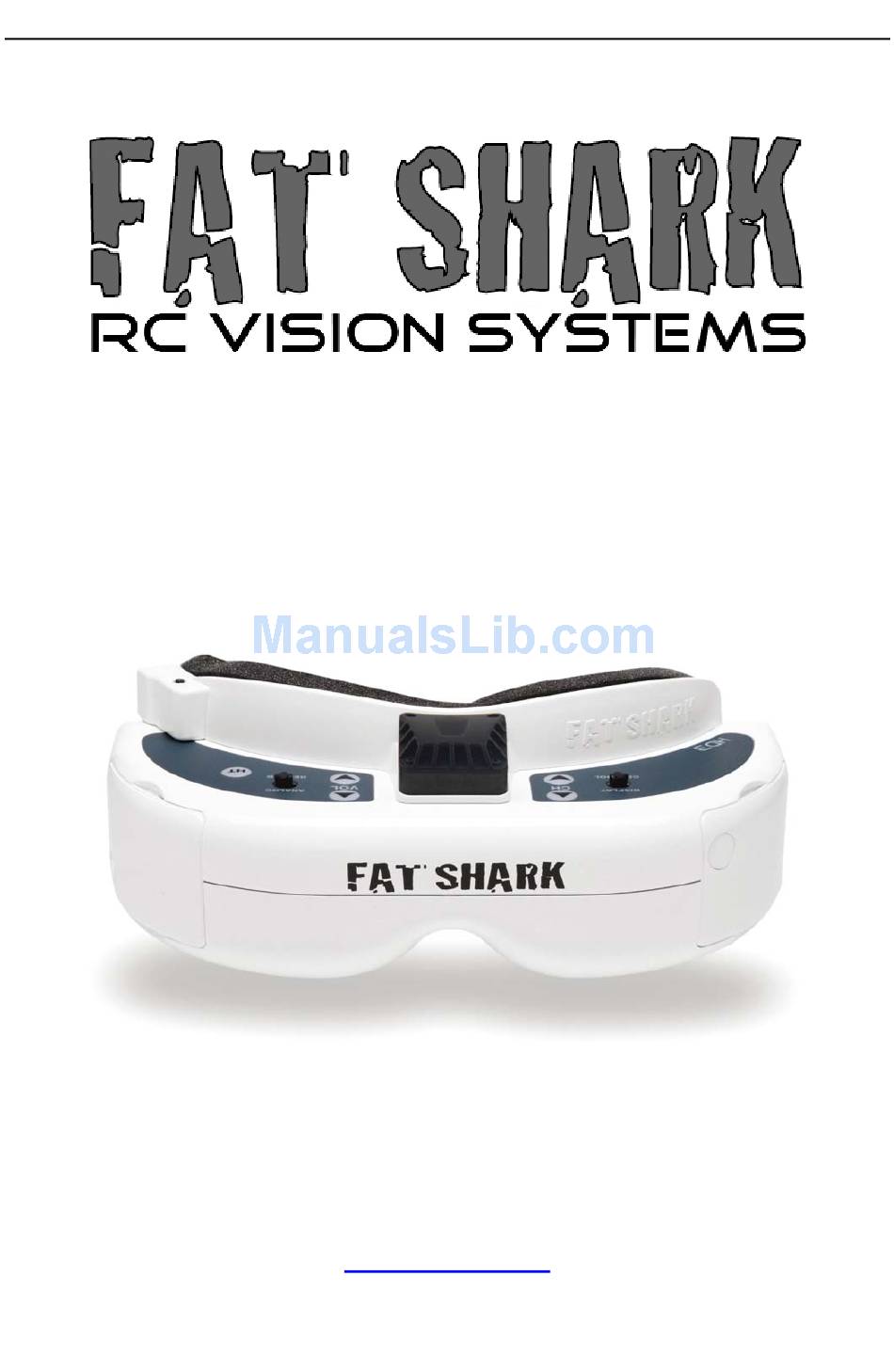

- Page 1 Fat Shark RC Vision Systems DOMINATOR HD3 MODEL FSV1076 USER MANUAL Revision A 11/01/2016 For more product information, please visit: www.fatshark.com All Rights Reserved...
-
Page 2: Table Of Contents
The Dominator HD3 has been thoroughly tested with ImmersionRC gear. For best results and no compatibility issues, Fat Shark recommends ImmersionRC gear for your accessory products. -
Page 3: Product Contents
Fat Shark RC Vision Systems Product Contents Carry Case DominatorHD3 Headset w/ Face Plate 7.4V, 1800mAh Li-po Battery w/ LED Indicator Battery Discharge Adapter AV Cable (2003) Mini to Mini HDMI Cable w/ Adapters Quick Start Manual... -
Page 4: Controls Diagram
Fat Shark RC Vision Systems Controls Diagram Head Tracker Brightness(left/right) Contrast(forward/back) start/stop/playback 2D or 3D Mode(vertical) control Volume Level Channel Selection IPD Adjusters Receiver on/off Indicator (Power to Rx module) Earphone Jack PS/2 Data Port (Head Tracker) Mini HDMI port... -
Page 5: Headset Operation
Low battery warning: Audio warning if input voltage drops below 6.8V Volume control: each press of button increments volume up or down. Standard earphones can be used with the Dominator HD3. Head tracker: (refer to online Trinity documentation at http://fatshark.helpscoutdocs.com/ RX power switch: The RX module power is independently controlled via this switch. -
Page 6: Av Cable Pinout
TX/JR Module ImmersionRC’s ezUHF transmitter and JR transmitter module can supply power (and head tracking control) to the Dominator HD3 goggle via a minDIN cable (included with the ezUHF). Futaba Radio The Dominator HD3 can be powered off a Futaba radio via the Data Cable. -
Page 7: 1800Ma Battery Pack
Balancing circuit is already built inside, for charging, only need to connect the barrel connector via the supplied adapter cable to RC charger. Note: this battery can still be charged via the barrel connector with the original Fat Shark headset battery charger. -
Page 8: Accessories
Refer to head tracker module manual for up to date and detailed menu setup instructions. For individual radio setup instructions please visit our head tracking support forum at www.FPVlab.com Forum: Sponsors Gate/Fat Shark/Head tracker radio support. Receiver Modules (1.3G/2.4G/5.8G) Refer to module manuals for frequency chart. - Page 9 Fat Shark RC Vision Systems Diopter Lens For near sighted users, diopter lens insert sets are available that include -2, -4 and -6 dpt. Peel off rubber eye cups and insert into slots seated in front of the lens. Replace rubber.
-
Page 10: Specifications
Fat Shark RC Vision Systems Specifications Headset Specifications: Optics: FOV (field of view): 42 degrees diagonal Type: plastic optics Interpupillary Distance (IPD): 59 to 69 mm (adjustable) Optional Diopter Lens Inserts: -2, -4, -6 dpt Display: 800 X 600 (SVGA) LCD... -
Page 11: Operational Advice
(SPONSORS GATE/ FAT SHARK/SUPPORT) Support:support@fatshark.com Note support should be attempted in the following manner. Initial enquiries to Fat Shark support will expect you to have exhausted the online and retailer resources: 1) Research Fat Shark helpdocs. 2) Research FPV Lab forum for relevant posts. -
Page 12: Warranty
Fat Shark RC Vision Systems Trouble Shooting Observation Possible Cause/Solution No image, display is completely - No power supplied. Check power connections. dark No image, display is glowing - If using wireless module, turn on RX power on bottom of dark grey headset.
