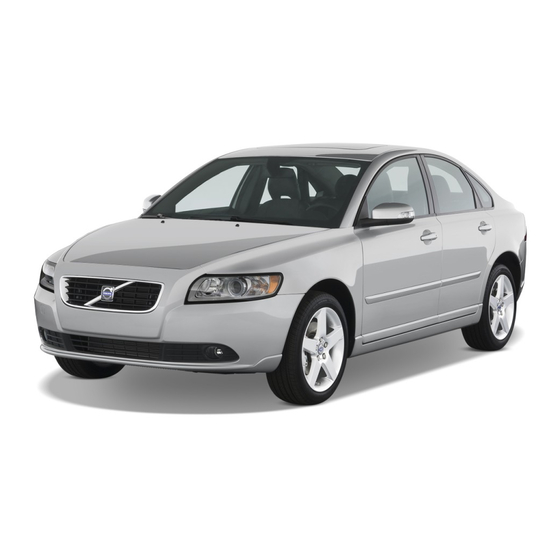

Volvo 2008 S40 Owner's Manual
  1. Manuals
  2. Brands
  3. Volvo Manuals
  4. Automobile
  5. S40 2008 S40
  6. Owner's manual

Volvo 2008 S40 Owner's Manual

Hide thumbs Also See for 2008 S40:
Table of Contents

Advertisement

Quick Links

2 0 0 8
VOLVO
S40
VOLVO OWNER'S MANUAL S40
1
Welcome to the worldwide family of Volvo owners. We hope that you will enjoy many
years of safe driving in your Volvo, an automobile designed with your safety and
comfort in mind. To help ensure your satisfaction with this vehicle, we encourage you to
familiarize yourself with the equipment descriptions, operating instructions and
maintenance requirements/recommendations in this manual. We also urge you and your
passengers to wear seat belts at all times in this (or any other) automobile. And, of
course, please do not operate a vehicle if you may be affected by alcohol, medication or
any impairment that could hinder your ability to drive.
Your Volvo is designed to meet all applicable safety and emission standards, as indicated
by the certification labels attached to the driver's door opening, and on the underside of
the hood.
For further information please contact your retailer, or:
In the USA: Volvo Cars of North America, LLC
Customer Care Center
P.O. Box 914 Rockleigh, New Jersey 07647-0914
1-800-458-1552
www.volvocars.us

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2008 S40 and is the answer not in the manual?

Questions and answers

مازن
May 26, 2025

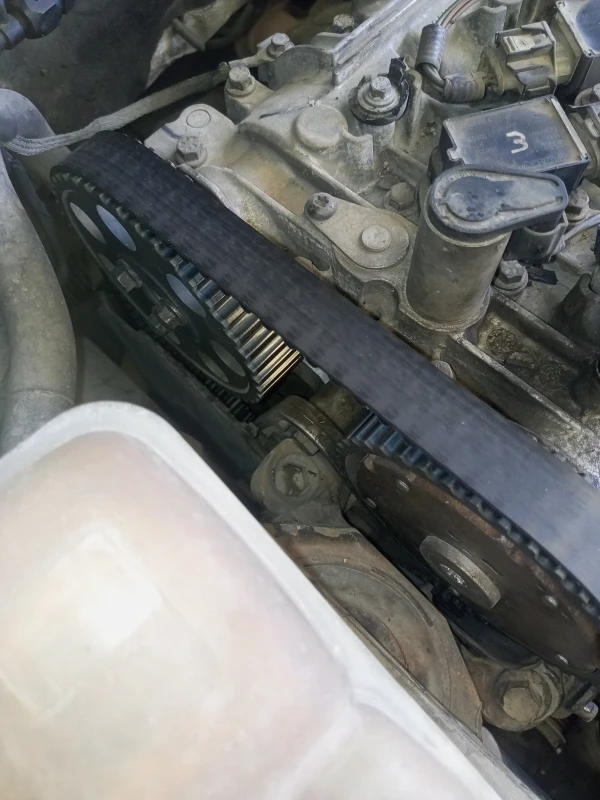

كيفية ايجاد عيارات قشاط التايمينغ

User image 6834628a9588a
0
1 comments:
Mr. Anderson
May 26, 2025

To find the timing belt specifications for a 2008 Volvo S40, you can refer to the parts listings or service manuals specific to that model year. One source mentions timing belts for various model years of the Volvo S40, including 2008, indicating that timing belt parts and specifications are available for that vehicle.

This answer is automatically generated

0

Related Manuals for Volvo 2008 S40

Summary of Contents for Volvo 2008 S40

  • Page 1 VOLVO VOLVO OWNER'S MANUAL S40 Welcome to the worldwide family of Volvo owners. We hope that you will enjoy many years of safe driving in your Volvo, an automobile designed with your safety and comfort in mind. To help ensure your satisfaction with this vehicle, we encourage you to familiarize yourself with the equipment descriptions, operating instructions and maintenance requirements/recommendations in this manual.

  • Page 2: Table Of Contents

    In Canada: Volvo Cars of Canada Corp. National Customer Service 175 Gordon Baker Road North York, Ontario M2H 2N7 1-800-663-8255 www.volvocanada.com 2007 © Volvo Car Corporation. All rights reserved. Contents 00 Introduction 01 Safety 02 Instruments and controls General information...

  • Page 3: General Information

    Personal settings HomeLink® Universal Transceiver (option) Contents 03 Climate 04 Interior 05 Locks and alarm General information Front seats Remote control and key blade Air vents Interior lighting Valet locking Manual climate control Storage compartments Keyless drive (option as available) Electronic Climate Control (ECC) - Rear seat option...
  • Page 4 Park assist (Option/accessory) Contents 09 Maintenance and servicing 10 Audio 11 Specifications Volvo maintenance Audio functions Label information Maintaining your car Radio functions Dimensions and weights Hood Sirius satellite radio (option or Engine oil retailer-installed accessory) Engine compartment Engine specifications...

  • Page 5: Volvo And The Environment

    Volvo and the environment Volvo is committed to the well being of its customers. As a natural part of this commitment, we care about the environment in which we all live. Caring for the environment means an everyday involvement in reducing our environmental impact.

  • Page 6: Important Warnings

    In addition to continuous environmental refinement of conventional gasoline-powered internal combustion engines, Volvo is actively looking at advanced technology alternative-fuel vehicles. When you drive a Volvo, you become our partner in the work to lessen the car's impact on the environment. To reduce your vehicle's environmental impact, you can: Maintain proper air pressure in your tires.

  • Page 7: Safety

    When used properly and safely, they enrich the driving experience. Improperly used, any of these could cause a distraction. For all of these systems, we want to provide the following warning that reflects the strong Volvo concern for your safety: Never use these devices or any feature of your vehicle in a way that distracts you from the task of driving safely.

  • Page 8: Occupant Safety

    Occupant safety Volvo's concern for safety Safety is Volvo's cornerstone. Our concern dates back to 1927 when the first Volvo rolled off the production line. Three-point seat belts (a Volvo invention), safety cages, and energy-absorbing impact zones were designed into Volvo...

  • Page 9: 01 Safety

    Volvo strongly recommends that if your vehicle is covered under a service campaign, safety or emission recall or similar action, it should be completed as soon as possible. Please check with your local retailer or Volvo Cars of North America, LLC if your vehicle is covered under these conditions.

  • Page 10: Seat Belts

    Volvo also believes no child should sit in the front seat of a vehicle. Most states and provinces make it mandatory for occupants of a vehicle to use seat belts.
  • Page 11 Seat belts WARNING Never repair the belt yourself; have this work done by a trained and qualified Volvo service technician only. Any device used to induce slack into the shoulder belt portion of the three-point belt system will have a detrimental effect on the amount of protection available to you in the event of a collision.
  • Page 12 Child seats Please refer to page 35 for information on securing child seats with the seat belts. 01 Safety Seat belts Seat belt reminder The seat belt reminder consists of an audible signal, an indicator light above the rearview mirror, and a symbol in the instrument panel (see page 54) that alert the driver and front seat passenger if their seat belts are not fastened.

  • Page 13: Supplemental Restraint System

    Supplemental Restraint System Supplemental Restraint System (SRS) As an enhancement to the three-point seat belts, your Volvo is equipped with a Supplemental Restraint System (SRS). Volvo's SRS consists of seat belt pretensioners, front airbags, side impact airbags, the occupant weight sensor, and inflatable curtains.

  • Page 14: Front Airbags

    overriding the shiftlock system. 01 Safety Front airbags The front airbag system The front airbags supplement the three-point seat belts. For these airbags to provide the protection intended, seat belts must be worn at all times. The front airbag system includes gas generators surrounded by the airbags, and deceleration sensors that activate the gas generators, causing the airbags to be inflated with nitrogen gas.
  • Page 15 This is a normal characteristic and does not indicate fire. Volvo's front airbags use special sensors that are integrated with the front seat buckles. The point at which the airbag deploys is determined by whether or not the seat belt is being used, as well as the severity of the collision.
  • Page 16 In Canada Volvo Cars of Canada Corp. National Customer Service 175 Gordon Baker Road North York, Ontario M2H 2N7 1-800-663-8255 www.volvocanada.com WARNING Do not use child safety seats or child booster cushions/backrests in the front passenger's seat. We also recommend...

  • Page 17: Occupant Weight Sensor (Ows)

    Failure to follow these instructions can result in injury to the vehicle occupants. 01 Safety Occupant Weight Sensor (OWS) Disabling the passenger's side front airbag Volvo recommends that ALL occupants (adults and children) shorter than 4 feet 7 inches (140 cm) be seated in the rear...
  • Page 18 Never try to open, remove, or repair any components in the OWS system. This could result in system malfunction. Maintenance or repairs should only be carried out by an a trained and qualified Volvo service technician. If a fault in the system is detected and indicated as explained on the preceding page, be aware that the passenger's side front airbag will not deploy in the event of a collision.
  • Page 19 (see the following table). Volvo recommends that children always be properly restrained in appropriate child restraints in the rear seats. Do not assume that the passenger's side front airbag is disabled unless the PASSENGER AIRBAG OFF indicator lamp is lit.

  • Page 20: Side Impact Protection Airbags

    In Canada Volvo Cars of Canada Corp. National Customer Service 175 Gordon Baker Road North York, Ontario M2H 2N7 1-800-663-8255 WARNING No objects that add to the total weight on the seat should be placed on the front passenger's seat. If a child is seated in the front passenger's seat with any additional weight, this extra weight could cause the OWS system to enable the airbag, which might cause it to deploy in the event of a collision, thereby injuring the child.

  • Page 21: Volvo Inflatable Curtain (Vic)

    In order for the SIPS airbag to provide its best protection, both front seat occupants should sit in an upright position with the seat belt properly fastened. Failure to follow these instructions can result in injury to the occupants of the vehicle in the event of an accident. 01 Safety Volvo Inflatable Curtain (VIC) The Volvo Inflatable Curtain system...
  • Page 22 Never try to open or repair any components of the VIC system. This should be done only by a trained and qualified Volvo service technician. Never hang heavy items from the ceiling handles. This could impede deployment of the Inflatable curtain.

  • Page 23: Whiplash Protection System

    should sit in an upright position with the seat belt properly fastened; adults using the seat belt and children using the proper child restraint system. Only adults should sit in the front seats. Children must never be allowed in the front passenger's seat.

  • Page 24: Crash Mode

    If your car has been involved in a rearend collision, the front seat backrests must be inspected by a trained and qualified Volvo service technician, even if the seats appear to be undamaged. Certain components in the WHIPS system may need to be replaced.
  • Page 25 Even if the vehicle appears to be drivable after CRASH MODE has been set, it should not be driven or towed (pulled by another vehicle). There may be concealed damage that could make it difficult or impossible to control. The vehicle should be transported on a flatbed tow truck to a trained and qualified Volvo service technician for...

  • Page 26: Child Safety

    Please check local regulations. A specially designed and tested booster cushion (not available in Canada) can be obtained from your Volvo retailer for children weighing 33 - 80 lb. (15 - 36 kg) and 38-54 inches (97 - 137 cm) in height.
  • Page 27 Volvo's recommendations Why does Volvo believe that no child should sit in the front seat of a car? It's quite simple really. A front airbag is a very powerful device designed, by law, to help protect an adult.

  • Page 28: Child Restraint Systems

    01 Safety Child restraint systems Child restraints There are three main types of child restraint systems: infant seats, convertible seats, and booster cushions. They are classified according to the child's age and size. The following section provides general information on securing a child restraint using a three-point seat belt. Refer to pages 41-42 for information on securing a child restraint using ISOFIX lower anchors and/or top tether anchorages.

  • Page 29: Infant Seats

    A small child's head represents a considerable part of its total weight and its neck is still very weak. Volvo recommends that children up to age 4 travel, properly restrained, facing rearward. In addition, Volvo recommends that children should ride rearward facing, properly restrained, as long as possible.
  • Page 30 NOTE Refer to pages 41-42 for information on securing a child restraint using ISOFIX lower anchors and/or top tether anchorages. 1. Place the infant seat in the rear seat of the vehicle. WARNING An infant seat must be in the rear-facing position only. The infant seat should not be positioned behind the driver's seat unless there is adequate space for safe installation.

  • Page 31: Convertible Seats

    death to a child seated in this position. 4. Pull the shoulder section of the seat belt out as far as possible to activate the belt's automatic locking function. 5. Press the infant seat firmly in place, let the seat belt retract and pull it taut. A sound from the seat belt retractor's automatic locking function will be audible at this time and is normal.
  • Page 32 WARNING A small child's head represents a considerable part of its total weight and its neck is still very weak. Volvo recommends that children up to age 4 travel, properly restrained, facing rearward. In addition, Volvo recommends that children should ride rearward facing, properly restrained, as long as possible.
  • Page 33 1. Place the convertible seat in the rear seat of the vehicle. WARNING Convertible child seats should be installed in the rear seat only. A rear-facing convertible seat should not be positioned behind the driver's seat unless there is adequate space for safe installation.

  • Page 34: Booster Cushions

    The locking retractor will automatically release when the seat belt is unbuckled and allowed to retract fully. 6. Push and pull the convertible seat to ensure that it is held securely in place by the seat belt. WARNING It should not be possible to move the child restraint more than 1 in. (2.5 cm) in any direction. The convertible seat can be removed by unbuckling the seat belt and letting it retract completely.

  • Page 35: Isofix Lower Anchors

    1. Place the booster cushion in the rear seat of the vehicle. 2. With the child properly seated on the booster cushion, attach the seat belt to or around the cushion according to the manufacturer's instructions. 3. Fasten the seat belt by inserting the latch plate into the buckle (lock) until a distinct click is audible. 4.

  • Page 36: Top Tether Anchors

    1. Put the child restraint in position. 2. Kneel on the child restraint to press down the seat cushion and locate the anchors by feel. 3. Fasten the attachment on the child restraint's lower straps to the ISOFIX lower anchors. 4.
  • Page 37 Volvo vehicles are equipped with child restraint top tether anchorages in all rear seat positions. Using the top tether anchorages 1. Place the child restraint on the rear seat. 2. Release the backrest and tilt it forward to access the anchorage. Return the seat back to the upright position and make sure it locks in place after the attachment has been fastened to the anchorage.

  • Page 38: Child Restraint Registration And Recalls

    to them. An adult who uses a belt anchored in a child restraint anchorage runs a great risk of suffering severe injuries should a collision occur. Do not install rear speakers that require the removal of the top tether anchors or interfere with the proper use of the top tether strap.

  • Page 39: 02 Instruments And Controls

    2 0 0 8 VOLVO 02 Instruments and controls Instrument overview Instrument panel Indicator and warning symbols Symbols - instrument panel Information display 12-volt sockets Lighting panel Left-side steering wheel lever Trip computer Cruise control Right-side steering wheel lever Rain sensor...
  • Page 40 02 Instruments and controls Instrument overview 1. Steering wheel adjustment 2. Hood opener 3. Controls in front doors (see inset illustration at next page) 4. Left steering wheel lever 5. Lighting panel 6. Door open handle and locking button 7. Climate system air vent 8.

  • Page 41: Instrument Panel

    21. Seat belt reminder and Occupant Weight Sensor indicator 22. Rear-view mirror 23. Display for climate control, personal settings,and audio system 77/230 24. Audio system 25. Controls for personal settings and audio system 77/230 26. Controls for climate system 89/92 27.
  • Page 42 1. Speedometer 2. Turn signal, left 3. Warning symbol - See the following pages for additional information. 4. Information display - The display presents information and warning messages, the ambient temperature, and the clock, etc. When the ambient temperature is between 23° and 36°F (-5° and +2°C), a snowflake symbol is shown in the display.

  • Page 43: Indicator And Warning Symbols

    1. Stop the car as soon as possible in a suitable location. 2. Read the message in the information display. 3. Follow the instructions provided, or contact a trained and qualified Volvo service technician. Erase the message by pressing READ...

  • Page 44: Symbols - Instrument Panel

    CHECK ENGINE light will light up if the computer senses a condition that potentially may need correcting. When this happens, please have your car checked by a trained and qualified Volvo service technician as soon as possible. CHECK ENGINE light may have many causes.
  • Page 45 If the warning light comes on, there is a malfunction of the ABS system (the standard braking system will still function). The vehicle should be driven to a trained and qualified Volvo service technician for inspection. See page 147 additional information.
  • Page 46 If the light comes on while driving, the car, stop the engine immediately, and check the engine oil level. If the oil level is normal and the light stays on after restart, have the car towed to the nearest trained and qualified Volvo service technician.
  • Page 47 6. Generator warning light If the light comes on while the engine is running, have the charging system checked by an authorized Volvo workshop. On certain engines, this symbol is not used to indicate low oil pressure. Instead, a text warning is provided in the information display, see also page 206.

  • Page 48: Information Display

    At low speeds If the car is moving at a speed of less than approximately 3 m.p.h. (5 km/h), the Information symbol in the instrument panel will light up and a message will be shown in the information display indicating which door(s), etc is not completely closed.

  • Page 49: 12-Volt Sockets

    10A. The key must be in position I (or higher) for the auxiliary socket to function. Ashtrays/cigarette lighter The auxiliary socket can also be used for a cigarette lighter , and ashtrays are also available. Please contact your Volvo retailer. Accessory.

  • Page 50: Lighting Panel

    NOTE The cover should be kept on when the auxiliary socket is not in use. Auxiliary equipment The buttons to the right of the 12-volt socket can be used for Volvo-installed optional or auxiliary equipment. 12-volt socket (rear seat) NOTE The 12-volt socket in the rear seat cannot function as a cigarette lighter.
  • Page 51 The front and rear parking lights can be turned on even when the ignition is switched off. Turn switch (1) to position The license plate lights also illuminate when the parking lights are switched on. Headlights 1. Turn the ignition key to position II. 2.
  • Page 52 NOTE This function can only be activated in twilight or dark conditions, and only when the vehicle is in motion. If the indicator light flashes, this indicates a fault in the ABL system. A text message will also be displayed. Brake lights The brake lights come on automatically when the brakes are applied.

  • Page 53: Left-Side Steering Wheel Lever

    NOTE To make it easier to read the odometer, trip odometer, clock, and ambient temperature, these gauges illuminate when the vehicle is unlocked and when the key has been removed from the ignition switch. The lighting will go out when the vehicle is locked.

  • Page 54: Trip Computer

    When changing lanes The driver can automatically flash the turn signals 3 times by: Moving the turn signal lever up or down to position 1 and releasing it. Moving the lever up or down to position 2 and immediately back to its original position. NOTE This automatic flashing sequence can be interrupted by immediately moving the lever in the opposite direction.
  • Page 55 The trip computer stores information gathered from several systems in your car and has five menus (six on Canadian models) that can be shown in the information display. MILES TO EMPTY TANK AVERAGE (average fuel consumption) INSTANTANEOUS (current fuel consumption) AVERAGE SPEED ACTUAL SPEED (current speed in m.p.h., Canadian models only)

  • Page 56: Cruise Control

    When the engine is switched off, information on fuel consumption is stored and remains in system memory until the RESET (button C) is pressed again. INSTANTANEOUS This value indicates the current fuel consumption, based on readings taken once per second. When the car is not moving, "----"...
  • Page 57 2. Press + or - to set the current speed. CRUISE ON will be displayed. Increasing or decreasing speed Use + or - in the following ways to increase or decrease the vehicle's speed: 1. Press and hold down + or - until the vehicle reaches the desired speed. This will become the set speed when the button is released.

  • Page 58: Right-Side Steering Wheel Lever

    02 Instruments and controls Right-side steering wheel lever Windshield wipers A. Windshield/headlight washers B. Rain sensor (option) - on/off, see page 68 C. Thumb wheel CAUTION Use ample washer fluid when washing the windshield. The windshield should be thoroughly wet when the wipers are in operation.

  • Page 59: Rain Sensor

    Windshield washers (A) Pull the lever toward the steering wheel and release it. The wipers will make 2-3 sweeps across the windshield after the lever has been released. Headlight washers (certain models) When the lever has been pulled, high pressure jets mounted in the bumper will spray the headlights. The following applies to conserve washer fluid (see page 59 for information on the light switch positions):...

  • Page 60: Steering Wheel Adjustment, Hazard Warning Flashers

    3. Press button B (see the illustration on page 67). The rain sensor symbol will appear in the lower display. The rain sensor can be deactivated by: Pressing button (B). Moving the windshield wiper lever down. NOTE The rain sensor function will remain activated if the lever is briefly moved up to activate the "manual sweep" function.

  • Page 61: Parking Brake

    2. Adjust the steering wheel to a suitable position 3. Press the lever back into place to lock the steering wheel in the new position. If necessary, press the steering wheel slightly while pressing the lever into the locked position. Check that the steering wheel is locked in the new position.

  • Page 62: Power Windows

    Pull up the parking brake lever up firmly to its full extent. Ashtrays/cigarette lighter The auxiliary sockets can also be used for cigarette lighters. Ashtrays and lighters are available as accessories. Please contact your Volvo retailer. 02 Instruments and controls Power windows...
  • Page 63 The power windows are controlled by buttons in the arm rests. The ignition must be ON (ignition key in position I, II or the engine running) for the power windows to function. The power windows will also function after the ignition has been switched off as long as neither of the front doors has been opened Opening a window Lightly press down the front edge of any of the buttons (A or B) to the first detent ("stop") to open a window to the...
  • Page 64 The electrically operated rear door windows can be disabled by a switch located on the driver's door (see illustration). If the light in the switch is OFF: The rear door windows can be raised or lowered with the buttons on the rear door armrests or with the buttons on the driver's door armrest.

  • Page 65: Mirrors

    02 Instruments and controls Mirrors Rearview mirror Night position To reduce glare from the headlights of following vehicles, use control (1) to switch between the normal and night- driving positions. 2. Normal position 3. Night position, reduces glare from following traffic Auto-dim function (option) An optional integrated sensor reacts to headlights from following traffic and automatically reduces glare.
  • Page 66 The earth is divided into 15 magnetic zones. The compass is initially set for the zone to which the car was delivered, and should always be adjusted if the car is driven to a new magnetic zone. A "C" will be displayed if calibration becomes necessary.

  • Page 67: Power Moonroof (Option)

    To adjust the mirrors: Driver's door mirror: Press the L button (a light in the switch will go on) to activate the adjustment control. Use this control to adjust the driver's door mirror. Passenger's door mirror: Press the R switch (a light in the switch will go on) to activate the adjustment control. Use this control to adjust the passenger's door mirror.
  • Page 68 To operate the moonroof, the ignition key must first be turned to the intermediate or drive position (position I, II or the engine running). The moonroof can be opened in two ways: A. Tilt position B. Sliding moonroof 1. Auto open 2.
  • Page 69 Close: Push the switch as far forward as possible (to position 4) and release it to automatically close the moonroof. Manual open/close Open: Pull the switch back to the first stop (position 2) and hold it until the moonroof has opened to the position of your choice.

  • Page 70: Personal Settings

    The optional moonroof features a sliding visor. The visor slides open automatically when the moonroof is opened, and must be closed manually. 02 Instruments and controls Personal settings Control panel A. Display B. Menu button C. Exit button D. Enter button E.
  • Page 71 To access the menu and adjust settings: 1. Press MENU (B). 2. Scroll to "Car Settings" using the menu navigation control (E). 3. Press ENTER (D). 4. Select an alternative using the menu navigation control (E). 5. Confirm your selection by pressing ENTER. To exit the menu: Press EXIT (C).
  • Page 72 Operating side windows The following alternatives can be selected for opening and/or closing all side windows at the same time by pressing and holding the Lock/Unlock switch in either of the front doors (see also page 122 for additional information) Auto close all windows On/Off Auto open all windows On/Off This menu alternative also makes it possible to open all side windows by pressing and holding the Unlock button on the remote control for several...

  • Page 73: Homelink® Universal Transceiver (Option)

    02 Instruments and controls HomeLink® Universal Transceiver (option) Introduction HomeLink is a system that can be programmed to learn the codes of three different remote controlled-devices (for example, a garage door opener, remote lighting, entry gate). HomeLink's sun visor-mounted transceiver, powered by your car's electrical system, may then be used in place of your handheld remote controls.
  • Page 74 Do not use the HomeLink Universal Transceiver with any garage door opener that lacks safety "stop" and "reverse" features as required by federal safety standards. (This includes any garage door opener model manufactured before April 1, 1982). A garage door opener that cannot "detect" an object, signalling the door to "stop" and "reverse"...
  • Page 75 1. For first time training, press and hold the two outer HomeLink buttons releasing only when the HomeLink indicator light begins to flash after 20 seconds. (Do not perform this step when training the additional HomeLink buttons.) 2. Position the hand-held transmitter 1-3 inches (2.5-7.5 cm) away from the HomeLink surface (located on your) keeping the HomeLink indicator light in view.
  • Page 76 door. Press and hold the trained HomeLink button. The garage door opener has the rolling code feature if the indicator light flashes rapidly and then turns solid after 2 seconds. To train a garage door with the rolling code feature, follow these instructions (the aid of a second person may make the training quicker and easier): 1.
  • Page 77 The HomeLink® Wireless Control System is now in the training (learning) mode and can be programmed at any time following steps 2 through 4 in the Programming section. Contents Top of Page...

  • Page 78: Climate General Information

    2 0 0 8 VOLVO 03 Climate General information Air vents Manual climate control Electronic Climate Control (ECC) - option Air distribution 03 Climate 03 Climate General information Air conditioning - A/C Your car is equipped with a climate control system that includes either manually adjustable air conditioning or optional Electronic Climate Control (ECC).
  • Page 79 Refrigerant Volvo cares about the environment. The air conditioning system in your car contains a CFC-free refrigerant - R134a. This substance will not deplete the ozone layer. The system contains 1.2 lbs (530 g) R134a (HFC 134a), and uses PAG oil.
  • Page 80 NOTE The sunlight sensor monitors the side of the vehicle from which the sun shines into the passenger compartment. This means that the temperature may differ slightly between the left and right air vents, even if the climate system temperature is set to be the same for both sides of the passenger compartment. Side windows and optional moonroof The electronic climate control system will function best if the windows and moonroof are closed.

  • Page 81: Manual Climate Control

    1. Blower speed 2. Recirculation 3. Defroster 4. Airflow controls 5. A/C - ON/OFF 6. Heated driver's seat 7. Heated front passenger's seat 8. Rear window and door mirror defrosters 9. Temperature selector Manual climate system functions 1. Blower The blower speed can be increased or decreased by turning the knob. If the knob is turned counterclockwise and the indicator light in the display goes out, the blower and the air conditioning are switched off.
  • Page 82 forming on the insides of the windows, especially in winter. Timer The timer function minimizes the risk of misting, or stale air when the recirculation function is selected. See page 77 for information on setting the recirculation timer. Recirculation is always disengaged when you select Defroster (3). 3.
  • Page 83 NOTE On certain markets, the defrost function may remain on longer than 20 minutes in cold weather to help keep the rear window free from ice or condensation. 03 Climate Manual climate control 9. Temperature selector The knob with the thermometer symbol is used to select cooling or heating for both the driver's and passenger's sides of the car.
  • Page 84 10. Temperature selector ECC functions 1. Auto - On/Off The AUTO function automatically regulates climate control to maintain the desired temperature. The automatic function controls heating, air conditioning, blower speed, recirculation, and air distribution. If you select one or more manual functions, the remaining functions continue to be controlled automatically. All manual settings are switched off when AUTO is switched on.
  • Page 85 4. Defroster Directs airflow to the windshield and side windows and increases blower speed. When the defroster is activated: Air flows to the windows at high blower speed. The LED in the defroster button lights up when this function is activated. The air conditioning system is controlled to provide maximum air dehumidification.

  • Page 86: Air Distribution

    The defrost function switches off automatically after 12-20 minutes, depending on the outside temperature. NOTE On certain markets, the defrost function may remain on longer than 20 minutes in cold weather to help keep the rear window free from ice or condensation. 10.
  • Page 87 Contents Top of Page...
  • Page 88 2 0 0 8 VOLVO 04 Interior Front seats Interior lighting Storage compartments Rear seat Trunk 04 Interior 04 Interior Front seats Manual seat adjustment The driver's and passenger's seats can be adjusted in a number of ways to provide a comfortable driving and sitting position.
  • Page 89 2. Use this control to raise or lower the front edge of the seat cushion. 3. Use this control to raise or lower the rear edge of the seat cushion. 4. Turn this knob (option on some passenger's seats) to adjust the firmness of the lumbar support 5.

  • Page 90: 04 Interior

    04 Interior Front seats Power seats (option) The power driver's seat can be adjusted: If the ignition key is in position I or II. During a 10 minute period after the doors have been unlocked if the door remains open. If the door is closed and the ignition key is not yet in the ignition, or if the key is in position 0, the seat can be adjusted or during a period of 40 seconds.
  • Page 91 Three different seating positions can be stored in the seat's memory. The memory buttons are located on the outboard side of the driver's seat (see the illustration). The following example explains how memory button 1 can be programmed. Buttons 2 and 3 can be programmed in the same way. To program (store) a seat position in memory button 1: 1.

  • Page 92: Interior Lighting

    Because the driver's seat can be adjusted with the ignition off, children should never be left unattended in the car. Movement of the seat can be STOPPED at any time by pressing any button on the power seat control panel. Do not adjust the seat while driving.
  • Page 93 The automatic lighting goes out when: the engine is started the car is locked from the outside using the key or remote control. If the courtesy lighting is not switched off manually, it will be turned off automatically 5 minutes after the engine has been switched off.

  • Page 94: Storage Compartments

    Raise the cover to switch on the light. 04 Interior Storage compartments 04 Interior Storage compartments 1. Storage pocket (on the rear side of the front seats) 2. Compartment in door panel (with a holder for an ice scraper) 3. Storage pocket (on the front side of the front seat cushion) 4.
  • Page 95 Glove compartment The owners manual and maps can be stored here. There are also holders for coins, pens and fuel cards. The glove compartment can only be locked and unlocked using the detachable key blade from the central locking system's remote control.
  • Page 96 The rear section of the storage compartment in the front door panel includes an integrated holder for an ice scraper. Slide the ice scraper into the holder. The scraper should be rectangular plastic, not more than 0.1 in. (3 mm) thick. The compartment also has space for a soft drink can or bottle.
  • Page 97 Storage compartments Cup holders in the center console Two cup holders are located under the sliding cover in the center console. The cup holders can be lifted out if necessary. To do so, grasp the indentation on the rear edge of the cup holder and lift.

  • Page 98: Rear Seat

    Rear seat Rear seat head restraints Each of the rear seat head restraints can be adjusted vertically to suit the height of the passenger. The upper edge of the head restraint should be on a level with the midpoint of the rear side of the passenger's head (see illustration). WARNING The center rear seat head restraint should only be in its lowest position when this seat is NOT occupied.
  • Page 99 Both sections of the rear seat backrest can be folded down, together or separately, to enable you to transport long objects. Before folding down the rear seat backrests, the outboard seat belts can be attached to the clothes hook as shown in the illustration.

  • Page 100: Trunk

    Trunk Load anchoring eyelets The eyelets in the trunk can be used to fasten accessory load and lashing straps, load nets, and other load anchors. Contents Top of Page...
  • Page 101 2 0 0 8 VOLVO 05 Locks and alarm Remote control and key blade Valet locking Keyless drive (option as available) Locking and unlocking Locking the glove compartment, Child safety locks Alarm 05 Locks and alarm 05 Locks and alarm...

  • Page 102: 05 Locks And Alarm

    If either of the remote controls is lost, the other must be taken with the car to a Volvo retailer. As an anti-theft measure, the code of the lost remote control must be erased from the system. Each key blade has a unique code, which is used if new key blades are required. A maximum of six remote controls/key blades can be programmed and used for one car.
  • Page 103 The car can also be locked if a door is open (does not apply to vehicles with the optional keyless drive. 2. Unlock - Press the Unlock button on the remote once to unlock the driver's door. The turn signals will flash twice to confirm unlocking.
  • Page 104 4. Pry out and replace the battery. Avoid touching the battery and its contact surfaces with your fingers. 5. Press the cover back into place. The old battery should be disposed of properly at a recycling center or at your Volvo retailer. 05 Locks and alarm...
  • Page 105 The key blade can be removed from the remote control. When removed, the key blade can be used as follows: To lock/unlock the driver's door To lock/unlock the glove compartment (see page 123) For valet locking (see page 116) Removing the key blade Slide the spring loaded catch (1) to the side and pull the key blade (2) out of the remote control.

  • Page 106: Valet Locking

    NOTE This does not arm the alarm or lock the trunk. 05 Locks and alarm Valet locking Valet locking function By utilizing the remote control with the key blade removed, the valet locking feature enables you to block access to the trunk and glove compartment for e.g., valet parking or when the car is brought to the retailer for service.

  • Page 107: Keyless Drive (Option As Available)

    Give the parking attendant or service personnel only the remote control (with the key blade removed). Deactivating the valet locking function 1. Turn the key blade 180° counterclockwise in the glove compartment lock to deactivate valet locking (the trunk can then be unlocked using the remote control).
  • Page 108 The buttons on the keyless drive remote control can also be used to lock and unlock the vehicle. See page 113 more information. Both of the remote controls provided with the vehicle have the keyless function, and additional remotes can be ordered.
  • Page 109 The driver's door on vehicles equipped with keyless drive can be locked or unlocked with the remote control's detachable key blade if necessary. See page 115 for information on removing the key blade from the remote control. To access the keyhole in the driver's door: 1.
  • Page 110 The message will be erased from the display and the audible signal will stop when the remote control has been returned to the vehicle and one of the following has occurred: A door has been opened and closed The start control has been turned to position 0 The READ button (see page 56 for the location of this button) has been pressed.

  • Page 111: Locking And Unlocking

    The keyless drive system has a number of antennas located at various points in the vehicle. 1. On the inside center of the rear bumper 2. Left rear door handle 3. Under the floor of the trunk, near the rear seat 4.

  • Page 112: Locking The Glove Compartment, Child Safety Locks

    all doors and the trunk, open or close the side windows , and to set the alarm. Unlocking: Press in the upper section in the lock switch. A long press (for several seconds) also opens all the side windows. Locking: Press in the lower section of the lock switch.

  • Page 113: Alarm

    The glove compartment can only be locked and unlocked using the detachable key blade on the remote control. See page 115 for information on removing the key blade from the remote control. To lock the glove compartment: Insert the key blade in the glove compartment lock. Turn the key blade 90 degrees clockwise.
  • Page 114 Fault in the alarm system: If a fault has been detected in the alarm system, a message will be shown in the information display. Contact a trained and qualified Volvo service technician to have the alarm system inspected and repaired if necessary.
  • Page 115 Turning off (stopping) the alarm If the alarm is sounding, it can be stopped by pressing the UNLOCK button on the remote control or by inserting the key in the ignition On vehicles with the optional keyless drive, press in the start control in the ignition switch. 05 Locks and alarm Alarm switch.
  • Page 116 The optional keyless drive start control does not need to be removed. CAUTION The accessory sensors are automatically reconnected to the alarm system the next time the vehicle is unlocked and then locked again. This function will not turn off the vehicle's standard alarm U.S.A.

  • Page 117: 06 Starting And Driving

    2 0 0 8 VOLVO 06 Starting and driving General information Fuel requirements Ignition switch/Steering wheel lock Starting the vehicle Starting the car with keyless drive (option) Manual transmission, 5-speed Manual transmission, 6-speed Automatic transmission Shiftlock override All Wheel Drive (option)

  • Page 118: General Information

    Better driving economy may be obtained by thinking ahead, avoiding rapid starts and stops and adjusting the speed of your vehicle to immediate traffic conditions. Observe the following rules: Bring the engine to normal operating temperature as soon as possible by driving with a light foot on the accelerator pedal for the first few minutes of operation.
  • Page 119 Volvo. Different types of antifreeze must not be mixed. Volvo recommends using only genuine Volvo antifreeze in your vehicle's radiator. Your Volvo retailer stocks plenty of Volvo engine coolant to help protect your vehicle during cold weather.
  • Page 120 Volvo recommends the use of snow tires on all four wheels for winter driving - see the chapter "Wheels and tires." To prevent the washer fluid reservoir from freezing, add washer solvents containing antifreeze (see...

  • Page 121: Fuel Requirements

    Check all lights, including high beams. Reflective warning triangles are legally required in some states/provinces. Have a word with your Volvo retailer if you intend to drive in countries where it may be difficult to obtain the correct fuel. Consider your destination. If you will be driving through an area where snow or ice are likely to occur, consider snow tires.
  • Page 122 Deposit control gasoline (detergent additives) Volvo recommends the use of detergent gasoline to control engine deposits. Detergent gasoline is effective in keeping injectors and intake valves clean. Consistent use of deposit control gasolines will help ensure good driveability and fuel economy.

  • Page 123: Fuel Requirements

    To meet seasonal air quality standards, some areas require the use of "oxygenated" fuel. Volvo allows the use of the following "oxygenated" fuels; however, the octane ratings listed on this page must still be met.

  • Page 124: Ignition Switch/Steering Wheel Lock

    If the fuel filler cap is not closed tightly or if the engine is running when the vehicle is refueled, the Check Engine Light (malfunction indicator lamp) may indicate a fault. However, your vehicle's performance will not be affected. Use only Volvo original or approved fuel filler caps.
  • Page 125 I - Intermediate position Certain accessories, radio, etc. on, daytime running lights off. Automatic transmission: the gear selector must be in the Park position. The optional keyless drive start control does not need to be removed. Please be aware that leaving the key in this positions I or II will increase battery drain. II - Drive position The key's position when driving.

  • Page 126: Starting The Vehicle

    In order to help reduce vehicle theft, make sure the steering wheel lock is engaged before leaving the vehicle. Vehicles with optional keyless drive: Turn the start control to position 0, turn the wheel slightly to release the pressure, and turn the start control to position III to start the vehicle.

  • Page 127: Starting The Vehicle

    Starting the vehicle WARNING Volvo's floor mats are specially manufactured for your car. They must be firmly secured in the clips on the floor so that they cannot slide and become trapped under the pedals on the driver's side. CAUTION Automatic transmission: The engine should be idling when you move the gear selector.

  • Page 128: Manual Transmission, 5-Speed

    Keyless drive makes it possible to unlock, start and lock the vehicle without using a remote control. A start control is fitted in the ignition switch on vehicles equipped with the optional keyless drive. This control is used in the same way as the ignition key to start the engine. See also page 136 for general information on starting the engine.

  • Page 129: Manual Transmission, 6-Speed

    Depress the clutch pedal completely when changing gears Remove your foot from the clutch pedal while driving. The shift pattern should be followed. Overdrive (5th gear) should be used as often as possible to help improve fuel economy. Clutch interlock The clutch must be fully depressed before you can start your car.
  • Page 130 6-speed manual transmission (option on certain models) Depress the clutch pedal completely when changing gears Remove your foot from the clutch pedal while driving. The shift pattern should be followed. Overdrive (5th and 6th gears) should be used as often as possible to help improve fuel economy. Clutch interlock The clutch must be fully depressed before you can start your car.

  • Page 131: Automatic Transmission

    06 Starting and driving Automatic transmission Shiftgate positions Depress the button on the front of the gear selector knob to move the selector between the R, N, D, and P positions. The gear selector can be moved freely between the Geartronic (manual shifting) and Drive (D) positions while driving. Gear selector positions P - Park Select the P position when starting or parking.
  • Page 132 N - Neutral N is the neutral position. The engine can be started, but no gear is selected. Apply the 06 Starting and driving Automatic transmission parking brake when the car is stationary with the gear selector in N. NOTE If the gear selector is in the Neutral position and the vehicle has been at a standstill for at least 3 seconds, the brake pedal must be pressed before the gear selector can be moved to another position.
  • Page 133 Cold starts (turbo engines) When driving before the engine has reached its normal operating temperature, the transmission will shift up at slightly higher engine speeds to heat the three-way catalytic converter as quickly as possible. 06 Starting and driving Automatic transmission Kickdown Automatic shift to a lower gear (kickdown) is achieved by depressing the accelerator pedal fully and briskly.

  • Page 134: Shiftlock Override

    However, if there is any tendency for the front wheels to spin, an electronically controlled coupling distributes power to the wheels that have the best traction. Tire dimensions Volvo recommends that you always drive on tires of the same brand, size, construction (radial), tread pattern, load-,...

  • Page 135: Brake System

    If the fluid level is below the MIN mark in the reservoir or if a brake system message is shown in the information display: DO NOT DRIVE. Have the vehicle towed to a trained and qualified Volvo service technician and have the brake system inspected.
  • Page 136 If the BRAKE and ABS warning symbols light at the same time, there may be a problem in the brake system. If the brake fluid level is normal in these circumstances, drive carefully to the nearest trained and qualified Volvo service technician to have the brake system checked.

  • Page 137: Stability System

    EBA is automatically deactivated when the brake pedal is released. NOTE When the EBA system is activated, the brake pedal will go down and pressure in the brake system immediately increases to the maximum level. You must maintain full pressure on the brake pedal in order to utilize the system completely.
  • Page 138 "ANTI SKID SERVICE REQUIRED" - the system has been automatically disengaged due to a fault. A trained and qualified Volvo service technician should check the system. Symbols in the instrument panel The Stability Control indicator light This light indicates different conditions, depending on how it illuminates.

  • Page 139: Towing

    2. Restart the engine. 3. If the indicator light goes out, the fault was temporary and no further action is required. 4. If the indicator light remains on, drive to an authorized Volvo workshop as soon as possible to have the system checked.
  • Page 140 Towing a vehicle with all four wheels on the ground WARNING Volvo does not recommend towing a disabled vehicle behind another vehicle. Significant difficulty in steering and braking, combined with unfavorable weather, traffic, and road conditions may make it impossible to maintain vehicle control.
  • Page 141 Towing vehicles with front wheel drive Volvo recommends the use of flat bed equipment for towing vehicles with front wheel drive. If wheel lift equipment must be used, please use extreme caution to help avoid damage to the vehicle.

  • Page 142: Jump Starting

    WARNING Remember that the power brakes and power steering will not function when engine is not running. The braking and steering systems will function but the brake pedal pressure required is 3 - 5 times above normal and greater steering effort must be exerted. The towing eyelets must not be used for pulling the vehicle out of a ditch or for any similar purpose involving severe strain.

  • Page 143: Towing A Trailer

    Do not connect the trailer's brake system directly to the vehicle's brake system. More frequent vehicle maintenance is required. Remove the ball and drawbar assembly when the hitch is not being used. Volvo recommends the use of synthetic engine oil when towing a trailer over long distances or in mountainous areas.

  • Page 144: Detachable Trailer Hitch

    Trailer hitches attaching to the vehicle's rear axle must not be used. Never connect a trailer's hydraulic brake system directly to the vehicle brake system, nor a trailer's lighting system directly to the vehicle lighting system. Consult your nearest trained and qualified Volvo service technician for correct installation.

  • Page 145: Transporting Loads

    When the rear backrest(s) are folded down, the vehicle should not be loaded to a level higher than 2 in. (5 cm) below the upper edge of the rear side windows. Objects placed higher than this level could impede the function of the Volvo Inflatable Curtain. Load carriers (accessory)

  • Page 146: Blind Spot Information System (Blis)-Option

    Volvo has developed especially for your car. Volvo-approved removable roof racks are designed to carry the maximum allowable roof load for this vehicle: 165 lbs (75 kg). For Non-Volvo roof racks, check the manufacturer's weight limits for the rack.
  • Page 147 BLIS does not eliminate the need for you to visually confirm the conditions around you, and the need for you to turn your head and shoulders to make sure that you can safely change lanes. As the driver, you have full responsibility for changing lanes in a safe manner. The system is based on digital camera technology.
  • Page 148 BLIS does not function in sharp curves. BLIS does not function when your vehicle is backing up. If you are towing a wide trailer, this may prevent the BLIS cameras from detecting other vehicles in adjacent lanes. How BLIS functions in daylight and darkness Daylight BLIS reacts to the shape of surrounding vehicles.
  • Page 149 Cleaning the BLIS camera lenses In order to function optimally, the BLIS camera lenses must be kept clean. They can be wiped clean with a soft cloth or wet sponge. CAUTION Clean the lenses carefully to avoid scratching. The lenses are electrically heated to help melt ice or snow. If necessary, gently brush away snow from the lenses. 06 Starting and driving Blind Spot Information System (BLIS)-option Switching BLIS on and off...

  • Page 150: Park Assist (Option/Accessory)

    06 Starting and driving Park assist (option/accessory) Introduction The park assist system is designed to assist you when driving into parking spaces, garages, etc. It utilizes four ultrasound sensors located in one or both bumpers to measure the distance to a vehicle, object, or a person who may be close to the front or rear of your vehicle.
  • Page 151 NOTE Rear park assist is deactivated automatically when towing a trailer if Volvo genuine trailer wiring is used. Front park assist The distance monitored in front of the vehicle is approximately 2.5 ft (0.8 m). The audible signal comes from the audio system's front speakers.
  • Page 152 Consult a trained and qualified Volvo service technician. CAUTION In certain circumstances, the park assist system may give unexpected warning signals that can be caused by external sound sources that use the same ultrasound frequencies as the system.
  • Page 153 If the sensors are obstructed by e.g., dirt, snow, or ice, this could result in false warning signals from the park assist system. 06 Starting and driving This page left intentionally blank. Contents Top of Page...

  • Page 154: 07 Wheels And Tires

    2 0 0 8 VOLVO 07 Wheels and tires General information Tire inflation Tire designations Glossary of tire terminology Vehicle loading Uniform tire quality gradings Snow chains, snow tires, studded tires Temporary spare Wheel nuts Tire rotation Changing a wheel...

  • Page 155: General Information

    WARNING The wheel and tire sizes for your Volvo are specified to meet stringent stability and handling requirements. Unapproved wheel/tire size combinations can negatively affect your vehicle's stability and handling. Approved tire sizes are shown in the Tire inflation pressure tables on pages 172 and 173.

  • Page 156: Tire Inflation

    New Tires Remember that tires are perishable goods. As of 2000, the manufacturing week and year (Department of Transportation (DOT) stamp) will be indicated with 4 digits (e.g. 1502 means that the tire illustrated was manufactured during week 15 of 2002). Tire age Tires degrade over time, even when they are not being used.
  • Page 157 NOTE The placards shown indicate inflation pressure for the tires installed on the car at the factory only. Use a tire gauge to check the tire inflation pressure, including the spare, at least once a month and before long trips. You are strongly urged to buy a reliable tire pressure gauge, as automatic service station gauges may be inaccurate.
  • Page 158 07 Wheels and tires Tire inflation Tire inflation pressure tables - U.S. models The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire inflation placard for information specific to the tires installed on your vehicle at the factory.

  • Page 159: Tire Designations

    Tire inflation Tire inflation pressure tables - Canadian models The following tire pressures are recommended by Volvo for your vehicle. Refer to the tire inflation placard for information specific to the tires installed on your vehicle at the factory. Optional pressure may not be used for homologation of fuel consumption or emissions.
  • Page 160 Federal law mandates that tire manufacturers place standardized information on the sidewall of all tires (see the illustration). The following information is listed on the tire sidewall: The tire designation (the following figures are examples of a tire designation): 1. 215: the width of the tire (in millimeters) from sidewall edge to sidewall edge. The larger the number, the wider the tire.

  • Page 161: Glossary Of Tire Terminology

    This limit is set by the tire manufacturer. Recommended tire inflation pressure: inflation pressure, established by Volvo, which is based on the type of tires that are mounted on a vehicle at the factory. This inflation pressure is affected by the number of occupants in the car, the amount of cargo, and the speed at which the vehicle will be driven for a prolonged period.
  • Page 162 Loading the vehicle Properly loading your vehicle will provide maximum return of vehicle design performance. Before loading your vehicle, familiarize yourself with the following terms for determining your vehicle's weight ratings, with or without a trailer, from the vehicle's Federal/Canadian Motor Vehicle Safety Standards (FMVSS/CMVSS) label, and the vehicle's tire information placard: Curb weight The weight of the vehicle including a full tank of fuel and all standard equipment.

  • Page 163: Uniform Tire Quality Gradings

    07 Wheels and tires Vehicle loading how this reduces the available cargo and luggage load capacity of your vehicle. WARNING Exceeding the permissible axle weight, gross vehicle weight, or any other weight rating limits can cause tire overheating resulting in permanent deformation or catastrophic failure. Do not use replacement tires with lower load carrying capacities than the tires that were original equipment on the vehicle because this will lower the vehicle's GVW rating.

  • Page 164: Snow Chains, Snow Tires, Studded Tires

    Snow chains can be used on your Volvo with the following restrictions: Snow chains should be installed on front wheels only. Use only Volvo approved snow chains. If accessory, aftermarket or "custom" tires and wheels are installed and are of a size different than the original tires and wheels, chains in some cases CANNOT be used.

  • Page 165: Temporary Spare

    Recommended tire pressure (see the placard on the B-pillar or on the fuel filler door) should be maintained irrespective of which position on the car the temporary spare tire is used on. In the event of damage to this tire, a new one can be purchased from your Volvo retailer. WARNING Current legislation prohibits the use of the "Temporary Spare"...

  • Page 166: Tire Rotation

    Incorrectly mounted tires impair the car's braking properties and ability to force aside rain, snow and slush. The tires with the most tread should always be at the rear (to reduce the risk of skidding). Contact a Volvo workshop if you are unsure about the tread depth. Tire rotation Your vehicle has no recommended tire rotation.

  • Page 167: Changing A Wheel

    they may not be optimal. Further, tires that are rotated, but not on a regular basis, may actually cause more tire noise, faster tire wear, and unpleasant changes in steering feel and vehicle handling. A tire that can fully adapt to its position will provide better steering feel, lower tire noise, and better fuel economy. Braking stability performance Your vehicle is driven mainly by the front tires, which will wear faster.
  • Page 168 5. With the car still on the ground, use the lug wrench to loosen the wheel nuts 1/2- 1 turn by exerting downward pressure. Turn the nuts counterclockwise to loosen. 6. There are two jack attachment points on each side of the car. Position the jack correctly in the attachment (see illustration above) and crank while simultaneously guiding the base of the jack to the ground.

  • Page 169: Tire Pressure Monitoring System (Tpms)

    Installing the wheel 1. Clean the contact surfaces on the wheel and hub. 2. Lift the wheel and place it on the hub. 3. Install the wheel nuts and tighten handtight. Using the lug wrench, tighten crosswise until all nuts are snug. 4.
  • Page 170 data to a receiver located in the vehicle. NOTE USA - FCC ID: KR5S122780002 This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 171 20 mph (30 km/h) or faster to erase the message. Volvo recommends that TPMS sensors be fitted on all wheels used on the vehicle. Volvo does not recommend moving sensors back and forth between sets of wheels.
  • Page 172 Contents Top of Page...

  • Page 173: Washing And Cleaning The Car Paint Touch Up

    2 0 0 8 VOLVO 08 Car care Washing and cleaning the car Paint touch up 08 Car care 08 Car care Washing and cleaning the car Washing the car The following points should be kept in mind when washing and cleaning the car: The car should be washed at regular intervals since dirt, dust, insects and tar spots adhere to the paint and may cause damage.
  • Page 174 When washing the car, remember to remove dirt from the drain holes in the doors and sills. Exterior components Volvo recommends the use of special cleaning products, available at your Volvo retailer, for cleaning colored plastic, rubber, or ornamental components such as chromed strips on the exterior of your vehicle. The instructions for using these products should be followed carefully.Solvents or stain removers should not be used.
  • Page 175 (45° C). CAUTION Volvo does not recommend the use of long-life or durable paint protection coatings, some of which may claim to prevent pitting, fading, oxidation, etc. These coatings have not been tested by Volvo for compatibility with your vehicle's clear coat. Some of them may cause the clear coat to soften, crack, or cloud. Damage caused by application of paint protection coatings may not be covered under your vehicle's paint warranty.

  • Page 176: Paint Touch Up

    Volvo also offers a special leather softener that should be applied after the cleaner and protectant. It leaves leather soft and smooth, and reduces friction between leather and other finishes in the vehicle. Volvo recommends cleaning, protecting and conditioning your vehicle's leather two to four times a year. Ask your Volvo retailer about Leather Care Kit 951 0251 and Leather Softener 943 7429.
  • Page 177 Volvo touch-up paint. Color code When ordering touch-up paint from your Volvo retailer, make sure you have the right color. Use the paint code indicated on the model plate (1 in the illustration above). If the stone chip has not penetrated down to the metal and an undamaged layer of paint remains, the touch-up paint can be applied as soon as the spot has been cleaned.
  • Page 178 1. Place a strip of masking tape over the damaged surface. Pull the tape off so that any loose flakes of paint adhere to 2. Thoroughly mix the primer and apply it with a small brush. When the primer surface is dry, the paint can be applied using a brush.

  • Page 179: 09 Maintenance And Servicing

    This maintenance program contains inspections and services necessary for the proper function of your vehicle. The maintenance services contain several checks that require special tools and training, and therefore must be performed by a qualified technician. To keep your Volvo in top condition, specify time-tested and proven Genuine Volvo Parts and Accessories.
  • Page 180 Maintenance Your Volvo passed several major inspections before it was delivered to you, in accordance with Volvo specifications. The maintenance procedures outlined in the Warranty and Service Records Information booklet, many of which will positively affect your vehicle's emissions, should be performed as indicated. It is recommended that receipts for vehicle emission maintenance be retained in case questions arise concerning maintenance.
  • Page 181 Wipe driver information displays with a soft cloth. Visually inspect battery terminals for corrosion. Corrosion may indicate a loose terminal connector, or a battery near the end of its useful service life. Consult a trained and qualified Volvo service technician for additional information. As needed: Wash the car, including the undercarriage, to reduce wear that can be caused by a buildup of dirt, and corrosion that can be caused by salt residues.

  • Page 182: Hood

    OBD II system to "ready" for inspection. A half-hour trip of mixed stop- and-go/highway driving is typically needed to allow OBD II to reach readiness. Your Volvo retailer can provide you with more information on planning a trip.

  • Page 183: Engine Oil

    Changing engine oil and oil filter page 253 for oil specifications. Refer to the Warranty and Service Records Information booklet for information on the oil change intervals. Volvo recommends Castrol. NOTE Volvo does not recommend the use of oil additives.
  • Page 184 Synthetic oil is not used when the oil is changed at the normal maintenance intervals except at owner request and at additional charge. Please consult a trained and qualified Volvo service technician. Checking and adding oil The oil level should be checked every time the vehicle is refueled. This is especially important during the period up to the first scheduled maintenance service The car should be parked on a level surface when the oil is checked.

  • Page 185: Fluids

    Do not allow oil to spill onto or come into contact with hot exhaust pipe surfaces NOTE Volvo uses different systems to indicate a low oil level or pressure. Some models have an oil pressure sensor, in which case a warning symbol (see page 54) is used to indicate low oil pressure.
  • Page 186 Do not top off with water only. This reduces the rust-protective and antifreeze qualities of the coolant and has a lower boiling point. It can also cause damage to the cooling system if it should freeze. Top off with Volvo Genuine Coolant/Antifreeze only (a 50/50 mix of water and antifreeze).

  • Page 187: Wiper Blades

    Fluid type: Volvo power steering fluid or equivalent. Replace: No fluid change required. WARNING If a problem should occur in the power steering system or if the vehicle has no electrical current and must be towed, it is still possible to steer the vehicle. However, keep in mind that greater effort will be required to turn the steering wheel.

  • Page 188: Battery

    1. Fold out the wiper arm. 2. Press the button on the wiper blade attachment and pull straight out (1), parallel with the wiper arm. 3. Press a new wiper blade (2) until it clicks into place. 4. Ensure the blade is securely attached (3). 5.
  • Page 189 Driving habits and conditions, climate, the number of starts, etc., all affect the service life and function of the battery. In order for your battery to perform satisfactorily, keep the following in mind: Check the fluid level in each cell in the battery every 24 months or every 15,0001 miles (24,000 km), whichever is sooner.
  • Page 190 Battery Battery symbols Battery replacement Removing the battery 1. Switch off the ignition and remove the key. 2. Wait at least 5 minutes after switching off the ignition before disconnecting the battery so that all information in the vehicle's electrical system can be stored in the control modules. 3.

  • Page 191: Replacing Bulbs

    5. Connect the ground cable. 6. Reinstall the cover over the battery. NOTE Used batteries should be properly disposed of at a recycling station or similar facility, or taken to your Volvo retailer. WARNING Never expose the battery to open flame or electric spark.
  • Page 192 After the defective bulb has been replaced, reinsert the housing in the reverse order. Check that the retaining pin is correctly inserted. WARNING Bi-Xenon® headlights (option) - due to the high voltage used by these headlights, these bulbs should only be replaced by a trained and qualified Volvo service technician. 09 Maintenance and servicing Replacing bulbs...
  • Page 193 Low beam bulb 1. Open the hood. 2. Remove the headlight housing. 3. Remove the wiring connector from the bulb. 4. Release the bulb's retaining spring by pressing it inward and downward. 5. Pull out the bulb. Installing a new bulb 1.
  • Page 194 WARNING Bi-Xenon® headlights (option) - due to the high voltage used by these headlights, the Bi-Xenon® bulbs should only be replaced by an authorized Volvo service technician. 5. Pull out the bulb holder and replace the bulb. 6. Reinstall the bulb holder. It can only be installed in one position.
  • Page 195 1. Open the hood. 1. Remove the headlight housing (see page 212). 2. Remove the cover on the upper side of the headlight housing by turning it counterclockwise. 3. Pull out the bulb holder. 4. Replace the bulb. 5. Press the bulb holder back into place. It will click into place. 6.
  • Page 196 4. Remove the bulb from the holder by pressing it in and twisting it counterclockwise. 5. Insert a new bulb and reinstall the bulb holder in the headlight housing. 6. Reinstall the headlight housing. Side marker light 1. Open the hood. 2.
  • Page 197 7. Press the bulb holder into place and reinstall the cover. NOTE If the message indicating a burned out bulb remains in the information display after the bulb has been replaced, consult a trained and qualified Volvo service technician. Location of taillight bulbs...
  • Page 198 1. Brake light (LED) NOTE The wiring to the LED brake lights is permanently connected to the bulb holder. It should not be removed. 2. Taillight 3. Parking light 4. Fog light (driver's side only) 5. Turn signal 6. Back-up light 09 Maintenance and servicing Replacing bulbs License plate lighting...
  • Page 199 4. Replace the bulb. 5. Reinstall the connector and turn it clockwise. 6. Reinstall the entire bulb housing and screw it into place. Footwell lighting The footwell lighting is located under the dashboard on the driver's and passenger's sides. To replace a bulb: 1.

  • Page 200: Fuses

    2. From the side, examine the curved metal wire in the fuse to see if it is intact. 3. If the wire is broken, insert a new fuse of the same color and amperage (written on the fuse). If fuses burn out repeatedly, have the electrical system inspected by a trained and qualified Volvo service technician.
  • Page 201 Fuse box in the engine compartment The fuse box in the engine compartment has positions for 36 fuses. Fuses 1-18 are relays/circuit breakers and should only be removed or replaced by an authorized Volvo service technician. Fuses 19-36 may be changed at any time when necessary.
  • Page 202 The fuse box in the passenger compartment is located under the glove compartment. To access the fuses: 1. Remove the upholstery covering the fuse box by first pressing in the center pins in the mounting clips approximately 0.5 in (1cm) with a small screwdriver and then pulling the pins out. 2.
  • Page 203 09 Maintenance and servicing Fuses Fuses in the passenger compartment 09 Maintenance and servicing Fuses...
  • Page 204 09 Maintenance and servicing This page left intentionally blank. Contents Top of Page...

  • Page 205: 10 Audio

    2 0 0 8 VOLVO 10 Audio Audio functions Radio functions Sirius satellite radio (option or retailer-installed accessory) CD player/CD changer (option) Audio menu 10 Audio 10 Audio Audio functions Audio system controls 1. VOLUME dial 2. AM/FM - select a radio band...
  • Page 206 3. MODE - select a sound source 4. TUNING dial 5. SOUND button Selecting a sound source Press AM/FM (2) repeatedly to toggle between FM1, FM2, and AM. Press MODE (3) repeatedly to toggle between the CD player and the optional external sound source AUX or the optional Sirius satellite radio.
  • Page 207 Audio functions 7. If there is distortion, lower your music player's headphone volume until the distortion goes away. 8. Finally, exit the menu and adjust the audio volume to a comfortable level. Volume Use the volume dial (1) or the buttons in the optional steering wheel keypad to adjust the volume level. The volume level is also adjusted automatically according to the vehicle's speed, see page 234 for more information on this...
  • Page 208 An auxiliary device, such as an iPOD or a USB flash drive can be connected to the audio system via the connector in the center console storage compartment. A sound source must be chosen, depending on the device that has been connected: 1.
  • Page 209 acoustics, the seating position of the listener, etc., for each combination of vehicle and audio system. There is also dynamic calibration that takes into account the setting of the volume control, radio reception, and the vehicle's speed. The sound settings described in this manual, such as BASS, TREBLE, and EQUALIZER are only intended to enable the user to adapt sound reproduction to his/her personal preferences.
  • Page 210 Activating/deactivating Surround sound 1. Press MENU followed by ENTER. 2. Select AUDIO SETTINGS in the menu and press ENTER. 3. Select Surround FM/AM/CD/AUX and press ENTER. 4. Select PRO LOGIC II, 3-channel stereo or and press ENTER. Equalizer Front/Rear This function is used to fine-tune the sound level for different frequencies separately. NOTE This function is only available on certain sound systems.

  • Page 211: Radio Functions

    4. Select LOW, MEDIUM, HIGH and press ENTER. 10 Audio Radio functions Radio function controls 1. AM/FM1/FM2 selection 2. Station preset buttons 3. TUNING dial for selecting radio stations 4. SCAN 5. MENU NAVIGATION CONTROL-press the up or down arrow keys to scroll in a menu, or the keys on the left/right sides of the control to search for or change radio stations/CD tracks 6.
  • Page 212 NOTE A total of 30 stations can be stored; 10 stations each in AM, FM1 and FM2. Automatically storing a station Pressing AUTO (7) automatically searches for and stores up to ten strong AM or FM stations in a separate memory. If more than ten stations are found, the ten strongest ones are stored.
  • Page 213 3. Press the SCAN or EXIT button to deactivate the scan function and listen to the selected station. Storing a station found with SCAN A station can be stored as a preset while the SCAN function is activated. Press one of the preset buttons (2) under which the station is to be stored. Hold down the button until STATION STORED is displayed.
  • Page 214 SIRIUS ID The SIRIUS ID is required when contacting the Sirius Call Center. It is used to activate your account and when making any account transactions. The SIRIUS ID is sometimes referred to as the Electronic Serial Number (ESN). Selecting a channel category 1.
  • Page 215 NOTE SCAN automatically searches through the list of satellite channels. See page 236 for more detailed information. Storing a channel A long press on one of the number keys stores the currently tuned channel on that key. A short press on a number key while the radio is in Sirius 1 or 2 mode will tune to the preset satellite channel stored on that button, regardless of the currently selected channel category.
  • Page 216 10 Audio Sirius satellite radio (option or retailer-installed accessory) Advanced settings This menu function enables you to make settings on certain Sirius satellite radio functions. To access this menu: 1. Press MENU. 2. Scroll to Sirius menu. 3. Select ADVANCED SIRIUS SETTINGS.
  • Page 217 ID" in the Sirius settings menu and press ENTER. 2. Press and hold the ENTER button for 2 seconds. 3. The current code will be displayed. Your Volvo retailer can also provide you with assistance. SIRIUS ID This function displays the 12-digit Sirius activation ID.
  • Page 218 10 Audio CD player/CD changer (option) CD function controls 1. MENU NAVIGATION CONTROL-press the up or down arrow keys to scroll in a menu, or the keys on the left/right sides of the control to change CD tracks/fast forward/back 2. Buttons for selecting a disc in the optional CD changer 3.
  • Page 219 Ensure that INSERT DISC is displayed before inserting a disc. If a CD position in the changer containing a disc is selected, and the audio system is in CD mode when it is switched on, the CD will play automatically. CD eject Eject from Single CD player Press the eject button (3) to eject the disc.
  • Page 220 Changing tracks Briefly press the left or right arrow keys on the MENU NAVIGATION CONTROL to skip to the previous or next track/file. NOTE The TUNING dial (6) (turn clockwise to go to the next track/file, or counterclockwise to go to the previous track/file) or the optional steering wheel keypad can also be used for this purpose.
  • Page 221 CD changer only-you can only select the next random track/file on the current disc. Press the EXIT button to stop random play. The random function is automatically deactivated when another disc is selected. Disc text (CD changer only) Certain CDs contain information about the disc, such as the titles of the tracks, etc. This information can be shown in the display by activating the DISC TEXT function.
  • Page 222 Use discs of the correct size only (3.5" discs should never be used). Volvo does not recommend the use of plastic outer rings on the disc. Condensation may occur on discs/optical components of the changer in cold winter weather. The disc can be dried with a clean, lint-free cloth.

  • Page 223: 11 Specifications

    2 0 0 8 VOLVO 11 Specifications Label information Dimensions and weights Engine oil Engine specifications Electrical system Volvo programs 11 Specifications 11 Specifications Label information...
  • Page 224 2. Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Ministry of Transport (CMVSS) standards (Canada) Your Volvo is designed to meet all applicable safety standards, as evidenced by the certification label on the facing side of the driver's door. For further information regarding these regulations, please consult your Volvo retailer.
  • Page 225 Dimensions and weights Dimensions CAUTION The maximum permissible axle loads and/or the gross vehicle weight must not be exceeded. WARNING When adding accessories, equipment, luggage and other cargo to your vehicle, the total capacity weight must not be exceeded. 11 Specifications Dimensions and weights Weights...
  • Page 226 FWD = Front Wheel Drive AWD = All Wheel Drive Models equipped with the B5244S7 engine (engine code 39, which is the 6th and 7th digits from the left in your vehicle's VIN number, see page for the location of the VIN plate), may not be used to tow trailers or vehicles of any kind. This could cause damage to the vehicle's emission control systems.
  • Page 227 Operation in hot climates When temperatures exceed 104° F (40° C) in your area, Volvo recommends, for the protection of your engine, that you use a heavier weight oil, such as such as SAE 5W-40 or 0W-40. See the viscosity chart.
  • Page 228 Engine oil American Petroleum Institute (API) symbol The API Service Symbol "donut" is divided into three parts: The upper section describes the oil's performance level. The center identifies the oil's viscosity. The lower section indicates whether the oil has demonstrated energy-conserving properties in a standard test in comparison to a reference oil.
  • Page 229 Models equipped with the High Performance audio system Models equipped with the Premium Sound audio system, the Volvo Navigation System and/or keyless drive If the battery must be replaced, replace it with one with the same cold start capacity and reserve capacity as the original (see the decal on the battery).
  • Page 230 Volvo On Call Roadside Assistance Your new Volvo comes with a four year ON CALL roadside assistance. Additional information, features, and benefits are described in a separate information package in your glove compartment. If you have misplaced your package, dial: In the U.S.A.
  • Page 231 Technician certification In addition to Volvo factory training, Volvo supports certification by the National Institute for Automotive Service Excellence (A.S.E.). Certified technicians have demonstrated a high degree of competence in specific areas. Besides passing exams, each technician must also have worked in the field for two or more years before a certificate is issued.
  • Page 232 2 0 0 8 VOLVO 260- 12 Index 12-volt socket malfunction of the ABS system Accessory Installation- Important Warning Active Bi-Xenon® headlights Active yaw control - AYC Air conditioning Air distribution Air vents Airbag system Alarm All Wheel Drive Antifreeze...
  • Page 233 conserving electrical current maintenance replacement specifications Battery replacement, remote control Bi-Xenon® headlights 59, 212, Black box (Vehicle Event Data) Blind Spot Information System (BLIS) 158 - 160 Booster cushion accessory Brake fluid Brake lights Bulbs list of replacing Capacities, fluids Cargo area lighting, replacing Catalytic converter, three-way changer...
  • Page 234 Dimensions Disabling the passenger's side front airbag Display, instrument panel Door open warning Driving through water DSTC, stability system Dynamic Stability and Traction Control (DSTC) Economical driving Electrical current - conserving Electrical system Electronic Brake Force Distribution (EBD) Electronic Climate Control (ECC) - option Emergency brake lights Emission inspection readiness Engine oil...
  • Page 235 Generator Generator warning light Glossary of tire terminology Glove compartment locking Hazard warning flashers Head restraints, rear seat Headlight housing, removing Headlights Active Bi-Xenon® Headlights, high and low beams High beam bulb, replacing High beam flash High beam indicator Home safe lighting HomeLink®...

  • Page 236: Manual Climate Control

    using Keylock Kickdown Label information License plate lighting, replacing Lighting panel Locking from the inside valet Long distance trips Low beam bulb, replacing Low beam headlight Maintenance Malfunction indicator light Manual climate control Manual front seat adjustment Manual shifting (Geartronic) Mirrors, rearview mirror Moonroof MP3 files, CDs containing...
  • Page 237 Power front seats Power moonroof Power steering fluid Power windows PROPOSITION 65 WARNING 209, Radio functions Radio text Radio, Sirius satellite Rain sensor (option) Reading lights, rear Rear fog light Rear seat backrests, folding down Rear seat head restraints Rearview mirror Rearview mirror with compass (option) Recalls, child restraints Refueling...
  • Page 238 Snow chains Sound control, automatic Speedometer SRS warning light Stability and Traction Control (STC) Stability system Stability system (STC/DSTC) Start inhibitor (immobilizer) Starting the vehicle Steering wheel lock Storage compartments 103, Sunroof (moonroof) Tachometer Taillight bulb holder, removing Technician certification Temperature gauge Temporary spare Three-way catalytic converter...

  • Page 239: Wheel Nuts

    Vehicle Event Data Vehicle Identification Number Volvo and the environment Volvo Customer Care Center, contacting 1, 19, Volvo Inflatable Curtain Volvo maintenance Volvo On Call Roadside Assistance Warning flashers Warning symbol Warranties Washer fluid Water, driving through Weight distribution Weights...
