- Page 1 TM-G704B_SR; Rev.: A Date: 11/06/13 DCR# 13-1687 ORIGINAL INSTRUCTIONS G704B-SR CherryMAX® Split Power Tool 1224 East Warner Ave, Santa Ana, CA 92705 Tel: 1-714-545-5511 Fax: 1-714-850-6093 www.cherryaerospace.com...
-
Page 2: Table Of Contents

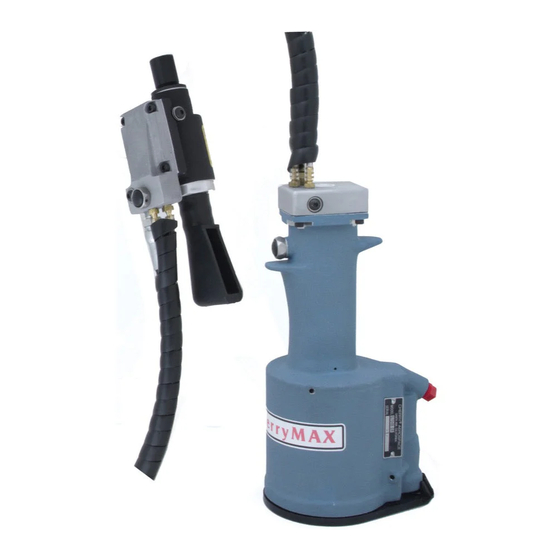

Pulling Heads and Extensions ............................6 Part List ..................................7 D E S C R I P T I O N G704B-SR is a split riveter designed for the installation of blind rivets in limited access applications. The tool transmits power from the power unit through a flexible 4 foot hose to a compact hand held head. -
Page 3: Safety Warnings
Before disassembling the tool for repair, refer to the maintenance instructions. All repairs shall be undertaken only by personnel trained in Cherry installation tools. Disconnect the air line from the tool inlet before servicing, adjusting, fitting or removing any accessory. -
Page 4: Maintenance And Repair
MAINTENANCE AND REPAIR This riveter has been manufactured to give maximum service with minimum care. For optimum function: 1. The hydraulic system to be full of oil and free from air at all times. 2. Use clean and dry air to prevent premature wear and clogging of the air components. 3. -
Page 5: Troubleshooting
TROUBLESHOOTING POSSIBLE REASONS / SOLUTIONS PROBLEM - No air supply is connected: Connect to a clean, filtered air source at 90 to 110 psi (6,2 to 7,6 bar). Piston does not move after depressing Trigger - Faulty trigger: Remove and replace trigger assembly. - Broken power piston: Service the Handle Subassembly. - Page 6 G704B-SR CONVERSION KIT (FROM G704B TO G704B-SR) ASSY NO ITEM PART NO DESCRIPTION G704 B-SR CONVERSION KIT P-293 O-RING P-832 O-RING 704C45 MANIFOLD HEAD P-27 SOCKET HEAD SCREW 703A33 TRIGGER ASSEMBLY P-1181 4' HOSE FITTING 704C49 704A48-3 FLEXIBLE TUBING P-1180...
- Page 7 PART LIST FOR THE G704B (704-087) CHERRYMAX RIVETER ASSEMBLY ITEM NO. DESCRIPTION QTY. 704B35 HEAD CYLINDER SUB-ASSEMBLY 704C19 HEAD CYLINDER 704C18 CYLINDER, HEAD 704B2-2 FITTING, NOSE P-701 O-RING (.629, .489, .070) P-998 RING, BACK-UP (.609, .503, .053) 704C3 PISTON, HEAD P-931 O-RING (1.193, .987, .103) P-1000...
- Page 8 E X P L O D E D V I E W O F G 7 0 4 B Supplier’s Federal Identification Code: 11815 TM-G704B_SR; Rev.: A Date: 11/06/13 DCR# 13-1687...
- Page 9 G704B-SR PULLING HEADS Pulling Heads are not furnished with riveter and must be ordered separately; see Tool Sheet for details on service and about all the fastener capabilities of each pulling head. Pulling Head Type Adapter Rivet Rivet Diameters Maximum Grip...
- Page 10 Declaration of Conformity We, Cherry Aerospace Located at 1224 East Warner Avenue, Santa Ana, CA 92705-0157, USA, In accordance with the provisions of Machine Directive 2006/42/EC Hereby declare under our sole responsibility that: Equipment: Pneumatic Hydraulic Hand Riveter Base Model Number: G-704B...
