audiophony X312 User Manual

2-way stereo or 3-way mono active filter
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
USER GUIDE
9669 - Version 1 / 06-2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X312 and is the answer not in the manual?

Questions and answers

Related Manuals for audiophony X312

Summary of Contents for audiophony X312

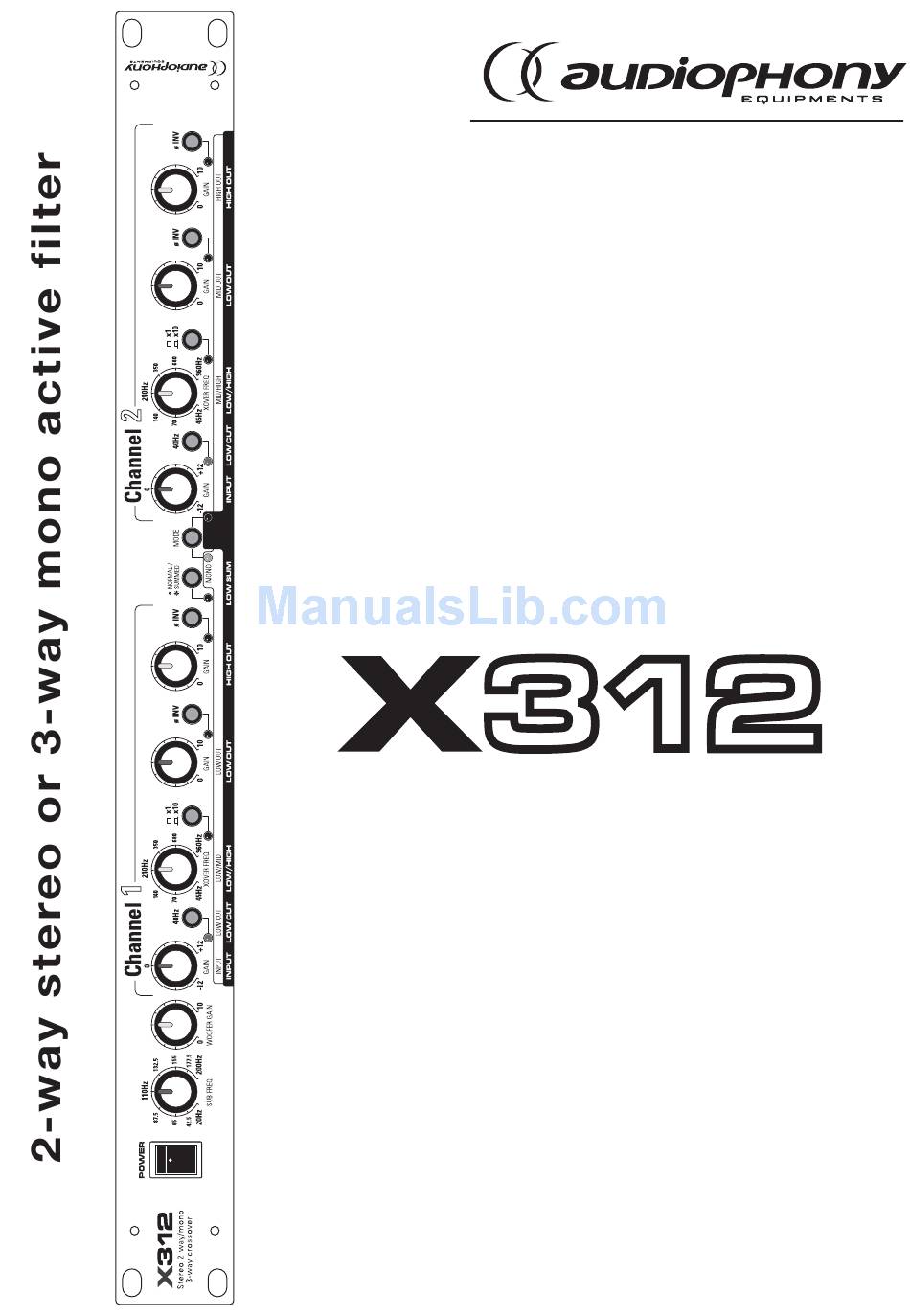

  • Page 1 USER GUIDE 9669 - Version 1 / 06-2009...

  • Page 2: Safety Information

    ENGLISH X312 - 2-way stereo or 3-way mono active filter 1 - Safety information Important safety information This unit is intended for indoor use only. Do not use it in a wet, or extremely cold/hot locations. Failure to follow these safety ins-...

  • Page 3: Our Recommendations

    X312 - 2-way stereo or 3-way mono active filter 2 - Our recommendations The X312 is a device allowing you to modify the volume and structure of an audio signal. This process can create distortions that can be harmful to your sound system.
  • Page 4 ENGLISH X312 - 2-way stereo or 3-way mono active filter 5 - Description of the command panel 15 17 19 14 16 18 [19] - Allows you to switch from Mono (3 ways) to Stereo (2 ways) mode. LEDs [18] and [20] indicate the current mode.
  • Page 5 ENGLISH X312 - 2-way stereo or 3-way mono active filter 5.2 - 3-way Mono mode: [1] - Power switch [13] - HIGH OUT knob Turns the unit ON/OFF. Deactivated in mono mode. [2] - SUB FREQ button [15]- INV button Allows you to configure the cutoff frequency of the SUB Deactivated in mono mode.
  • Page 6 ENGLISH X312 - 2-way stereo or 3-way mono active filter 6 - Connectors 6.1 - 2-way Stereo mode: [33] - HIGH OUT [38] - CH1 IN Channel 2 high frequencies output Channel 1 input [39] - SUB OUT [34] -LOW OUT...

  • Page 7: Technical Specifications

    ENGLISH X312 - 2-way stereo or 3-way mono active filter 8 - Technical specifications Gentle reminder: 0dBu = 0,775 V RMS • Inputs: - XLR connectors - Impedance: > 50 kOhms (balanced) - 25 kOhms (unbalanced) - Max level: +22 dBu •...
  • Page 8 ® Because AUDIOPHONY takes the utmost care in its products to make sure you only get the best possible quality, our products are subjects to modifications without prior notice. That is why technical specifications and the products physical configuration might differ from the illustrations.
