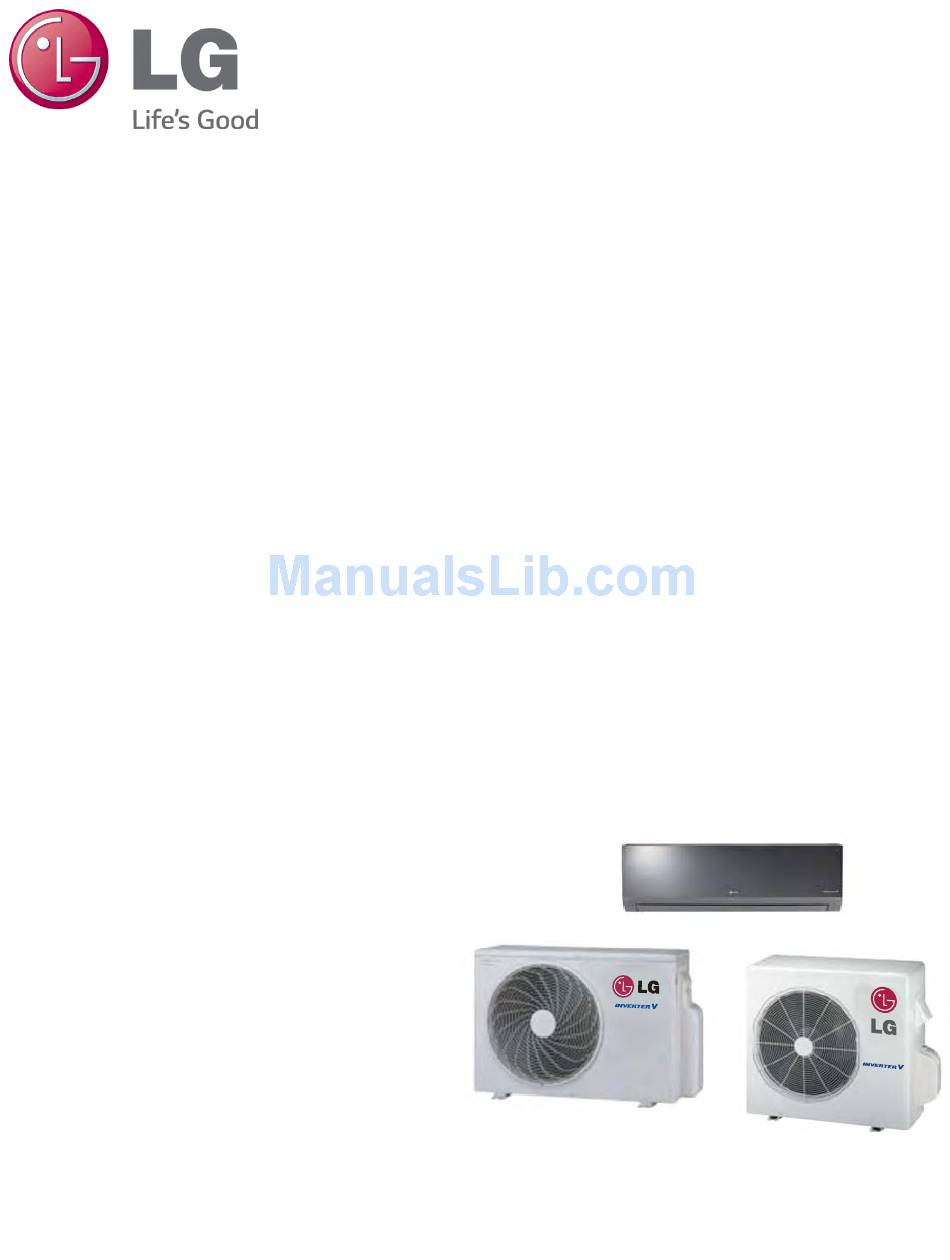

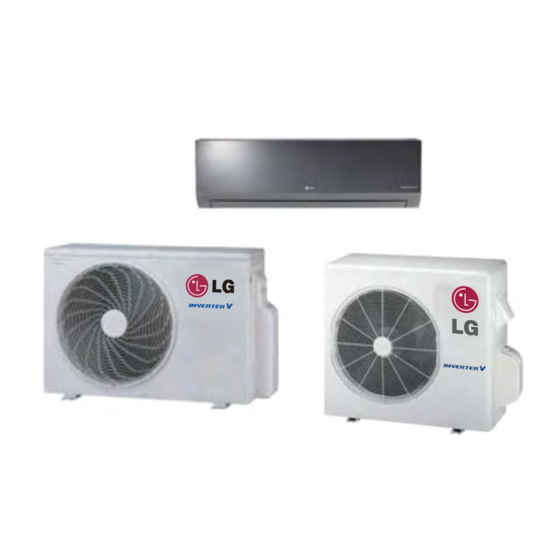

- Page 1 COOl MirrOr wall MOunted Owner’s Manual Art Cool Mirror Wall Mounted LA090HSV2, LA120HSV2 LA180HSV2, LA240HSV2...
- Page 2 LG Electronics U.S.A., Inc., and are disclosed by LG Electronics U.S.A., Inc., only in confidence. This document is for design purposes only. OL-SZ-ArtCoolMirror-ALL-07-14 For continual product development, LG Electronics U.S.A., Inc., reserves the right to change specifications without notice. ©LG Electronics U.S.A., Inc.
-
Page 3: Table Of Contents
table Of COntents Safety Instructions ................4 Advanced Functions ................15 Jet Cool/Heat Operation - Auto Changeover Operation Unit Parts ....................7 Energy Saving Operation -Manual Operation Auto Restart Unit Operation ..................9 Maintenance ..................18 Basic Functions ................... 13 Cooling Operation - Adjusting the Air Flow (Swing) Direction Troubleshooting .................. -
Page 4: Safety Instructions
safety instruCtiOns Single Zone Art Cool Mirror iMPOrtant! • Please read this manual completely before operation of the product. • Follow the instructions in this manual to prevent product malfunction, property damage, injury or death to the user or other people. Incorrect operation due to ignoring any instructions will cause harm or damage. • The level of seriousness is classified by the symbols described below. - Page 5 safety instruCtiOns Single Zone Art Cool Mirror installation safety • Do not install the air conditioner on an unstable surface or where ies in a packing bag after installation or repair. Failure to do so may there is a danger of it falling; because it may result in death, serious result in serious bodily injury.
- Page 6 safety instruCtiOns Single Zone Art Cool Mirror usage (Continued) • Do not let the air conditioner run for a long time when the humidity is • Do not expose people, animals or plants to the cold or hot wind from very high or when a door or window has been left open; because it the air conditioner;...
-
Page 7: Unit Parts
unit Parts Single Zone Art Cool Mirror The following table shows the available outdoor and indoor units, their model numbers, along with the factory provided controller. Table 1: Single Zone Art Cool Mirror Pairing Table Outdoor Unit Model/ Btu/h Indoor Unit Model/ Btu/h Controller LAU090HSV2 / 9,000 LAN090HSV2 / 9,000... -
Page 8: Basic Components
unit Parts Basic Components indoor unit basic Components Refer to Figure 1 for the basic layout of the components of the Art Cool Mirror indoor unit, when following operational, maintenance or troubleshooting instructions in this manual. Air inlet On/ Off button Front panel Signal receiver (Front cover) -
Page 9: Unit Operation
unit OPeratiOn Remote Controller basic remote Controller Operation The Single Zone Art Cool Mirror comes equipped with a remote controller, enabling convenient air conditioner operation. Table 2 below describes basic button functionality, along with the displayed icon/symbol that will ap- pear on the screen. - Page 10 unit OPeratiOn Remote Controller Table 2: Remote Controller Operation (Continued) Control Panel Display Screen Description timer buttons (On/Off): Sets the clock timer to enable automatic start and stop times for air conditioner activity. Pressing the enables the user to set the actual time as shown on the display screen.
-
Page 11: Installing The Remote Controller Holder
unit OPeratiOn Remote Controller installing remote Controller batteries Figure 4: Remote Controller Battery Cover 1. Insert AAA batteries (1.5V) before turning on the remote. 2. Remove the battery cover from the back of the unit, by pushing down the tab at the top of the cover ((1) Figure 4). 3. - Page 12 unit OPeratiOn Remote Controller, Indoor Unit initializing remote Controller Operation To begin communication between the indoor unit and the remote controller, point the remote controller towards the signal receiver, located at the bottom right hand corner of the indoor unit (see Figure 8). • Make sure to point the remote controller directly at the indoor unit, otherwise the remote might accidentally activate and operate other electronic devices due to the signal being picked up.
-
Page 13: Basic Functions
basiC funCtiOns Cooling Operation - Adjusting the Air Flow (Swing) Direction Cooling Operation Heating Operation 1. On the remote controller, press to turn on the power to the 1. On the remote controller, press to turn on the power to the indoor unit. -
Page 14: Timer Setting Functionality
basiC funCtiOns Timer Setting Functionality setting the timer The Art Cool Mirror unit can be programmed through timer settings to turn on and off at set times during the day and night. This functionality allows you to save energy and utilize the air conditioner more efficiently. setting the Current time setting sleep Mode The sleep mode is used to turn off the air conditioner at a certain set... -
Page 15: Advanced Functions
advanCed funCtiOns Jet Cool/Heat Operation - Auto Changeover Operation Follow the operational directions in this section to work with advanced functionality and features of the Art Cool Mirror Wall Mounted system. auto Operation Jet Cool/Heat Operation (Cooling Only Models) Rapid Cooling and Heating of Room Temperature During this functionality, the fan speed and the temperature adjust This functionality allows you to rapidly cool indoor air (during sum- automatically, based on room temperature. -
Page 16: Energy Saving Operation -Manual Operation
advanCed funCtiOns Energy Saving Operation - Manual Operation energy saving Operation - Cooling 2. Press the On/Off button as shown in Figure 12. Placing the unit in this mode minimizes power consumption during 3. Immediately, close the front panel after pressing On/Off button as cooling. -
Page 17: Auto Restart
advanCed funCtiOns Auto Restart auto restart After a power failure, the unit can be programmed to automatically restart (reboot) and remember its previous settings. This function is a factory default setting. However, should you wish to disable the Auto Restart feature, follow the steps below. Refer to Figure 11. Disable Auto Restart 1. -
Page 18: Maintenance
MaintenanCe Indoor Unit - Cleaning Interval Clean the product regularly to maintain optimal performance and to prevent possible breakdown. Refer to Figure 13 for the basic components of the indoor unit. Refer to Table 5 for detailed instructions on maintenance. Review all safety instructions and warnings at the front of this manual;... -
Page 19: Cleaning The Air Filter
MaintenanCe Cleaning the Air Filter air filter - Cleaning/Maintenance • Use two hands when lifting the front panel away from the indoor unit. Clean the air filter located in the indoor unit, once every 2 weeks or • Maintain a grip on the front panel at all times while removing the filter. more often as necessary. There are two filter screens on this unit. - Lift up both sides of the cover slightly. -
Page 20: Troubleshooting
If this occurs, refer to Table 6 for initial troubleshooting steps. If the problem persists, contact your local dealer or service center immediately. lG Customer information Contact LG Customer Information Center immediately if you experience issues listed in Table 6 or Table 7. LG Service Center For USA calls:... - Page 21 trOublesHOOtinG Table 6: Art Cool Mirror Troubleshooting Issue Cause Corrective Action There is a burning smell and strange sound coming from the unit. Water leaks from the indoor unit even when the humidity level is low. Immediately turn off the air conditioner. Unplug the power cord and contact the service center.
- Page 22 The remaining time for the automatic On/Off timer is not shown on App software. Wired remote controllerlers - PQRCVCL0(QW) or LG Programmable Thermostat - PREMTB10U (only sold in the US). Due to our policy of continuous product innovation, some specifications may change without notification.
- Page 23 This page intentionally left blank.
- Page 24 20001747 ISO 9001: 2008 LG ELECTRONICS INC. LG Electronics Commercial Products Support LG Electronics U.S.A., Inc. Commercial Air Conditioning Division 1-888-865-3026 USA 11405 Old Roswell Road Follow the prompts for commercial A/C products. Alpharetta, Georgia 30009 www.lghvac.com OL-SZ-ArtCoolMirror-ALL-07-14...
