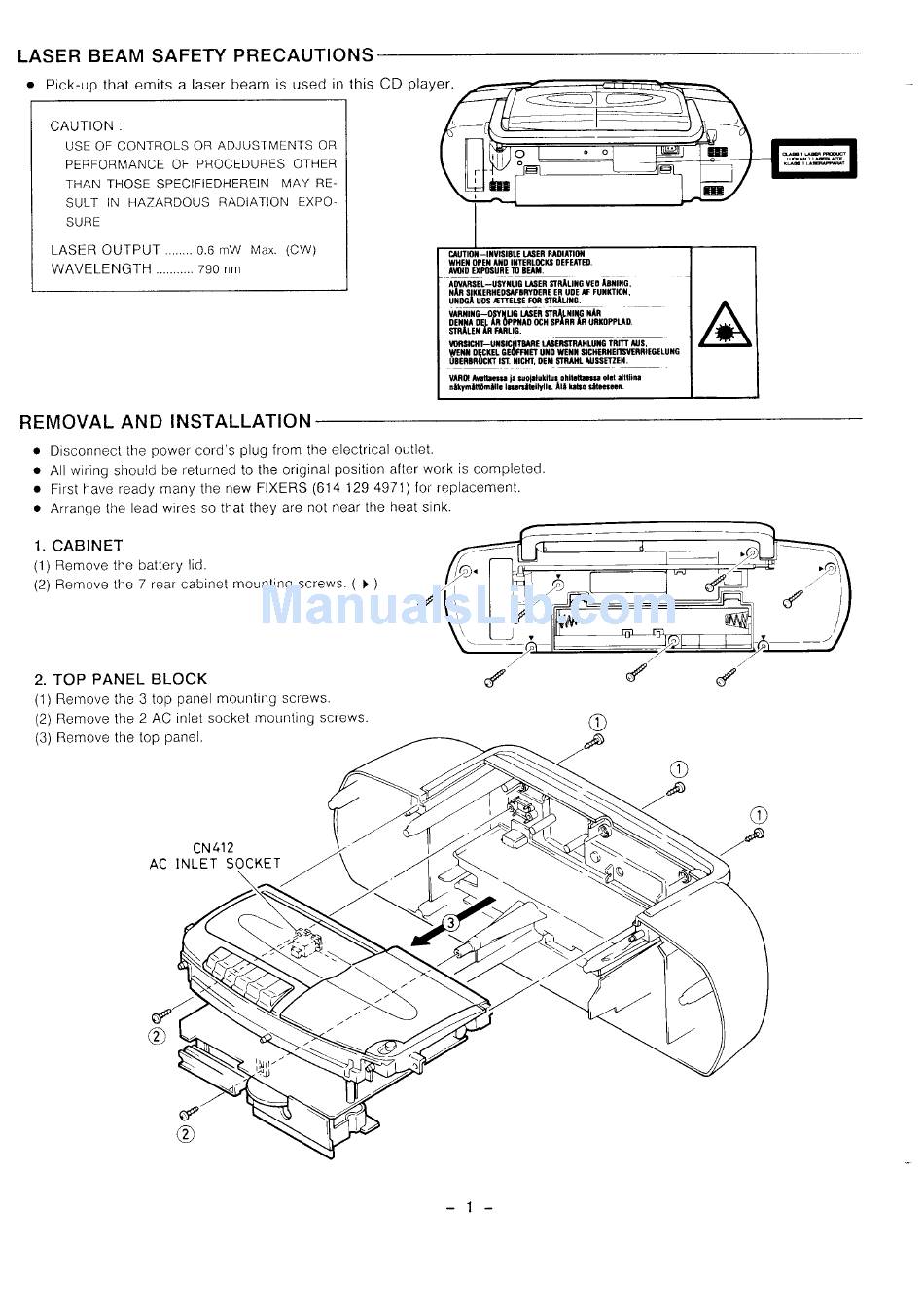

LASER BEAM SAFETY PRECAUTIONS
. Pick-up that emits a laser beam is used in this CD
CAUTION :
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIEDHEREIN MAY RE-
SULT IN HAZARDOUS RADIATION EXPO-
SURE
LASER OUTPUT ........0.6
mW Max. (CW)
WAVELENGTH ...........790 nm
REMOVAL AND lNSTALLATION—
VARDI Awlbesa ja $uo181ukllu$ ohlrdlaew old dlliina
nikymMtbmMe Ibserdleilvilu AI* kako dtwseen.
A
. Disconnect the power cord's plug from the electrical outlet.
. All wiring should be returned to the original position after work is completed.
. First have ready many the new FIXERS (614 129 4971) for replacement.
. Arrange {he lead wires so that they are not near the heat sink.
1. CABINET
(1) Remove the battery lid.
(2) Remove the 7 rear cabinet mounting screws. ( } )
2.
(1)
(2)
(3)
TOP PANEL BLOCK
8"
4' &$"
Rermove the 3 top panel mounting screws.
Remove the 2 AC inlet socket mounting screws.
Remove the top panel.
@J
~—
CN412
AC INLET SOCKET
