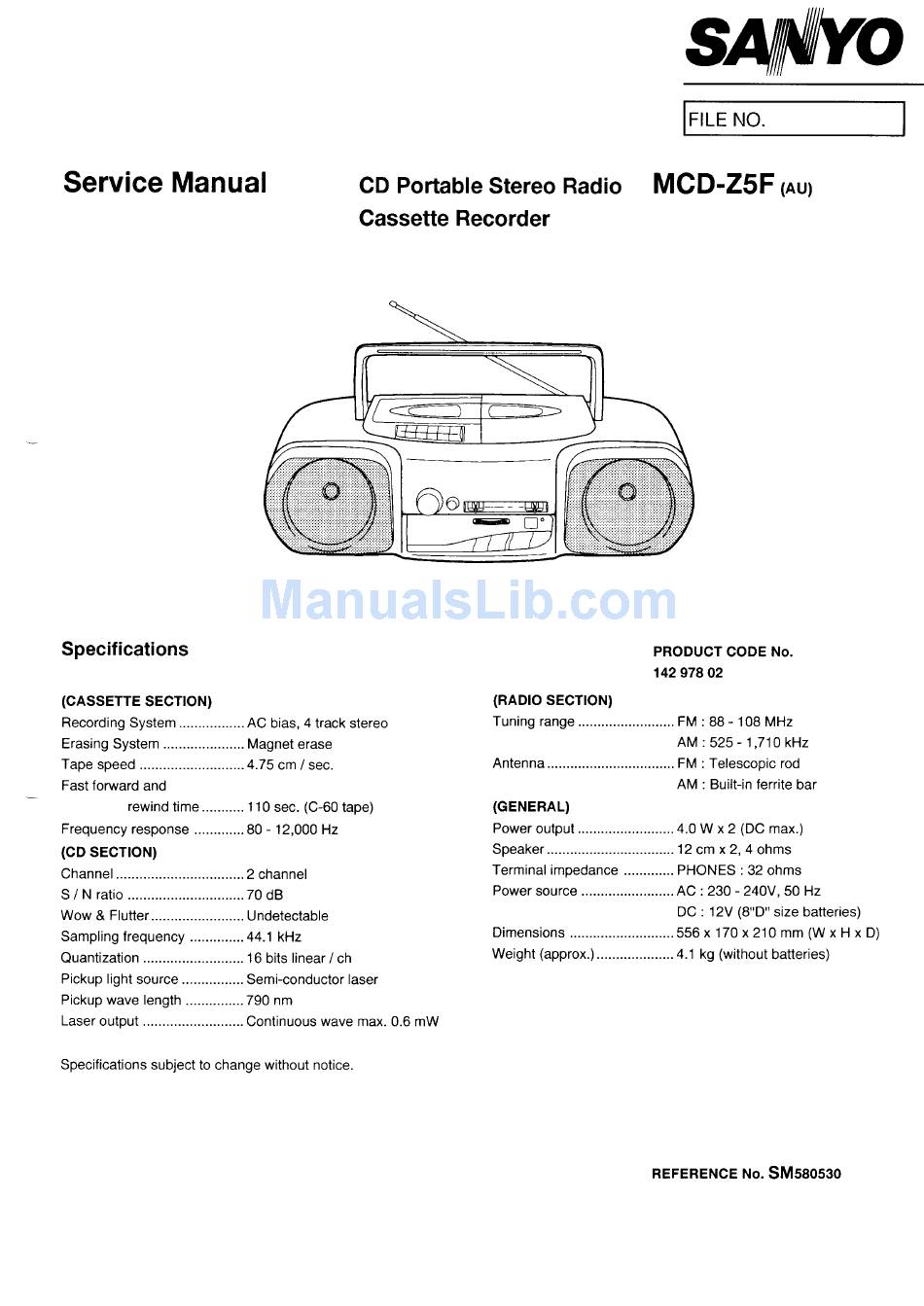

Sanyo MCD-Z5F Service Manual

IFILE NO.
I
—
Service Manual
CD Portable Stereo Radio
MCD-Z5F
(AU)
Cassette Recorder
Specifications
(CASSETTE SECTION)
Recording System .................AC bias, 4 track stereo
Erasing System ..................... Magnet erase
Tape speed ...........................4.75 cmlsec.
Fast forward and
—
rewind time ........... 110 sec. (C-60 tape)
Frequency response .............80-12.000 Hz
(CD SECTION)
Channel .................................2 channel
S/N ratio ..............................70 dB
Wow & Flutter ........................ Undetectable
Sampling frequency ..............44.1 kHz
Quantization .......................... 16 bits linear/ch
Pickup light source ................ Semi-conductor
laser
Pickup wave length ...............790 nm
Laser output .......................... Continuous wave max. 0.6 mW
PRODUCT CODE
No.
14297802
(RADIO SECTION)
Tuning range ......................... FM :88-108 MHz
AM :525-1,710 kHz
Antenna ................................. FM : Telescopic rod
AM : Built-in ferrite bar
(GENERAL)
Power output .........................4.0 W x2 (DC max.)
Speaker ................................. 12 cm x 2, 4 ohms
Terminal impedance ...... ...... PHONES :32 ohms
Power source ........................AC :230- 240V, 50 Hz
DC : 12V (8"D" size batteries)
Dimensions ...........................556 x 170x 210 mm (W x H x D)
Weight (approx.) ....................4.1 kg (without batteries)
Specifications subject to change without notice.
REFERENCE
No.
SM580530
