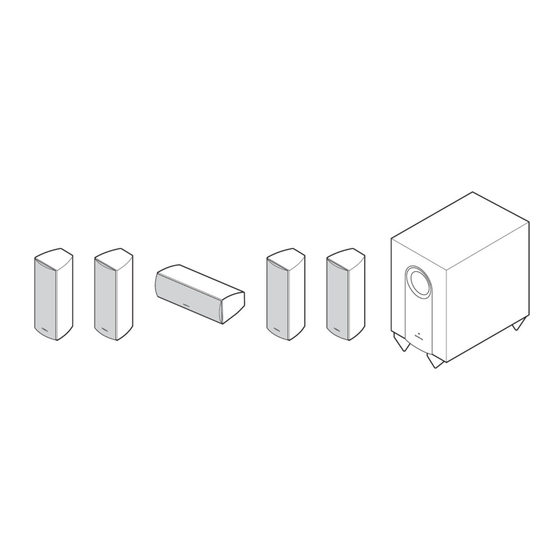

5.1-CH HOME THEATER SPEAKER PACKAGE
MODEL
Front Speakers (L / R)
"SKF-360F"
Center Speaker
"SKC-360C"
Cannot remove the speaker grill.
Black and Silver models
B MDC
S MDC
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
SERVICE MANUAL
SERVICE MANUAL
HTP-460(B)/(S)
Surround Speakers (L / R)
"SKM-360S"
120V AC, 60Hz
120V AC, 60Hz
Ref. No. 4060
Powered Subwoofer
"SKW-460"
ON THE
HTP-460
042008
Advertisement
Table of Contents
Related Manuals for Onkyo HTP-460
Summary of Contents for Onkyo HTP-460
- Page 1 COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL. MAKE LEAKAGE-CURRENT OR RESISTANCE...
-
Page 2: Exploded Views
HTP-460 EXPLODED VIEWS-1 SKW-460 : POWERED SUBWOOFER P901 x 2 pcs. A102 A103 A101 x 2 pcs. Q516 Q541 SP11 x 8 pcs. Refer to "EXPLODED VIEWS-2" A104 x 2 pcs. Q515 SP12 x 4 pcs. E801 x 5 pcs. - Page 3 HTP-460 ----- SP01a/b (Subwoofer ass’y) (All) ----- EXPLODED VIEWS-2 ----- SP02a/b (Subwoofer ass’y) SKW-460 : POWERED SUBWOOFER (Without AMP unit, Speaker unit and Power transformer) ----- SP06 SP03 x 4 pcs. SP05 x 8 pcs. SP04 SP05 x 8 pcs.
- Page 4 HTP-460 EXPLODED VIEWS-3 SKF-360F / SKC-360C / SKM-360S <Note> Cannot remove the speaker grill. SP10a/b SP10a/b SP13a/b I N A I N A I N A l a c l a c l a c i t e R e d G r e "SKF-360F (L)"...
-
Page 5: Main P.c.board
HTP-460 SCHEMATIC DIAGRAM SKW-460 : POWERED SUBWOOFER NAAF- LINE INPUT Q301(1/2) MAIN PC BOARD P301 NJM4558LD R301 R307 2.2K C302 C955 47/50 R305 223J E801 C303 OUTPUT LEVEL R505 R506 R511 Q509 (1/4W) (1/4W) (1/4W) 2SA949-Y Q505 2SA949-Y Q501 Q502... - Page 6 HTP-460 NOTE THE COMPONENTS IDENTIFIED BY MARK ARE CRITICAL FOR SAFETY AF-8829 REPLACE ONLY WITH PART NUMBER SPECIFIED. VOLTAGE (MEASURED WITH VOLTMETER) IS DC VOLTAGE.(NO INPUT SIGNAL). ALL PNP TRANSISTORS ARE EQUIVALENT TO 2SA1015-GR UNLESS OTHERWISE NOTED. ALL NPN TRANSISTORS ARE EQUIVALENT TO 2SC1815-GR UNLESS OTHERWISE NOTED.
- Page 7 HTP-460 PRINTED CIRCUIT BOARD VIEWS-1 SKW-460 : POWERED SUBWOOFER MAIN PC BOARD (NAAF-8829) Component side R517 C315 Q517 R651 Q518 R545 C316 R541 R320 R319 Q503 R317 C506 C314 R544 J306 J303 Q509 R513 C312 J304 R528 Q513 J305 J307...
- Page 8 HTP-460 PRINTED CIRCUIT BOARD VIEWS-2 SKW-460 : POWERED SUBWOOFER POWER TRANSFORMER PC BOARD (NAPS-8831) Component side J905 J904 J903 J902 RISK OF FIRE P902A -REPLACE FUSE AS MARKED. P910A NCPS-8831 25138831 F901A F901B P907A 5A/125V F901...
-
Page 9: Adjustment Procedure
HTP-460 ADJUSTMENT PROCEDURE SKW-460 : POWERED SUBWOOFER / ADJUSTMENT OF IDLING CURRENT [When] 1. Exchange transistors (Q505 - Q519). 2. Exchange MAIN PC board ass'y (NAAF-8829). [Procedure] <Note> No speaker load and No input signal. 1. Short test point P631 for amplifier is under active mode. -
Page 10: Exploded Views Parts List
1/12 PAGE HTP-460 EXPLODED VIEWS PARTS LIST NOTE : THE COMPONENTS IDENTIFIED BY THE MARK <Notes> ARE CRITICAL FOR RISK OF FIRE AND (B) : Black model ELECTRIC SHOCK. REPLACE ONLY WITH PART NUMBER SPECIFIED. (S) : Silver model REF. NO. - Page 11 2/12 PAGE P901 AC CORD AS-UC-2 253333VOL EXPLODED P901 or AC CORD AS-UC-2 253368BLTK EXPLODED P901 or AC CORD AS-UC-2 253368AYUN EXPLODED T901 P TRANS NPT-1568D 2301938 EXPLODED E801 WIRE TIE BSK-1 260208 EXPLODED MAIN PC BOARD ASS'Y NAAF-8829-1R 1B138529-1R EXPLODED NAPS-8831-1R 1B138531-1R...
-
Page 12: Printed Circuit Board Parts List
SATELLITE PACKAGE (B) (SKF/SKC/SKM) ANB5TP360-BM01 SATELLITE PACKAGE (S) (SKF/SKC/SKM) ANB5TP360-BM02 HTP-460 PRINTED CIRCUIT BOARD PARTS LIST NOTE : THE COMPONENTS IDENTIFIED BY THE MARK ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE ONLY WITH PART NUMBER SPECIFIED. SKW-460 MAIN PC BOARD (NAAF-8829-1R) POWER TRANS. - Page 13 4/12 PAGE Q501 2SC2240-BL(TPE2_F) 2211406T Q502 2SC2240-BL(TPE2_F) 2211406T Q503 2SC2240-BL(TPE2_F) 2211406T Q505 KTA1024-Y 2215844T Q505 or 2SA949-Y(TPE6_F) 2211354T Q505 or 2SA949-O(TPE6_F) 2211353T Q506 2SC2229-Y(TPE6_F) 2211634T Q506 or 2SC2229-O(TPE6_F) 2211633T Q507 2SA949-Y(TPE6_F) 2211354T Q507 or 2SA949-O(TPE6_F) 2211353T Q507 or KTA1024-Y 2215844T Q509 KTA1024-Y 2215844T...
- Page 14 5/12 PAGE Q513 KTD2061-Y 2203434 Q513 or 2SC5171(ONK_Q) 2203010 Q514 KTB1369-Y 2203424 Q514 or 2SA1930(ONK_Q) 2203000 Q517 2SA933S-S 2213355T Q517 or 2SA933S-R 2213354T Q517 or KTA1267-GR 2215995T Q518 2SC2235-Y(TPE6_F) 2211654T Q519 2SA965-Y(TPE6_F) 2211644T Q602 KRC103M 2215810T Q602 or DTC124ES 2213160T Q603 2SC1740S-S 2213285T...
- Page 15 6/12 PAGE D603 DIODE 1SS133 223163T D603 or DIODE 1SS133(DS) 223280T D605 DIODE 1SS133 223163T D605 or DIODE 1SS133(DS) 223280T D606 DIODE 1SS133 223163T D606 or DIODE 1SS133(DS) 223280T D607 DIODE 1SS133 223163T D651 DIODE 1SS133 223163T D651 or DIODE 1SS133(DS) 223280T D901...
- Page 16 7/12 PAGE D951 or ZENER D DZ-15BSC 224851503T D952 ZENER D MTZJ15C 224471503T D952 or ZENER D DZ-15BSC 224851503T C302 VX C CE04W50V 47M(VX_BLK) 397384707T C501 VX C CE04W50V 47M(VX_BLK) 397384707T C503 TF C ECQ-V50V-224J 374722244T C504 VX C CE04W16V-220M(VX_BLK) 397342217T C505 CERA C...
- Page 17 8/12 PAGE R306 CARBON R R16J-47K 417344734T R307 CARBON R R16J-2.2K 417342224T R501 CARBON R R16J-1K 417341024T R502 CARBON R R16J-47K 417344734T R503 CARBON R R16J-5.6K 417345624T R504 CARBON R R16J-2.2K 417342224T R505 NF CARBON R R25J-1.0K 415471024T R506 NF CARBON R R25J-1.0K 415471024T R507...
- Page 18 9/12 PAGE R516 CARBON R R16J-12K 417341234T R517 CARBON R R16J-3.3K 417343324T R521 CARBON R R16J-220 417342214T R522 CARBON R R16J-220 417342214T R526 METAL O R RS1/2WBJ-82 443528204T R527 CARBON R R16J-270 417342714T R528 METAL O R RS1/2WBJ-390 443523914T R531 METAL PR RF-5EGKR22 4000201...
- Page 19 10/12 PAGE R623 CARBON R R16J-100K 417341044T R624 CARBON R R16J-100K 417341044T R625 CARBON R R16J-180K 417341844T R626 CARBON R R16J-2.2M 417342254T R627 CARBON R R16J-680K 417346844T R628 CARBON R R16J-330K 417343344T R651 METAL O R RS1/2WBJ-12K 443521234T R901 METAL O R RS1WBJ-820 443628214T R902...
- Page 20 11/12 PAGE JL535A SOCKET AS NSAS-2P1732 2009991115UL P301 PIN JACK NPJ-1PDB556 25045774 P301 or PIN JACK NPJ-1PDB581 25045801 P531 PLUG NPLG-2P29 25055038 P631 PLUG NPLG-2P29 25055038 P632A PLUG NPLG-3P131 25055147 P901A PLUG B3P-VB-2(LF) 25056616 P902A PLUG NPLG-2P632 25055676 P903A SOCKET AS NSAS-6P1693 2009991088UL E801...
- Page 21 12/12 PAGE...
- Page 22 Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8023 Fax: 072-831-8163 ONKYO U.S.A. CORPORATION 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 http://www.us.onkyo.com/ ONKYO EUROPE ELECTRONICS GmbH Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.eu.onkyo.com/...
