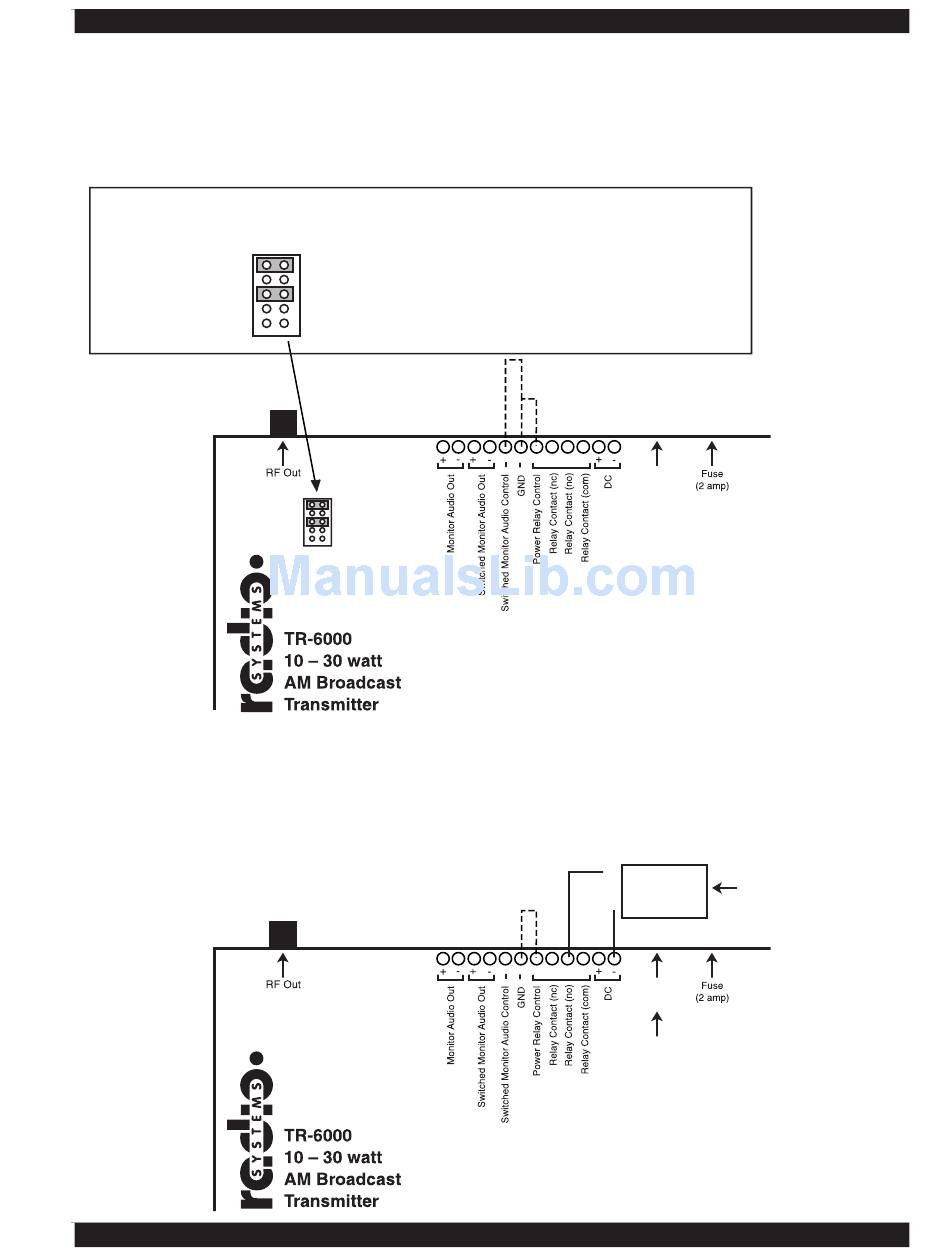

TR-6000 Transmitter Remote Control Standard Configuration
Note: Factory jumper defaults (jumpers 1 & 3) energize relay common contact
with DC and parallel this common contact to the + side of the relay coil.
J3
1
2
3
4
5
TR-6000 Transmitter Remote Control Remote ON/Off Control Configuration

Remote Control Wiring

+ DC (not fused) to relay coil
+ DC to n.c. relay contact
+ DC to n.o. relay contact
+ DC to common relay contact
+ DC (fused) to relay coil
Header J3
located with
top removed
Connect to remotely
turn transmitter ON
}
Energized with
+DC (fused)
}
when pin 1 inserted
Energized with
+DC (not fused)
when pin 5 inserted
Connect to energize relay #2 (audio)
and switch monitor audio output terminals
Connect to energize
relay #1 (control)
DC
Power
Connector
+
External DC
Power Supply
-
DC
Power
Connector
DO NOT INSERT
FOR THIS
APPLICATION
T R - 6 0 0 0 M a n u a l
HARD WIRE
24 VOLT DC
EXTERNAL SUPPLY
FOR THIS
APPLICATION
