R a d i o S y s t e m s , I n c .
J3 Power Control Relay Configuration
- Relay power supplied by main + input (not fused)
*
- Relay power supplied by N.C. contact
*
- Relay power supplied by N.O. contact
- Relay power supplied by common contact
- Relay power supplied by main + input (fused)
J5 TIS audio filter enable
J6 VU meter display mode
Install jumper for bar mode
Leave open for dot mode
J7 Power LED to follow metering switch
J9 Standard oscillator disable
Jump to disable the standard oscillator
Enable the standard oscillator
J12 Power meter display mode
Jump for bar mode
Open for dot mode
J15 Relay Supply Voltage
24V Supply
to
48V Supply

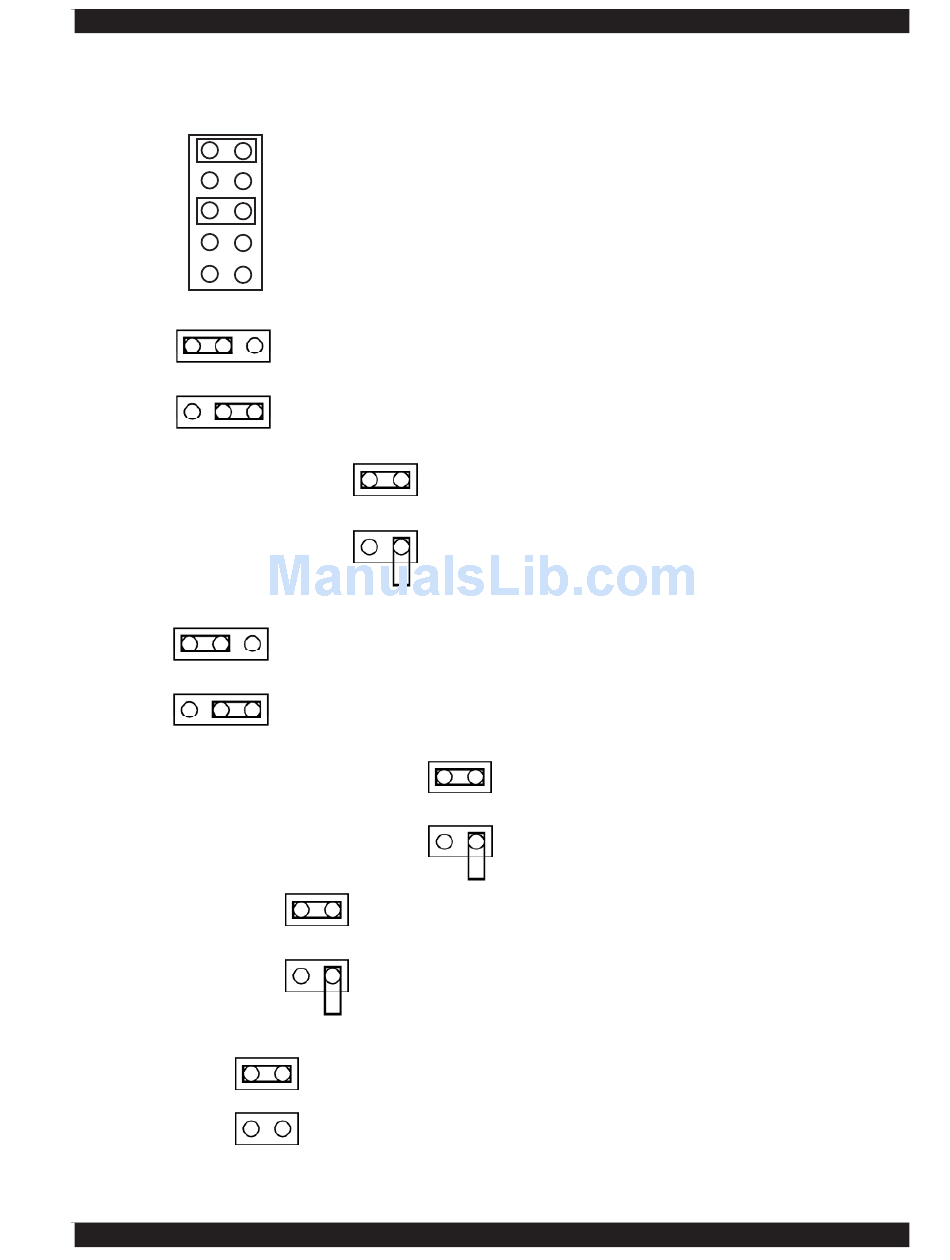

TR-6000 Jumper Settings

TIS filter disabled *
TIS filter enabled
bar mode
Power LED independent of metering
Power LED follows metering
*
* Note: Jumper representations on this page are orientated
Note:
dot mode
*
*
*
match circuit board silk screens.
T R - 6 0 0 0 M a n u a l
*
Indicates Factory Setting
P a g e 6
