wellbots DEEBOT M81 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction Manual
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEEBOT M81 and is the answer not in the manual?

Questions and answers

YERVANT MIKIKIAN
February 11, 2025

keeps spinning clock wise and does not turn counter clock wise model M81 Tks

0

Related Manuals for wellbots DEEBOT M81

Summary of Contents for wellbots DEEBOT M81

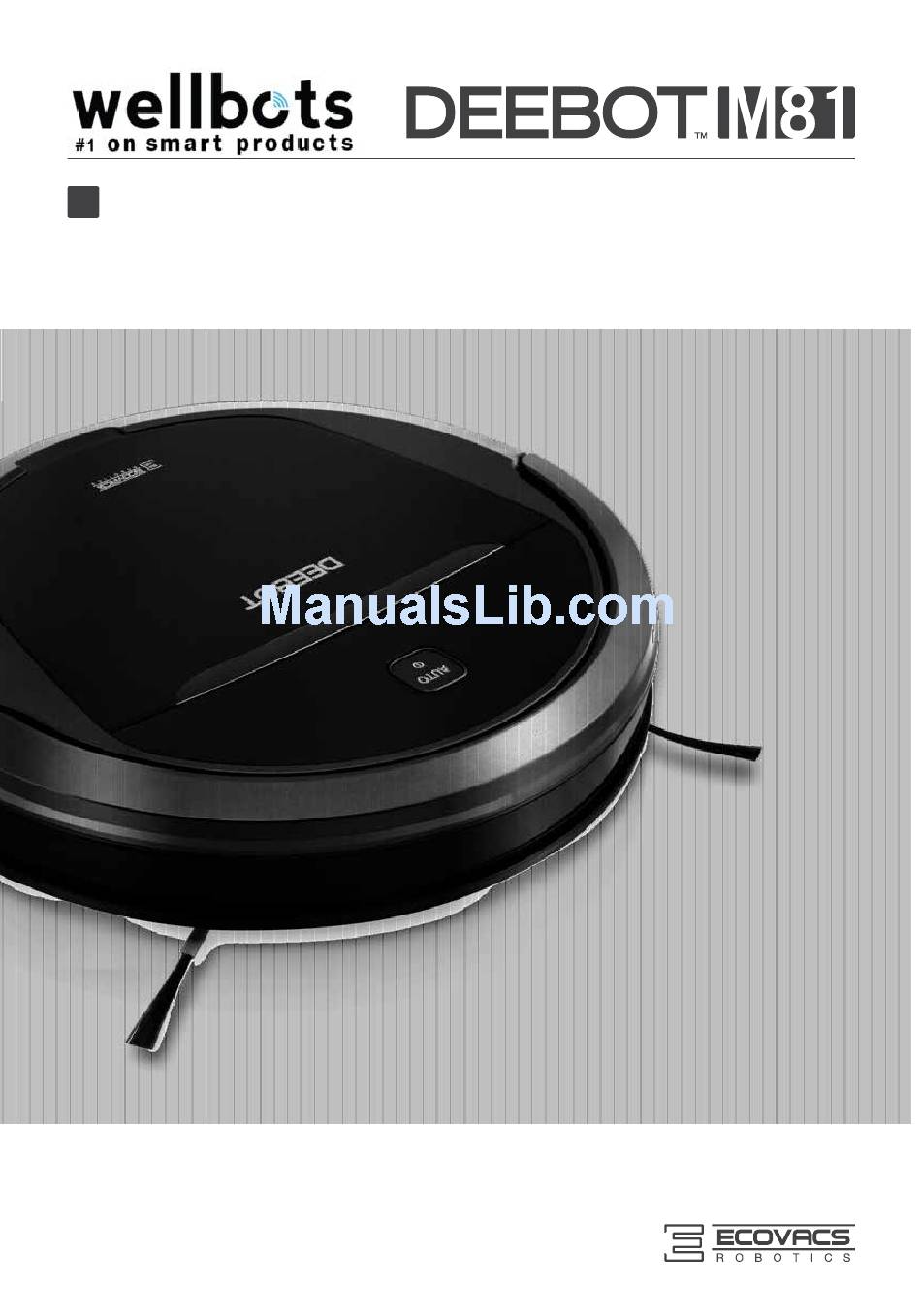

  • Page 1 Instruction Manual...
  • Page 2 Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT! We hope it brings you many years of satisfaction. We trust the purchase of your new robot will help keep your home clean and provide you more quality time to do other things. Live Smart.

  • Page 3: Table Of Contents

    Contents 1. Important Safety Instructions......................2 2. Package Contents and Technical Specifications..............4 2.1 Package Contents........................4 2.2 Specifications..........................4 2.3 Product Diagram..........................5 3. Operating and Programming......................7 3.1 Notes Before Cleaning........................7 3.2 Quick Start............................8 3.3 Cleaning Mode Selection......................11 3.4 Programming the Robot......................13 3.5 Optional Advanced Wet/Dry Mopping System..............15 4.

  • Page 4: Important Safety Instructions

    1. Important Safety Instructions When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. SAVE THESE INSTRUCTIONS 1. This Appliance is not intended to be used by children under 8 or anyone lacking knowledge on proper use.
  • Page 5 1. Important Safety Instructions 22. Turn OFF the power switch before cleaning or maintaining the Appliance. 23. The plug must be removed from the receptacle before cleaning or maintaining the Charging Dock. 24. Remove the Appliance from the Charging Dock, and turn OFF the power switch to the Appliance before removing the battery for disposal of the Appliance.

  • Page 6: Package Contents And Technical Specifications

    2. Package Contents and Technical Specifications 2.1 Package Contents Robot Charging Dock Remote Control Instruction Manual (with batteries) (4) Side Brushes Battery Pack (2) Advanced Wet/Dry Advanced Wet/Dry Cleaning Cloths Reservoir Sponge Filter and Measuring Cup Reservoir Cleaning High Efficiency Filter Solution 2.2 Specifications Model...

  • Page 7: Product Diagram

    2. Package Contents and Technical Specifications 2.3 Product Diagram Robot 1. Top Cover 6. Charging Contacts 11. Side Brushes 2. Dust Bin 7. Main Brush 12. Advanced Wet/Dry Reservoir Slots 3. AUTO Mode Button 8. Driving Wheels 13. Multi-Function Cleaning Tool 4.
  • Page 8 2. Package Contents and Technical Specifications Remote Control 1. LCD Screen 2. Return to Charger Mode Button 3. AUTO Mode Button 4. Direction Control Buttons 5. START/PAUSE Button 6. Time Scheduling Button 7. Set Current Time Button 8. Spot Cleaning Mode Button 9.

  • Page 9: Operating And Programming

    3. Operating and Programming 3.1 Notes Before Cleaning Before operating DEEBOT, take a few moments to survey the area to be cleaned and remove any obstacles. Remove power cords and small objects from The product is not suitable for use on long-pile the floor that could entangle the product.

  • Page 10: Quick Start

    3. Operating and Programming 3.2 Quick Start Charging Dock Placement Place the Charging D ock on a level floor surface against the wall with the base perpendicular to the ground. Keep the immediate area 1.5m (5’) in front of the charger and 0.5m (1.6’) on both sides of the charger clear of objects and reflective surfaces.
  • Page 11 3. Operating and Programming Charge DEEBOT Remove the Advanced Wet/Dry Reservoir before charging DEEBOT. P l a c e D E E B O T o n t h e C h a r g i n g D o c k m a k i n g s u re t h e C h a rgi n g Co nt a c t s o n DEEBOT and the Charging Dock Pins make a connection.
  • Page 12 3. Operating and Programming Start Press the button on DEEBOT or the AUTO Mode Button on the Remote Control. DEEBOT starts to work immediately in AUTO Cleaning Mode. * To choose another Cleaning Mode, please refer to section 3.3 Cleaning Mode Selection for details. Pause Pause DEEBOT by pressing the button on...

  • Page 13: Cleaning Mode Selection

    3. Operating and Programming Power OFF Pause DEEBOT. Press and hold the button on the robot. DEEBOT is powered OFF when the button stops glowing. * When DEEBOT is not cleaning, it is suggested to keep it powered ON and charging instead of powered OFF.
  • Page 14 3. Operating and Programming Spot Cleaning Mode (2-5 minutes) This mode is applicable for an area of highly concentrated dirt or dust. In Spot Cleaning Mode, DEEBOT focuses on a specific area to clean. DEEBOT cleans the area in a spiral pattern and stops when it completes Spot Cleaning.

  • Page 15: Programming The Robot

    3. Operating and Programming 3.4 Programming the Robot DEEBOT has a Time Scheduling function. DEEBOT can be programmed to automatically clean once per day, at a specific time, even if nobody is at home. The current time of day and the cleaning times are scheduled using the Remote Control.
  • Page 16 3. Operating and Programming Schedule the Cleaning Time Press button on the Remote Control and the Press the up and down Direction Control “hour” (first two digits) flashes on the Remote Buttons to adjust “hour” and “minute” number. Control Screen. Press the left and right Direction Control Buttons to switch between “hour”...

  • Page 17: Optional Advanced Wet/Dry Mopping System

    3.5 Optional Advanced Wet/Dry Mopping System DEEBOT has an Optional Advanced Mopping System using an Advanced Wet/Dry Cleaning C l o t h a t t a c h e d to a p ro p r i e t a r y Ad v a n ce d We t / D r y R e s e r vo i r. Th e w a s h a b l e / re u s a b l e Cleaning Cloth automatically damp mops and then dries the floor to a spotless clean.
  • Page 18 Attach the Advanced Wet/Dry Reservoir to the bottom of the robot. Insert the tabs on the Advanced Wet/Dry Reservoir into the Advanced Wet/Dry Reservoir Slots on the bottom of the robot until you hear a click. Start Select the desired Cleaning Mode. DEEBOT sweeps, lifts, vacuums, mops and dries in the selected mode.

  • Page 19: Maintenance

    4. Maintenance Before performing cleaning and maintenance, power OFF DEEBOT and unplug the Charging Dock. 4.1 Dust Bin and Filters Open DEEBOT’s Top Cover and remove the Dust Bin. Open the Dust Bin Cover and empty the Dust Bin. Remove the Sponge Filter and High Efficiency Filter. Pat the High Efficiency Filter clean. Do not rinse the High Efficiency Filter under water.

  • Page 20: Advanced Wet/Dry Cleaning Cloth, Advanced Wet/Dry Reservoir

    4. Maintenance 4.2 Advanced Wet/Dry Cleaning Cloth, Advanced Wet/Dry Reservoir Cleaning the Advanced Wet/Dry Cleaning Cloth If the mopping system was used, remove the Advanced Wet/Dry Reservoir from the bottom of DEEBOT and remove the Cleaning Cloth. Empty any remaining water from the Reservoir. Wash the Advanced Wet/Dry Cleaning Cloth by hand or in the washing machine, and lay flat to dry.

  • Page 21: Main Brush And Side Brushes

    4. Maintenance 4.3 Main Brush and Side Brushes * A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges. Cleaning the Main Brush Turn the robot over. Push both buttons on the Main Brush Cover and remove it. Remove the Main Brush.

  • Page 22: Other Components

    4. Maintenance 4.4 Other Components Use the Multi-Function Cleaning Tool to cut Wipe the Anti-Drop Sensors with the brush off and remove any hair tangled around the or the felt side of the Multi-Function Cleaning Universal Wheel. Tool to maintain their effectiveness. Wipe the Charging Contacts and Charging Dock Pins with the brush of the Multi-Function Cleaning Tool or a dry clean cloth to maintain their effectiveness.

  • Page 23: Troubleshooting

    5. Troubleshooting Please use this chart to troubleshoot common problems using DEEBOT. Malfunction Possible Causes Solutions DEEBOT is not powered Press and hold AUTO Mode Button on DEEBOT to power ON. Be sure that DEEBOT’s Charging DEEBOT has not made a Contacts have made a connection connection with the Charging with the Charging Dock Pins.
  • Page 24 5. Troubleshooting Malfunction Possible Causes Solutions Time Scheduling function is Set Time Scheduling function as cancelled. described in section 3.4. DEEBOT is powered OFF. Power ON DEEBOT. DEEBOT will not Keep DEEBOT powered ON and on clean automatically at The robot’s battery is low. the Charging Dock to make sure it has scheduled time.
  • Page 25 DM81-039-IM2016R00...
