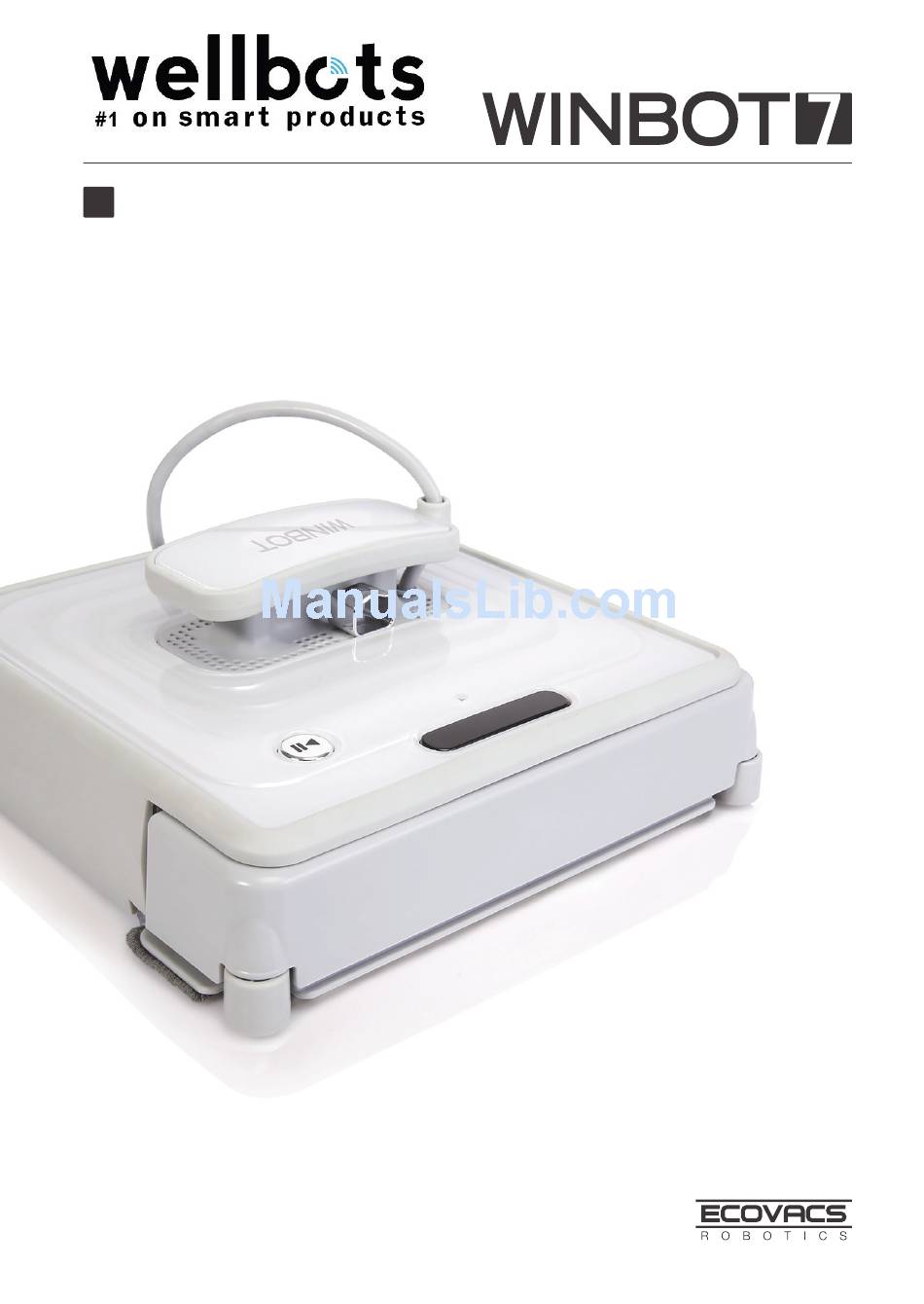

- Page 1 Instruction Manual...
- Page 2 Live Smart. Enjoy Life. Congratulations on the purchase of your Ecovacs Robotics WINBOT! We hope it brings you many years of satisfaction. We trust the purchase of your new robot will help keep your home clean and provide you with more quality time to do other things.
-
Page 3: Table Of Contents
Contents 1. Important Safety Instructions ..............2 ........4 2.1 Package Contents ..................4 ................... 4 2.3 Product Diagram ..................5 3. Operating the Robot ..................6 3.1 Notes Before Cleaning ................6 3.2 Attach the Cleaning Pad ................7 3.3 Assemble the Power Adapter .............. -
Page 4: Important Safety Instructions
1. Important Safety Instructions When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. SAVE THESE INSTRUCTIONS 1. This Appliance is not intended to be used by children under 8 or anyone lacking knowledge on proper use. - Page 5 1. Important Safety Instructions 21. The Back-Up Battery must be replaced by the manufacturer or its service agent in order to avoid a hazard. 22. The Back-Up Battery must be removed and discarded according to local laws and regulations before disposal of the Appliance. 23.
-
Page 6: Package Contents
2.1 Package Contents Robot Power Adapter Instruction Manual Safety Pod and Tether Remote Control with Batteries (3) Sets of WINBOT (1) WINBOT Finishing Cloth Extension Cord Cleaning Pads Cleaning Solution (1.5m/4’11”) Model W730/W710 15 === Working Voltage (V) Rated Power (W) Remote Control 3 === Input Voltage(V) -
Page 7: Product Diagram
2.3 Product Diagram Robot 1. Bumper 6. Handle 11. Driving Treads 2. Status Indicator Light 7. Power Switch 12. Cupule 3. START/PAUSE Button 8. Side Rollers 13. Bottom Status Indicator Light 4. Air Release Trigger 9. Front Cleaning Pad 14. Rear Cleaning Pad 5. -
Page 8: Operating The Robot
3. Operating the Robot 3.1 Notes Before Cleaning Do not use WINBOT 7 on a framed window with WINBOT 7 can be used on framed or a frame smaller than 5mm (0.2"). frameless* windows larger than 45cm x 60cm (17.7’’ x 23.6’’). (*W730 only) WINBOT 7’s Back-Up Battery must be fully If the window is covered with dirt, clean a charged before use. -
Page 9: Attach The Cleaning Pad
3. Operating the Robot 3.2 Attach the Cleaning Pads 3.3 Assemble the Power Adapter Turn WINBOT 7 over and attach the Cleaning Pads to their Velcro areas smoothly. Make sure the Rear Cleaning Pad is placed exactly within its Velcro area and does not contact or cover the Cupule (suction ring). - Page 10 3. Operating the Robot Loop one end of the Safety Tether to End A on the Robot Power Cord and tighten. Connect End A and End B and tighten. Loop the other end of the Safety Tether around the Safety Pod’s channel and pull it tight. If the length of power cord restricts WINBOT 7’s movement, a WINBOT Extension Cord can be used.
-
Page 11: Place The Safety Pod
3. Operating the Robot 3.5 Place the Safety Pod The Safety Pod MUST be placed on the inside of the window. Press the Safety Pod FIRMLY on the inside of the window being cleaned. Make sure the Safety Pod is attached securely in place. -
Page 12: Start
3. Operating the Robot 3.7 Start Plug in WINBOT 7 Power ON Move the Power Switch to the “ON” position. WINBOT 7 is powered ON when it generates suction. WINBOT 7’s Back-Up Battery must be fully charged before use. Plug WINBOT 7 in, move the Power Switch to the CHARGE position until the Status Indicator Light glows a continuous GREEN. -
Page 13: Pause
3. Operating the Robot 3. Operating the Robot 3.8 Pause 3.8 Pause Pause WINBOT 7 during cleaning by Pause WINBOT 7 during cleaning by WINBOT 7 can be directed to move forward, WINBOT 7 can be directed to move forward, pressing the START/PAUSE button on the pressing the START/PAUSE button on the backward, left and right using the Direction... -
Page 14: Maintenance
4. Maintenance Before performing cleaning and maintenance on WINBOT 7, move the Power Switch to the “OFF” position and unplug it from the receptacle. 4.1 Cleaning Pads Turn the robot over and remove the Cleaning Pads. Rinse the Cleaning Pads and allow them to dry completely before re-attaching it to the robot. -
Page 15: Driving Treads
4. Maintenance Edge Detection Sensors Squeegee Turn the robot over and wipe the Squeegee Turn the robot over and remove the Cleaning clean with the provided Finishing Cloth to Pads. Wipe the Edge Detection Sensors maintain its effectiveness. clean with the provided Finishing Cloth to maintain their effectiveness. -
Page 16: Status Indicator Light And Sounds
5. Status Indicator Light and Sounds Indicator Description Status Indicator Light Back-Up Battery is low and is charging. GREEN Status Indicator Light glows a Back-Up Battery is fully charged and WINBOT 7 is ready to use. continuous GREEN Status Indicator Light WINBOT 7 has successfully attached itself to the glass and is BLUE ready to clean. -
Page 17: Troubleshooting
6. Troubleshooting Malfunction Possible Causes Solutions WINBOT 7 is cleaning. Pause WINBOT 7 by pressing When WINBOT 7 is the START/PAUSE Button on the cleaning, only the START/ robot or the Remote Control. Other PAUSE Button works on buttons on the Remote Control will the Remote Control. - Page 18 6. Troubleshooting A. Power OFF WINBOT 7 and unplug it. Then plug in again and power ON. B. Reset WINBOT 7 by pressing the RESET Button on the Remote Control. C. Check for stubborn stains on the window. Clean the stains before using WINBOT 7.
- Page 19 WINBOT 7-000IM2014R00...
