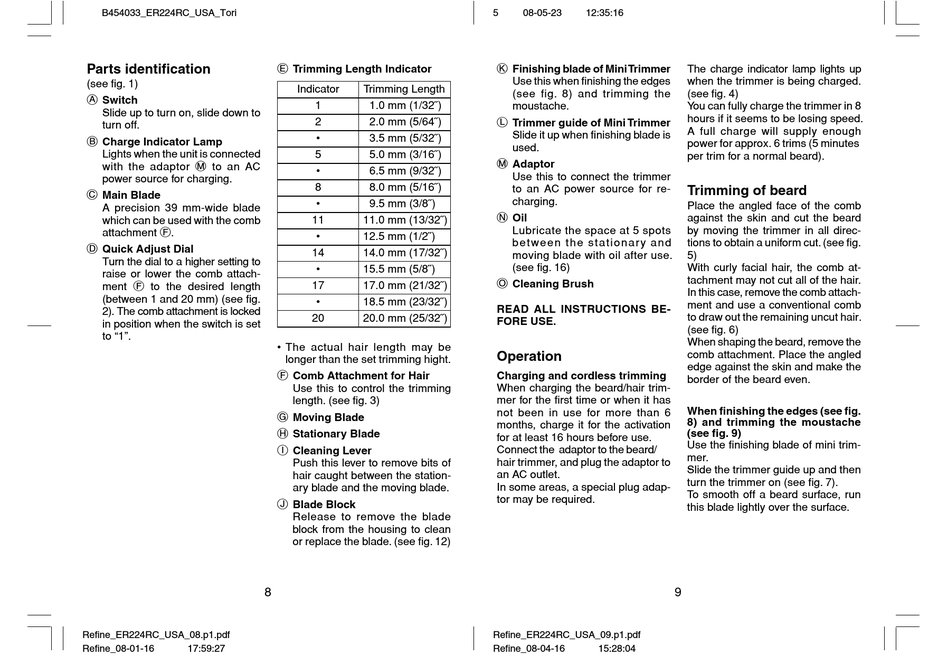

Parts identification

(see fig. 1)
A Switch
Slide up to turn on, slide down to
turn off.
B Charge Indicator Lamp
Lights when the unit is connected
with the adaptor M to an AC
power source for charging.
C Main Blade
A precision 39 mm-wide blade
which can be used with the comb
attachment F.
D Quick Adjust Dial
Turn the dial to a higher setting to
raise or lower the comb attach-
ment F to the desired length
(between 1 and 20 mm) (see fig.
2). The comb attachment is locked
in position when the switch is set
to "1".
Refine_ER224RC_USA_08.p1.pdf
Refine_08-01-16 17:59:27
E Trimming Length Indicator
r
Indicator Trimming Length gth
1 1.0 mm (1/32˝) 2˝)
2 2.0 mm (5/64˝) 4˝)
• 3.5 mm (5/32˝) 2˝)
5 5.0 mm (3/16˝) 6˝)
• 6.5 mm (9/32˝) 2˝)
8 8.0 mm (5/16˝) 6˝)
• 9.5 mm (3/8˝) ˝)
11 11.0 mm (13/32˝) 32˝)
• 12.5 mm (1/2˝) ˝)
14 14.0 mm (17/32˝) 32˝)
• 15.5 mm (5/8˝) ˝)
17 17.0 mm (21/32˝) 32˝)
• 18.5 mm (23/32˝) 32˝)
20 20.0 mm (25/32˝) 32˝)
• The actual hair length may be y be
longer than the set trimming hight. ight.
F Comb Attachment for Hair
r
Use this to control the trimming ming
length. (see fig. 3)
G Moving Blade
H Stationary Blade
I Cleaning Lever
Push this lever to remove bits of ts of
hair caught between the station- tion-
ary blade and the moving blade. ade.
J Blade Block
Release to remove the blade lade
block from the housing to clean clean
or replace the blade. (see fig. 12) . 12)
8
P00-18_ER224RC_USA 08.4.16 15:16 ページ 9
5 08-05-23 12:35:16
K Finishing blade of Mini Trimmer
Use this when finishing the edges
(see fig. 8) and trimming the
moustache.
L Trimmer guide of Mini Trimmer
Slide it up when finishing blade is
used.
M Adaptor
Use this to connect the trimmer
to an AC power source for re-
charging.
N Oil
Lubricate the space at 5 spots
b e tw e e n th e s ta t i o na ry an d
moving blade with oil after use.
(see fig. 16)
O Cleaning Brush
READ ALL INSTRUCTIONS BE-
FORE USE.

Operation

Charging and cordless trimming
When charging the beard/hair trim-
mer for the first time or when it has
not been in use for more than 6
months, charge it for the activation
for at least 16 hours before use.
Connect the adaptor to the beard/
hair trimmer, and plug the adaptor to
an AC outlet.
In some areas, a special plug adap-
tor may be required.
Refine_ER224RC_USA_09.p1.pdf
Refine_08-04-16 15:28:04
The charge indicator lamp lights up
when the trimmer is being charged.
(see fig. 4)
You can fully charge the trimmer in 8
hours if it seems to be losing speed.
A full charge will supply enough
power for approx. 6 trims (5 minutes
per trim for a normal beard).
Trimming of beard
Place the angled face of the comb
against the skin and cut the beard
by moving the trimmer in all direc-
tions to obtain a uniform cut. (see fig.
5)
With curly facial hair, the comb at-
tachment may not cut all of the hair.
In this case, remove the comb attach-
ment and use a conventional comb
to draw out the remaining uncut hair.
(see fig. 6)
When shaping the beard, remove the
comb attachment. Place the angled
edge against the skin and make the
border of the beard even.
When finishing the edges (see fig.
8) and trimming the moustache
(see fig. 9)
Use the finishing blade of mini trim-
mer.
Slide the trimmer guide up and then
turn the trimmer on (see fig. 7).
To smooth off a beard surface, run
this blade lightly over the surface.
9
