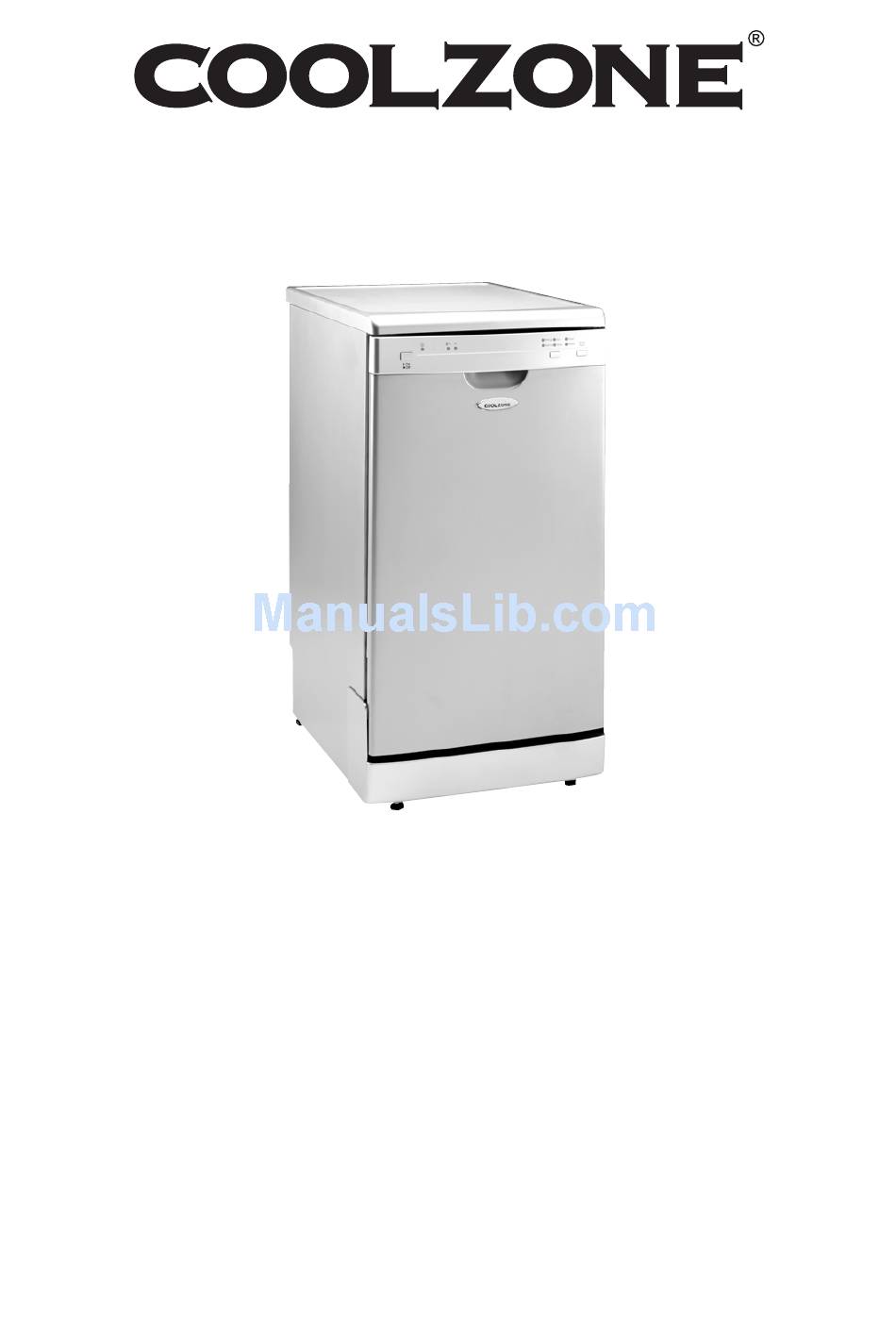

- Page 1 CZ51153 SLIMLINE DISHWASHER U U S S E E R R I I N N S S T T R R U U C C T T I I O O N N S S Please read these instructions carefully before using this product and keep them safe for...
-
Page 2: Table Of Contents
Page contents Before use ..............3 Do and don’t . -
Page 3: Before Use
Do and don’t Before use O Do install the appliance only in the vertical Packaging position. The packaging is recyclable so dispose of it O Do unplug before cleaning and maintenance. according to local regulations. O Do turn off the water supply and disconnect the Keep the packaging materials out of reach of young electricity supply if the appliance malfunctions. -
Page 4: Installation
Installation Positioning the appliance FIGURE 5 HOSE GUIDE When deciding on a location for the appliance, please bear the following points in mind: • The depth of the unit from front to back is roughly the same as the majority of work 120mm surfaces. -
Page 5: Salt
Salt The hardness of the water varies depending upon When the low salt indicator light illuminates on where you live. If hard water is used in the the control panel refill the salt container just before dishwasher, deposits will form on the dishes and the next wash programme. -
Page 6: Detergent And Rinse Aid
Detergent and rinse aid Detergent Rinse aid Detergent specifically intended for use with This product makes dishes sparkle and helps them dishwashers must be used. The dispenser must be to dry without spotting. The dispenser is located on filled before the start of each wash cycle following the inside panel of the door and should be filled the instructions provided in the "Wash Cycle Table"... -
Page 7: Loading The Dishwasher
Loading the dishwasher Before placing the dishes in the dishwasher How to use the upper rack remove the larger food debris. This prevents the The upper rack is designed to hold delicate and filter from becoming clogged which can result in lighter dishware such as glasses, coffee and tea reduced performance. -
Page 8: Control Panel
Control panel FIGURE 13 ON/OFF ON/OFF BUTTON INDICATOR LIGHT RINSE PROGRAMME START/RESET SALT PROGRAMME SELECT BUTTON INDICATOR BUTTON LIGHT Starting the dishwasher Setting and starting a wash cycle At the end of the wash cycle Turn on the electricity and water supply to the At the end of the Wash Cycle the buzzer will sound dishwasher. -
Page 9: Wash Cycle Table
Wash cycle table Description Cycle Cycle Detergent Wash of Cycle Selection Pre/main time (min) Information Pre-wash Heavily soiled dishes Wash 60°C POWER 4/20g and pans with dried on Rinse 70° food. Drying. Normally dirty dishes, Pre-wash NORMAL pots and pans. Wash 50°C 4/20g Standard daily cycle. -
Page 10: How To Keep Your Dishwasher In Shape
How to keep your dishwasher in shape When you go on holiday After every wash When you go on holiday it is recommended that After every wash it is advisable to turn off the you run a wash cycle with the dishwasher empty water supply to the appliance and leave the door slightly ajar so that moisture and odours are not and then remove the plug from the socket. - Page 11 Cleaning the spray arms FIGURE 15 It may happen that food particles become encrusted on the spray arms and block the holes. SPRAY Check the spray arms periodically and clean them when needed. To release the bottom spray arm unscrew the nut clockwise. Lift off the arm. Clean the spray arm in soapy water and remove any debris from the holes with a soft brush.
-
Page 12: Troubleshooting
Troubleshooting The dishwasher does not drain If the dishwasher is not functioning properly, before calling the Helpline, please check the following: properly Ensure that the drain hose is not crimped or bent. The dishwasher does not start Note: The dishwasher is designed to detect an Have you checked whether: overflow. -
Page 13: Fuse And Mains Plug Replacement
Fuse and mains plug replacement This product is supplied with a fitted plug which FIGURE 16 contains a 13A fuse. If you are simply replacing the fuse, you must use a 13A fuse which has been approved by ASTA to BS1362. FUSE If the plug does not fit the socket or becomes damaged, a new plug must be fitted. -
Page 14: Specification
Specification Dimensions: HxWxD cm: 85 x 45 x 58 Capacity: 8 standard place settings Mains water pressure: 0.04-1.0MPa Power supply 230V ~ 50Hz Total power 1930W Energy efficiency Washing efficiency Drying efficiency Product specification may vary without prior notice. Safety measures Disposal of old dishwasher Never try to repair the appliance or the electrical parts yourself. - Page 15 Page 15...
- Page 16 This appliance/fitting is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
