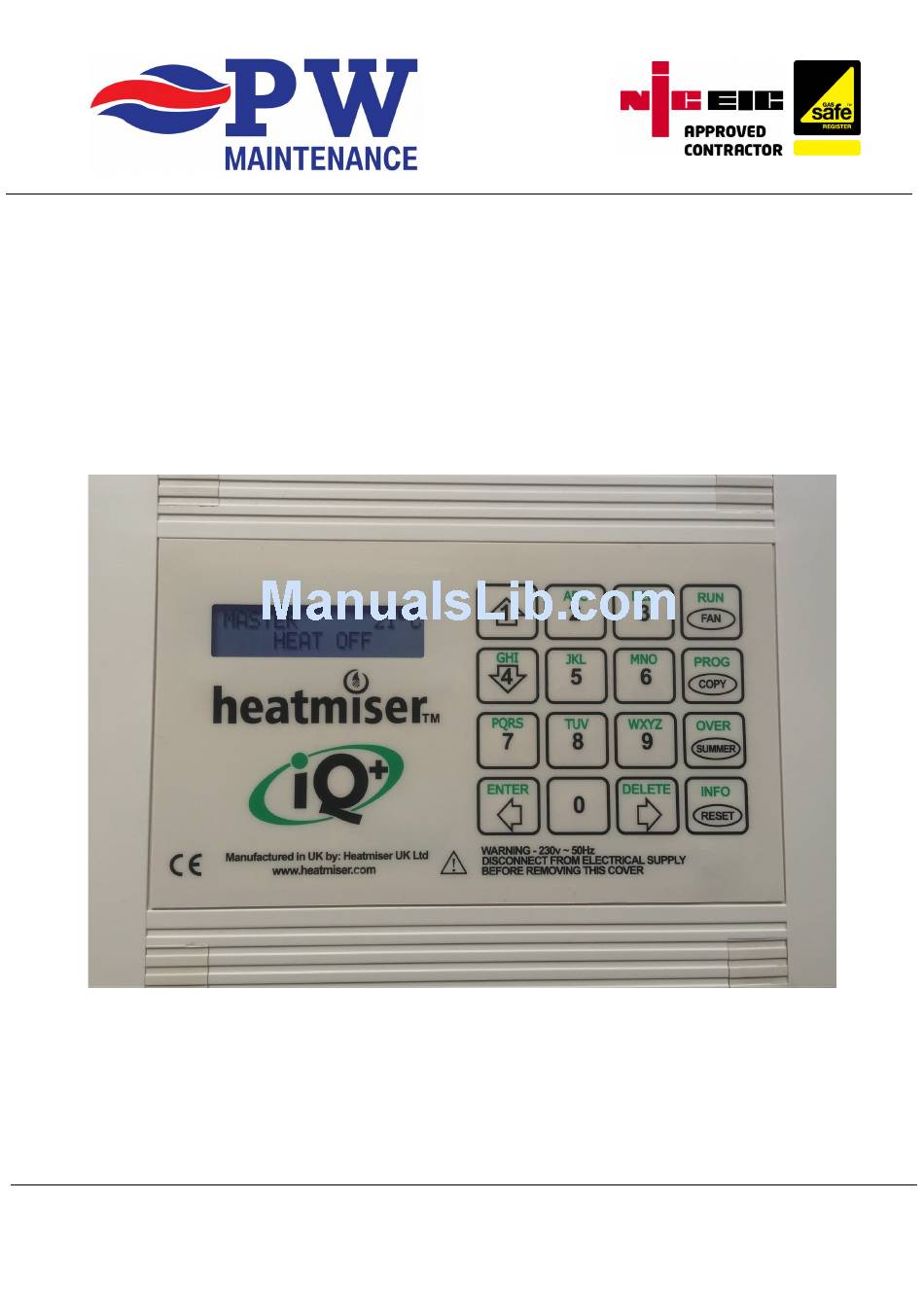

HEATMISER IQ+
NETWORK CONTROL SYSTEM
BASIC NETWORK USER GUIDE
Euro Gas & Mechanical Services (Midlands) Ltd
Trading As PW Maintenance
Unit 5 Image Business Park, East Cannock Rd, Cannock, WS12 1LT.
Tel: 0800 0124668
Fax: 0845 557 8121
Email office@pwmaintenance.co.uk
http://www.pwmaintenance.co.uk
Vat Registration Number GB 206 3847 14 Registered In England 09101293

Advertisement

loading

Related Manuals for Heatmiser IQ+

Summary of Contents for Heatmiser IQ+

  • Page 1 553352 HEATMISER IQ+ NETWORK CONTROL SYSTEM BASIC NETWORK USER GUIDE Euro Gas & Mechanical Services (Midlands) Ltd Trading As PW Maintenance Unit 5 Image Business Park, East Cannock Rd, Cannock, WS12 1LT. Tel: 0800 0124668 Fax: 0845 557 8121 Email office@pwmaintenance.co.uk http://www.pwmaintenance.co.uk...
  • Page 2 Within the building we will have installed a wall mounted Heatmiser IQ+ at low level. We call this the MASTER. Each of the remote heaters will also have a Heatmiser IQ+ unit fitted and wired to them. We call these SLAVES.
  • Page 3 Programming Mode 1 To enter Programming Mode 1 (System) carry out the following key presses :- Press the [PROG] button on the keypad. Master will issue a Warning and request the Entry Code Type the default network code 1111 and press the [ENTER] button.
  • Page 4 [2]DATA This menu option allows you to adjust the times the heating comes on (DAY) and turns off (NIGHT). Press [2] to enter the DATA menu then press [1] to program the switching times. You are now prompted on screen to enter the information for “Monday Switch Period 1”. You are allowed three switch periods per day.
  • Page 5 Programming Mode 2 From the main top menu on the controller press the ← and the → arrow keys and select a heater. Press the [PROG] button when the heater you want to control is selected. Master will display “Entering Remote” The LCD Display will now show the screen of the selected Slave controller.
  • Page 6 To exit from “Program Mode 2” Press the [PROG] button immediately followed by the [RUN] button. You will then arrive back at the root menu on the Master display. Lockout Reset If you suffer from a power cut or the gas supply is interrupted to the heater(s), for example a fire alarm is activated and a gas shut off valve closes, the heater will lock out.
