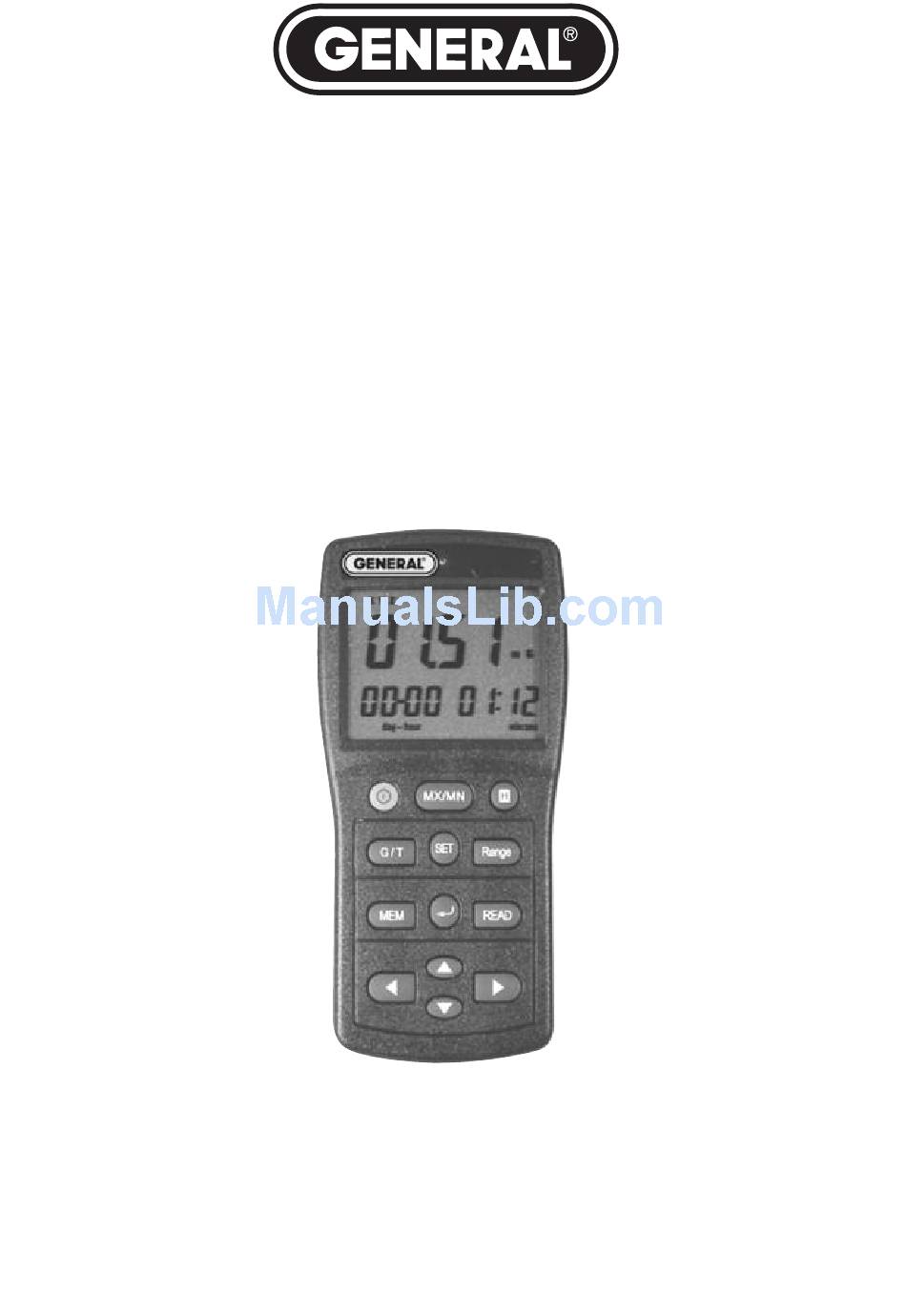

- Page 1 DIGITAL TRIPLE AXIS EMF METER WITH DATA LOGGING MICRO SD CARD USER’S MANUAL EMF1394DL Please read this manual carefully and thoroughly before using this product.
-
Page 2: Table Of Contents

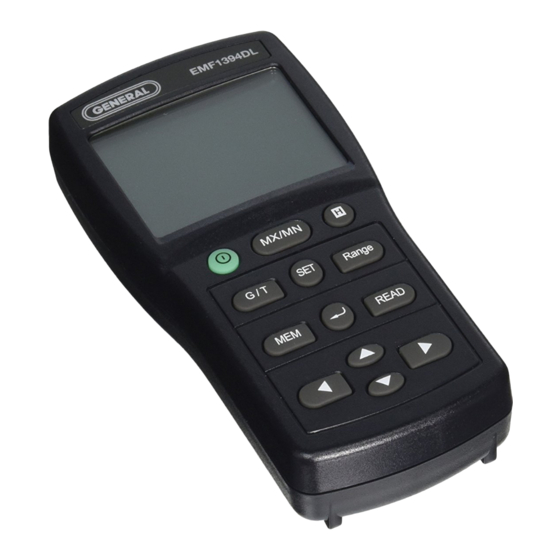

Triple Axis EMF Meter with Data Logging MicroSD Card. Please read this user’s manual carefully and thoroughly before using the product. The EMF1394DL is ideal for measuring the intensity of electromagnetic and magnetic fields produced by power lines, industrial machinery, and home appliances (computer and TV monitors). -
Page 3: Key Features
• 1-year limited warranty WHAT’S IN THE PACKAGE The EMF1394DL comes in a box along with Windows-compatible data logging software on CD, a pre-installed 4GB MicroSD card, a cable with a full-size USB plug at one end and a mini-USB plug at the other, six “AAA” batteries and this user’s manual. - Page 4 BACK OF UNIT Triple readout LCD. In normal display mode, upper readout shows total (triaxial) EMF intensity and lower readouts show current day and hour and current minute and second. In alternate display mode, upper readout shows field intensity on x axis and lower readouts show field intensity on y and z axes.
-
Page 5: Setup Instructions
MEM button. Used to: a) Manually store displayed reading(s) in meter’s internal memory at indicated location number; b) Begin automatic logging of three-axis EMF readings onto MicroSD card at selected sampling time, and c) Erase contents of meter’s internal memory and contents of MicroSD card. -
Page 6: Operating Instructions
Complete Setup by carefully removing the plastic film protecting the LCD. OPERATING INSTRUCTIONS MEASURING REAL-TIME EMF INTENSITY To power on the EMF1394DL, press and hold the green button (Callout 2) for at least 3 seconds. The unit will sound a long beep and the LCD will illuminate. - Page 7 T or m G appears at the right of the value displayed on the upper readout. The EMF1394DL automatically enters Autoranging mode when powered on. To switch to one of the three available manual ranges, press the Range button (Callout 6). Pressing the button causes the symbol R to appear in the upper left corner of the LCD.
-
Page 8: Displaying Maximum And Minimum Triaxial Readings
EMF intensity at multiple distances from a device and/or the intensity of multiple devices. The session begins when you power on the EMF1394DL; it typically ends 15 minutes after you finish making measurements with the activation of the meter’s APO function. -
Page 9: Automatic Data Logging
AUTOMATIC DATA LOGGING In addition to manually storing up to 99 readings, the EMF1394DL can automatically log thousands of triaxial EMF intensity readings on its pre- installed 4GB MicroSD card. - Page 10 Before beginning to data log, you should: 1) Disable the meter’s APO function so the meter will not shut itself down after 15 minutes of front-panel inactivity. To disable APO: a) Power off the meter; b) Power it back on in a special way by pressing and holding the button while pressing and holding the button for at least 3 seconds.
- Page 11 selection. This will cause the value above hour in the lower left readout to begin flashing. As before, use the buttons to change the value ↵ ↵ ↵ ↵ to that of the current hour (in 24-hour format), and then press the button to save your selection.
- Page 12 If you do not carefully note the positions of the MicroSD card and bracket as you move the bracket and remove the card, replacing the MicroSD card in the meter will be difficult. The photos on the previous page should help. If you do not re-install the card correctly, instead of seeing SdHC 2.0 on the LCD during the next meter startup you will see the following message: Sd Card Fail.
-
Page 13: Specifications
SPECIFICATIONS Frequency Range 30 to 2000 Hz Measurement Ranges 0 to 20 mG (0 to 2 T); 0 to 200 mG (0 to 20 T); 0 to 2000 mG (0 to 200 T) Measurement Accuracies: In 0 to 20 mG (0 to 2 T) range: ±(3% + 30 digits) from 40 to 200 Hz;... -
Page 14: Operating & Maintenance Tips
Meter with Data Logging MicroSD Card is warranted to the original purchaser to be free from defects in material and workmanship for a period of one year. Subject to certain restrictions, General will repair or replace this instrument if, after examination, the company determines it to be defective in material or workmanship. -
Page 15: Return For Repair Policy
Customer Service to obtain an RGA (Return Goods Authorization) number before forwarding the unit via prepaid freight to the attention of our Service Center at this address: General Tools & Instruments 80 White Street New York, NY 10013 212-431-6100 Remember to include a copy of your proof of purchase, your return address, and your phone number and/or e-mail address. - Page 16 New York, NY 10013-3567 PHONE (212) 431-6100 FAX (212) 431-6499 TOLL FREE (800) 697-8665 e-mail: sales@generaltools.com www.generaltools.com EMF1394DL User’s Manual Specifications subject to change without notice ©2013 GENERAL TOOLS & INSTRUMENTS NOTICE - WE ARE NOT RESPONSIBLE FOR TYPOGRAPHICAL ERRORS. MAN# EMF1394DL 11/13/13...
