ENERMAX UC-S106 User Manual

Mobile rack
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

UC-S106
SATA to SATA
Mobile Rack
User's Manual
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC-S106 and is the answer not in the manual?

Questions and answers

Related Manuals for ENERMAX UC-S106

Summary of Contents for ENERMAX UC-S106

  • Page 1 UC-S106 SATA to SATA Mobile Rack User’s Manual...

  • Page 2: Package Content

    Index Package content Page 1 Product illustration Page 2 Feature & Specification Page 3 Installation Page 4 Caution Page 5 Package content: 1. Mobile rack *1 2. User’s Manual *1 3. Accessory kit: a. Security key *1 b. Screws for HDD *4 (#6-32UNC) c.

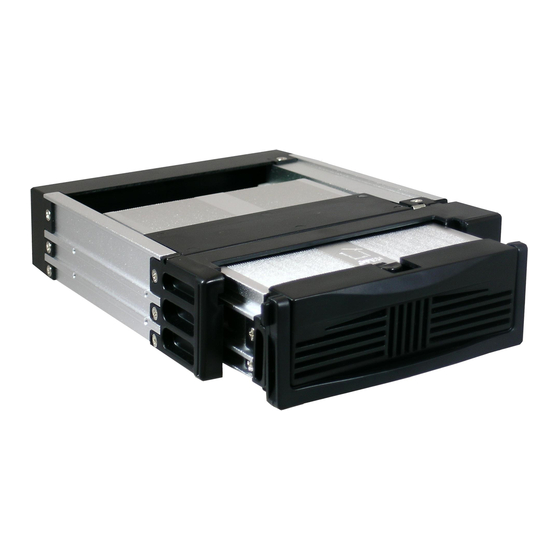

  • Page 3 Product illustration...
  • Page 4 Feature: Support 3.5” SATA HDD Data transfer rate is up to 150 MB/sec Plug & play with hot-swap ready Aluminum design for the best effective heat dissipation Built-in a patent blower in the bottom offering the extra solution of heat dissipation Unique easy in / out handle design for the inner tray “Key Lock”...
  • Page 5 Installation 2. Open the upper cover and 1.Turn off the key lock and take connect the SATA power pin out inner box. header with SATA HDD. Fix the HDD with screws 4.Secure the frame by using the (#6-32UNC), then close upper screws （M3-0.5）.
  • Page 6 Caution Make sure the "Key Lock" is at position "Lock" after the installation of mobile rack. If the HDD does not work after turning on the power of your PC, please check the "Power" and SATA connectors for any possible errors.
