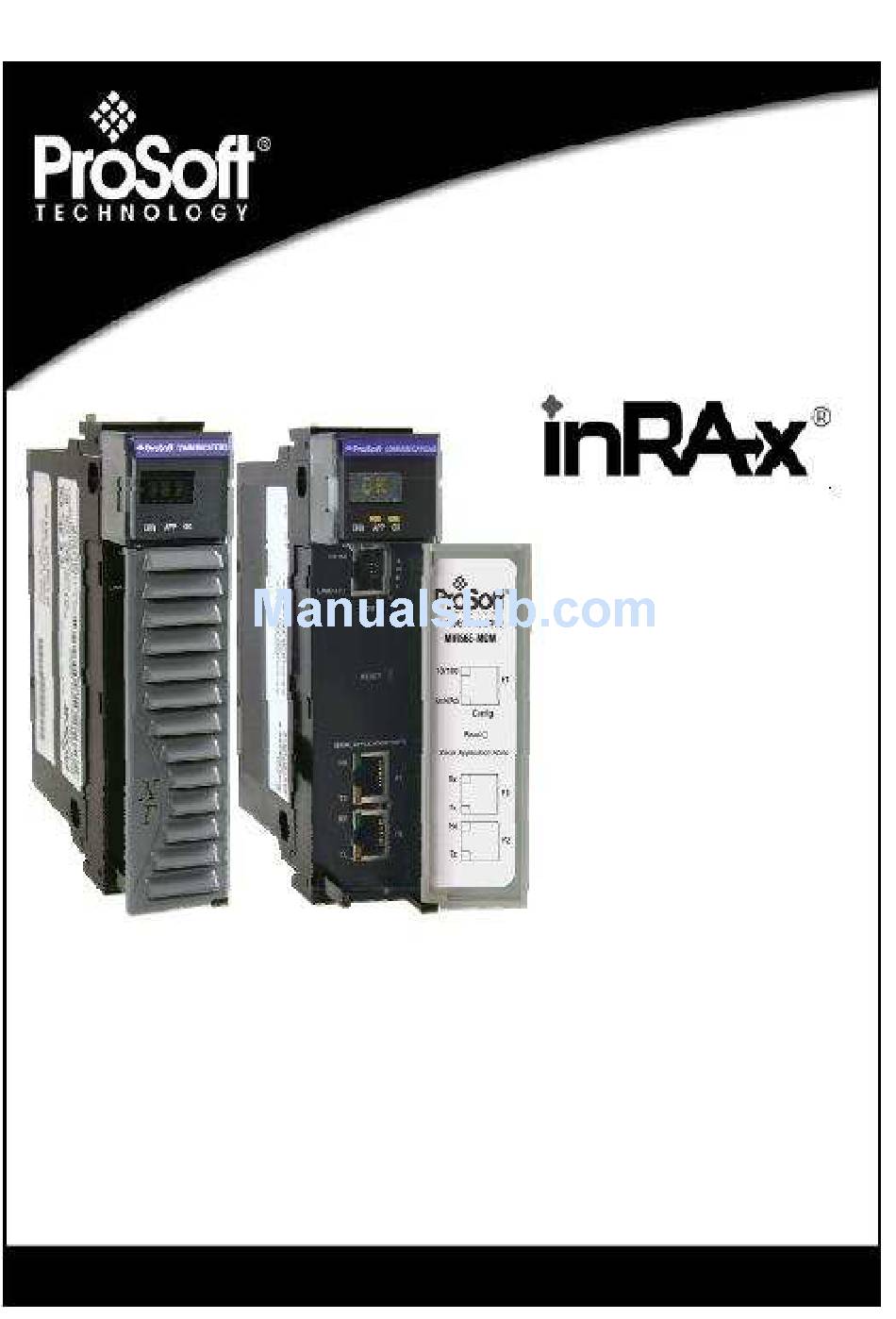

- Page 1 Where Automation Connects. MVI56E-MCMXT & MVI56E-MCM ControlLogix Platform Modbus Communication Module Instalation Manual...
- Page 2 www.racontrols.pl ControlLogix Installation manual MVI56-MCM Important Safety Information – MVI56E Warnings ATEX Warnings and Conditions of Safe Usage: Power, Input, and Output (I/O) wiring must be in accordance with the authority having jurisdiction Warning – Explosion Hazard – When in hazardous locations, turn off power before replacing or wiring modules.
-
Page 3: Table Of Contents
■ Hardware installation and wiring: install the module, and safely connect Modbus and ControlLogix devices to a power source and to the MVI56E-MCMXT & MN/I56E-MCM module’s application ports. Caution: You must be able to complete the application without exposing personnel or equipment to unsafe or inappropriate working conditions. -
Page 4: System Requirements
• Rockwell Automation® ControlLogix™ processor (firmware version 16 or higher), with compatible power supply, and one free slot in the rack for the MVI56E-MCMXT & MN/I56E-MCM module. The module requires 800mA of available 5 VDC power • Rockwell Automation RSLogix 5000 programming software... -
Page 5: Deployment Checklist
For a Modbus Slave, how many words or bits of data do you need to send to the Master device? The MVI56E-MCMXT & MN/I56E-MCM module can send data to a Modbus Master as 0x coil data, 1x input coil data, 3x input registers, and 4x holding registers. The sample program transfers 600 (16-bit) words or 9600 bits to the ControlLogix processor, and 600w or 18 bits from the ControlLogix processor. -
Page 6: Package Contents
Contains ProSoft Configuration Builder (PCB) Solutions CD and ProSoft Discovery Service (PDS) for the MVI56E-MCMXT & MVI56E-MCM modules. If any of these components are missing, please contact ProSoft Technology Support for replacement parts. Prosoft Tehcnology Page 6 of 11 www.prosoft-technology.com... -
Page 7: Setting Jumpers
Refer to the documentation for each device you plan to connect to verify that suitable safety procedures are in place before installing or servicing the device. After you have checked the placement of the jumpers, insert MVI56E-MCMXT & MVI56E- MCM into the ControlLogix chassis. Use the same technique recommended by Rockwell Automation to remove and install ControlLogix modules. - Page 8 (backplane) of the ControlLogix rack. 5 Turn power ON. Note: If you insert the module improperly, the system may stop working, or may behave unpredictably. Note: When using the MVI56E-MCMXT, you must use the 1756-A5XT or 1756-A7LXT chassis. Prosoft Tehcnology Page 8 of 11...
- Page 9 www.racontrols.pl ControlLogix Installation manual MVI56-MCM LED Status Indicators The scrolling LED display indicates the module’s operating status as follows: Initialization Messages Code Message Boot / DDOK Module is initializing Ladd Module is waiting for required module configuration data from ladder logic to configure the Modbus ports Ladder Logic Configuration Module did not receive the configuration block from ladder Required...
- Page 10 The battery voltage is low or battery is not present. Allow battery to charge by keeping module plugged into rack for 24 hours. If BAT LED still does not go off, contact ProSoft Technology, as this is not a user-serviceable item. Prosoft Tehcnology Page 10 of 11 www.prosoft-technology.com...
-
Page 11: Led Indicators
Backplane Current Load 3 mA @ 24V DC 0° to 60° C (32 to 140° F) - MN/I56E-MCM Operating Temperature -25° to 70° C (-13° to 158° F) - MVI56E-MCMXT Storage Temperature -40° to 85° C (-40 to 185° F) Extreme/Harsh Environment...
