Adjustment of parameters

Main control unit FBSN – 4FD is equipped with service display and two
push-buttons. It enables to display and adjust some parameters of device.
WARNING! Unprofessional manipulation with parameters can seriously
limit utility of device!
Display shows:
F S
ACTORY ETTINGS
or
C S
USTOM ETTINGS
different way from factory

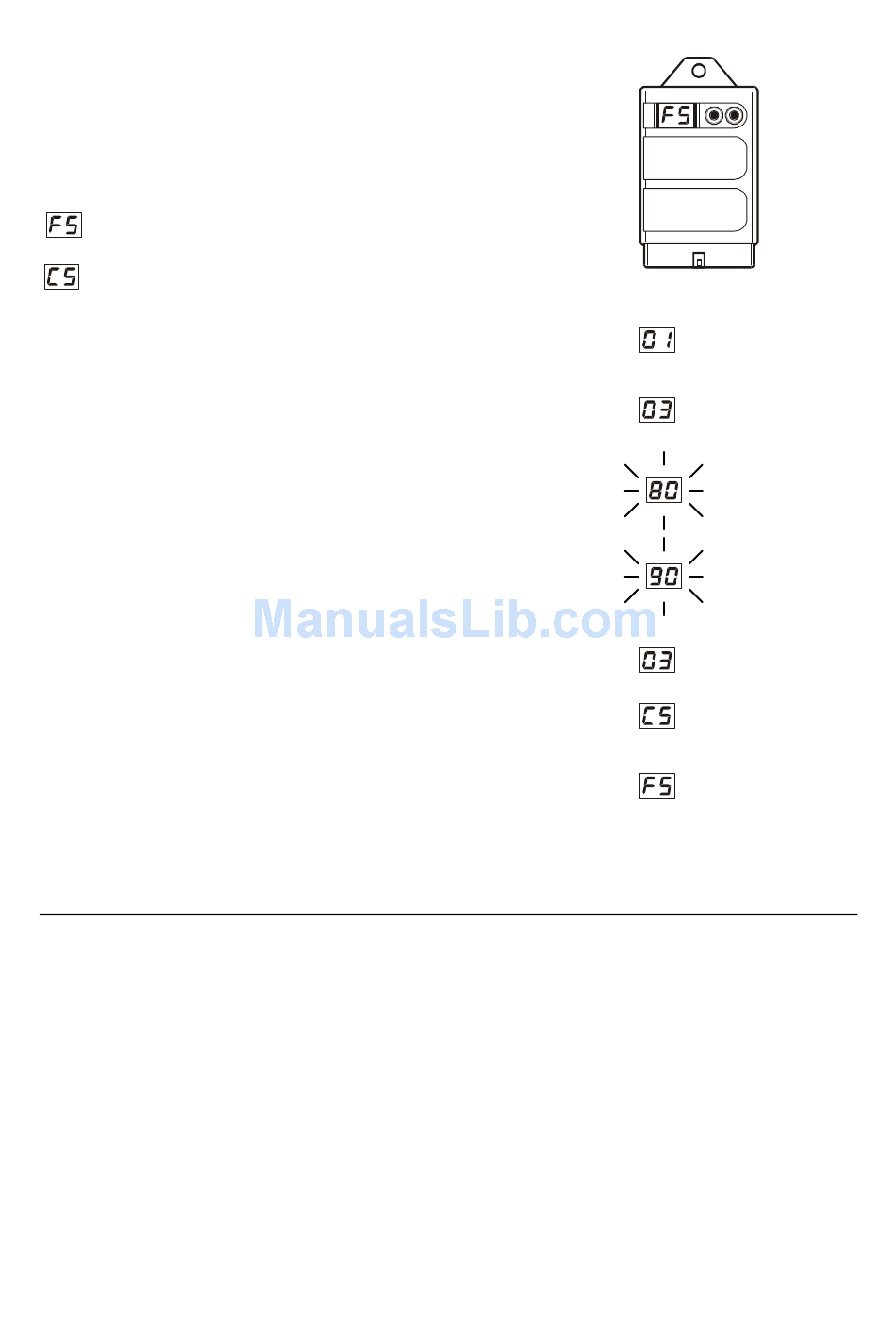

By long push (longer than 2 seconds) of whichever button, activation of
service state occurs. Display shows number of chosen parameter.
Choose desired parameter by means of buttons – down by left button, up by
right button.
By long push (longer than 2 seconds) of whichever button value of chosen
parameter is displayed. Value is blinking.
Change the value of parameter by means of buttons down by left button, up
by right button.
By long push (longer than 2 seconds) of whichever button new value is
stored and number of chosen parameter is again displayed.
Termination of service state is done automatically, if no button is pushed for
certain time.
FACTORY SETTINGS RESTORING: by simultaneous long push
(longer than 2 seconds) of both buttons.

Parameters review

NUMBER DESCRIPTION
01 Volume of the speaker
02 Range of front central sensors
03 range of front corner sensors
06 STOP zone of front central sensors
07 STOP zone of front corner sensors
11 Number of speed signal pulses
12 Delay of front sensors deactivation
15 Service display
1 = distance of the nearest front obstacle [cm]
3 = calculated vehicle speed [km/h] (test of the speed signal and parameter No.11 setting)
16 Front obstacle indication
1 = all obstacles
Note: STOP zone = distance from sensor, from which the obstacle is indicated by continuous tone.
,
– if one or more parameters are adjusted in a
RANGE
0, 1, 2
50 – 95 [cm]
50 – 95 [cm]
25 – 50 [cm]
25 – 50 [cm]
1 – 99 [pulses/m]
0, 10 – 60 [s]
0, 1, 3
0, 1
FACT. SET.
2
80
55
35
25
3
0
0
0
NOTE
0=off, 1=low, 2=high
0 = function not activated
0 = function not activated
0 = nearing obstacle only
