VINYL POOLS

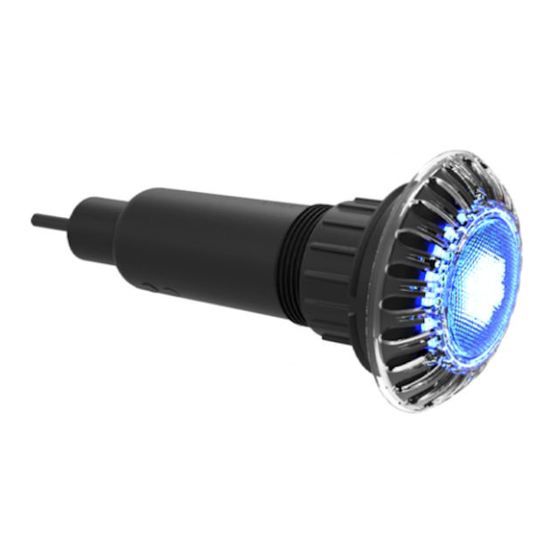

ULTRA COMPACT NICHE LIGHT
INSTALLATION &
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Atom and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spa Electrics Atom

Summary of Contents for Spa Electrics Atom

  • Page 1 VINYL POOLS ULTRA COMPACT NICHE LIGHT INSTALLATION & OWNER’S MANUAL...

  • Page 2: Table Of Contents

    CONTENTS READ THIS FIRST TOOLS REQUIRED PRODUCT SUPPORT AND INFORMATION INCLUDED PARTS FINISHED INSTALLATION INSTALLATION PROCEDURE LIGHT ASSEMBLY LIGHT REMOVAL CABLE ADJUSTMENT & REMOVAL MULTI-COLOUR OPERATION KEY DIMENSIONS TROUBLESHOOTING NOTICE FRESH WATER USE ONLY HORIZONTAL MOUNT ONLY NOT INTENDED FOR OPERATION OUT OF WATER...

  • Page 3: Read This First

    ). See Page 16 for more information]. CLEANING • Only use warm water and a soft brush or cloth to clean ATOM lights. DO NOT use detergents or spirits as this can damage the light and void your warranty. • DO NOT operate light unless completely submerged in water.

  • Page 4: Tools Required

    TOOLS REQUIRED • Hole Saw - Ø65mm ~ Ø70mm (2 ” ~ 2 ”saw) • Box cutter / knife • No. 2 Phillips screwdriver • Flat-blade screw driver (for light-head removal) IMPORTANT NOTES • The use of power tools for product assembly is NOT recommended as these devices can cause faults and damage to light components.

  • Page 5: Included Parts

    INCLUDED PARTS PLUG + CABLE NICHE ASSEMBLY NICHE CAP CONICAL CONICAL CLAMP 6x SCREWS WASHER RING LIGHT 1x LV25-12 TRANSFORMER 1x LV50-12 DUAL TRANSFORMER (FOR SINGLE-LIGHT KITS) (FOR DUAL-LIGHT KITS) 1x INSTALLATION MANUAL 1x WARRANTY CARD...

  • Page 6: Finished Installation

    FINISHED INSTALLATION STANDARD WALL MOUNTING All light conduits must be run in individual POWER SUPPLY lengths back to transformer location. An air-loop (TRANSFORMER) or junction box must be installed as part of each conduit run to prevent pool siphoning. NOTE: Conduit should contain a draw-wire to allow easy installation of power cable.

  • Page 7: Installation Procedure

    INSTALLATION PROCEDURE MOUNTING HOLE PREPARATION * * MAY NOT BE REQUIRED IF PRE-PUNCHED / DRILLED HOLES AVAILABLE FOR LIGHT MOUNTING ESTIMATED WATERLINE Ø65~Ø70mm 470mm (MAX) ” ”) 120mm (MIN) HOLESAW BELOW ESTIMATED WATERLINE DRILL HOLE THROUGH STEEL WALL ORIENTATION OF NICHE “TOP” FEED CABLE THROUGH HOLE...
  • Page 8 ASSEMBLE WASHER AND NUT TIGHTEN NUT FIRMLY TIGHTEN 20mm OR 25mm BELL BY HAND ONLY MOUTH CONDUIT GLUED TO CONDUIT TAKE-OFF (SEE *GLUING NOTE BELOW) * GLUING NOTE ENSURE P.V.C. SOLVENT CEMENT IS SUITABLE FOR NON-PRESSURE APPLICATIONS AND USE WITH A.B.S. PLASTIC...
  • Page 9 REMOVE NICHE CAP ASSEMBLE VINYL CLAMP RING VINYL LINER THIS FASTENER INSTALLED OVER LOCATED AT TOP STEEL WALL * RECOMMENDED FASTENING ORDER FIRMLY TIGHTEN FASTENERS BY HAND ONLY IN NUMBERED ORDER *...
  • Page 10 TRIM VINYL CLAMP RING CUT & REMOVE VINYL INSIDE CLAMP RING REMOVE PROTECTIVE CAP REMOVE PROTECTIVE...
  • Page 11 REMOVE TERMINAL COVER NOTE ENSURE SEAL IS SEATED FLAT IN PLUG BASE REMOVE TERMINAL COVER FROM PLUG TERMINAL USING PHILLIPS-HEAD COVER (NO.2) SCREW-DRIVER NOTE SERVICING DO NOT REMOVE RETAIN TERMINAL COVER IN TERMINAL COVER CASE LIGHT NEEDS REMOVAL. UNDERWATER SEE PAGE 15 FOR MORE INFO...
  • Page 12 FASTEN PLUG TO LIGHT ALIGN TERMINAL PINS AND FIRMLY ASSEMBLE PLUG TO LIGHT FASTEN PLUG TO LIGHT USING 3 x (M3.5 x 25mm) FASTENERS & NO.2 PHILLIPS-HEAD SCREWDRIVER IMPORTANT NOTES • DO NOT OVERTIGHTEN SCREWS • DO NOT USE POWER-TOOLS •...

  • Page 13: Light Assembly

    LIGHT ASSEMBL Y COIL CABLE INSIDE NICHE INSERT LIGHT INTO CLAMP RING ROTATE 15 DEGREES COUNTER-CLOCKWISE FROM ‘TOP’ TO ALIGN WITH LOCKING MECHANISM ROTATE CLOCKWISE “CLICK” TO LOCK LIGHT IN PLACE...

  • Page 14: Light Removal

    LIGHT REMOVAL PUSH & HOLD BUTTON WITH FLAT BLADE HOLD DOWN BUTTON WITH FLAT-BLADE ROTATE COUNTER-CLOCKWISE & REMOVE FROM LOCKING RING ROTATE & RELEASE LIGHT FROM NICHE...
  • Page 15 PLUG REMOVAL PLUG REMOVAL & TERMINAL COVER ATTACHMENT REMOVE PLUG FROM LIGHT UNSCREW 3x FASTENERS USING NO.2 PHILLIPS-HEAD SCREWDRIVER ASSEMBLE TERMINAL COVER TO PLUG & STORE IN NICHE ASSEMBLE TERMINAL COVER TO PLUG USING NO.2 PHILLIPS-HEAD SCREW- DRIVER PLUG CAN BE STORED WITHIN NICHE AS PICTURED...

  • Page 16: Cable Adjustment & Removal

    CABLE ADJUST / REMOVAL ATOM lights (for vinyl pools) are supplied with 700mm of cable pre-installed within the niche. In circumstances where additional cable-length is required, the cable can be extended to a maximum of 1000mm and stored within the niche. (Applicable for cables up to 1.0mm...
  • Page 17 CABLE ADJUST / REMOVAL 1000mm (MAX) * AFTER CABLE ADJUSTMENT 700mm * (STANDARD) * CABLE LENGTH NOTE CABLE LENGTH MEASURED FROM ALWAYS ENSURE POOL LIGHT CAN FRONT OF CLAMP RING TO PLUG’S BE RAISED ABOVE WATERLINE FOR CABLE-ENTRY POINT INSPECTION & SERVICING IMPORTANT NOTES •...

  • Page 18: Multi-Colour Operation

    OFF, wait 2 seconds & turn the power ON. Your lights should now be synchronised. SYNCHRONISED INSTALLATION When installing multiple lights; to ensure synchronisation and ease of operation all lights must operate from a single switch. SUGGESTED WIRING DIAGRAM SWITCH TRANSFORMER(S) LV50-12 LV50-12 LV25-12 STANDARD ATOM LIGHTS...
  • Page 19 (Rev R - Current) Control systems. This allows the user to have direct control over colours and light shows via the intelligent control unit. To setup the controller to operate the ATOM Multi-Plus lights, simply follow the controller setup procedure and select “INTELLIBRITE” as the desired operating mode.

  • Page 20: Key Dimensions

    KEY DIMENSIONS NICHE 182mm OVERALL NICHE LENGTH 175mm FROM POOL WALL TO CONDUIT INSTALLED LIGHT POOL WALL 38mm...

  • Page 21: Troubleshooting

    If these issues cannot be resolved with the above recommended actions, please contact your local Spa Electrics reseller or Spa Electrics directly. Phone: +61 (0)3 9793 2299 (business hours) Email: info@spaelectrics.com.au (SALES enquiries) Email: tech@spaelectrics.com.au (TECHNICAL support enquiries)
  • Page 24 NOTE PLEASE STORE THIS MANUAL IN A SAFE PLACE FOR FUTURE REFERENCE Proudly manufactured by COPYRIGHT 2016 SPA ELECTRICS PTY. LTD. ALL RIGHTS RESERVED 20160414...
