titathink TT520PW Quick User Manual

Hidden network camera
Hide thumbs Also See for TT520PW:
Table of Contents

Advertisement

Quick Links

See also: Quick Manual

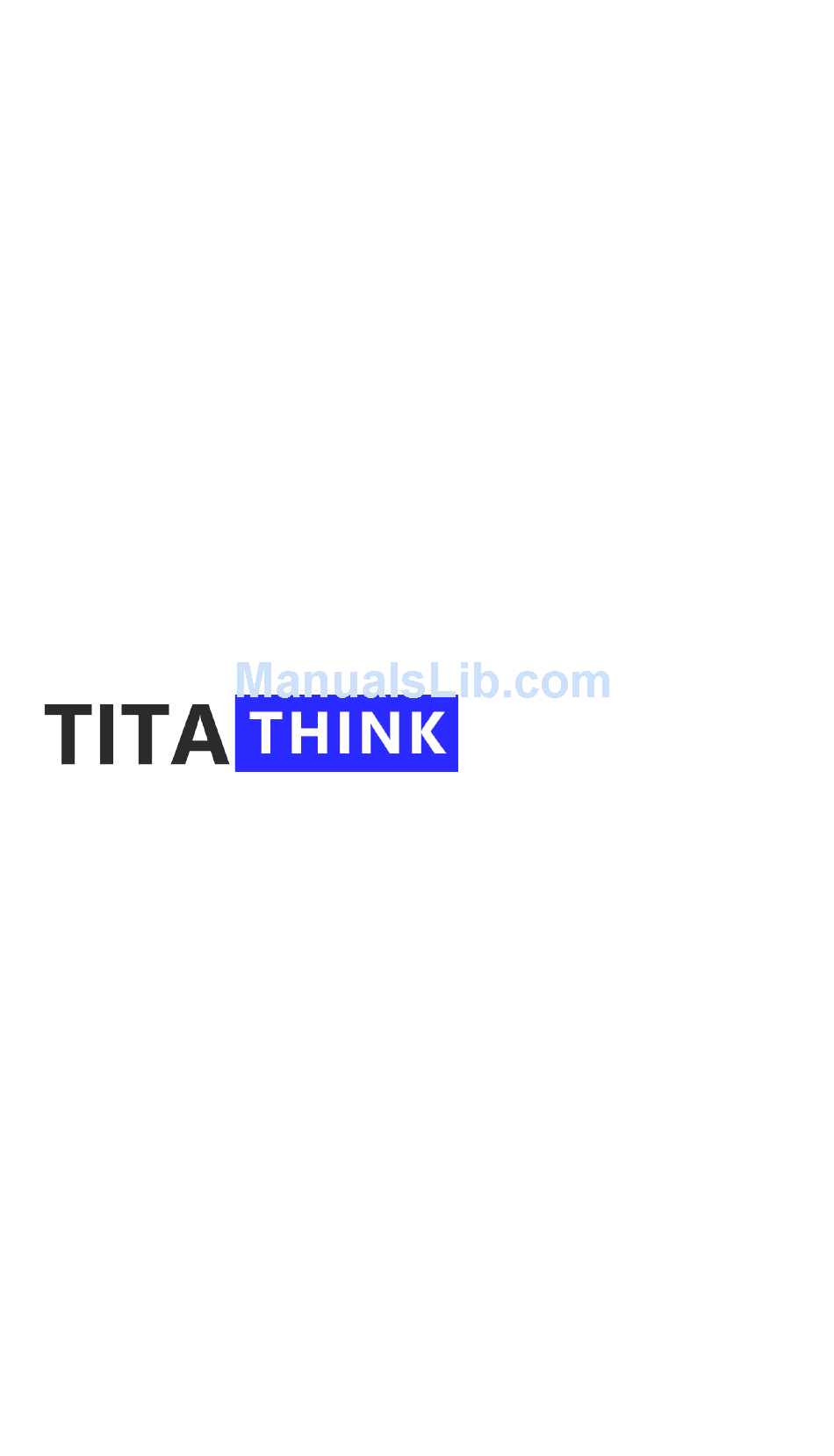

Quick User's Guide
Apply to TT520PW, TT521PW, TT522PW
and 3G series TT520G, TT521G, TT522G.
www.titathink.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TT520PW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for titathink TT520PW

Summary of Contents for titathink TT520PW

  • Page 1 Quick User's Guide Apply to TT520PW, TT521PW, TT522PW and 3G series TT520G, TT521G, TT522G. www.titathink.com...
  • Page 2 Thank you for choosing Titathink Spy Video Monitor The video monitor is designed for the people who want to view and monitor their baby, their employees or their pets througth Android, iOS Devices or PC, when they are away. The image sensor unit with its miniature size design which enables easy integration into any hidden places.

  • Page 3: Table Of Contents

    3G Setup(Just for 3G series camera)... 57 FAQ ........59 www.titathink.com...

  • Page 4: Key Features

    RJ11 cable Screw and Allen Recording, transmission key for mount of video data, etc Power supply Ethernet cable TT520PW sensor Bracket TT521PW / TT522PW 3m/10ft Use to setup There are two types of sensor Bracket power supply the Main unit...

  • Page 5: Technical Information

    Sound pick-up for sound monitoring Sensor Unit RJ11 Connector 6 meters(20ft) cable 720P Mini Pinhole camera Plug this connector to Providing flexibility to place Small size: Φ 0.74 x 1 inches Main Unit CAM Port the sensor unit in one area www.titathink.com...

  • Page 6: Software

    Software APP for your iOS or Android phone or tablet AnyScene is Titathink APP for your iOS or Android smart phone or tablet. You can view the camera live feed and manage Titathink camera by your iOS AnyScene or Android smart phone via Titathink App 'AnyScene'.
  • Page 7 4, Video & Photos You can view your video recording stream and the capture photo here 5, My Camera The list of your Titathink camera Add Camera interface 6, Back to the Previous Level 7, Search Search Cameras on the same local...
  • Page 8 29, Login Account Add user Account Quality, Orientation and so on 27, Network Setup 30, About Device The information of the WiFi, Date&Time and FTP Upload setting camera, Such as Local IP address, remote IP address, MicroSD card infor and so on www.titathink.com...
  • Page 9 Enable the video recording to your smart device. 34, On/Off the light Turn on/off the camera light. only for some models. 35, Music Turn on/off the playing music function of Titathink camera.only for some models. 36. Speaker Enable or disable the speaker. 37. Microphone Enable or disable the microphone of the camera.
  • Page 10 Application software "CameraLive" for windows PC or MAC Introductions You can find in the provided CD, or dowload from Titathink website: http://support.titathink.com/knowledge- base/camera-live-software CameraLive Operation interface Camera list MultLive List of All your cameras View all titathink cameras on One Screen, and make...
  • Page 11 4. Zoom in: Zoom in the display screen. 5. Zoom out: Zoom out the display screen. 6. Full screen: Display the live video with full screen. 7. Volume: Turn up/down the audio volume. 8. Return: Turn back to the camera list. www.titathink.com...
  • Page 12 OK to start recording these cameras. In order to provide a better user experience for our customers, we are continuing to improve our CameraLive For the latest CameraLive information, Visit: http://support.titathink.com/knowledge-base/camera-live- software www.titathink.com...

  • Page 13: Quick Start Connection

    Ethernet port, Plug the end of the cable into Main Unit LAN port Plug the Sensor unit cable into the Main Unit CAM port Notice: Don't plug the Sensor Unit cable into The Main Unit LAN port Power On Connection Diagram www.titathink.com...

  • Page 14: Quick Start For Ios Or Android Device

    1. Install the APP on your Smart Device Search the 'AnyScene' app in the App store or Google Play. and install it on your smartphone or tablet running iOS or Android System AnyScene 2. Run the AnyScene APP 3. Add your camera Press “Add” button www.titathink.com...
  • Page 15 Enter password and press connect, when it show connected, your camera has connected to your smart phone successfully. If you just need wired connection, Pls click 'Save' and start to use. If you need wireless Wi-Fi connection, Please see the following. www.titathink.com...
  • Page 16 7. Save your settings, Press “Save“ Please tap “Save” to finish the adding operations. WARNING: If you don’t tap “Save” button, you will be unable to list this camera to “My camera” interface. www.titathink.com...
  • Page 17 The Green dot means that camera is trying to connect WiFi. This progress may take about 1 minute. If connection successful, this dot will switch to blue dot. otherwise, it will switch red dot. You have to recheck the WiFi setting. www.titathink.com...

  • Page 18: Quick Start For Windows Pc Or Mac

    1. Install CameraLive on your PC or MAC CameraLive Find the 'CameraLive' software in the provided CD, or download it from titathink website http://support.titathink.com/knowledge-base/camera-live-software Install the CameraLive software on your PC or MAC. 2. Add camera to CameraLive and view it Click on "Add Video"...
  • Page 19 In here we use the second way to fill the UID number, Click the ‘ Discaover ‘ button, the CameraLive will find out all Titathink cameras in the local area network, then select your camera and click ok. Then the cameralive will require you enter username and password, the factory default For User name and Password are ‘...

  • Page 20: Access Camera Advanced Setting Web

    If your network is not listed, try "Search" again or repositioning your camera nearer to your router or un-hide your network name if your router is configured as a closed system. Do NOT manually change any of the settings(SSID, Mode, security mode, Encryption type) www.titathink.com...
  • Page 21 "Test" feature to check if you typed it correctly. If the test reports "Success!", you can remove the network cable and it should work wireless after a short delay. If the test report "no wireless connection", please double check your your WPA key("password"). www.titathink.com...

  • Page 22: Access Camera Advanced Setting Web Page

    Install Camera setup on your PC or Mac Camera Setup Find the 'Camera Setup' software in the provided CD, or download it from titathink website http://support.titathink.com/knowledge-base/cemera-setup. Install the Camera Setup software on your PC or Mac and run it. Click "Reflash" button, you will get all the Camera information which are on the same network with your computer.
  • Page 23 If your phone or tablet APP Anysence have not added the camera . Please add the camera to "AnyScene" frist before following. Run the "AnyScene" App, on camera list, click "Edit" icon→ "Advanced seting"→"About Device" to get the camera IP. www.titathink.com...
  • Page 24 2, If your router "UPNP" has already enabled, this issue may be cause by the upnp cache, so please power off your router and the camera, and power on again, and then try to get the the camera Remote IP address again. www.titathink.com...

  • Page 25: Mounting Instructions

    OUTDOOR INDOOR TT520PW / TT520G Both the Main Unit and the Sensor Unit of TT520PW are not waterproof, So they shall be installed in the building. TT521PW / TT521G The Main Unit of TT521PW is not waterproof, So the Main Unit shall be installed in the building.

  • Page 26: Mounting The Sensor

    Mounting the Sensor TT520PW/G Sensor Mounting There are two types of Sensor bracket come with TT520PW Sensor Cover Wall fixed Base Sensor fixed seat Sensor Cover Can be mounted Can be mounted For Pinhole Mounting on a wall on a wall...
  • Page 27 TT522PW Sensor Mounting TT522PW's sensor unit meets Water with a depth of the standards of waterproof IP67 less than 1 meter graded, so the sensor unit can be installed outdoor or in water with a depth of less than 1 meter. www.titathink.com...

  • Page 28: Wi-Fi Setup

    SSID, and enter the Wi-Fi password to Join. If the camera can connect to your wifi network successfully, there will be a icon on the right side of the network, then please remove the network cable and it should work wireless after a short delay. www.titathink.com...
  • Page 29 If your network is not listed, try "Search" again or repositioning your camera nearer to the wireless device or un-hide your network name if your router is configured as a Do NOT manually change any of the settings(SSID, Mode, security mode, Encryption type) www.titathink.com...
  • Page 30 3, It could be that the camera is too far from your router, you can use a laptop at the camera location, if your laptop shows less than 80%(4 bars) signal strength that may be unreliable, so you may want to get the camera main unit close to your router, and try again. www.titathink.com...

  • Page 31: Motion Detection Setup

    On the camera advanced setting web page select "Task", and click "Motion Detection", on the Motion detection page, you can adjust motion detection windows, and it's sensitivity. Window 1 was enabled by default. www.titathink.com...

  • Page 32: Push Notification

    Your storage device can be your MircoSD card,NAS device or PC. How to set your storage device Please refer to the storage section. www.titathink.com...
  • Page 33 On the advanced setting web page. Click "Task" and select "Task Management", on the Task management page you can enable or disable the alarm recording function. And click "Record to storage on alarm" to configure alarm recording parameters. www.titathink.com...

  • Page 34: Send Motion Detection Alarm Via Email

    If the camera motion detection was enabled, the camera can capture a snapshot for alarm and email to you when triggered by a action. For automatic emailing you will need both an outgoing email server and one or more receiving addresses. Configure alarm email For iOS or Android smart Device www.titathink.com...
  • Page 35 On the advanced setting web page. Click "Task" and select "Task Management", on the Task management page you can enable or disable the "Email alarm sending" function. And click "Email alarm sending" to configure alarm email parameters. www.titathink.com...
  • Page 36 [Sender mail address ] Type the e-mail address of the account you are using to send the e-mail. [Receiver mail address] Type the recipients' e-mail addresses. [Subject] Subject of the e-mail. [Message] Type the text you wish to appear in the e-mail. Tap "Apply" to save your settings www.titathink.com...

  • Page 37: Storage(Microsd Card, Nas Or Pc)

    2, Format your card into FAT32 format with the camera. Please access the camera advanced setting web page to setup the alarm recording via your computer or smart device. Please refer to previous section for how to access camera advanced setting web page. www.titathink.com...
  • Page 38 FAT32. Please fromat the sd card with the camera, and try it again. For iOS or Android smart Device The card can't The card has be recognised recognised by by the camera the camera www.titathink.com...
  • Page 39 [Storage Root Dir] This is the folder that video or snapshot will be save to. [Max Storage Space] Storage capacity the camera will use on the chosen storage. [Max Storage File] The maximum number of files for all the videos can be recorded before overwriting. www.titathink.com...

  • Page 40: Store To Nas Or Pc

    NAS device, the camera can't be managered or recognised by your NAS device. If your NAS devices support ONVIF protocal, you also can refer to "Work with NVR" section to configure your NAS devices to store the camera video stream. www.titathink.com...
  • Page 41 "\\192.168.1.138\12345678", user name is "Administrator", password is "123" . I use another windows PC to test theshared folder. On my windows PC press key “window+R” to enter the shared folder local network path "\\192.168.1.138\12345678" Enter the Username and password to login www.titathink.com...
  • Page 42 NAS device or PC. [Storage Enable] Switch enable/disable, Please Enable it for your storage. [Storage Device] NAS/SD, Please choose NAS for your storage. [Storage Root Dir] This is the folder that video or snapshot will be save to. www.titathink.com...
  • Page 43 NAS. Please note slash direction is "/". e.g. if the shared folder ip address is " \\192.168.1.138\12345678 ", you should enter " //192.168.1.138/12345678 " to NAS remote path. [Authorization] Select whether authentication is required by the NAS Driver. www.titathink.com...
  • Page 44 NAS your NAS For Windows PC or Mac Please access the camera advanced setting web page via your computer . Please refer to previous section for how to access camera advanced setting web page. www.titathink.com...

  • Page 45: Nvr, Nas(Support Onvif),Third-Party Software

    NVR, NAS(Support Onvif) or Third-party software. Please refer to the "Video stream information" section for getting the video stream information. If you want to assign a static ip to the camera, please refer to the "How to assign a static IP to the camera” www.titathink.com...

  • Page 46: Video Stream Information

    "192.168.1.103" the RTSP port is "80", and the Path of the stream is "/live/0/h264.sdp". e.g. It is RTSP H.264 type stream Internet URL, the stream ip address is "183.37.124.141" the RTSP port is "8152", and the Path of the stream is "/live/0/h264.sdp". www.titathink.com...

  • Page 47: Video Stream Setting

    Get into camera advanced setting web page to set the video stream via your computer. Please refer to previous chapter for how to access camera advanced setting web page. On the camera advanced setting web page. Click " Camera " and select "Stream Setup". www.titathink.com...
  • Page 48 This frame rate setting imposes the maximum frame rate that the camera will transmit. [Audio] Audio bit rate [Authentication] RTSP video stream authentication [Prerecord] Prerecord for the video recording. It generally used in the motion detection alarm recording for preventing something loss. www.titathink.com...

  • Page 49: Storage Task

    "Record to storage on alarm": Store the motion detecting video to storage. "Record to storage continuously": Store the live video to storage continuously. Schedule of task You can setup the schedule on the Schedule setup page and use it in the task. www.titathink.com...

  • Page 50: Browse, View, Download And Manage Record Files

    Browse and view record files via "AnyScene" On "AnyScene" camera list page, tap "Videos & Photos" button will get into Videos & Photos list, here you can choose a camera and tap the button on the right of the camera, on the expanding menu, www.titathink.com...
  • Page 51 [Continuous Record] Enables you to view and delete all videos recorded according to the continuous record schedule. Following is an example of how to browse, view, download or manage record files. Click "All" get into all record files list page to browse all record files. www.titathink.com...

  • Page 52: Back Up The Sd Card Files To Your Ftp Server

    For iOS or Android smart Device On the "AnyScene" App, Select the camera, click "Edit" icon → "Advanced seting"→"Netwok Setup"→"FTP Upload" to configure FTP setting for your Ftp server. [FTP Upload] Switch enable/disable, Please Enable it. www.titathink.com...
  • Page 53 [Authentication] Select whether authentication is required by the FTP server, disable for anonymous access. [User name] FTP user name. [Password] FTP password. [Remote Path] Input the file directory. It is an optional setting to specify a folder on the FTP server. Tap "Confirm" to save. www.titathink.com...

  • Page 54: How To Assign A Static Ip To The Camera

    Camera Watchdog If you’re going to start a vacation and are away from your home, in order to make your Titathink camera working normally every day. You should be enable the Camera Watchdog for periodical reboot to ensure your camera can reboot itself to avoid the network blockage problem.

  • Page 55: How To Connect External Sound Pick-Up

    Male RCA connector Please Note: The camera Audio Line-in Port is RCA Female Connector so when you buy the audio pick up you should choose a Audio pick up which the audio cable connector is male RCA connector. www.titathink.com...
  • Page 56 For Windows PC or Mac Please get into camera advanced setting page to check whether the Microphone is enable and the volume is high enough. Please refer to previous section for how to access camera advanced setting web page. www.titathink.com...

  • Page 57: Setup(Just For 3G Series Camera)

    3G SIM card carrier.Now our 3g series camera can work with most 3G SIM card in the market. [Phone Number] Here must be *99# which is requested by camera itself. [User name] This eld requires the username of your SIM card(Get from 3G operator). www.titathink.com...
  • Page 58 If you got any errors when you test the hardware, see follows: Modem device test fail. That means the 3G module of camera has some problem. Please contact Titathink support team. SIM card test fail & 3G network test. That means the 3G information you entered may be incorrect.

  • Page 59: Faq

    Please power off your camera, and check the connection and try to plug-in and plug-out to fix the connection. Please make sure the cable of Lens unit has been connected to the "CAM" port of host unit. Many people www.titathink.com...
  • Page 60 Tips for using the camera: If you’re going to start a vacation and are away from your home, in order to make your Titathink camera working normally every day. You should be enable the Camera Watchdog for periodical reboot to ensure your camera can reboot itself to avoid the network blockage problem.
  • Page 61 www.titathink.com...
  • Page 62 Titathink Product Family Indoor Smart Cam Series Spy Cam Series Outdoor Cam Series Storage Series For more information, visit: http://www.titathink.com Titathink Technology Co., Limited 6/f., Liwan Building, Titathink Support Centre Qianhai Load, Skype : titathink Nanshan District, Email : support@titathink.com ShenZhen, Website : www.titathink.com...
