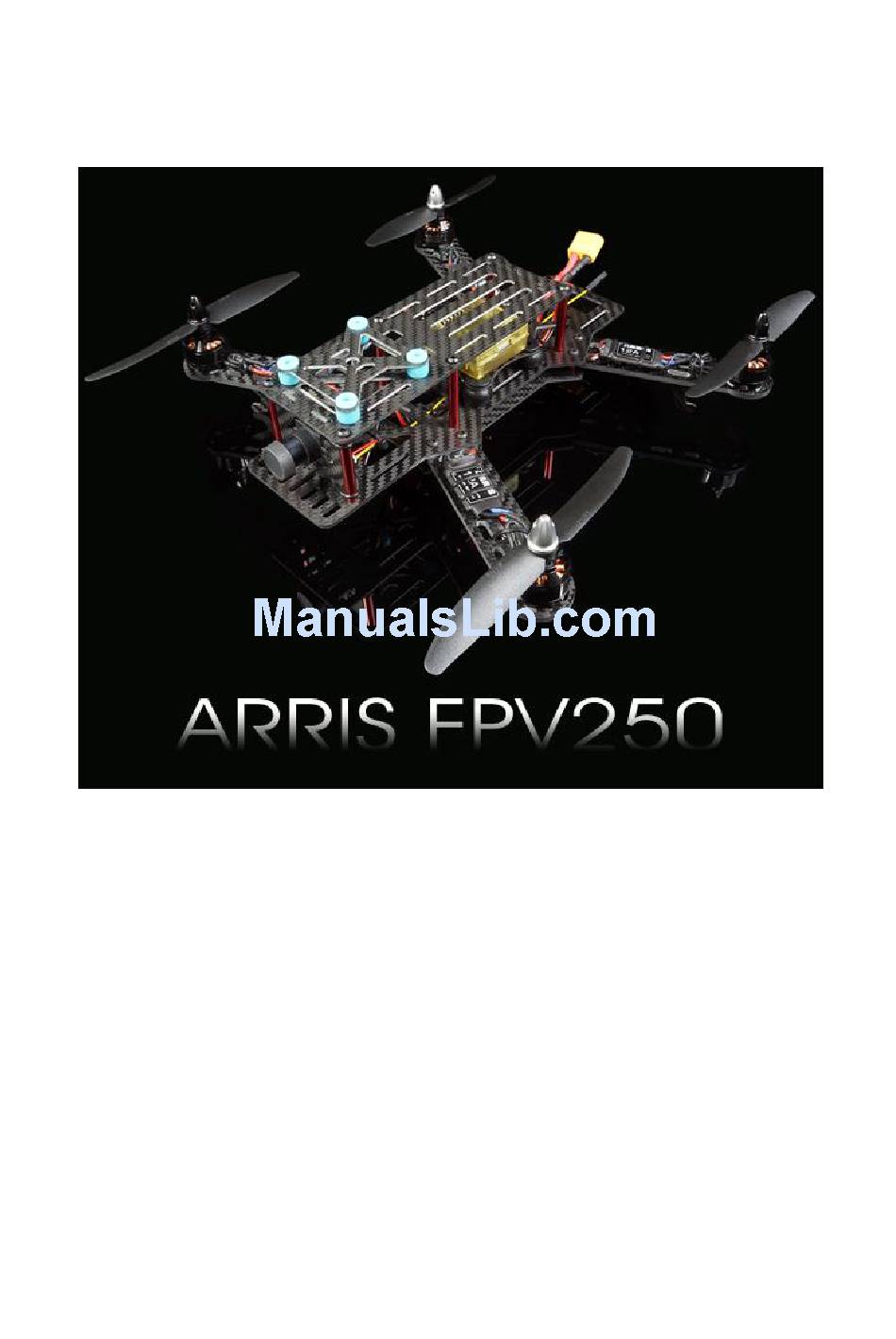

ARRIS FPV250 Assembling User Manual
Thank you for purchasing ARRIS FPV250 FPV Racing Quad copter. Here is a simple
assembling manual to assemble it.
Before we start, please prepare the following tools:
1.5mm screw driver x 1
2.0mm screw driver x 1
3.0mm sleeve x 1
Scissors x 1
Tweezers x 1
Thread Lock

Advertisement

loading
Need help?

Need help?

Do you have a question about the FPV250 and is the answer not in the manual?

Questions and answers

Related Manuals for Arris FPV250

Summary of Contents for Arris FPV250

  • Page 1 ARRIS FPV250 Assembling User Manual Thank you for purchasing ARRIS FPV250 FPV Racing Quad copter. Here is a simple assembling manual to assemble it. Before we start, please prepare the following tools: 1.5mm screw driver x 1 2.0mm screw driver x 1 3.0mm sleeve x 1...
  • Page 2 1. Installation of the Frame 1.1 The picture below is the all the plate of the FPV250 Install the damper balls to the vibration damper plate...
  • Page 3 1.2 Install the vibration damper plate to the battery plate The picture below is battery plate and vibration damper plate. It should be look like this after you assemble it.
  • Page 4 1.3 Install the arms. Use M3 x 12 screws on the arm like the picture below...
  • Page 5 1.4 Put the red aluminum column on the screws...
  • Page 6 1.5 Install the lower plate 1.6 Install the landing skid Prepare the landing skid; here we need to use M3 x 6 screws and M3 nut...
  • Page 7 Put the landing skid to the its position, and use the screw to tighten it. For the BNF, due to the package limitation, we changed the landing skid to the rubber one as below. For this one, we use the M3 x 12 screws with M3 nut to assemble it.
  • Page 8 1.7 Install the Aluminum column In this step, we need to use the thread lock and M3 x 6 screws.
  • Page 9 Install the aluminum column on the center frame by M3 x 6 screws, and use some thread lock. 1.8 Install the camera fixed plate Prepare the parts...
  • Page 10 Put the camera fixed plate in front part as below: 1.9 Install the upper plate.
  • Page 11 Here we need to use M3 x 6 screws, and for each screws, remember to use the thread lock on it. Now we finish the assembling of the frame. 2. Installation of the Electronic Equipments 2.1 Install the camera. M2.5 x 12 nylon screws cable tie can be used here.
  • Page 12 The pictures below are the details of the camera mounting. 2.2 Install the motors. Here we take the ARRIS 1806 2300KV brushless motor as example. For CW motor, the cap is black, for the CCW motor, the cap is silver, please pay attention to it when you do it.
  • Page 14 2.3 Solder the motor with ESC. Cut off the motor wire, just leave 1.5 to 2 CM length will be OK. Cut off the extra wires of the ESC like the pictures below:...
  • Page 15 Put some soldering tin on motor wires and esc wires, which will be used in the future steps. Put the 2MM heat shrink tube on the motor wire. Solder the motor with ESC. For the black cap CW motor, the wire is one to one correspondence with the ESC wire.
  • Page 16 2.4 Use the M2 x 6 screws to mount the motor to the frame, remember to use the thread lock.
  • Page 17 For the ESC, use the 3M double side tape to paste it on the arm. And pass the ESC wire through the arm.
  • Page 18 2.5 Connect the camera wire, then starts to do the soldering. Put all the ESC wire through the arm and into the lower plate. All the red wires put in one side, and all the black wires put in the other side and tight them by the cable tie.
  • Page 19 Cut off the extra wires.
  • Page 20 Solder them, one color to one color correspondence like the picture below: Fixed the main power wire by cable tie.
  • Page 21 On the other side, tighten the ESC by cable tie on the arm. Solder the XT60 connector (Pay attention to the “+” and “-”, the red is “+”, and the black is “-”)
  • Page 22 2.6 Install the CC3D flight controller. Paste the CC3D flight controller on the lower plate by 3M double side tape. It should be not crooked, or it will influence the future flight. Connect the ESC wire like the below diagram:...
  • Page 23 Here is the ESC plugged well on the flight controller. Arrange the long ESC wires.
  • Page 24 Here we finished the assembling. Next, you need to set the settings on the CC3D software with your radio, you can check another manual.
