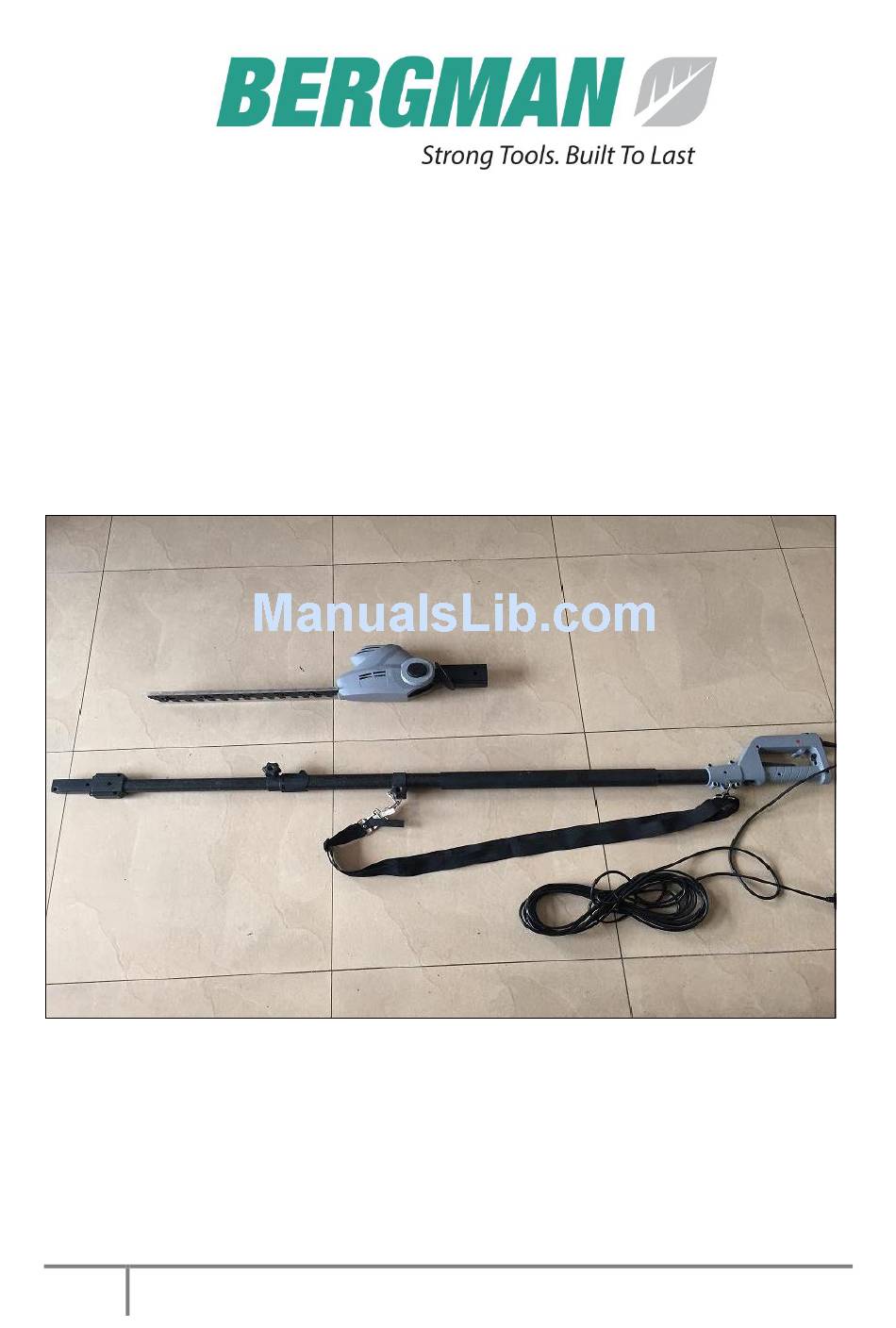

- Page 1 Product Code: M951817 Telescopic Hedge Trimmer INSTRUCTION MANUAL Please retain for reference Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW Enquiries: 0344 482 1107...
-
Page 2: Table Of Contents
Contents I. Technical Data..................3 II. Intended Use..................3 III. Explanation of Symbols on your product........... 4 IV. Safety Instructions................4-9 V. Part Identification................10 VI. Assembly................... 11-14 VII. e ................14 VIII. Connection…................... 14 IX. Operation..................14-17 X. Maintenance and Servicing..............17 XI. -
Page 3: Technical Data
I. Technical Data Model M951817 Voltage/Frequency 230V-240V～/50Hz Input Power 450W No load speed (Hedge 1800/min trimmer) Noise emission value LWA measured 95dB(A) Hand / arm vibration a < 2.52 m /s2 Overall Length 3.0m Length of cutter blade 450mm Maximum Diameter Cut of 16mm/1/2”... -
Page 4: Explanation Of Symbols On Your Product
III. Explanation of Symbols on your product WARNING ! Read the user instructions carefully to make sure you understand all the controls and what they do. Remove plug from the mains immediately if the cable is damaged or cut. Do not expose to rain. Do not leave the product outdoors while it is raining. -
Page 5: General Power Tool Safety Warnings
For safety reasons, children under the age of 16 and people not familiar with these operating instructions must not use this Telescopic Hedge Trimmer. Persons with reduced physical or mental abilities may use the telescopic hedge trimmer only if they are supervised or instructed by a responsible person. - Page 6 f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply- Use of an RCD reduces the risk of electric shock. Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication- A moment of inattention while operating power tools may result in serious personal injury.
- Page 7 30mA. Check your R.C.D. every time you use it. Before use, examine cable for damage. Have it replaced by a qualified electrician or Bergman Service Centre if there are signs of damage or ageing.
- Page 8 Always switch off at the mains before disconnecting any plug, cable connector or extension cable. Switch off, remove plug from mains and examine electric supply cable for damage or ageing before winding cable for storage. Do not repair a damaged cable. Replace it with a new one. ...
-
Page 9: Maintenance And Storage
Before checking, cleaning or working on the appliance. If you hit an object. Do not use your product until you are sure that the entire product is in a safe operating condition. If the product starts to vibrate abnormally, check immediately. Excessive vibration can cause injury. -
Page 10: Part Identification
V. Part Identification Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW Enquiries: 0344 482 1107... -
Page 11: Assembly
VI. Assembly Unpacking This product requires assembly. Carefully remove the product from the box. Inspect the product carefully to make sure no breakage or damage has occurred during shipping. Do not discard the packing material until you have carefully inspected and satisfactorily operated the product. - Page 12 2. Connect the other end of the strap with the ‘quick-release’ to the handle as per Figure 16 below : Fig 16 3. Adjust the length of the shoulder strap to ensure the machine is well balanced and as comfortable as possible. Use the strap to take the weight of the trimmer, especially when the telescopic poles are fully extended.
- Page 13 Using the hand knob supplied to tighten the extension pole by turning the knob clockwise. Make sure the knob has been tightened completely. See Figure 2 below. Fig 2 3. Release the extension pole knob by turning it anti-clockwise. Place one hand on one pole section and the other hand on the other section.
-
Page 14: A P P L I C A T I O N R A N G E
Connect the motor’s pole connection collar into the extension pole connection collar until you hear of the locking sound “click”. Check both parts are locked together by trying to pull them apart. See Figure 3 below. (Note: The motor head locking hole should be on the same side with the extension pole lock catch). -
Page 15: Starting And Stopping
WARNING: Always wear CE approved safety goggles or safety glasses with side shields when operating power tools. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury. Wear head protection when using the trimmer. WARNING: Do not use any attachments or accessories not recommended by the manufacturer of this product. -
Page 16: Cutting Tips
Adjusting the Pivoting Head See Figure 12 below. Fig 12 1. Disconnect the plug from the power supply. 2. Place the hedge trimmer on a flat surface. 3. Depress both pivot buttons and adjust trimmer angle adjustment head until it snaps securely into place at one of their available positions indicated. -
Page 17: Maintenance And Servicing
WARNING: Clear the area to be cut before each use. Remove all objects such as cords, lights, wire, or loose string which can become entangled in the cutting blade and create a risk of serious personal injury. When operating the hedge trimmer, keep the mains lead behind the trimmer. Never drape it over the hedge being cut. -
Page 18: Guarantee
XI. Guarantee This product is guaranteed against faulty workmanship for a period of 12 months from date of purchase. Your guarantee will be invalidated if the machine is modified in any way, used for purposes outside the parameters of this instruction manual or willfully damaged or abused. Your statutory rights remain unaffected. - Page 19 *DESIGN AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. The crossed out Wheelie Bin logo is used to highlight electrical products that should not be disposed of with normal household waste. Scotts Ltd. has contributed to the funding of an alternative network of UK recycling facilities. Please visit www.recycle-more.co.uk to find where your nearest recycling point is and recycle this product at the end of its life.
