Bergman M852596 Instruction Manual

Short and tall hedge trimmer
Hide thumbs
Table of Contents

Advertisement

Quick Links

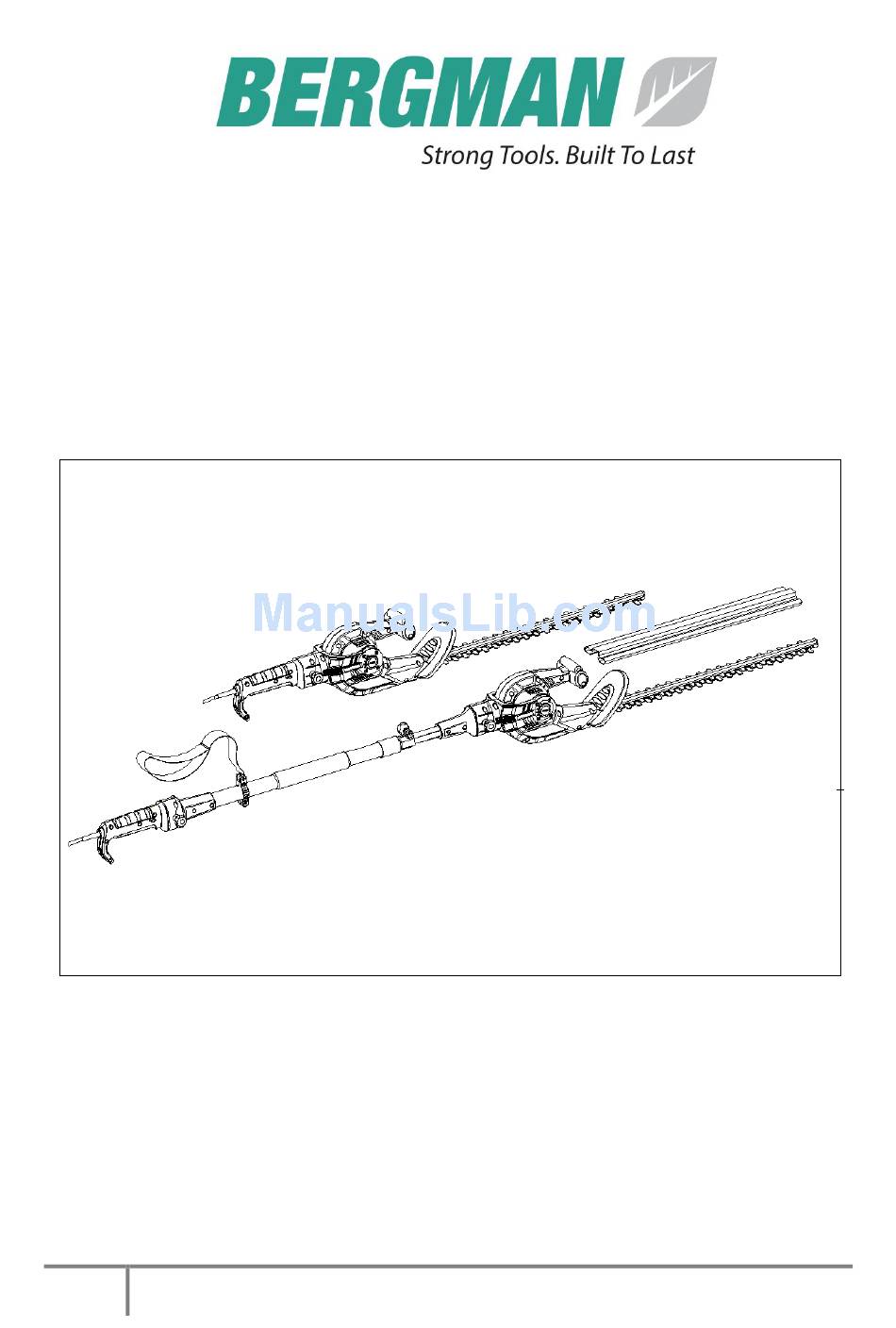

Product Code: M852596
Short and Tall Hedge Trimmer
INSTRUCTION MANUAL
Please retain for reference
Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW
1
Enquiries: 0344 482 1107

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M852596 and is the answer not in the manual?

Questions and answers

Related Manuals for Bergman M852596

Summary of Contents for Bergman M852596

  • Page 1 Product Code: M852596 Short and Tall Hedge Trimmer INSTRUCTION MANUAL Please retain for reference Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW Enquiries: 0344 482 1107...

  • Page 2: Table Of Contents

    Contents I. Technical Data..................3 II. Intended Use..................3 III. Explanation of Symbols on your product........... 4 IV. Safety Instructions................4-9 V. Part Identification................10 VI. Assembly................... 11-13 VII. e ................14 VIII. Connection…................... 14 IX. Operation..................14-17 X. Maintenance and Servicing..............18 XI.

  • Page 3: Technical Data

    I. Technical Data Model M852596 Voltage/Frequency 230V-240V～/50Hz Input Power 550W No load speed (Hedge 1600/min trimmer) Overall Length 2.80m Length of cutter blade 460mm Maximum Diameter Cut of 15mm/1/2” The reciprocating Hedge Trimmer blade Minimum reach of hedge 2.21M trimmer II.

  • Page 4: Explanation Of Symbols On Your Product

    III. Explanation of Symbols on your product WARNING ! Read the user instructions carefully to make sure you understand all the controls and what they do. Remove plug from the mains immediately if the cable is damaged or cut. Do not expose to rain. Do not leave the product outdoors while it is raining.

  • Page 5: General Power Tool Safety Warnings

     For safety reasons, children under the age of 16 and people not familiar with these operating instructions must not use this Short and Tall Hedge Trimmer. Persons with reduced physical or mental abilities may use the Short and Tall Hedge Trimmer only if they are supervised or instructed by a responsible person.

  • Page 6: Personal Safety

    f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply- Use of an RCD reduces the risk of electric shock. Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication- A moment of inattention while operating power tools may result in serious personal injury.
  • Page 7 f) Keep cutting tools sharp and clean- Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed- Use of the power tool for operations different from those intended could result in a hazardous situation.
  • Page 8  Immediately disconnect from the mains electricity supply if the cable is cut, or the insulation is damaged. Do not touch the electric cable until the electrical supply has been disconnected.  Your electric cable must be untangled. Tangled cables can overheat and reduce the efficiency of your product.

  • Page 9: Maintenance And Storage

    Remove the plug from the mains:  Before leaving the product unattended for any period.  Before clearing a blockage.  Before checking, cleaning or working on the appliance.  If you hit an object. Do not use your product until you are sure that the entire product is in a safe operating condition.

  • Page 10: Part Identification

    V. Part Identification Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW Enquiries: 0344 482 1107...

  • Page 11: Assembly

    VI. Assembly Unpacking  This product requires assembly.  Carefully remove the product from the box.  Inspect the product carefully to make sure no breakage or damage has occurred during shipping.  Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
  • Page 12 2. Screw with locking knob. Make sure that connection is secured tightly. (see Fig. 2). Fig.2 3. Insert the guard (8) into the socket as illustrated in Fig.3, and use the two screws to fix the guard in place (see Fig. 3). Fig.3 4.
  • Page 13 4. Screw with locking knob. Make sure that connection is secured tightly (see Fig. 5). Fig.5 5. Screw with locking knob. Make sure that connection is secured tightly (see Fig. 6). Fig.6 Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW Enquiries: 0344 482 1107...

  • Page 14: A P P L I C A T I O N R A N G E

    VII.  The Short and Tall Hedge Trimmer is designed for cutting and trimming hedges, branches, bushes and shrubs around your house or allotment. Any other usage will invalidate your guarantee.  The Short and Tall Hedge Trimmer is designed for use by adults. Adolescents over 16 years may use it only under supervision.
  • Page 15 Adjusting the Pivoting Head 1. The angle of power head can be set to 6 different working positions. 2. Push the Adjust button (there is a "PUSH" on it) with one hand and turn round the power head to suitable position. The Adjust button can lock the handle automatically (see Fig. 7). Fig.7 Adjusting the Telescopic Extension Handle Length The Short and Tall Hedge Trimmer has a telescopic extension handle that will extend from 2.08...
  • Page 16 3. To lock handle in position, tighten the locking knob (see Fig.8). Fig.8 Starting the Pole Hedge Trimmer 1. Remove the blade sheath (7) from the blade(6) (See Fig. 9). Fig.9 Scotts Ltd. Cotswold House, 1 Crompton Road, Groundwell, Wiltshire. SN25 5AW Enquiries: 0344 482 1107...
  • Page 17 2. There are two switch levers fitted on your hedge trimmer (1&9). Both switch levers need to be depressed for the product to start. Depress and hold the front switch lever (9) and press the switch lever (1). Move the hedge trimmer away from cutting area before stopping. To stop, release one of the switch levers.

  • Page 18: Maintenance And Servicing

    VIII. Maintenance and Servicing  Before carrying out any checks or maintenance operations, disconnect the plug from the electric power supply.  Check your Short and Tall Hedge Trimmer regularly before starting the work.  Damaged cutting blades have to be repaired or exchanged by a qualified service engineer before working with the Short and Tall Hedge Trimmer.
  • Page 19 *DESIGN AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE. The crossed out Wheelie Bin logo is used to highlight electrical products that should not be disposed of with normal household waste. Scotts Ltd. Has contributed to the funding of an alternative network of UK recycling facilities. Please visit www.recycle-more.co.uk to find where your nearest recycling point is and recycle this product at the end of its life.
