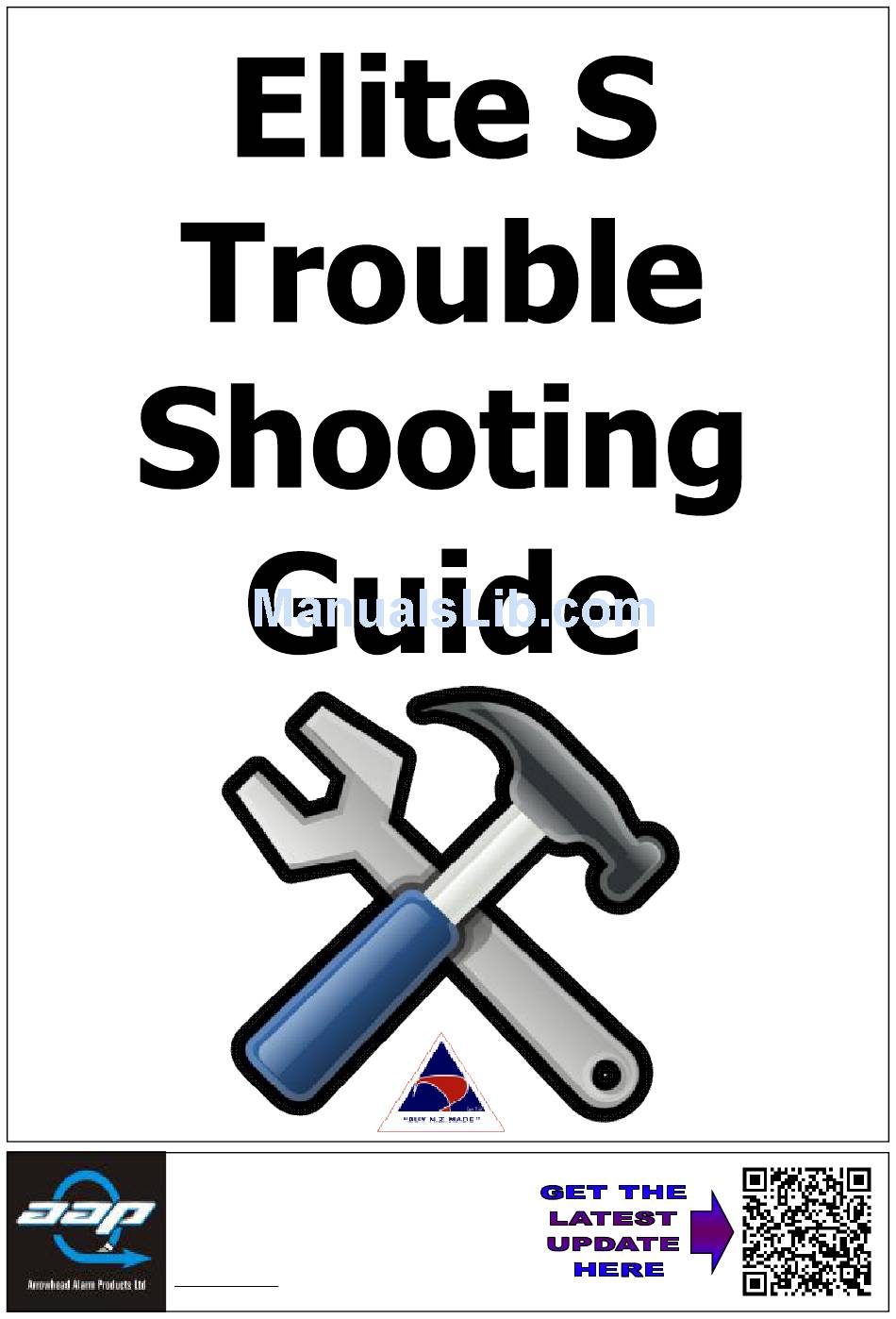

  • Page 1 ARROWHEAD ALARM PRODUCTS Ltd. 344b Rosedale Rd, Albany, Auckland. Ph. 09 414 0085 Fax. 09 414 0088 www.aap.co.nz v1.0...
  • Page 2 Zone Trouble Shooting (single EOL) 2K2 = = RED, RED, RED, GOLD. 4K7 = = YELLOW, VIOLET, RED, GOLD. 8K2 = = GREY, RED, RED, GOLD. Multi-Meter Range: Volts DC ( Gnd 12V Gnd 12V 8 Tmp Gnd 12V Outputs Tamper Alarm Contacts...
  • Page 3 Zone Doubling Type 15 (no tampers) For this hardware configuration the zone must be programmed to be type 15 at address: P 125 E 1-8=zone number E 15=zone type E P 122 E 1-16=zone number E On by default 1 6 7 8 Option 1 = Zone is Active.
  • Page 4 Zone Doubling Type 14 (with tampers) For this hardware configuration the zone must be programmed to be type 14 at address: P 125 E 1-8=zone number E 14=zone type E P 122 E 1-16=zone number E On by default 1 6 7 8 Option 1 = Zone is Active.
  • Page 5: Star Configuration

    Zone Wiring Type 14 (with tampers) Here are two examples of how you can wire a PIR-A PIR-B Tamper Alarm Tamper Alarm Type 14 Zone network. Both are acceptable and Contacts Contacts N/C Contacts Contacts N/C both follow the same connection diagram rules. Z1-8 Gnd 12V Gnd 12V...
  • Page 6 Reed Switch Wiring Single EOL (Type 3) standard zone Gnd 12V Gnd 12V Outputs N/C REED SWITCH REED 1 = Zone 1 Double EOL (Type 12) 1 zone plus tamper Resistors should be fitted as close to the Reed as possible. Gnd 12V Gnd 12V Outputs...
  • Page 7 Smoke Detector Zone Wiring (Type3) Gnd 12V Gnd 12V Outputs Smoke 1 = Zone 4 Gnd 12V Gnd 12V Outputs Zone 4 = Smoke 1,2 & 3 To smoke 2 &3 To smoke 3 *The End of Line Resistor must be fitted in the last detector. *If Multiple detectors are sharing the same zone, they must be wired in a daisy-chain format.
  • Page 8: Power Supply

    Keypad Bus Check Test 2 Multi-Meter Range: Volts DC ( Power Supply: Test 1 From 10.00VDC To 14.00VDC Power Check list: If there is no voltage on the Pos & Neg terminals, check it at the panel. If there’s volts there you've got a cable fault, If there is no volts there either, the fuse might have tripped.
  • Page 9: Dip Switch Setting

    Wireless Trouble Shooting (RX-16MF349) RX-1 6 RX-16 MF349 v090618 (303, 433 & 915MHz) DIP SWITCH SETTING FREQUENCY ▼ 304Mhz 433Mhz 915Mhz Common Faults: Devices not learning in? • The No.1 reason is Frequency. Confirm Dipswitch 3 & 4 are set correctly for the desired frequency. The Dipswitches are only assigned on power up, so a power/down, power/up many be required.
