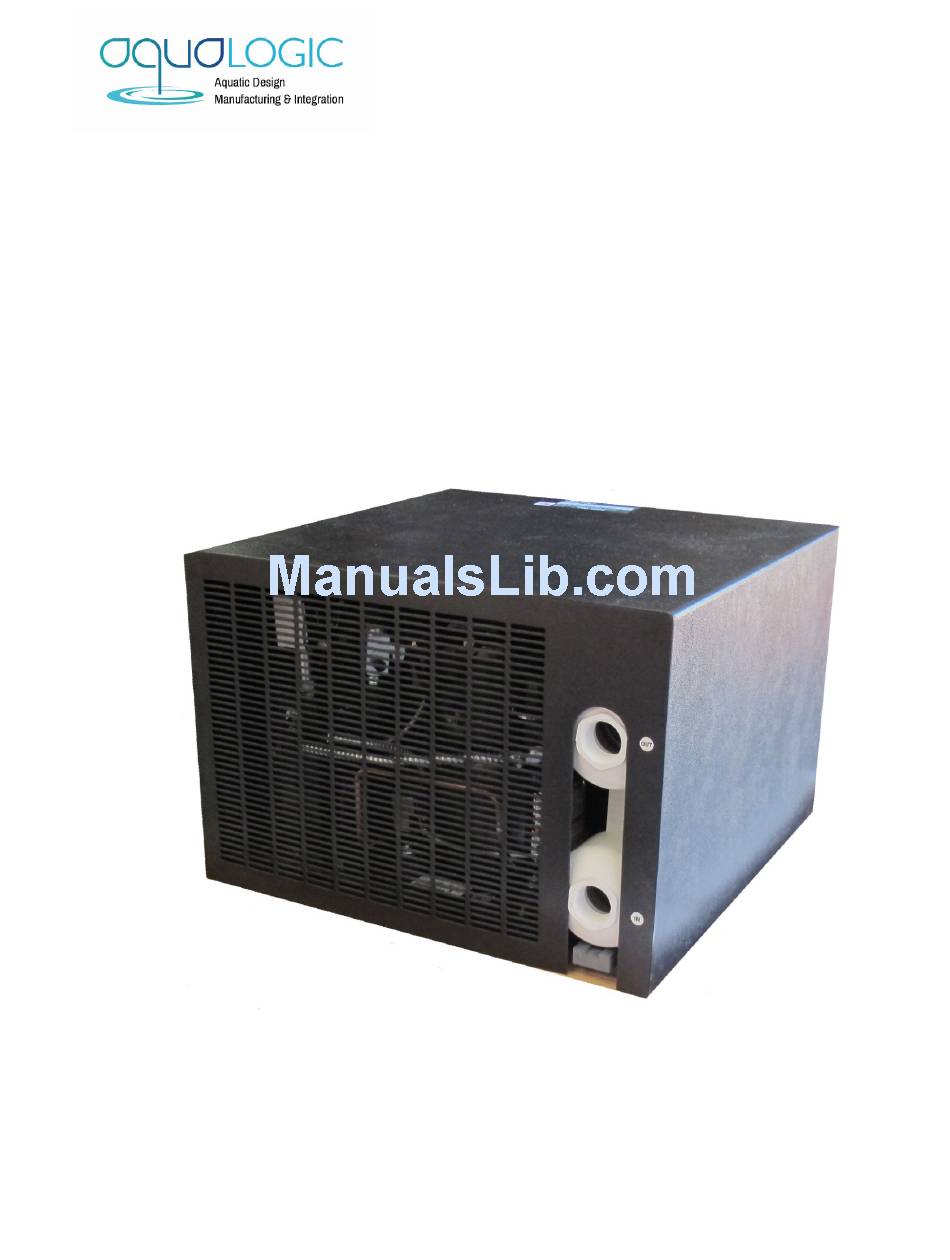

Thank you for purchasing an Aqua Logic DSHP series heat pump. It has been designed and built to
provide years of reliable, trouble-free service. It provides a precise water temperature control up to
+/- 1.0°F (0.7°C) accuracy and features a continuous LCD display of the current fluid temperature.
A
L
'
QUA
OGIC
S
INSTALLATION & OPERATING INSTRUCTIONS
BEFORE INSTALLING THE HEAT PUMP
READ BOTH WARRANTY AND INSTALLATION INSTRUCTIONS.
Copyright© 2016 Aqua Logic, Inc. Effective date of 1/2016
DSHP
Series heat pumps
Aqua Logic, Inc.
9558 Camino Ruiz.
San Diego, CA 92126
PH: 858.292.4773 Fax: 858.292.0537
Email: info@aqualogicinc.com
Website: www.aqualogicinc.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aqua Logic DSHP Series
Summary of Contents for Aqua Logic DSHP Series
- Page 1 Series heat pumps INSTALLATION & OPERATING INSTRUCTIONS Thank you for purchasing an Aqua Logic DSHP series heat pump. It has been designed and built to provide years of reliable, trouble-free service. It provides a precise water temperature control up to +/- 1.0°F (0.7°C) accuracy and features a continuous LCD display of the current fluid temperature.
-
Page 2: Concealed Damage
FROM POINT OF DELIVERY. RETAIN ALL CONTAINERS AND PACKING FOR INSPECTION. Protect yourself. File your claim immediately with the transportation company! Remember, Aqua logic Inc. is not responsible for any damage after the carrier accepts a shipment. Claim for FULL VALUE REIMBURSEMENT should be made by you against the transportation company. -
Page 3: Very Important
Wetted parts contain titanium, PVC plastic, rubber, and polymer. These materials are non-reactive with fresh and salt water. You must consult with Aqua Logic, Inc. if any other fluids are to be pumped through the heat pump. If humid or wet conditions exist where heat pump is to be located, care must be taken to prevent water from getting on electrical components. -
Page 4: Installation Instructions
6. Plug-in the temperature controller to the flow switch (optional) and then to the heat pump. If hard wired, the installation must proceed in accordance with national building and electrical codes by qualified technicians only. Copyright© 2016 Aqua Logic, Inc. Effective date of 1/2016... - Page 5 When the water temperature goes down below the differential setting, the heat pump will repeat the cycle and heat up to the temperature set point. Copyright© 2016 Aqua Logic, Inc. Effective date of 1/2016...
-
Page 6: Heat Pump 2 Stage Controller Programming
CL - Appears if calibration mode has been entered. To correct: Remove power to the control for least five seconds. Reapply power. If the CL message still appears, replace the control Copyright© 2016 Aqua Logic, Inc. Effective date of 1/2016... - Page 7 1. Remove black heat pump cover and locate the Hi / Low pressure cutout. 2. Press the brass button to reset the heat pump. If the pressure switch will not reset call Aqua Logic for help. Copyright© 2016 Aqua Logic, Inc. Effective date of 1/2016...
-
Page 8: Heat Pump Maintenance
Condenser Cleaning: For good performance, the condenser should be cleaned approximately every 12 months or as needed. Use brush, vacuum or compressed air to clean condenser fins. Copyright© 2016 Aqua Logic, Inc. Effective date of 1/2016... - Page 9 1. Clean heat exchanger and or condenser. 2. * Check compressor. Heat pump running 3. * Check refrigerate running pressure levels. but has low cooling 4. Check tank system requirements. Call Aqua Logic for help. Copyright© 2016 Aqua Logic, Inc. Effective date of 1/2016...
-
Page 10: One-Year Limited Warranty
(1) year from the date of original end user purchase. The limited warranty covers only parts and labor based upon Aqua Logic service cost. Aqua Logic is not liable for field repair work performed without prior written or verbal agreement and a Repair Authorization (RA) number with a fixed maximum charge.
