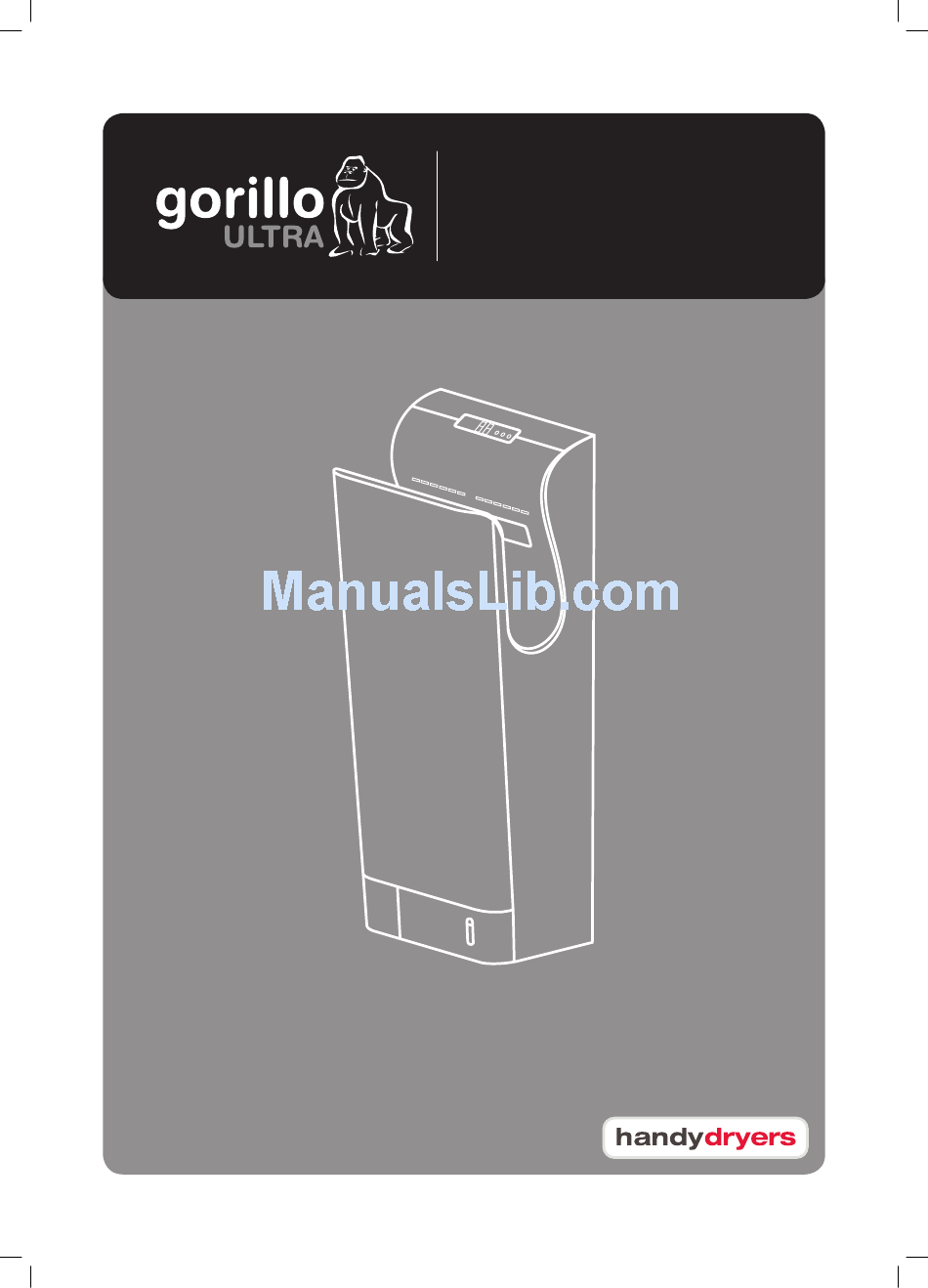

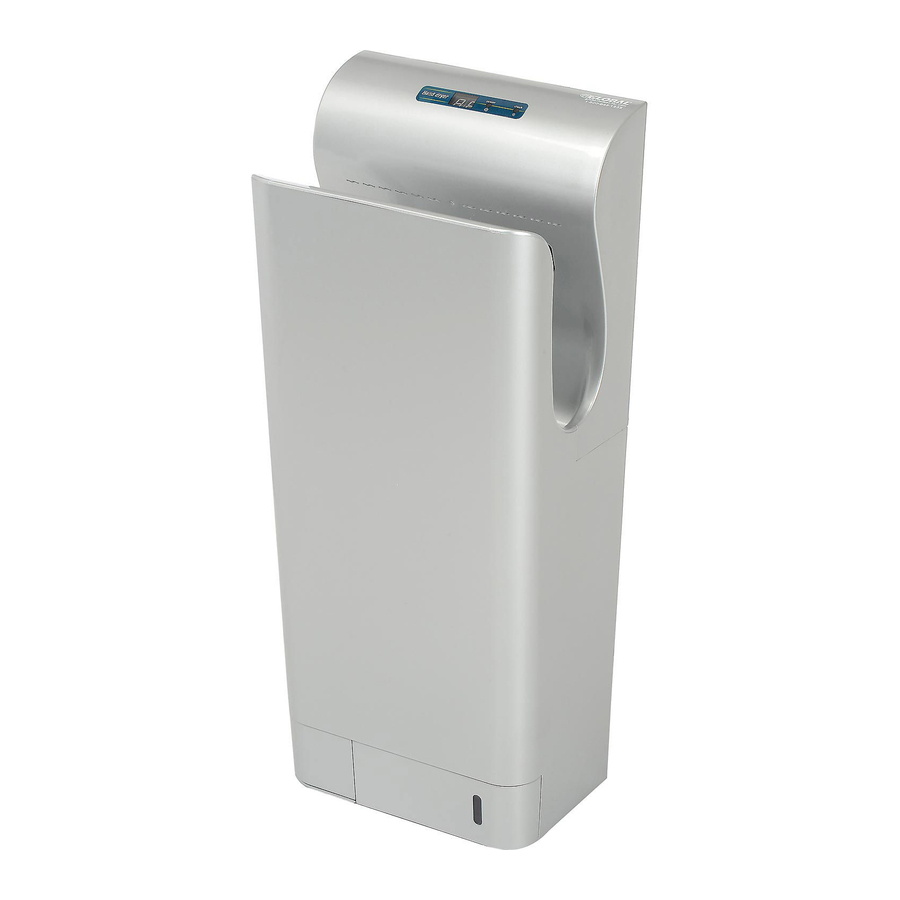

- Page 1 User Manual...
- Page 2 Do not attempt to install the unit yourself, unless you are a trained service technician, or this may affect the safety and functioning of the machine Read this manual thoroughly before using the unit and retain for future reference CONTENTS Contents &...
- Page 3 WARNING: Injury may occur if misused • DO NOT OPEN THE FRONT PANEL – ELECTRIC SHOCK RISK • DO NOT ALLOW CHILDREN OR ADULTS TO PULL OR HANG ON THE MACHINE Prohibited • Place the unit away from direct water supplies Do not allow unit to get excessively wet •...
- Page 4 COMPONENTS AND DIMENSIONS Drying time Power Filter sterilisation Heater button and fault display indicator indicator Power supply Fan speed button Self-check indicator Manual power switch Sensor Hand drying area Unit Lock Drain hose Switch door plate Drain outlet Air inlet panel Bottom Full level indicator...
- Page 5 USAGE Stretch out both hands and insert them into the unit The drying function will start automatically Pull them back slowly, allowing the water to blow away Repeat if necessary Pull hands out completely WALL STICKER Place wall sticker in a prominent position (the front of the unit or a wall nearby) 10 seconds www.handydryers.co.uk...
- Page 6 ROUTINE CLEANING CLEANING YOUR GORILLO ULTRA WARNING Before it gets obviously dirty • Before cleaning the unit ensure power is switched off • Clean with a soft cloth .If the unit is very dirty use • DO NOT splash excessive water into the unit...
- Page 7 TROUBLE SHOOTING • ELECTRICAL SCHEMATIC TROUBLE SHOOTING Problem Check Action No air blows even Are the display indicators lit? Turn the ground-fault circuit breaker on if hands are inserted Is the power switched on? Turn the power switch on Are you putting your hands all the way into Put hands all the way into the unit the unit? Machine continues working...
- Page 8 PRE-INSTALLATION PRECAUTIONS There are locations unsuitable for this unit. DO NOT install in the following types of location: • Where the temperature can be below -10°C or above 40°C • Where the unit may come into direct contact with water •...
- Page 9 INSTALLATION Use a single-phase alternating rated voltage supply (Not to be used with a power supply exceeding ±10%) Use a power cord between 2mm and 2.5mm thick (A voltage drop is possible if longer than 11m, so we recommend using 2 .5mm cable) Wire the unit Power cord...
- Page 10 INSTALLATION Replace the terminal block cover Terminal box Pressure line • Ensure power cables sit within the cabling channel cover and the terminal block cover is flat after installation Power cords Electric cover Installation panel Fix the unit • Tidy the power lines and press any excess into the terminal block on the wall Unit •...
- Page 11 PACKING LIST Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Mounting plate .
- Page 12 www.handydryers.co.uk...
