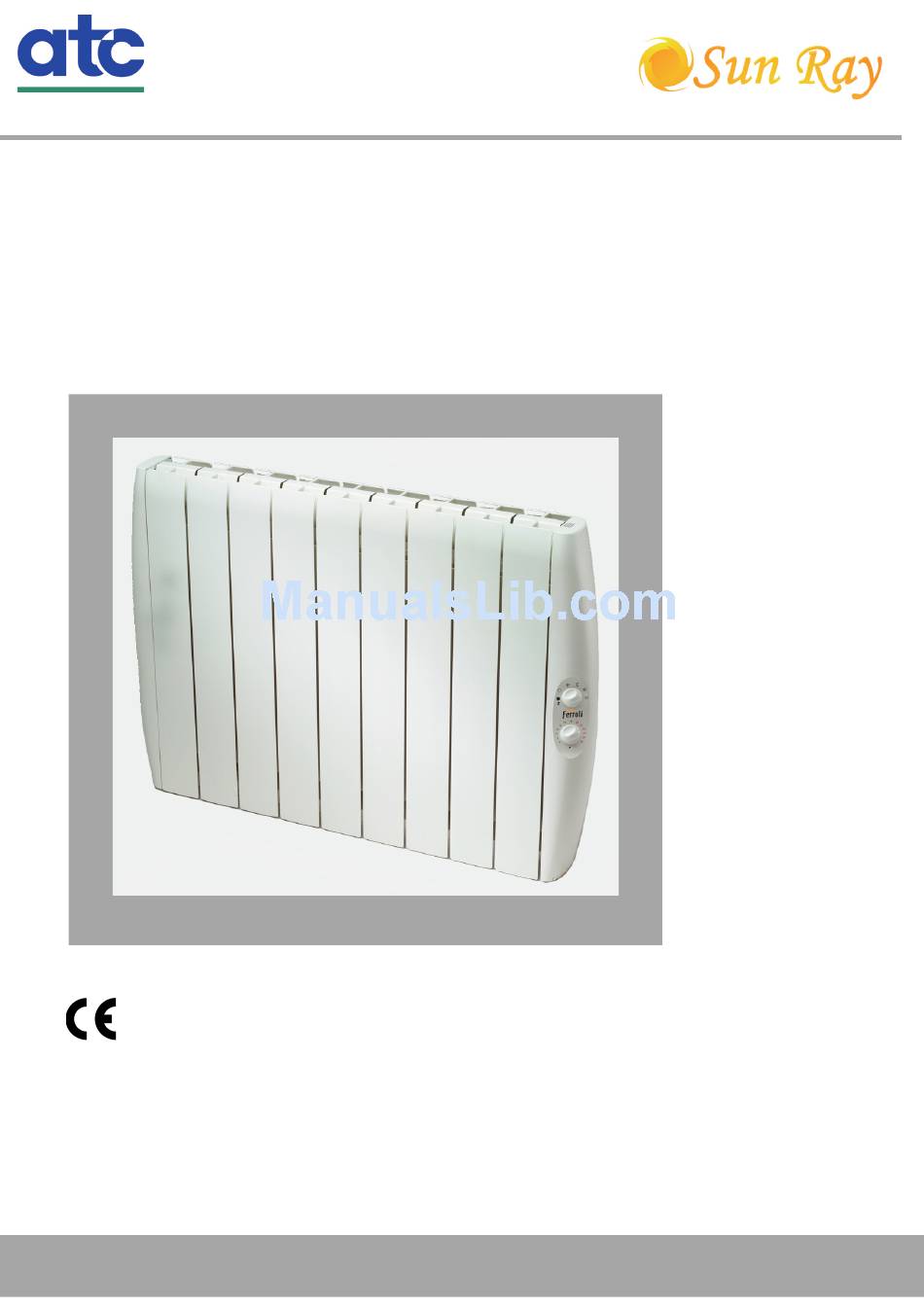

- Page 1 SUNRAY Electric Heaters INSTRUCTIONS FOR USE, INSTALLATION AND ASSEMBLY...
-
Page 3: Table Of Contents
Contents 1. Location 2. Electric Connections 3. Mounting 4. Control Panel 5. Operation 6. Characteristic Table 7. Important information 8. Warranty... -
Page 4: Location
Thank you for choosing SUN RAY heaters, with their modern design, state-of-the-art technology, great reliability and quality construction. ATC SUN RAY heaters and all their materials and components have passed strict controls to ensure their quality. Before starting your heater, please read these instructions carefully as they will ensure the correct working order of the appliance with the utmost features and to your fullest satisfaction. -
Page 5: Mounting
3. MOUNTING If for any reason cardboard template is missing you can follow the instructions below: 1. Make sure you keep your eye on where the lower hole on the wall is. nº Dimensions Model supports S1000 Sunray 1000W S1500 Sunray 1500W (*)The first number corresponds to the number of plastic brackets on which the radiator hangs and the second number corresponds to the number of metal locking brackets which fixes the radiator to the wall. -
Page 6: Control Panel
4. CONTROL PANEL The heater is fitted with a temperature adjustment switch and a control switch: 1. 6-position switch • - Override Position = Off • - Off • - Anti-frost (Temp. 7ºC) • - Economy (Comfort – 3.5ºC) • - Comfort •... -
Page 7: Characteristic Table
• This heating apparatus holds a specific amount of special oil. Repairs where it is necessary to open the oil tank must only be made by the manufacturer or ATC. ATC should be contacted in case of any oil leakage •... -
Page 8: Operation
- The warranty is valid provided that normal maintenance operations described in the technical instructions provided with the equipment have been carried out. - The consumer must inform ATC of the lack of conformity of the goods, in a period of less than two months since he learned of The warranty does not cover incidents caused by: -The power supply of sufficient capacity and equipment with generators or any other system that is not a stable power supply.
