5.0 Diagrams

Primary
supply
Primary
return

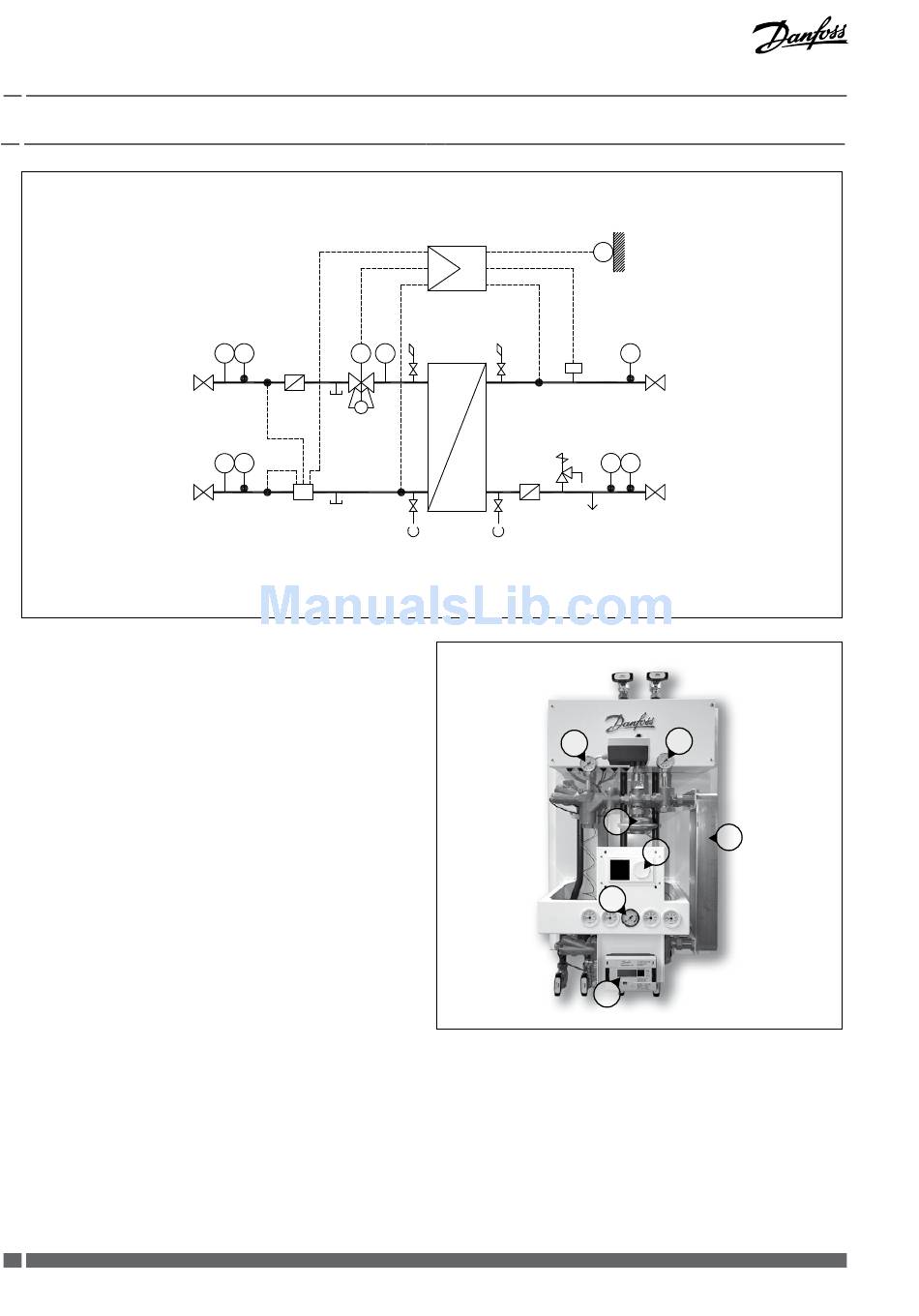

1. External sensor
2. Thermometer
3. Manometer
3. * Manometer (optional)
4. District heating Return temperature sensor
5. Air vent
6. Drainage
7. Connection for primary DHW preparation
8. * Safety thermostat
9. Connection to expansion vessel
10. Controller (Standard ECL310. Option ECL210
or OPR0020
11. Strainer
12.* Heatmeter (Danfoss Sonometer)
13. Ball valves
14. Safety valve
15. Heat exchanger Danfoss XB37M-1 10 to 50
16. Combined differential pressure and flow controller
Danfoss AVQM with electrical actuators
Danfoss AMV 10 or 20
16. * Combined differential pressure and flow controller
Danfoss AVQM with electrical actuators
Danfoss AMV 13 or 23
6
DEN-SMT/PL
DSA 1 MINI -
3* 2
*
MI TI M MI
13 11
7
16
2
3*
TI
MI
13
*
Q
12 7
Diagrams
10
3* 5 5
15
4
14
11
4
6 6
Application
The DSA 1 MINI is designed for use in district heating
networks. DSA 1 MINI is perfect for use in both micro and
macro networks and also in Low temperature (LT) and High
temperature (HT) range. The DSA 1 MINI is furthermore
available both in a high pressure version (PN25) and low
pressure version (PN16).
VM.HE.B2.02
