  • Page 1 RADIUS 7 MANUAL ROKSAN AUDIO Roksan Audio Ltd, Jubilee Close, Townsend Lane, London, NW9 8TR, United Kingdom Website: www.roksan.co.uk | email: info@roksan.co.uk Tel: +44 (0)20 8900 6801 | Fax: +44 (0)20 8205 2644 Registered in England | Number: 3089229 | VAT Number: 719 3079 23 | Director: T Hashemi...
  • Page 2 Your Radius 7 record player is at the heart of your vinyl replay system. Its correct installation, set-up and operation will have a profound influence on the sonic performance of your complete audio system.

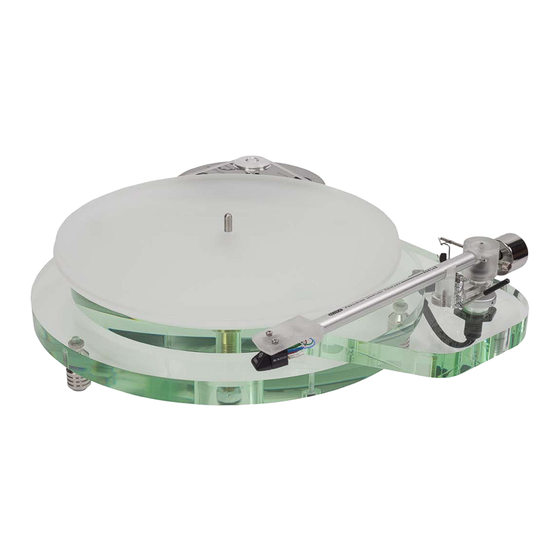

  • Page 3 Manual BRIEF The design of the Radius 7 record player has many unique features not found in other similar turntables. The drive mechanism utilises an advanced custom motor fitted with a precision-machined solid aluminium alloy pulley. The main bearing housing and spindle are custom designed and machined from solid brass and solid stainless steel to extremely high precision to ensure ultra smooth running and longevity.
  • Page 4 RADIUS 7 Manual PACKAGING Your Radius 7 is carefully and thoughtfully packed so that the packaging can be re-used Whenever you need to transport it. Please store all the packaging material for future use. WARNING: The NIMA tonearm is shipped without its counterweight attached and locked in transit position.
  • Page 5 Manual ASSEMBLY Remove the Radius 7 from its protective bag. If the Radius 7 is fitted with the NIMA tonearm, be extra careful not to damage the arm while you are assembling the record player. If in doubt, remove the tonearm (refer to the NIMA user manual).
  • Page 6 Finally, for assembling and fitting of your tonearm and cartridge, refer to the manufacturer’s user manual. IMPORTANT: The Radius 7 is mains operated. DO NOT try to gain access to the inside of this unit. Refer all servicing to your Roksan appointed retailer/distributor or contact Roksan Audio. ROKSAN AUDIO Roksan Audio Ltd, Jubilee Close, Townsend Lane, London, NW9 8TR, United Kingdom Website: www.roksan.co.uk | email: info@roksan.co.uk...

  • Page 7: Installation

    Manual INSTALLATION Place the Radius 7 on a rigid level surface. The arm cable should be securely fixed into the base of the tonearm and connected to the phono input of the amplifier without pulling on to the Radius 7. It is important to ensure the phono input is matched with the type of cartridge you are using and that the tonearm cable ground lead is firmly attached to the phono input grounding point on the amplifier.

  • Page 8: Operation

    Manual OPERATION Your Radius 7 record player is now ready for use. Switch the Radius 7 on using the POWER button (A) and ensure the correct speed is selected by pressing the 33/45 button (B). Blue indicates 33RPM, red 45RPM. When the LED is flashing, the turntable is coming up to speed and stabilising.

  • Page 9: Troubleshooting

    Manual TROUBLESHOOTING If you suspect that your Radius 7 record player is not working correctly, first check all the connections. Pay particular attention to cartridge tag connections, (channel & phase), tonearm cable connections (phono RCAs & ground) and mains lead connection. Below are some commonly encountered problems with suggestions for possible cure.
  • Page 10 RADIUS 7 Manual GUARANTEE There are no user serviceable parts inside your Roksan Radius 7. If a fault should develop, refer any servicing to your appointed Roksan dealer, distributor or Roksan approved service agent. Your Roksan Radius 7 is guaranteed against any defect in materials and workmanship for a period of five years from the date of purchase.

  • Page 11: Specifications

    All specifications are liable to change without prior notice. E & O.E. ROKSAN AUDIO Roksan Audio Ltd, Jubilee Close, Townsend Lane, London, NW9 8TR, United Kingdom Website: www.roksan.co.uk | email: info@roksan.co.uk Tel: +44 (0)20 8900 6801 | Fax: +44 (0)20 8205 2644...
