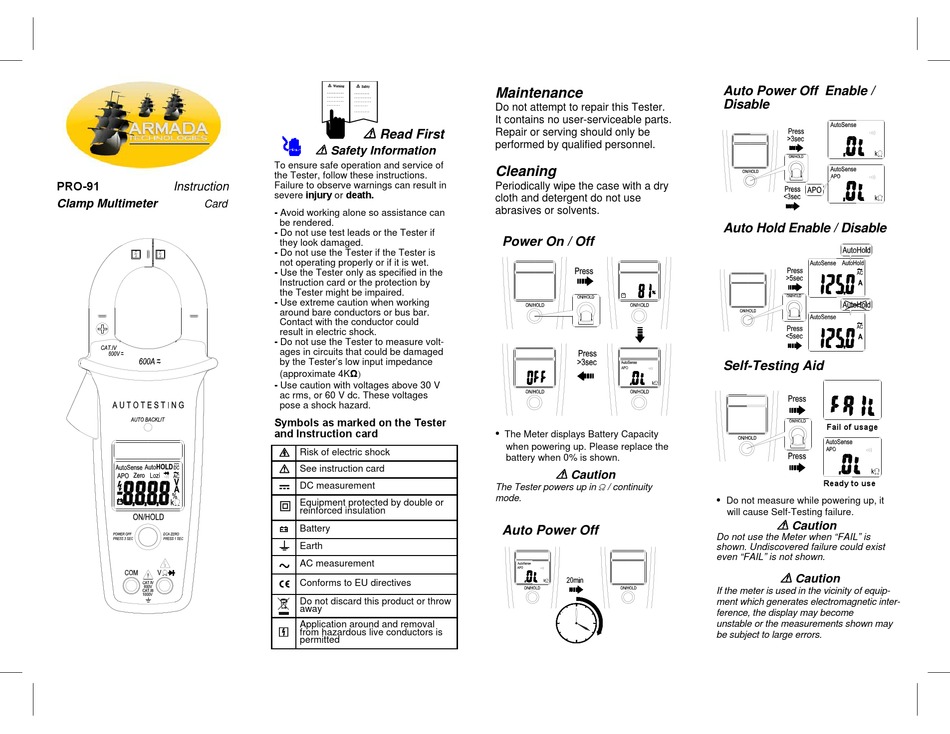

Armada PRO-91 Instruction Card

PRO-91
Instruction
Clamp Multimeter
Card

Warning 
Safety
 
. . . . . . . . . .
. . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
. . . . . . . . .

Read First

Safety Information
To ensure safe operation and service of
the Tester, follow these instructions.
Failure to observe warnings can result in
severe injury or death.
- Avoid working alone so assistance can
be rendered.
- Do not use test leads or the Tester if
they look damaged.
- Do not use the Tester if the Tester is
not operating properly or if it is wet.
- Use the Tester only as specified in the
Instruction card or the protection by
the Tester might be impaired.
- Use extreme caution when working
around bare conductors or bus bar.
Contact with the conductor could
result in electric shock.
- Do not use the Tester to measure volt-
ages in circuits that could be damaged
by the Tester's low input impedance
(approximate 4KΩ)
- Use caution with voltages above 30 V
ac rms, or 60 V dc. These voltages
pose a shock hazard.
Symbols as marked on the Tester
and Instruction card

Risk of electric shock

See instruction card

DC measurement
Equipment protected by double or

reinforced insulation
<
Battery

Earth

AC measurement

Conforms to EU directives
Do not discard this product or throw
away
Application around and removal
E
from hazardous live conductors is
permitted
Maintenance
Do not attempt to repair this Tester.
It contains no user-serviceable parts.
Repair or serving should only be
performed by qualified personnel.

Cleaning

Periodically wipe the case with a dry
cloth and detergent do not use
abrasives or solvents.

Power On / Off

•
The Meter displays Battery Capacity
when powering up. Please replace the
battery when 0% is shown.

Caution
The Tester powers up in Ω / continuity
mode.
Auto Power Off
Auto Power Off Enable /
Disable

Auto Hold Enable / Disable

Self-Testing Aid

Fail of usage
Ready to use
•
Do not measure while powering up, it
will cause Self-Testing failure.

Caution
Do not use the Meter when "FAIL" is
shown. Undiscovered failure could exist
even "FAIL" is not shown.

Caution
If the meter is used in the vicinity of equip-
ment which generates electromagnetic inter-
ference, the display may become
unstable or the measurements shown may
be subject to large errors.
