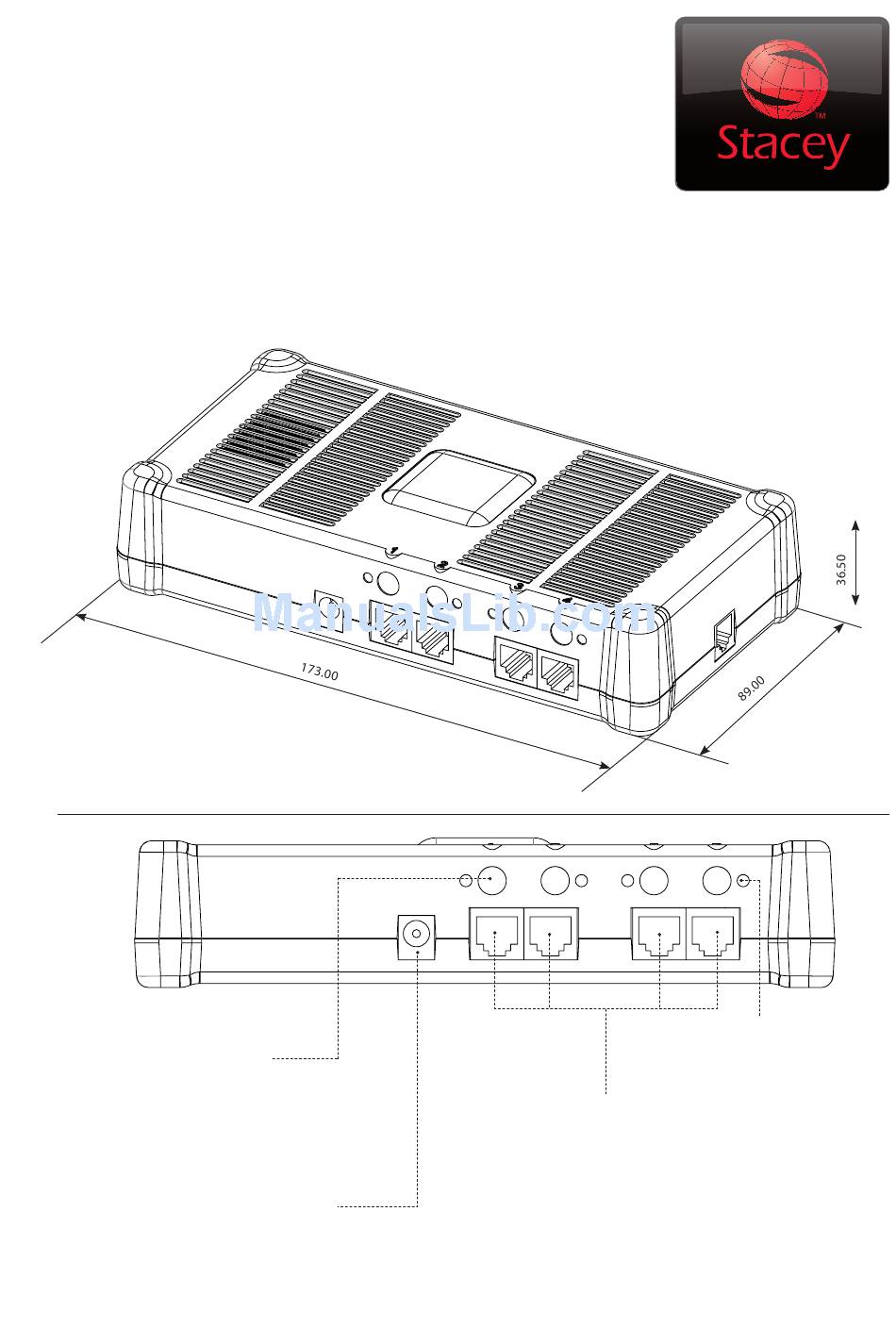

- Page 1 Operating Instructions Smaller on the outside, much bigger on the inside Status Indicating LED’s iButton Reader Connector Device/Recoiler In DC Power Port...
- Page 2 Understanding the beeping sequence when using a single iButton Reader 9/10 Multiple (independent) iButton Reader operation Understanding the beeping sequence when using multiple (independent) iButton Readers Adding and removing black iButton Keys (user) Disable battery back up Reset the i4 and add red iButton Keys (master)
-
Page 3: Battery Backup
Both charging and alarming - The i4 unit will both charge and electronically secure up to four products. A high pitched alarm signal will be emitted if the product is tampered with and the iButton Reader will flash red, green and orange LED’ s , showing the current state of the alarm. - Page 4 Understanding the components iButton Keys and Reader iButton Reader Black iButton Key (user) Red iButton Key (master) Slide Detection Sensor (Sensor) Locking plate - ensures Slide Detection Sensor solid connection between (referred to throughout as Recoiler and Sensor “Sensor”) Alarm status LED Tamper switch Connection socket for Recoiler...
- Page 5 Status Indicators (blue LED) iButton Reader connector Device/Recoiler port Power in HS Recoiler (referred to throughout as ‘Recoiler’) HS Sensor connector. Inserts directly into the Sensor RJ12 plug - connects into one of the i4 device/ Recoiler ports Page 5...
- Page 6 DC Power Port Number of products secured: Indicating LED’s will switch off if the Indicating LED’s: i4 alarm is set and no problems are present. Blue flashing LED: if a problem arises and Input Voltage: 12V DC. action is required.
- Page 7 Alarm Sounding: If the i4 is triggered, the alarm will sound, and the iButton Reader will flash red. The status indicator for the affected port(s) found on the alarm unit itself, will flash to indicate the port has been triggered until the alarm is muted.
- Page 8 Understanding the beeping sequence when using a single iButton Reader i4 making a sound other than alarm Beep every 2 seconds, Continuous beeping, Intermittent 5 beeps Unit beeps once green iButton Reader no light on iButton per second, no Reader...
- Page 9 When armed the i4 will be silent and the iButton Reader will flash green intermittently. Alarm Sounding: If the i4 is triggered, the alarm will sound, and the iButton Reader for the affected port will flash red. The blue LED status indicator on any affected port will flash.
- Page 10 After resolving the issue, in some cases the i4 will that port but is not securing a product. auto re-arm the affected port. If not the i4 will need to be re-armed using the black iButton Key. Understanding the beeping...
- Page 11 Adding and removing black iButton Keys (user) To add a single black iButton Key (up to 25 may be added). 1: Touch the red iButton Key onto any iButton Reader attached to the alarm. 2: The unit will start to beep intermittently to signal an iButton can be added. 3: Touch the black iButton Key onto the iButton Reader.
- Page 12 If the red iButton Key cannot be located a second option is available: 1: If using a single iButton Reader to manage the i4 alarm, please disarm the alarm by pressing the black iButton Key onto the iButton Reader. If using multiple iButton Readers please press the black iButton Key onto each iButton Reader to disable each of them.
- Page 13 6: Unplug the power to the i4 to exit the iButton Programming Mode. 7: Reconnect the power cable to the i4. * Note - If the i4 emits a beep every second this indicates that a black iButton Key needs to be added. Refer to page 11 for instructions *...
- Page 14 Address: Stacey Europe Ltd, Lancaster Fields, Crewe Gates Ind. Est, Crewe, Cheshire, CW1 6FF, United Kingdom. Web: www.stacey-europe.com Email: sales@stacey-europe.com Support: UK: Please contact sales@stacey-europe.co.uk Outside of the UK: Please contact your supplier...
