SCORPION QF1 Assembly Manual

Formula 1 style 250 fpv racing frame

Download this manual

Scorpion QF1 Assembly Manual

Need help?

Do you have a question about the QF1 and is the answer not in the manual?

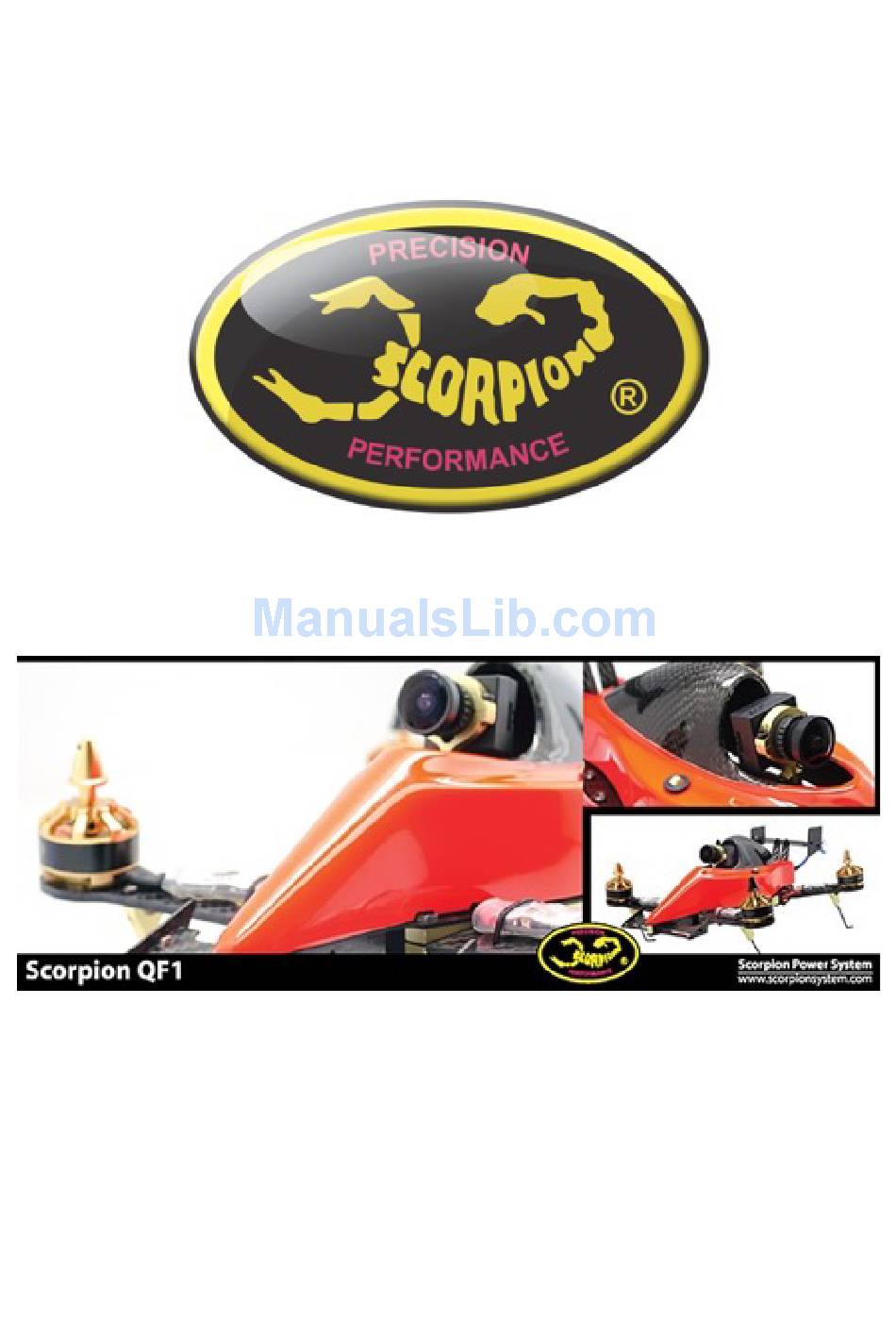

Page 1 Scorpion QF1 Assembly Manual...
Page 2 Thank you for purchasing Scorpion QF1  (Formula 1 Style 250 FPV racing frame) Please prepare the following tools and materials before assembly: 3mm phillips 1.5mm hex 2mm hex Thread locker Parts ALUMINIUM CROSS MEMBER LOWER DECK 1 UPPER DECK 1...
Page 3 There are two carbon ﬁbre decks (upper and lower) inside the box. The upper deck is the one pre-assembled with nuts. When assembling the cross member they should be at the rear holes. Assemble the front spoiler set with ﬂat M2x4 with nuts.
Page 4 Use the Hex M2.5x4 on the Cover Mount Column. The carbon stand needs the hex M2x4 screw at the bottom and M2x8 going through the stand and the camera ring. The M2x6 also needs to lock the ring into both sides. Assembly the rear spoiler set also using the round hex M2x5 with nuts.
Page 5 Lock all the screws when done. Install the power board under the upper deck. Assembly the Angle Arm Clamp that we used Hex M2.5x10 to lock them with ﬁrst. Solder the motor with the ESC and have a short wiring before assembling on the motor arm.
Page 6 Now assemble the side straightener at the upper deck with hex round M2.5x4, and solder all of the wires before we cover the lower deck. Now we can cover the lower deck with hex round M2.5x4. Then use the hex M2.5x12 to lock all the angle arm clamps.
Page 7 Thank...
