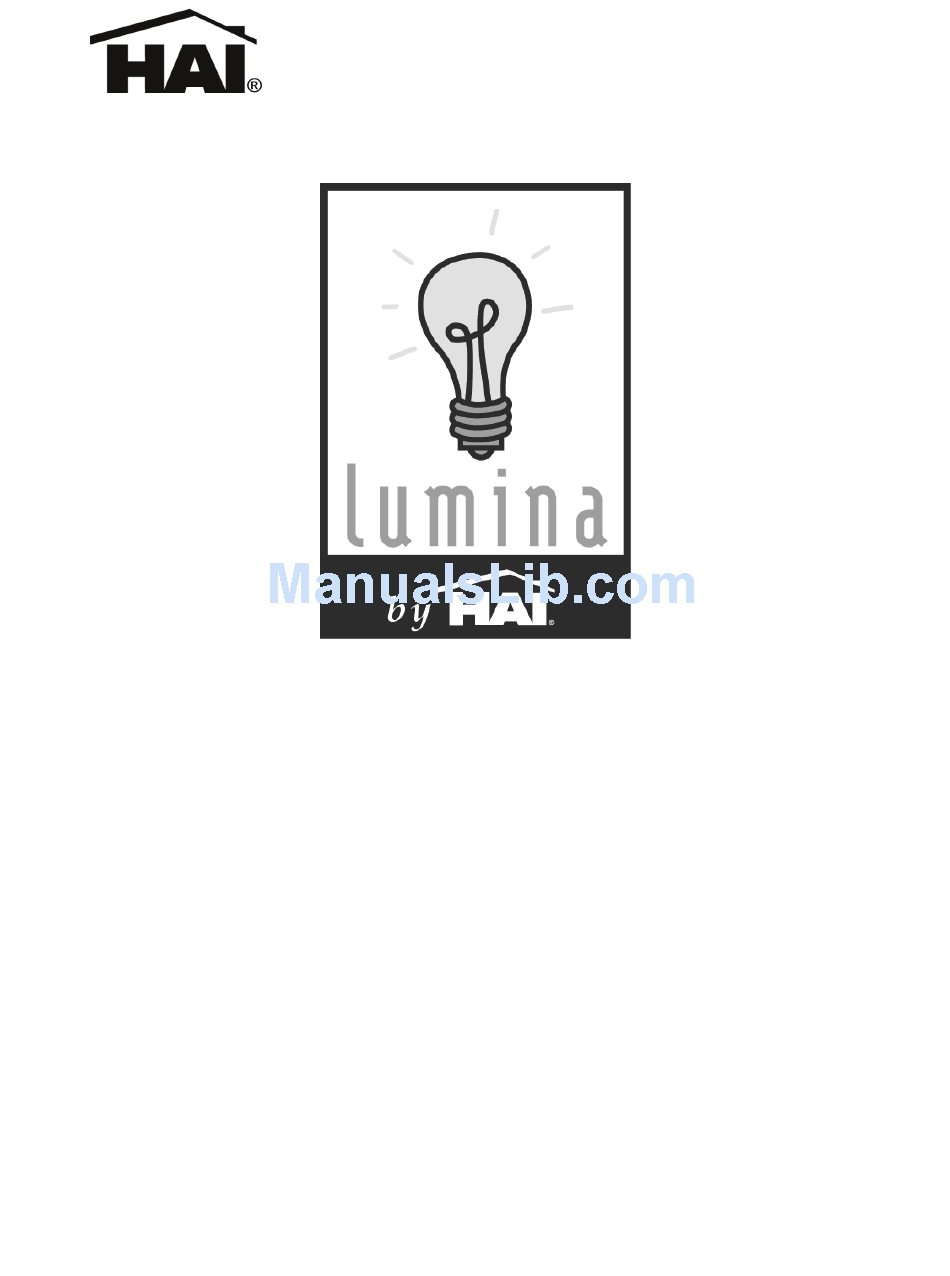

HOME AUTOMATION, INC
Lumina and Lumina Pro
Lighting and Automation System
Quick-Start
Installation Guide
Document Number 44I00-1 Rev. 2.12
February, 2006

Advertisement

Table of Contents
loading

Related Manuals for HAI lumina

Summary of Contents for HAI lumina

  • Page 1 HOME AUTOMATION, INC Lumina and Lumina Pro Lighting and Automation System Quick-Start Installation Guide Document Number 44I00-1 Rev. 2.12 February, 2006...
  • Page 2 For complete operation and programming instructions, please download the following document(s) from the HAI web site: 44R00-1: Lumina Advanced Application Guide 44R00-2: Lumina Pro Advanced Application Guide www.homeauto.com Copyright © 2006 Home Automation, Inc. All Rights Reserved...
  • Page 3 CABLE (Supplied) OR EQUIVALENT 12V 5AH PLANNING Before you start, the Lumina system should be planned as follows:  Thoroughly review Appendix A “Understanding HLC” for an overview of an HLC system.  Complete the worksheet(s) in Appendix B “HLC Planner” to plan the lighting scheme for each room.

  • Page 4: Installation

    Locate the supplied PIM (P/N: 36A00-1). Plug the PIM into a 120 VAC outlet. Plug one end of the supplied 6-conductor modular cable into the connector marked “J3” (SERIAL 3) on the Lumina controller and plug the other end into the modular connector on the PIM as shown.
  • Page 5 6) Install the Lumina Keypad a) Connect the supplied keypad (P/N: 33A00-19) using the supplied 6’ Keypad Cable (P/N: 11A02-2) as follows: 11A02-2 Cable Lumina Controller CONSOLE 12V BLACK CONSOLE GND YELLOW or WHITE CONSOLE A GREEN CONSOLE B b) Remove the keypad from the back plate by gently prying the unit open with a screwdriver.

  • Page 6: Connect The Power Transformer

    7) Connect the Power Transformer a) Connect the supplied 24V, 40VA Power Transformer using the supplied Power Cable (P/N: 44A07-1). b) Plug the Power Transformer into a 120 VAC outlet. - The “AC ON” LED (D25) should illuminate. - Within one minute, the “STATUS” LED (D24) should begin blinking at a rate of 1 blink per second. POWER TRANSFORMER REVERE MODEL RT-R2440SL/M...

  • Page 7: Basic Operation And Configuration

    BASIC OPERATION AND CONFIGURATION The Lumina keypad is designed with everything that is necessary for you to operate and configure the Lumina lighting and automation system. Once the controller is powered up, the following is displayed on the Lumina keypad:...
  • Page 8 (between fall and spring) or is not observed in your geographic location, set this item to "No". This item is used to correctly calculate the times for sunrise and sunset. Once the time is set, the Lumina controller will automatically adjust the "time of day"...
  • Page 9 You should assign a name to each HLC lighting device (as described above) before you configure it. Lumina has a list of names for you to select from. To name the HLC devices, from the Setup menu, press the 7 (NAMES) key: UNIT 1: ...

  • Page 10: Configuring Hlc Devices

    On the Lumina keypad, from the top-level display, press 6 (STATUS), and then press 1 (CTRL). The first named unit is displayed: Living Room STATUS: OFF STEP 2 Configuring Room Controllers If the named unit is a Room Controller, go to the specified HAI UPB™ 6-Button Room Controller and put it in Setup mode as follows: Room Controller Setup Step Operation Press and hold the “ON”...
  • Page 11 Press the down arrow to display the next named device. Configuring Lighting Loads If the named unit that is displayed is a Lighting Load (i.e. Dimmer or Switch), go to the specified HAI UPB™ Wall Dimmer or Switch and put it in Setup mode as follows:...
  • Page 12 Press and hold the “1” and “8” pushbuttons simultaneously for at least 3 seconds. All of the LED indicators will blink to indicate that the HAI UPB™ 8-Button House Controller is in Setup Mode. Note: The HAI 8-Button House Controller will automatically exit Setup mode after 5 minutes. To manually exit Setup mode, press and hold the “1”...
  • Page 13 To set a lighting scene using a Room Controller: Each lighting scene can also be set or easily changed using the pushbuttons on the HAI UPB™ 6-Button Room Controller, as follows: 1) Press the desired pushbutton on the HAI UPB™ 6-Button Room Controller to activate the current scene (preset lighting level) in each of the HLC devices.
  • Page 14 2) After the desired lighting levels are set, from the top-level display or from the main menu, press the 1 (CTRL) key on the Lumina keypad. 3) Lumina will display the first named unit in that list. Use the down arrow key to scroll through the list. Press the ' # ' key to select the desired room.

  • Page 15: Appendix A - Understanding Hlc

    APPENDIX A – UNDERSTANDING HLC...

  • Page 16: About Room Controllers

    16, Room 3 = Units 17-24, etc.). Each room can consist of a maximum of 8 HLC devices, configured as follows:  Up to 7 HAI UPB™ Wall Switches, Dimmers, and/or Modules (for controlling up to 7 lighting loads in a room or area) ...

  • Page 17: About House Controllers

    Room Controllers also keep track of when individual switches in a room are turned on and off. When all of the lighting loads in a room are turned off, the “Off” indicator is illuminated. If any of the lighting loads in a room are turned on at an HAI UPB™ Wall Switch or Dimmer, the “On”...

  • Page 18: Appendix B - Hlc Planner

    Room Lumina can have up to 8 Rooms and Lumina Pro can have up to 31 Rooms. In this example, Room 1 is the Living Room. The Living Room consists of 2 Room Controllers (one at each entry into the Living Room), 5 Lighting Loads, and 1 House Controller (which controls up to 8 Rooms).
  • Page 19 APPENDIX B – HLC PLANNER WORKSHEET ROOM 1: Unit Unit Number HLC Device Type Name  Room Controller Unit 1  Lighting Load  Room Controller Unit 2  Lighting Load  Room Controller Unit 3  Lighting Load  Room Controller Unit 4 ...
  • Page 20 APPENDIX B – HLC PLANNER WORKSHEET  Lighting Load  Room Controller Unit 36  Lighting Load  Room Controller Unit 37  Lighting Load  Room Controller Unit 38  Lighting Load  Room Controller Unit 39  Lighting Load ...
  • Page 21 APPENDIX B – HLC PLANNER WORKSHEET ROOM 10: Unit Unit Number HLC Device Type Name  Room Controller Unit 73  Lighting Load  Room Controller Unit 74  Lighting Load  Room Controller Unit 75  Lighting Load  Room Controller Unit 76 ...
  • Page 22 APPENDIX B – HLC PLANNER WORKSHEET  Lighting Load  Room Controller Unit 109  Lighting Load  Room Controller Unit 110  Lighting Load  Room Controller Unit 111  Lighting Load  House Controller Unit 112 ROOM 15: Unit Unit Number HLC Device Type...
  • Page 23 APPENDIX B – HLC PLANNER WORKSHEET Unit Unit Number HLC Device Type Name  Room Controller Unit 145  Lighting Load  Room Controller Unit 146  Lighting Load  Room Controller Unit 147  Lighting Load  Room Controller Unit 148 ...
  • Page 24 APPENDIX B – HLC PLANNER WORKSHEET  Lighting Load  Room Controller Unit 182  Lighting Load  Room Controller Unit 183  Lighting Load  House Controller Unit 184 ROOM 24: Unit Unit Number HLC Device Type Name  Room Controller Unit 185 ...
  • Page 25 APPENDIX B – HLC PLANNER WORKSHEET  Room Controller Unit 217  Lighting Load  Room Controller Unit 218  Lighting Load  Room Controller Unit 219  Lighting Load  Room Controller Unit 220  Lighting Load  Room Controller Unit 221 ...
