USER'S MANUAL
for
770F Elliptical
BUILT FOR HEALTH

Advertisement

loading
Need help?

Need help?

Do you have a question about the 770F and is the answer not in the manual?

Questions and answers

Related Manuals for x-erfit 770F

Summary of Contents for x-erfit 770F

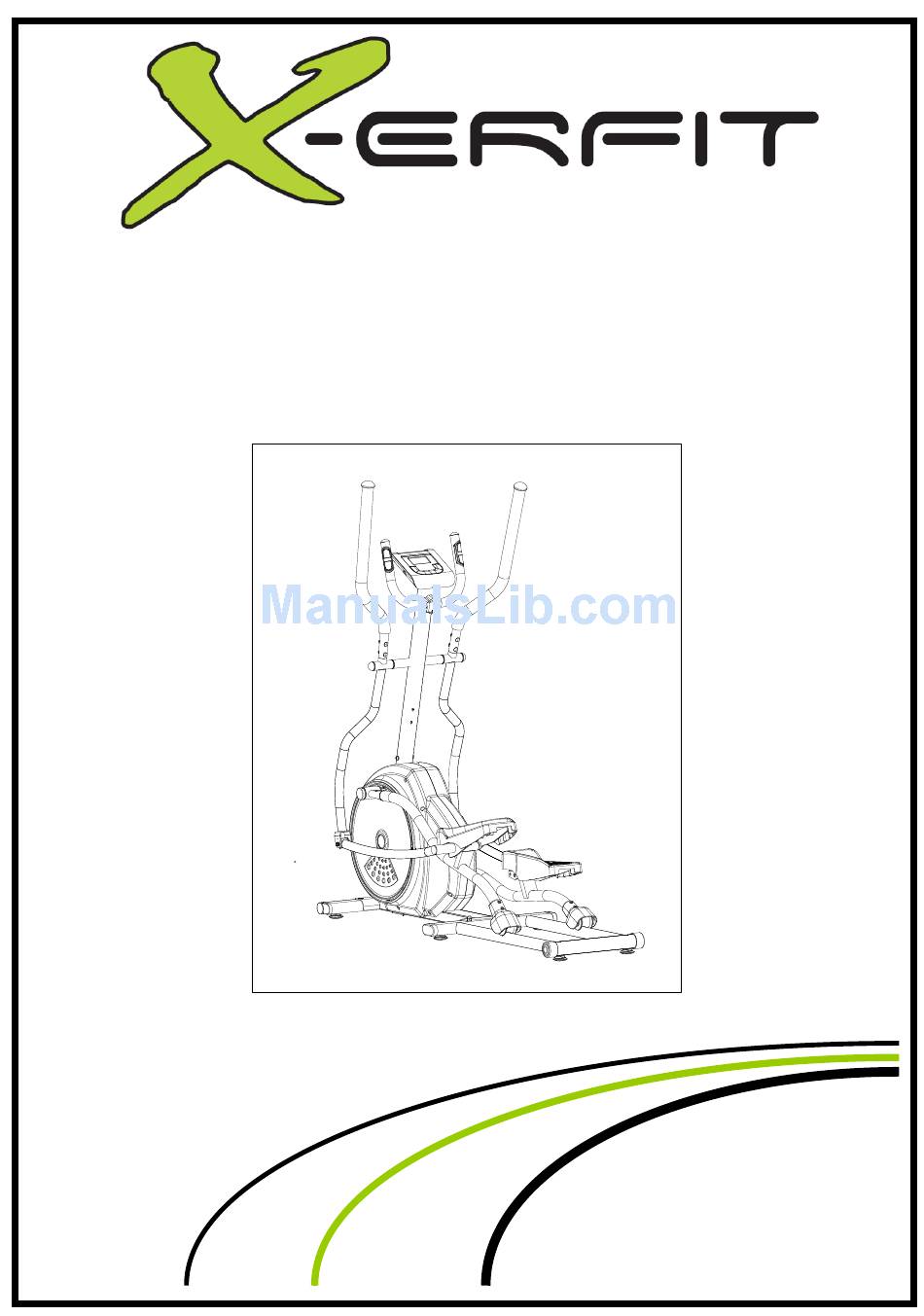

  • Page 1 USER’S MANUAL 770F Elliptical BUILT FOR HEALTH...

  • Page 2: Assembly Step

    Assembly Step# 1 1) Attach the Front Stabilizer (D-1) to the main base using Hex screw (H-1). 2) Attach the Rear Stabilizer (E-1) to the mid-frame extrusions of the main base using Carriage screw (H-2), Flat washers (H-3), and Nuts (H-4) as shown above.
  • Page 3 Assembly Step # 2 Assemble the Left padel arm (F-7) to the main frame with Nylok screw (F-9), Flat washer (F-10) and Cover for connector bracket (F-28). Assemble the Right padel arm (F-8) to the main frame with Nylok screw (F-9), Flat washer (F-10) and Cover for connector bracket (F-28).
  • Page 4 Assembly Step # 3 1) Remove the preinstalled mounting hardware from the main base. 2) Connect the Upper Cable wire (C-2) to the Lower Cable Wire (G-2). 3) Slide the Handlebar post (C-1) down onto the base assembly. Align the mounting holes and thread the 3 in 1 bolt (C-3) in place as shown.
  • Page 5 Assembly Step # 4 Assemble the right and left Pedal (F-1/F-2) to the corresponding pivot collars referencing the orientation shown in the drawing. Hardware used per side: Linkage arm (F-4), Flat washer (F-5), Screw (F-6). Align the screw mounting patterns of left and right Foot Pedal (F-26/F-27) with the corresponding pedal arm plates.
  • Page 6 Assembly Step # 5 Attach both Upper handlebar (I-1/I-2) to the corresponding Lower handlebars using Carriage screw (H-15), Curve washer (H-16) and Nut (H-5) per side. M8x40L 8* 19*2T...
  • Page 7 Assembly Step # 6 Carefully routes the Pulse cable coming through the middle of the Handlebar post (C-1). Secure the Front Handlebar (B-1) to the Handlebar post (C-1) using a combination of Round Hex screw (H-13), Spring screw (H-12) and Flat washer (H-11).
  • Page 8 Assembly Stage # 7 1) Connect the Pulse cable and Upper Cable wireinto the board mounted connector on the back of the computer. 2) Tuck the excess cable length into the mounting bracket and attach the computer to the mounting bracket using Screw (A-2). 3) Plug in the cord end of the Adaptor (G-26) into the receptacle located on front of the base assembly / shroud.
  • Page 9 Assembly drawing...
  • Page 10 Assembly parts in the carton...
  • Page 11 Explored drawing...
  • Page 12 Part List Description Q'ty Computer Assembly Computer Screw Handlebar Assembly Front Handlebar Hand pulse end cap Grip for handlebar Pulse cable Cap for wire Handlebar Post Assembly Handlebar post Upper Cable wire 3 in 1 bolt shaft Metal bushing Screw Front Stabilizer Assembly Front Stabilizer end cap left...
  • Page 13 Description Q'ty Screw Left padel arm Right padel arm Nylok screw F-10 Flat washer F-11 Shaft busing of handlebar F-12 Connector bracket of pedal tube F-13 Screw F-14 Flat washer F-15 F-16 Wave washer F-17 Metal bushing F-18 roller cap F-19 screw F-20...
  • Page 14 Description Q'ty G-15 Texture nut G-16 self-tapping screw G-17 screw G-18 Connecter for roller arm G-19 Sensor box G-20 Screw G-21 Alex G-22 Screw G-23 Pulley G-24 Bushing G-25 DC wire G-26 Adaptor Screw Kit Screw Carriage screw Flat washer Curve bushing Nylok screw Flat washer...
  • Page 15 Description Q'ty Lower handlebar left Lower handlebar right Foam grip End cap Metal bushing Magnetic Assembly Magnetic Screw Spring screw Screw Flat washer Bushing' Flat washer Gear box Flywheel Assembly Flywheel Texture nut Bushing Bearing Flywheel axle Bearing Flat washer Idler Assembly Idler Screw...

  • Page 16: User Program

    INSTRUCTION MANUAL OF SM2749-67 BUTTON FUNCTION: MODE In stop mode, the mode is to confirm all exercise data setting, and enter into program. RESET In stop mode, press the button back to main menu. START/STOP To start or stop exercise. RECOVERY To test heart...
  • Page 17 NOTE: 1. This computer require 9V, 0.5mA adaptor. 2. When user stop pedaling for 4 minutes, computer will enter into power save mode, all setting and exercise data will stored until user start exercise again. 3. When computer act abnormal, please plug out the adaptor and plug in again.
  • Page 18 IMPORTANT INFORMATION REGARDING SERVICE In you have any problems, please contact Mylna Service. Our consultants have extensive experience and will help you with questions about products, installation, ordering spare parts or any errors and omissions. We would like you to contact us before contacting the store so we can offer you the best help. Please visit our website www.xerfit.fi - here you will find information about the products and user manuals in Finnish and English.
