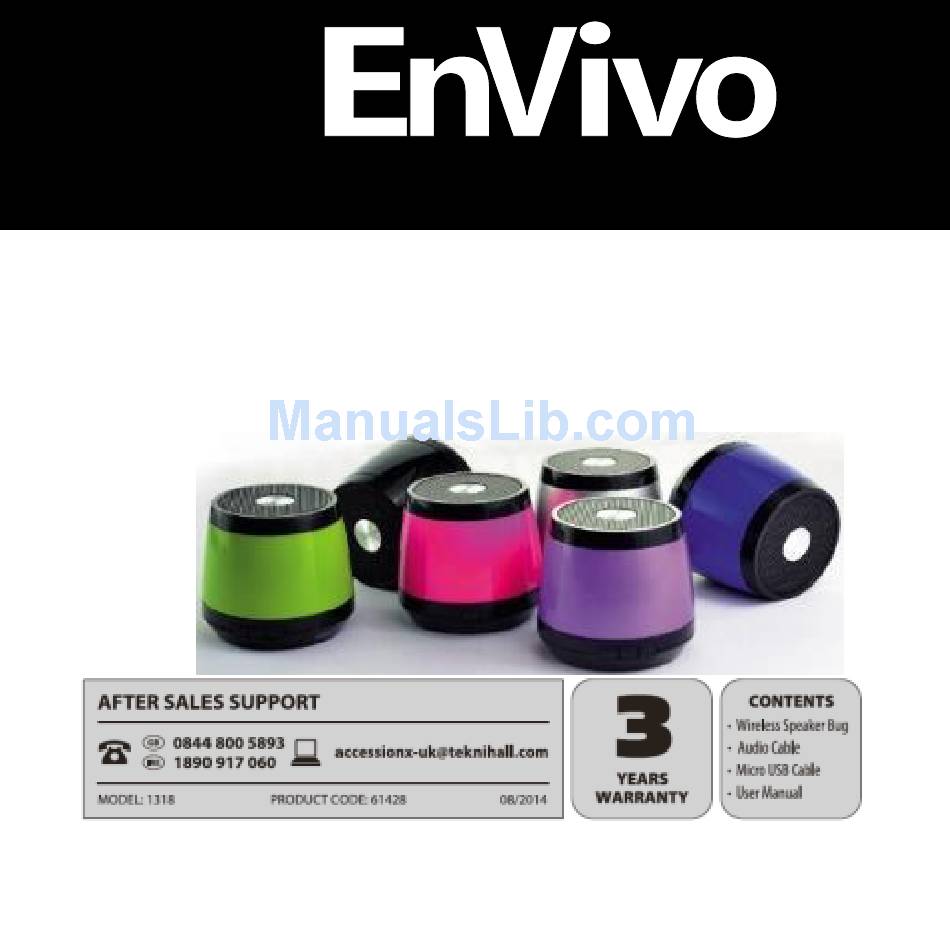

- Page 1 Manual Wireless Speaker Bug...
-
Page 2: Table Of Contents
Content Welcome ..........3 Contents ..........5 After sales support ........ 5 Specifications ........6 Overview ..........8 Getting Started ........10 Speaker Charging ....... 20 Compatibility ........22 Safety precautions ......22 Trouble shooting ........24 Disclaimer ..........30 Disposal .......... -
Page 3: Welcome
EnVivo. We want you to be completely satisfied with your purchase, so this... - Page 4 EnVivo product is backed by a comprehensive manufacturer’s 3 year warranty and an out-standing after sales service through our dedicated Helpline. We hope you will enjoy using your purchase for many years to come. Before installing and using the product, please read the instructions thoroughly, and retain them for future reference.
-
Page 5: Contents
Contents Wireless Speaker Bug USB cable Audio cable User manual with warranty card After sales support Email: accessionx-uk@teknihall.com Tel.No. for the UK: 0844 800 5893 Tel. No. for Ireland: 1890 917 060... -
Page 6: Specifications
USB charging voltage: DC 5V Output power: 3W Battery capacity: 3.7V/450mA Playing time up to 5 hours 3.5 mm audio input Handsfree function for call Model no: ENV-1318 Bluetooth version: BLUETOOTH V3.0... - Page 7 Transmission distance: ≤10M (this may vary according to environment and connected Bluetooth device) USB charge voltage: DC 5V Lithium battery: 3.7V Lithium chargeable battery, 450mAh Output power: 3W Frequency: 20Hz-20KHz Sensitivity: 70db Signal to noise ratio: ≥85dB ...
-
Page 8: Overview
Overview 1) ON / OFF switch 2) Line in hole 3) Mini USB... - Page 9 4) LED indicator 5) Vol. - / previous track 6) Play/Pause/Pick up/End call 7) Vol. + / next track 8) MIC...
-
Page 10: Getting Started
Getting Started Key functions 1. ON/OFF: Slide power switch to ‘ON’ or ‘OFF’ to turn the speaker on and off. 2. ‘Line in’: Aux input slot, use the provided Aux-in cable to connect your Mobile, Tablet, iPad, MP3 Player etc. to play music 3. - Page 11 working, red light indicates charging. 5. ‘-‘: Decrease volume/prev. track 6. ‘ ’: Play/Pause/Pick up/End call 7. ‘+’: Increase volume/next track 8. MIC: Microphone Operating the speaker A. Power On Status Slide the Power switch to the “ON” position at the bottom of the unit and you will hear a voice saying...
- Page 12 “Bluetooth already opened” and you will see a blue light from the LED indicator. B. Power Off Slide the Power Switch to the “OFF” position and the speaker shuts down. C. Bluetooth Pairing If the speaker has never been paired with a bluetooth device before, you need to follow the instructions below to pair your speaker with your...
- Page 13 2) Activate bluetooth on your compatible device and set it to search for compatible devices. 3) Select the speaker “ENV-1318” from the list of found devices. Note: If the speaker is already connected to another bluetooth device then the speaker will not...
- Page 14 appear in search list and you need to disconnect the current paired bluetooth device from the speaker and search again. 4) If your device asks for a passkey, enter digits “0000” and press “OK” (varies depending on the bluetooth device manufacturer, model and software version).
- Page 15 indicator will flash with an interval of two seconds, and your speaker is ready to play music and receive calls from mobiles. Note: If the speaker has been paired to the bluetooth device before, you need to follow the pairing instructions below to connect the speaker to the bluetooth device: Activate bluetooth on your...
- Page 16 device and you will hear a Voice Prompt “Bluetooth connected successfully”. D. Playing Music in Bluetooth Mode After the bluetooth device is connected successfully to the speaker, you will be able to play music from your Bluetooth device. Short press` ` to pause music and short press ` ` again to resume...
- Page 17 Long press `+` to increase volume and long press ` -` to decrease volume. E. Using the Speaker as Hands-free Wireless Speaker Phone When your device is paired with the speaker and you get an incoming call or making an outgoing call, the speaker will shift from music mode to call mode automatically.
- Page 18 press “ ” to hang up. The music will automatically resume after the call is disconnected. F. Using the Speaker in AUX-In Mode Plug one end of the 3.5 mm Audio Cable into the headphone or line out of your MP3 Player, Mobile or computer and plug the other end of the cable into the Aux-In jack of the Speaker.
- Page 19 Short press ` ` to Mute Music and short press ` ` again to Unmute Music. Long or short press `+` to Increase volume, and Long or short press `-` to Decrease Volume. Note: In Aux-in mode, you cannot press `+` or `-`. Choose next volume or last volume.
-
Page 20: Speaker Charging
Speaker Charging The speaker comes with a built-in rechargeable battery. Connect the USB cable provided to a computer or into a DC 5V power adaptor (not included). When the speaker is set to `OFF` you will hear a voice saying `Charging` and the LED light will turn Red. - Page 21 the Speaker from the power device once the speaker is fully charged. The battery playing time will be different depending on volume when playing music. If the speaker isn’t being used for a long time, then please charge the speaker once per month, as this can protect and extend the battery life.
-
Page 22: Compatibility
Compatibility Wireless: With BLUETOOTH V3.0, Including A2DP/ AVRCP/GAVDP/IOPT/HFP/SSP Safety precautions a. Do not use or store the unit in high temperature or hazardous location. b. Please do not expose the unit to rain. c. Please do not disassemble, repair or modify the unit. - Page 23 d. The unit comes with a rechargeable battery so please do not throw or put in fire to avoid explosion. e. Please do not listen to music in high volume for long time as it may cause damage to your ears. Low battery power may result in reduction in bluetooth transmission distance or...
-
Page 24: Trouble Shooting
Trouble shooting Should you experience any difficulty while using the speaker, please refer to the following. Not charging Reason The USB power adaptor (not included) is not plugged into a wall outlet or the USB cable (included) is not plugged into the mini USB jack behind the speaker. - Page 25 Solution Plug the USB power adaptor (not included) into a wall outlet and plug the USB cable (included) into the mini USB jack of the speaker. Reason Wall outlet is not functioning. Solution Plug another device into the same outlet to confirm the outlet is working. Reason Computer USB port is not function.
- Page 26 Solution Make sure your computer power is turned on and try another USB port. No Sound Reason The speaker battery is dead. Solution Recharge the speaker Reason The speaker is not linked to the cell phone. Solution...
- Page 27 Go through “Speaker Operations” process to connect the speaker. Reason Volume is too low. Solution Increase the volume on your device. Increase the volume on the speaker. Increase the volume on the audio source. No Audio Signal via Bluetooth connection Reason...
- Page 28 Speaker is not paired to the audio source. Solution Check whether a connection exists. If necessary, pair the speaker to the audio source again. Speaker cannot be connected Reason Pairing does not work Solution Check whether the audio source supports the A2DP protocol Reason...
- Page 29 Audio source is switched off Solution Switch on the audio source Reason Bluetooth is switched off at the audio source. Solution Switch on the Bluetooth function in the audio source. Reason Bluetooth version is not supported. Solution Use a different playback unit.
-
Page 30: Disclaimer
Poor Sound quality from a Bluetooth device Reason Bluetooth device is almost out of range of the speaker. Solution Move your Bluetooth device closer to the speaker. Disclaimer This Speaker Bug is meant for using only in conjunction with the appropriate mobile entertainment device. -
Page 31: Disposal
packaging to determine whether this Speaker Bug is compatible with your particular mobile entertainment device. We, the manufacturer, are not responsible for any damages to any mobile entertainment device incurred through sue of this product. Disposal Batteries, electrical and electronic equipment (EEE) contain materials, parts and substances, which can be dangerous to the environment and... - Page 32 harmful to human health if waste of electrical and electronic equipment (WEEE) are not disposed of correctly. Batteries, electrical and electronic equipment, which are marked with the WEEE logo (as shown below), should not be thrown away with your household waste. Contact your Local Authority Waste Disposal Department, as they will be able to provide details of the recycling options available in...
-
Page 33: Warranty
Warranty We want you to be completely satisfied with your purchase so this EnVivo product is backed by a comprehensive manufacturer’s 3 year warranty and an outstanding after sales service through our dedicated Helpline. If you require technical support or in... - Page 34 Faulty product claims made within the 3 year warranty period will be repaired or replaced free of charge provided that you have satisfactory proof of purchase (keep your till receipt safe!). This does not affect your statutory rights. However, be aware that the warranty will become null and void if the product is found to have been deliberately damaged,...
-
Page 35: Warranty Card
Warranty Card Wireless Speaker Bug - 61428 Please keep your purchase receipt together with your warranty card Name Address Tel.No. Date of purchase Location of purchase... - Page 36 Please state detailed description of malfunction: Supplier: Accession ApS - Vandmanden 34 DK-9200 Aalborg SV - www.accessionx.com accessionx-uk@teknihall.com...
