XTEND
®
RF MODEMS
900 MHz radio modems offer long-range performance, advanced networking
and simple out-of-the-box operation with multiple data interface options

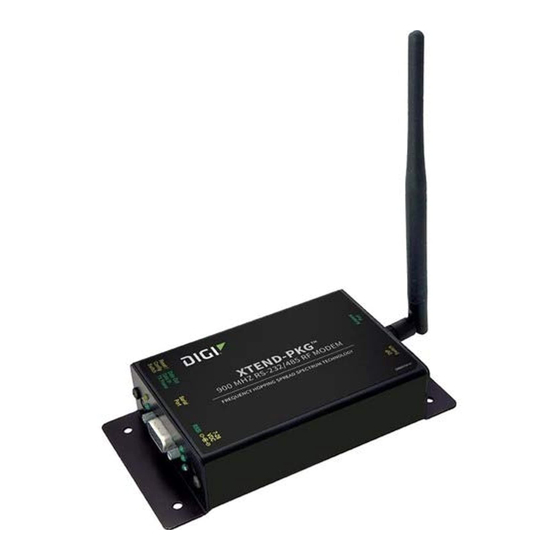

Digi's XTend-PKG RF modems provide everything you need
for out-of-the-box serial cable replacement, enabling quick
wireless connectivity of electronic devices across a broad
range of applications. Simply feed data into one modem
and the data is transported to the other end of a long
range wireless link. Data security is provided by 256-bit AES
encryption (128-bit AES is available outside of North America).
If more advanced functionality is needed, the modems
support an extensive set of AT and binary commands.
BENEFITS
– Outdoor line-of-sight range up to 40 miles (with high
gain antenna)
– Outstanding receiver sensitivity (-110 dBm @ 9600 bps)
– Adjustable power output from 100 mW to 1 W;
up to 4 W EIRP (with 6 dB antenna)
– Low power consumption for power-sensitive applications
- Pin, serial port and cyclic sleep modes available
– Streaming, acknowledged and multi-transmit modes
supported
– Easy out-of-the box operation — no configuration
necessary
– Durable industrial grade enclosure
RELATED PRODUCTS
XTend® OEM Digi XLR PRO™ ConnectPort®
RF Module
-PKG
XCTU Accesories
X2
1 WATT/900 MHZ
STAND-ALONE
RADIO MODEMS
Available in multiple interface options, including RS-
232/422/485 and USB, XTend modems are ideally suited for
remote monitoring, building automation/security, industrial
automation/SCADA, fleet management/asset tracking and
sensor data capture in embedded systems.
APPLICATION EXAMPLE
USB/RS-232/
PC INSIDE PLASTIC
PROCESSING PLANT
422/485
XTEND®
RADIO MODEM
RF Signal
XTEND®
RADIO MODEM
Level Sensor
on Top of
Reslin Pellet Silo
