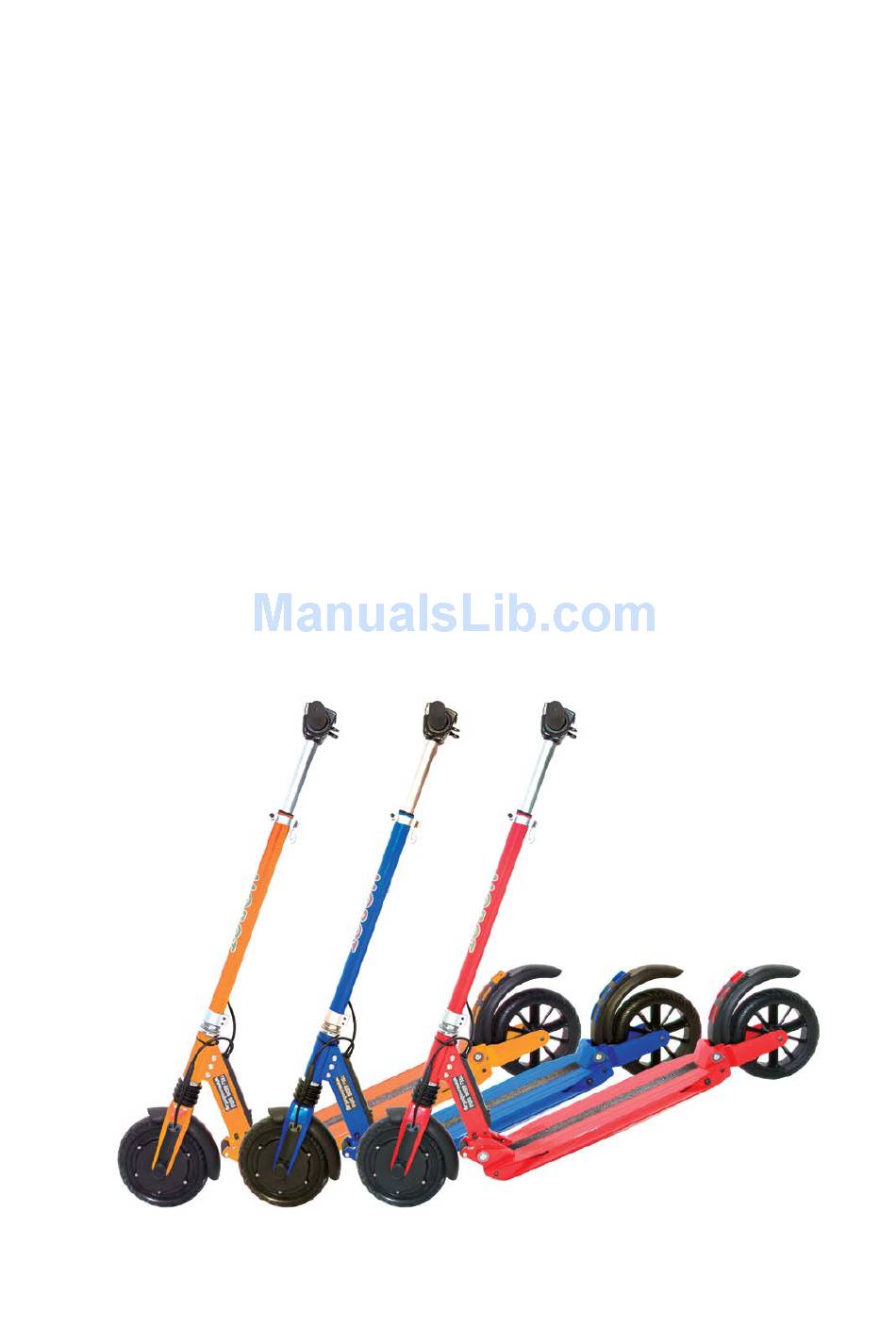

Page 1: User Manual
MOBOT Slim 1 & 2, Sport ® Electric Scooter USER MANUAL PLEASE CAREFULLY READ THE USER MANUAL AND WARRANTY BOOK BEFORE USING MOBOT® Slim... - Page 2 OPERATORS MUST USE GOOD JUDGMENT AND COMMON SENSE TO DETECT AND AVOID HAZARDS AND DANGERS that they may encounter when riding the MOBOT Slim electric ® scooter. By using the MOBOT® Slim electric scooter, it deems that you accept the inherent risks of operating this product.
-
Page 3: Table Of Contents
CONTENTS MAIN PARTS SAFETY PRODUCTS / FOLDING STAGE Folding stages Folding steps Unfolding steps OPERATION Introduction of Handlebar parts Operation Instruction Display Factory settings RIDING OPERATION Ready Start Brake BATTERY AND CHARGER Battery Charger Change Description MAINTENANCE Lubricating Battery Placement and daily care GENERAL TROUBLESHOOTING PRODUCT SPECIFICATION SHEET QUALITY ASSURANCE... -
Page 5: Safety
The maximum speed limit for MOBOT ® Slim 1 is 27 Km/h. For your safety, please maintain the riding speed at 20 Km/h. When travelling at night, please limit the speed within 15 Km/h or less and turn on the headlights. -
Page 9: Operation
OPERATION 1. Introduction of Handlebar parts 1. Thumb Accelerator 2. Thumb Electronic Magnetic Brake 3. Switch Button 4. Setting Button 5. On/Off Light Button 6. Horn Button 7. LED Headlight 8. Handlebar Fold Button 9. Display Panel 2. Operating Instructions a. - Page 10 c. Braking Control Press the left thumb to operate the electronic magnetic brake. The greater amount of pressure is input, the greater braking force it will be. d. Horn Press the horn button to produce a hoot sound. e. LED Headlight In manual mode: Press the On/Off Light button when needed and there will be a sign-in-display indicating that the light is turned on.
-
Page 11: Display Factory Settings
3. Display Factory Setting To access the menu P0 and P1 please press the switch and setting buttons at the same time. Pressing the setting button helps you switch between P0 and P1. Both menus have other two submenus : 0 and 1, as follows: P00 (a) –... -
Page 12: Riding Operation
10 – Light sensor 11 – Speed 12 – Battery 13 – Temperature 14 – Displays the total and trip distance 15 - From left to right: total, trip RIDING OPERATION Ready Choose a suitable venue for riding. 2. Expand the scooter in accordance with the description. 3. -
Page 13: Battery And Charger
Damages caused by using inappropriate battery chargers is not under usual product warranty. Battery When you get the MOBOT® Slim electric scooter for the first time, please charge the battery fully before using. Please charge the battery once every three months if not using the scooter for long. -
Page 14: Maintenance
MAINTENANCE Lubricating Please add small amount of grease or lubricant to scooter parts, ecspecially the handle area every six months. Please check scooter every three months for loosen screws. Battery The lithium polymer batteries provided can be recharged at least 500 times. Under proper usage, it can reach more than 1,000 times. -
Page 15: Product Specification Sheet
PRODUCT SPECIFICATION SHEET Item MOBOT Slim 1 & 2 Overall Expand Size 940*1160*135mm Specifications Overall Fold Size 940*330*150mm Scooter Weight 10.5KG/10.7KG Maximum load 110KG Top Speed 27km/h/30km/h Grade Ability 15/20 degree slope Capability 25km/30km(varied from weight, wind speed, road conditions, temperature... -
Page 16: Quality Assurance
PRODUCT WARRANTY In normal use, if a part or parts of the electric scooters have any problems listed in the following form during the warranty period, please contact your local vendor or reseller, we will provide a complete service as specified in the warranty book. - Page 17 MOBOT Slim set-up instructions (1) How to set Auto-Pilot function (Cruise Control) FULLY Press the brake button and hold, power on, and then press the Accelerator button for 2 times. (2) How to set Kick Start function FULLY Press the brake button and hold, power on, and then press the Accelerator button for 3 times.
- Page 18 MOBOT Slim 如何调整自动巡航模式： 在电源关闭的情况下，按住刹车键，开机，然后快速按动加速键2次。 零启动模式：一按加速按钮，车轮就开始转动 非零零启动模式：按加速按钮时，车轮不会转动；必须要滑行起来，然后再按加速钮才可驱动 如何取消零启动模式： 在电源关闭的情况下，按住刹车键，开机，然后快速按动加速键3次。 如何取消限速： 在电源关闭的情况下，按住刹车键，开机，然后快速按动加速键4次。 如何设置限速： 限速12公里/小时，按8次；限速20公里/小时，按6次；限速25公里/小时，按5次。...
- Page 19 4. Disassembling the scooter without contacting the local reseller. 5. Wrongly usage causing traffic accidents or accidental collision damage to the product body and the parts. 6. Product wear and tear. IZEST PTE LTD 62 UBI ROAD 1, #03-19 OXLEY BIZHUB 2, Singapore 408734 Tel: (+65) 65382816 www.MOBOT.sg...
