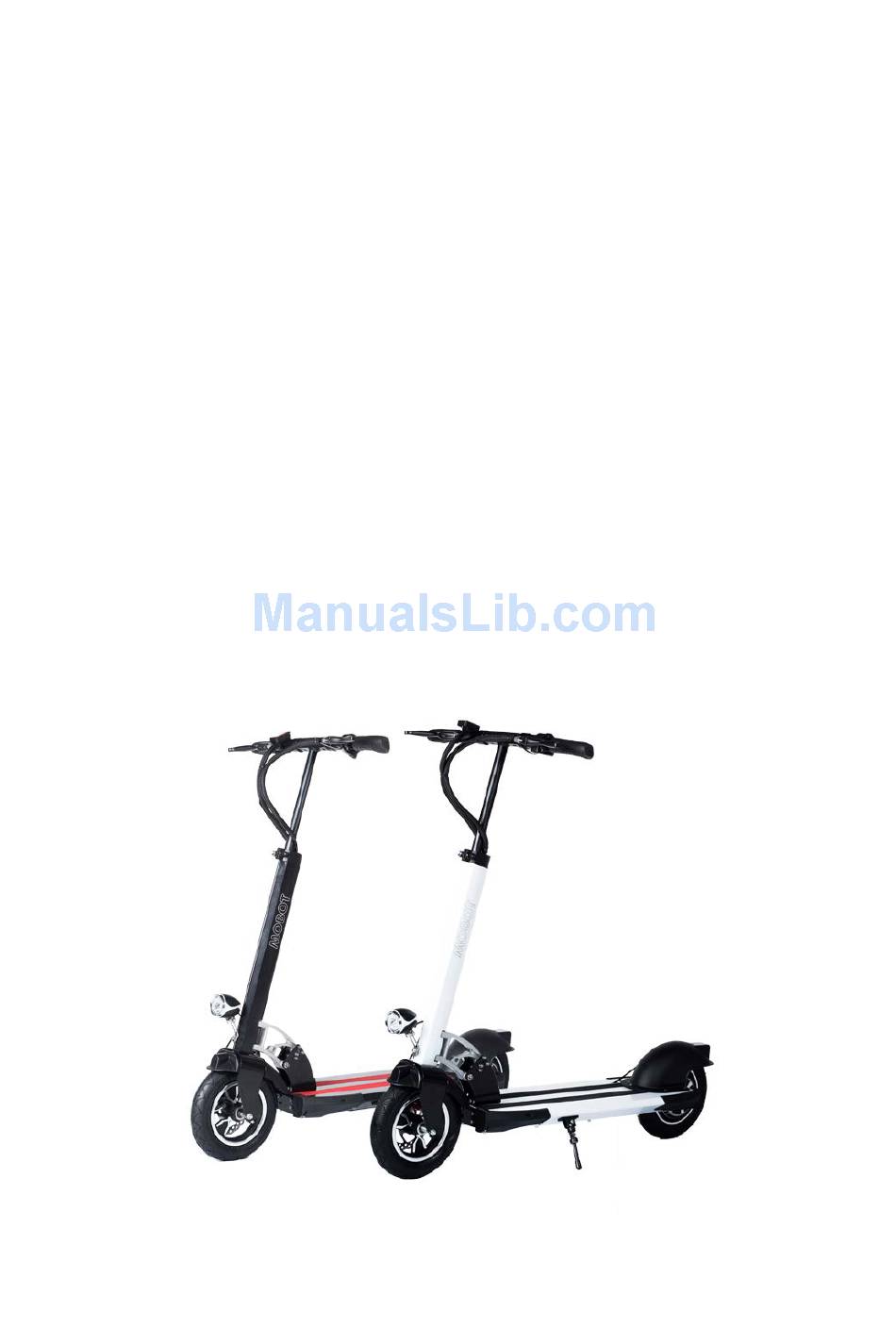

Page 1: User Manual

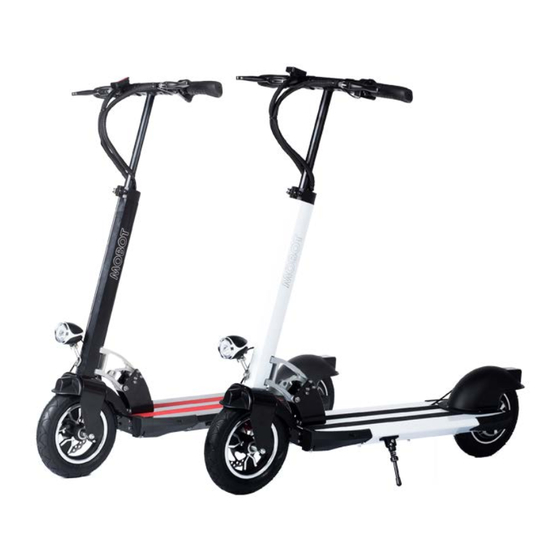

MOBOT Freedom ® Electric Scooter USER MANUAL PLEASE CAREFULLY READ THE USER MANUAL AND WARRANTY BOOK BEFORE USING MOBOT® Freedom, edited on 4/12/2015... - Page 2 OPERATORS MUST USE GOOD JUDGMENT AND COMMON SENSE TO DETECT AND AVOID HAZARDS AND DANGERS that they may encounter when riding the MOBOT Freedom electric ® scooter. By using the MOBOT® Freedom electric scooter, it deems that you accept the inherent risks of operating this product.
-
Page 3: Table Of Contents
Table of Contents APPEARANCE 4 MAIN PART SAFETY OPENING STEPS FOLDING STEPS OPERATION 11 RIDING OPERATION 15 BATTERY AND CHARGER MAINTENANCE GENERAL TROUBLESHOOTING 17 PRODUCT SPECIFICATION SHEET PRODUCT WARRANTY 19... -
Page 4: Appearance
APPEARANCE... -
Page 5: Main Part
MAIN PART... -
Page 6: Safety
The maximum speed limit for MOBOT ® Freedom is 35 Km/h. For your safety, please maintain the riding speed at 20 Km/h. When travelling at night, please limit the speed within 15 Km/h or less and turn on the headlights. -
Page 7: Opening Steps
OPENING STEPS... -
Page 9: Folding Steps
FOLDING STEPS... -
Page 11: Operation
OPERATION... - Page 13 Introduction of LCD Screen 1. Battery indicator 5. On/ Off Button 2. Speed indicator 6. Mode Button (Function button) 3. Per or Total Trip indicator 7. Thumb Throttle 4. 4.Total or per Trip distance travel...
- Page 14 Switch 1) To turn on the electric scooter, press and hold the on/off button for 3 second. Speed 1) User could control the speed between 1km/h to 35km/hr by pushing the thumb throttle. Accelerate depend on how much force input to the thumb throttle. Power/ Battery Display 1) The LCD Screen will show the amount of battery left after your ride.
-
Page 15: Riding Operation
RIDING OPERATION Before Ride Procedure 1. The normal air pressure of the front wheel tire should maintain within (240-250) kPa, rear wheel tire should maintain within (250-260) kPa. Please check the tire frequently for any defects. (Important) Deflated tires will affect the steering process of the scooter. 2. -
Page 16: Battery And Charger
BATTERY AND CHARGER Each MOBOT® Freedom electric scooter is equipped with a special lithium polymer battery and special smart charger. These accessories that come with each scooter have a dedicated number, do not use the chargers from other brands. Damages caused by using inappropriate battery chargers is not under usual product warranty. -
Page 17: Maintenance
MAINTENANCE Due to the likelihood of breakdown of the electric scooter usually within 1 year, in order to allow convenience and ease of maintenance. The company has implement 1 year of free warranty plan. Proper use and maintenance of the scooter will prolong the lifespan of the scooter. We recommend you to send the scooter for maintenance once every 3 months to check on the brakes and the battery functionality. -
Page 18: Product Specification Sheet
PRODUCT SPECIFICATION SHEET... -
Page 19: Product Warranty
5. Wrongly usage causing traffic accidents or accidental collision damage to the product body and the parts. 6. Product wear and tear. MOBOT PTE LTD 62 Ubi Road 1, #03-19 Oxley Bizhub 2, Singapore 408734 Tel: 65382816 | Fax: 65382817...
