Summary of Contents for Air Monitor ELECTRA-flo / SD

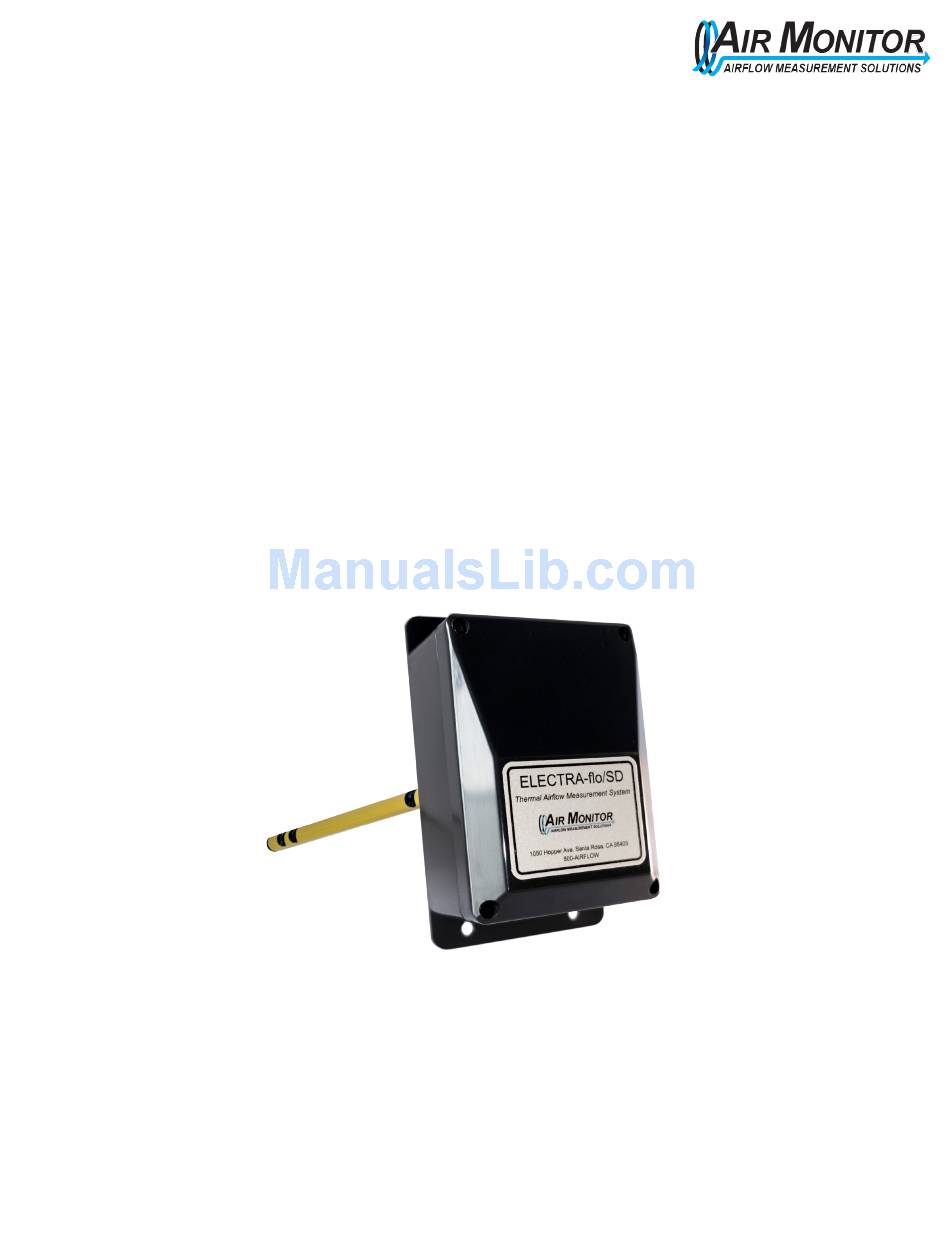

- Page 1 ELECTRA-flo / SD Thermal Airflow & Temperature Dual Analog Output With Installation, Operation and Maintenance Manual P.O. Box 6358 • Santa Rosa, CA 95406 • USA • Tel +1 (800) AIRFLOW • Fax +1 (707) 526-9970 www.airmonitor.com • amcsales@airmonitor.com 06-16...
- Page 2 This page intentionally left blank. P.O. Box 6358 • Santa Rosa, CA 95406 • USA • Tel +1 (800) AIRFLOW • amcsales@airmonitor.com ELECTRA-flo SD Dual Analog Installation, Operation and Maintenance Manual 06/16 - 1035 Page...
-
Page 3: Safety Information
Air Monitor assumes no responsibilities for this product except as stated in the warranty. • If the customer or any third party is harmed by the use of this product, Air Monitor assumes no responsibility for any such harm owing to any defects in the product which were not predictable, or for any indirect damages. -
Page 4: Table Of Contents
TABLE OF CONTENTS GENERAL INFORMATION ..................5 PURPOSE OF THIS GUIDE ................5 TYPICAL METER INSTALLATION ............... 5 SPECIFICATIONS ...................... 6 ACCURACY ....................6 RANGE ......................6 PROBE ASSEMBLY ..................6 TRANSMITTER ....................6 POWER ......................6 INSTALLATION ......................7 INSTALLATION ..................... -
Page 5: General Information
SECTION 1.0: GENERAL INFORMATION We, at Air Monitor, would like to thank you for purchasing our quality, U.S. made, Thermal Airflow & Temperature Measurement System. As our valued customer, our commitment to you is to provide fast reliable service and assistance, while continuing to offer you new products to meet your growing flow measurement needs. -
Page 6: Specifications
SECTION 2.0: SPECIFICATIONS 2.1 ACCURACY 2.4 TRANSMITTER Sensor Accuracy: Enclosure: Velocity: ±2% of Reading NEMA 4 rated. Injection molded Temperature: ±0.15º F polycarbonate, UL94 V-0 rated Overall System Accuracy: Electrical Connections: Flow: ±3% of Actual Flow Separate power and signal terminal strips Temperature: ±0.15º... -
Page 7: Installation
• If more than the minimum clearances are available, proportionally adjust the upstream and downstream distances. • Avoid locating the ELECTRA-flo/SD where it will be subjected to condensing moisture from a coil. • Contact Air Monitor’s Applications Engineering Department to discuss any sub-minimal installation. .75X .5X 1.5X .75X... -
Page 8: Mounting
3.4 MOUNTING 1. Determine the measurement location based upon the engineer’s plans and the ELECTRA-flo/SD’s minimum placement guidelines. 2. Note: It may be necessary to remove a portion of external duct insulation to allow the ELECTRA-flo/ SD to be securely mounted to the exterior of the duct wall. 3. -
Page 9: Power/Signal Connections
3.5 POWER/SIGNAL CONNECTIONS The ELECTRA-flo/SD provides dual analog outputs of airflow velocity (or equivalent velocity pressure) and temperature. The temperature output has a fixed full scale range of -20º F to 120º F. The velocity output can be scaled at one of four user selectable ranges. Power wiring is done at terminal strip J1 and signal wiring is done at terminal strip J2. -
Page 10: Configuration
3.6 CONFIGURATION All device configuration is done using an 8-switch DIP package labeled S1 that can be accessed by removing the enclosure cover. The protective shield over the circuit board also has a reference guide for setting all device configurations. See Figure 4. Configuration settings can be changed while the device is powered. SWITCH ANALOG POSITION... -
Page 11: Start-Up / Operation
3.7 START-UP / OPERATION 1. After completion of all power and signal wiring, activate the 24 VAC / 24 VDC power source 2. Observe the Run Mode indicator located in the upper left corner of the board. See Figure 3. After a brief initialization period the Run Mode LED will begin blinking on/off in ½... -
Page 12: Maintenance / Inspections
SECTION 4.0: MAINTENANCE / INSPECTIONS 4.1 MAINTENANCE / INSPECTIONS The ELECTRA-flo/SD has been designed to operate in most HVAC applications without the need for periodic maintenance or calibration. In some applications it may be necessary to perform a visual inspection of the probe and sensors, and if necessary clean them using a soft, small brush and/or compressed air to remove any accumulated particulate/debris. -
Page 13: Warranty
The warranty set forth above is in lieu of all other warranties either express or implied and constitutes the full extent of Air Monitor Corporation’s liability to the customer, or any other party for breach of warranty. THERE ARE NO EXPRESS WARRANTIES EXCEPT AS SET FORTH HEREIN AND THERE ARE NO IMPLIED WARRANTIES OF MERCHANTABILITY OF FITNESS FOR ANY PARTICULAR PURPOSE, WHICH ARE PARTICULARLY DISCLAIMED.
