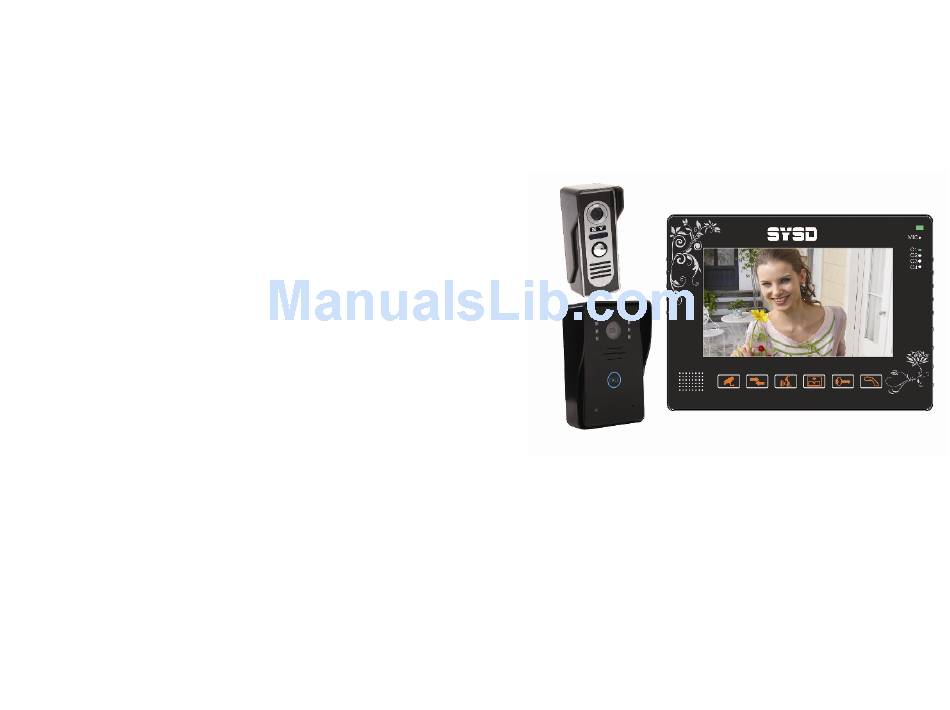

- Page 1 8/9” COLOR TFT LCD VIDEO DOOR PHONE INSTRUCTIONS MANUAL ------------------------------------------------------------------------------------------------ Before attempting to operate this product please read this manual carefully and completely.
- Page 2 TABLE OF CONTENTS 5. Avoid positioning the camera in strong sunlight; otherwise the image will be faint. Product introduction……………………………….. (3) Parts introduction……………………………….. ….(4) Operation…………………………………………….(5) Installation…………………………………………..(6) Technical Specifications……………………………..(7) Work environment…………………………………...(8) Package Maintenance………………………………………….(9) Cautions…………………………………………….(10) □indoor unit Accessories…………………………………………(11) □outdoor station Technical support……………………………………(12) □adaptor (15V/1.2A) 8inch Video operation………………………………...
- Page 3 Product introduce 8/9inch color monitor with ultra-slim design and full-touch screen, nice and luxurious Weather proof, oxidation proof, durable alloy outdoor door station, Cautions supporting embedded and hanging installation. High sensitive touch technology(with voice hint) No radiation, low consumption and high resolution Monitor, intercom, unlock, hand-free and multi-melody.
- Page 4 Outdoor Station Installation:...
-
Page 5: Specifications
Specifications Installation Indoor Unit Installation: Outdoor Station Indoor Unit Input: 100-240V Power power 50/60Hz output：DC 15V/1.2A Camera CMOS 30M pixels 7”TFT 960×480 6pcs Valid area 154.08(H) ×86.58(V) ； Standby:0.1W Consumption Consumption Standby:0.5W； work:8W work:12W Calling Valid distance 80m (4*0.5MM2) 120s±10% duration time Angle 92 degree... - Page 6 reach to the newest clip. Description of indoor & outdoor unit MENU/PLAY button: 1. Indoor unit Under video display Normal Mode, press this pushbutton first time, it will display OSD menu on the screen. Press this pushbutton again, follow in turn Front: choose option on OSD, relevant OSD option will change to red.
- Page 7 2. Outdoor Station 8inch video recording model operation (optional): Front: It will begin the 5s recording automatically when the outdoor station calling, others functions keep the same with the common models. Side buttons of the indoor unit: Back: Do as the following instruction after you enter the monitor state PHOTO/DEL button: Under video display Normal Mode, press the button to take picture;...
-
Page 8: Operation Instruction
Connection Operation instruction: Connect cable, E-lock and power supply as this menu, Then press monitor button and open outdoor monitor screen, enter function menu to adjust the brightness/contrast for best effect. Visitors Calls The visitor presses the CALL button on the outdoor door station, the internal monitor will ring and the visitor will be seen, the host can talk to the visitor by pressing the TALK button once and the conversation can last 120s.
