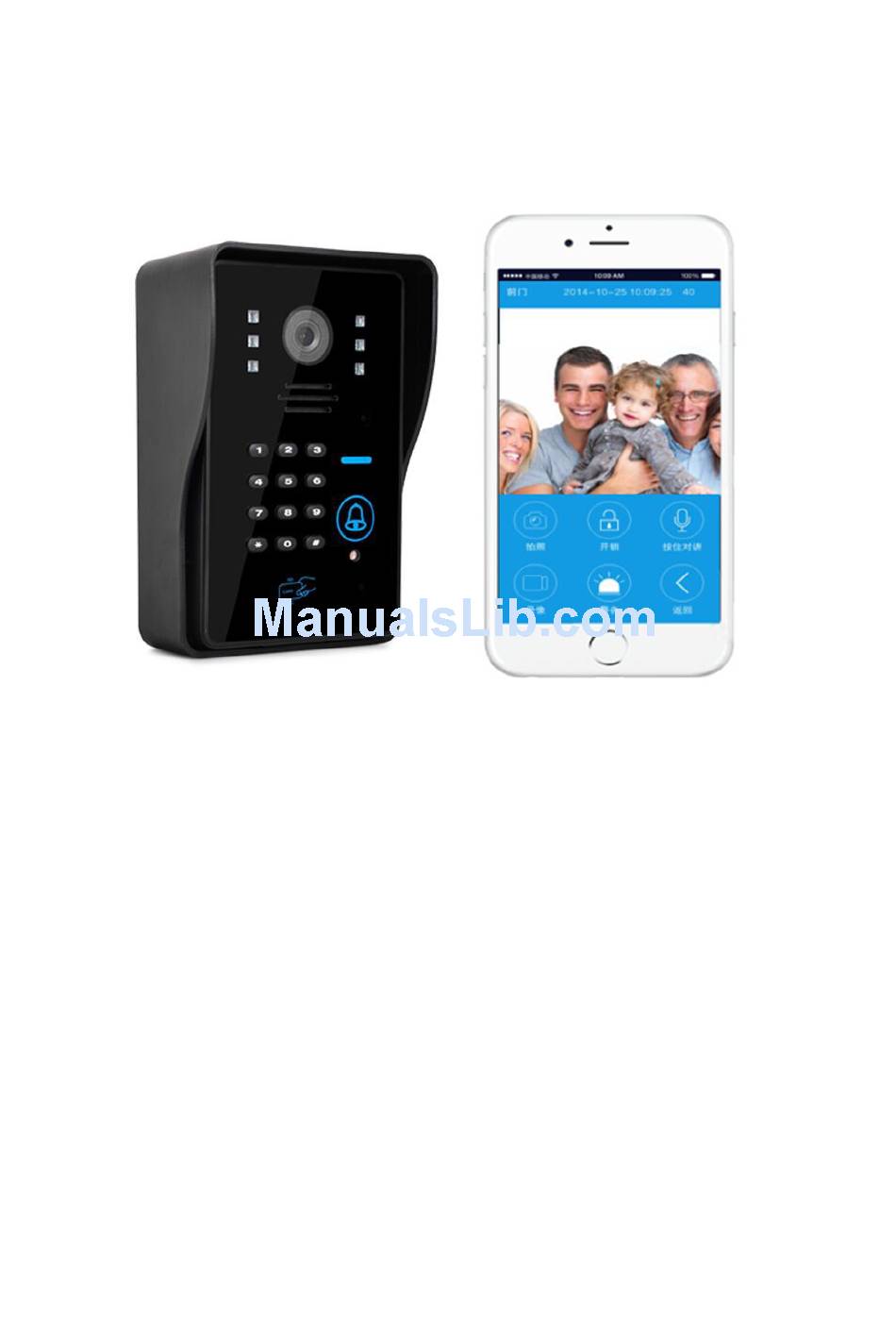

Page 1: User Manual
WIFI Video Doorbell User Manual ----------------------------------------------------------------------------------------------- Please read this user’s guide carefully before using this products... -
Page 2: Table Of Contents
Catalogue Products Introduction………………………………………………………1 Interface……………………………………………………………………2 Installation …………………………………………………………………3 Specification…………………………………………………………………4 Packing List …………………………………………………………………5 APP Operation………………………………………………………………6 APP Interface function setting ……………………………………………7 APP Icon ……………………………………………………………………8 Outdoor Camera Operation………………………………………………9 Failure Diagnosis…………………………………………………………10 Work environment…………………………………………………………11 Notice………………………………………………………………………12 Warranty……………………………………………………………………13 Attention:The illustrations in this manual, the screen display, All in order to more directly in detail expound the operation of the products, due to the different version upgrades and production batch, they might a little different from the machine with you, If mentioned in this manual content does not... -
Page 3: Products Introduction
1. Products Introduction WiFi video doorbell connects to network via wireless router or network cable.Mobile devices include smartphone or tablet,could connect to the doorbell;After the visitor rings,mobile devices could interact with doorbell via real time video and audio,user can view the visitor,then decide to whether intercom or open the door etc. - Page 4 11.With IR night vision. 11.Support monitor function through mobile device. 12.Can take photo 13.Can take video(the video file will store on the mobile device) 14.Can open the door by ID card,password,remote controller. 15.P2P cloud service could push messages of visitor calls、visitor photos and motion detect alarm to mobile device.
- Page 5 1. Black Door exit（-） 2. Red Door exit（+） 3. Yellow Power off Unlock（+） 4. Black 电锁共锁 5. Red Power on Unlock（+） 6. Black 12V Power（-） 7. Red 12V Power（+） 8. Network Port 9. Doorbell reset Key 10.wifi Reset Key Note:(Doorbell reset Key is for restore the programming code,wifi reset key is for restore the APP default code)
-
Page 6: Installation
3. Installation: 4. Specification Model SY-WIFI002 Lens 1/4 / F2.4 / 92 degree Pixel 1 million IR Led 5 PCS IR distance 3-5 meters Power supply DC12V 2A Power standby:1.5W work:3.8 W Size 168*110*65MM Series List Index Working voltage DC：Voltage 15V... -
Page 7: Packing List
. (If no HIMARKET APP store on your mobile device,please search HIMARKET APP store and then install it first) For IOS: Search “SYSD” in the IOS app store which on the back of this wifi video doorbell,then download and install it. - Page 8 2. After installation,it appears icon ,click to run the wifi video doorbell APP. 3. Connect the power supply and network wire to the outdoor unit,run the wifi video doorbell APP,it shows below picture: There are 2 ways to login: By Mobile or By Email/ID.For new user,it need to register first,then log in.
- Page 9 6. If no “ New equipment list “,can select “Manual Add”.Press the calling button of outdoor unit,then can view the visitor information on mobile device,click “ignore”,then click “+” to select “Manual Add”,input the device ID (it is the number just you saw),device name (any one is ok),password ( the default password 123),like as picture:...
-
Page 10: App Interface Function Setting
7. APP Interface Function Setting Under the Device list,click “online”,it shows Playback、Settings、Edit，like as picture: Click “Playback” to view the record video;click “Edit” to edit the device name. Click “Setting” to enter into setting interface,as picture:... - Page 11 1、Security Settings: Edit the password 2. Network Settings: Select Ethernet or Wifi （ Note:If the wifi is not steady,recommend to select Ethernet) 3、Alarm Settings: Must select the “ Receive alarm message” on;For “Motion Detection” and “Buzzer”,it can set according to needs. 4 、...
- Page 12 6. Storage settings: Manage the SD card.(Note: If the motion detection and Buzzer is on,mobile device will receive an alarm message when the doorbell found a moving object,if want to close this function,can click "ignore" on mobile device,then click the icon) When log in the APP,it shows “Device,Message,Images and More”,Click “...
- Page 13 8. APP Intercom interface Icon When user press the calling button,click “check” to enter into the intercom interface,like as the picture: Note: 1. Under the intercom interface,if the user want to talk with visitor,should turn off the speaker button,then press the intercom button to talk,when finish the talking,then turn on the speaker,now the visitor can talk with user.
- Page 14 other places 1. Acousto-Optic indication LED Indicator Case Red light Blue light Standby Alternate shining each seconds Entry into Fast —— programming flashing Programming flash —— confirm Cards unlock flash —— invalid cards Red and blue light blink unlock 3 times alternate Give an alarm ——...
- Page 15 （2）Setup unlock way：（Factory default : read valid cards unlock） Press 100 + # Read valid cards unlock Press 101 + # Read valid cards and input valid code unlock Press 102 + # Read valid cards or input valid code unlock Note: If unlock by card + code, you need type the code within 10s after reading the card, Only type private code can’t open the door.
- Page 16 （7）Universal code setup Press 8 +（0-9）Address code + new code + # + new code again + # （ code:4-6 random figures ） ， When use code unlock: input the code + # confirmation （8）Press 9 + 86 all system go to default setting 5.
-
Page 17: Failure Diagnosis
10. Failure Diagnosis 1. The indicator isn’t on when plug power supply,check the power adapter whether correctly plug into the charging slot? 2. The indicator flash,check the router and network wire connection whether work properly. 3. No voice prompt,check the Audio setting of APP on or off. 4. -
Page 18: Warranty
13. Service Warranty 1. From the day you purchase the machine, our company will provide free maintenance for the normal breakdown of the product within the warranty period. 2. Products of our company could enjoy one year warranty and can be changed within 15 days, if there are any quality problems.
