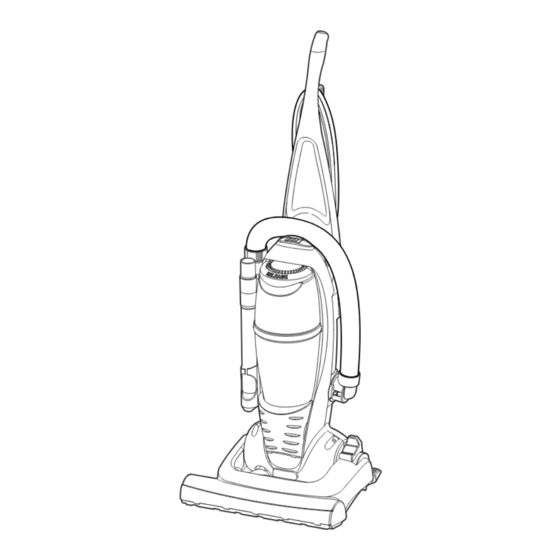

    VACUUM CLEANER Aspirateur Aspiradora MC-V5485 Operating Instructions Manuel d’utilisation Instrucciones de operación Before operating your vacuum cleaner, please read these instructions completely. Avant d’utiliser l’appareil, il est recommandé de lire attentivement ce manuel. Antes de usar su aspiradora, lea completamente estas instrucciones por favor.

  • Page 2: Consumer Information

    Read and understand all instructions. TO OUR VALUED CUSTOMER We are very pleased to welcome you to the Panasonic family of products. Thank you for purchasing this product. Our intent is that you become one of our many satisfied customers.

  • Page 3: Important Safety Instructions

    THIS VACUUM CLEANER IS INTENDED FOR HOUSEHOLD USE ONLY Note: Before you plug in your Panasonic vacuum cleaner, make sure that the voltage indicated on the rating plate located at the back of the vacuum cleaner is the same as your local supply.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS CONSUMER INFORMATION ................2 IMPORTANT SAFETY INSTRUCTIONS ............5 PARTS IDENTIFICATION..................10 FEATURE CHART ....................11 GETTING STARTED ..................12 Using Handle....................12 Cord Assembly ....................14 Using Cord Hook ..................14 Tool Storage ....................14 FEATURES ......................16 Automatic Self Adjusting Nozzle ..............16 Edge Cleaning ....................16 L-Shaped Nozzle..................16 Thermal Protector..................18 Motor Protector....................18...

  • Page 5: Parts Identification

    PARTS IDENTIFICATION Nomenclature Identificación de pieza Cord Hook Crochet de rangement Power Cord du cordon Cordon Sujetador d’alimentation del cordon Cordón electrico Dusting Brush Handle Hose Brosse à Manche Tuyau épousseter Mango Manguera Cepillo para sacudir Carrying Handle Handle Poignée de transport Release Mango para transportar Button...

  • Page 6: Feature Chart

    FEATURE CHART Power Headlight Cord Length Bare Floor 30 Ft 120V AC (60 Hz) Tableau des caractéristiques Dispositif Longueur du Position Alimentation d’éclairage cordon plancher 9,1 m (30 pi) 120 V c.a. (60 Hz) Diagrama de características Voltaje Medida Uso sin del cordón alfombra 9,1 m (30 pi)

  • Page 7: Getting Started

    GETTING STARTED Using Handle To release handle; press handle release button as shown. Operating With release button depressed rotate Position Position handle clockwise to the operating verticale position. Once handle reaches the Posición de funcionamiento operating position (up) the handle will automatically lock into place.

  • Page 8: Cord Assembly

    Cord Assembly Wrap power cord around cord hook. Secure retainer (plug head) to power cord. Using Cord Hook Detach plug head from power cord. Rotate cord hook down to release cord. Quick Release Cord Hook Crochet de Return the cord hook to the upright rangement du position before attempting to rewind cordon à...

  • Page 9: Features

    FEATURES Automatic Self Adjusting Nozzle The nozzle of your Panasonic upright vacuum cleaner automatically adjusts to any carpet pile height. Nozzle Shallow Tête Pile Carpet No manual adjustments required. d'aspiration Moquette à Boquilla poils courts Alfombra de pelo corto Deep Pile...

  • Page 10: Thermal Protector

    Thermal Protector If a clog prevents the normal flow of air to the motor, the thermal protector turns the motor off automatically to allow the motor to cool in order to prevent possible damage to the vacuum. During this time the headlight remains on. To correct problem, turn off and unplug vacuum, remove clogs (see page 42), and/or clean/replace filters (see pages 28-30).

  • Page 11: To Operate Cleaner

    TO OPERATE CLEANER Power Cord WARNING Electrical Shock or Personal Injury Hazard. Disconnect the electrical supply before servicing or cleaning the unit. Failure to do so could result in electrical shock or personal injury from cleaner suddenly starting. Note: To reduce the risk of electrical shock, this vacuum has a polarized plug, one blade is wider than the other.

  • Page 12: Carpet-Bare Floor Selector

    Carpet-Bare Floor Selector Selector should be placed in BARE FLOOR (TOOLS) position when using cleaner on bare floors and when using tools. Carpet-Bare Floor Selector Sélecteur tapis/plancher The agitator does not rotate in the Selector alfombra-piso BARE FLOOR (TOOLS) position. Selector should be placed in CARPET position when using cleaner on carpeted floors.

  • Page 13: Handle Adjustments

    Handle Adjustments Step on handle release pedal to change handle position. Move vacuum to upright position for storage and tool use. Move vacuum to middle position for normal use. Use low position for cleaning under furniture. - 24 -...

  • Page 14: Using Tools

    Using Tools ALWAYS place Carpet-Bare Floor selector in Bare Floor (tools) position when using tools. Remove wand from short hose by twisting and pulling up. The tools can be attached to hose, Dusting Brush wand(s) or crevice tool. Brosse à Crevice épousseter Tool...

  • Page 15: Routine Care Of Cleaner

    ROUTINE CARE OF CLEANER Performing the following tasks will keep your new Panasonic vacuum cleaner operating at peak performance levels and will ensure these high levels for years to come. Check the BEFORE REQUESTING SERVICE section in this manual for recommendations on performing some of these tasks to help solve various problems that may occur.

  • Page 16: Replacing Hepa Exhaust Filter

    Replacing HEPA Exhaust Filter The HEPA exhaust filter removes dirt Exhaust from recirculated air. Filter Filtre Check filter after emptying dust bin. d’évacuation Filtro de Pull Here Replace when dirty. salida Tirer ici Jale aqui To remove, pull out on both sides of the exhaust filter cover.

  • Page 17: Dust Bin Cleaning

    Dust Bin Cleaning 1) Remove dust bin assembly from Release cleaner by lifting the release lever as Lever shown. Levier de dégagement Manija de liberacion 2) Remove dust bin from cleaner by tilting out as shown. 3) Rotate lid counter-clockwise from the locked position to the unlocked Couvercle position as shown.

  • Page 18: Filter Removal And Cleaning

    Filter Removal and Cleaning Check primary filter frequently and Primary Filter Filtre primaire clean when dirty. Filtro primario Remove the dust bin assembly as outlined in the DUST BIN CLEANING section and empty contents of dust bin. Make sure dust bin is empty before Filter Screen Couvercle filter is removed.

  • Page 19: Filter Replacement

    Filter Replacement Before replacing the filter it is a good Primary Filter idea to clean the inside of the dust bin Filtre primaire and lid area. Filtro primario Rotate filter clockwise until slots lock onto tabs in lid. Note: Under normal use and care, your filter can be expected to last up to 5 years.

  • Page 20: Cleaning Agitator

    Cleaning Agitator Clean agitator after every five uses Selector should be placed in BARE FLOOR (TOOLS) position. Turn vacuum over. Cut off any carpet pile and lint entangled around agitator with a pair of scissors through the slots provided. Removing and Installing Lower Plate WARNING Electrical Shock or Personal Injury Hazard.

  • Page 21: Replacing Belt

    Remove lower plate and agitator. Carpet/Bare Floor Selector Shaft Sélecteur tapis/plancher Remove worn or broken belt. Selector alfombra-piso Loop new belt (Panasonic Type UB8 only) around motor shaft and pulley as shown. Reinstall agitator back into nozzle Motor Shaft housing grooves.

  • Page 22: Cleaning Exterior

    Cleaning Exterior Unplug cord from wall outlet. Clean exterior using a clean, soft cloth that has been dipped in a solution of mild liquid detergent and water and wrung dry. DO NOT drip water on cleaner and wipe dry after cleaning. DO NOT clean tools in dishwasher or clothes washer.

  • Page 23: Before Requesting Service

    BEFORE REQUESTING SERVICE WARNING Electric Shock or Personal Injury Hazard. Disconnect the electrical supply before servicing or cleaning the unit. Failure to do so could result in electric shock or personal injury from cleaner suddenly starting. Review this chart to find do-it-yourself solutions for minor performance problems.

  • Page 24: Warranty

    Servicenter Directory. Or call, toll free, 1-800-211-PANA (7262) to locate a PASC Authorized Servicenter. Carry-in or mail-in service in Puerto Rico can be obtained during the warranty period by calling the local Panasonic Sales Company telephone number listed in the Servicenter Directory.
  • Page 25 5770 Ambler Drive, Mississauga, Ontario L4W 2T3 PANASONIC PRODUCT - LIMITED WARRANTY Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase.
